North America standing seam self lock metal roofing clip panel roll forming machine
North America standing seam self lock metal roofing clip panel roll forming machine is a popular machine that makes metal roof. Standing seam metal roofing is made up of vertical panels with two seams per panel that stand us vertically. In some areas, standing seam metal roofing are of great demand. Its unique standing-lock design makes it one the most durable and maintenance-free type of any metal roof. Standing seam roofing is one of the most popular, versatile and durable roofing types currently.This type of locking system gives no vision of fasteners so that the finished roofing looks smooth,light but durable. The common materials for making standing seam roofing are colored steel and Aluminum of 0.4-0.6mm thickness . However, in some cases the thickness will go up to 1.2mm.
Product Description

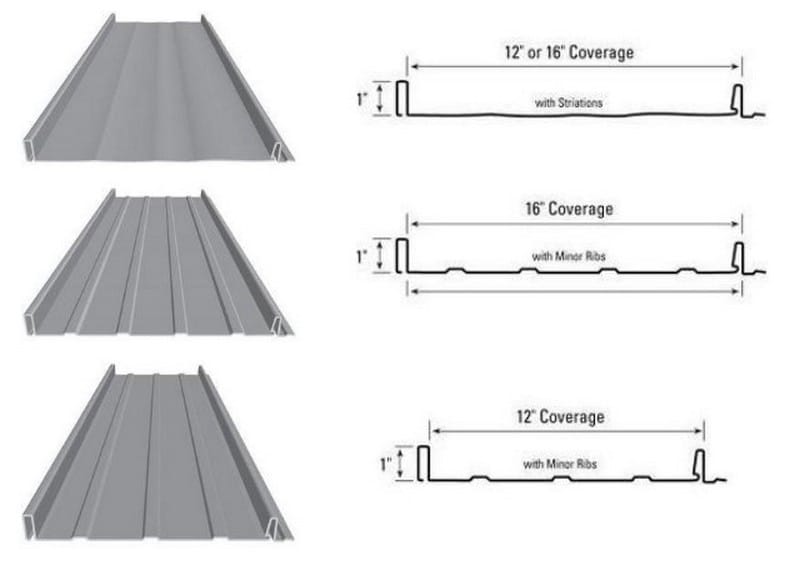

Popular drawings of self lock roof panel:
Specifications of North America standing seam self lock metal roofing clip panel roll forming machine:
1 | Machine name | North America standing seam self lock metal roofing clip panel roll forming machine |
2 | Dimension | 8000*1200*1600mm |
3 | Weight | 8T |
4 | Total power | 11KW |
6 | Voltage | 380V/50HZ/3PH |
7 | Material | GI,GL,PPGI,PPGL |
8 | Forming speed | 15m/min |
9 | Material thickness | 0.3-0.8mm |
10 | Tolerance | ±1mm |

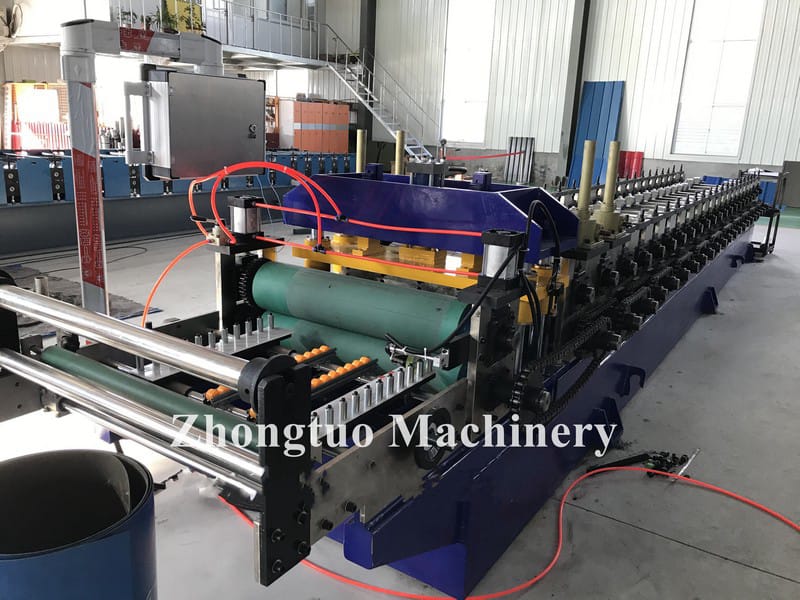

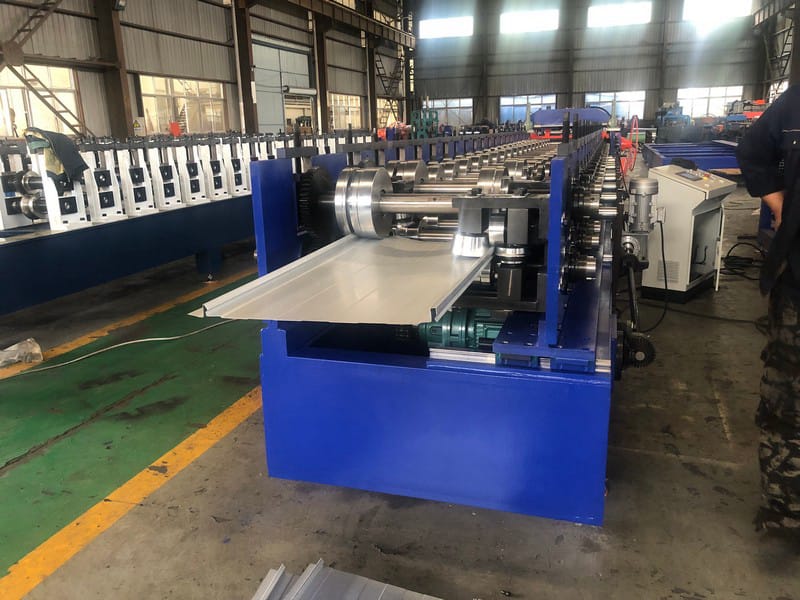

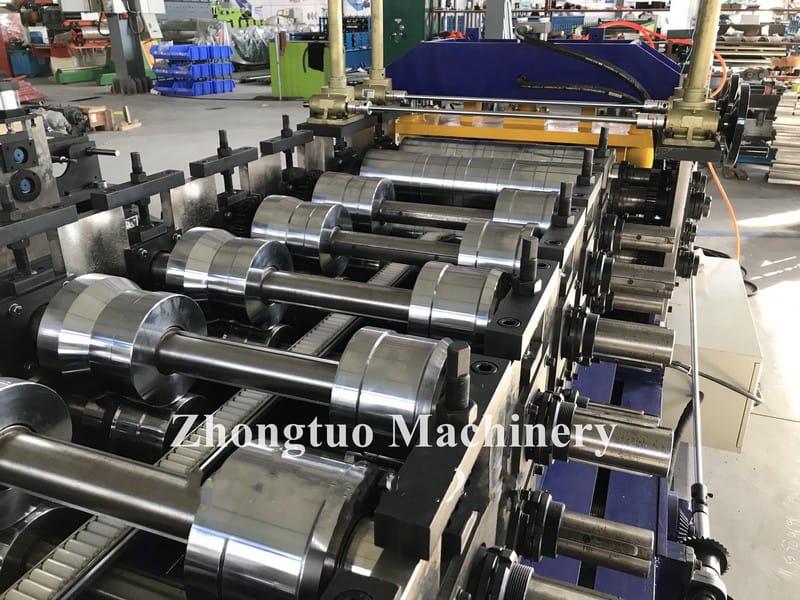

Main pictures of North America standing seam self lock metal roofing clip panel roll forming machine:

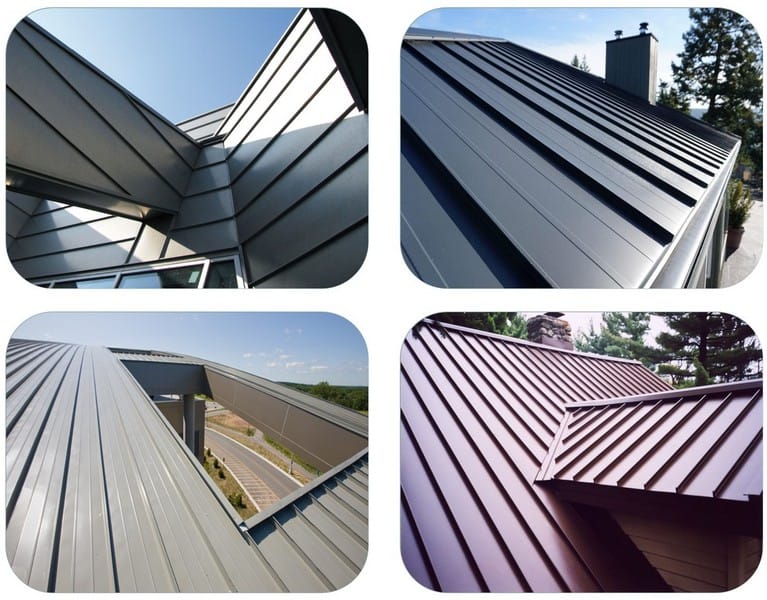

Products of North America standing seam self lock metal roofing clip panel roll forming machine:
Here is the standing seam machine working video for your reference:
