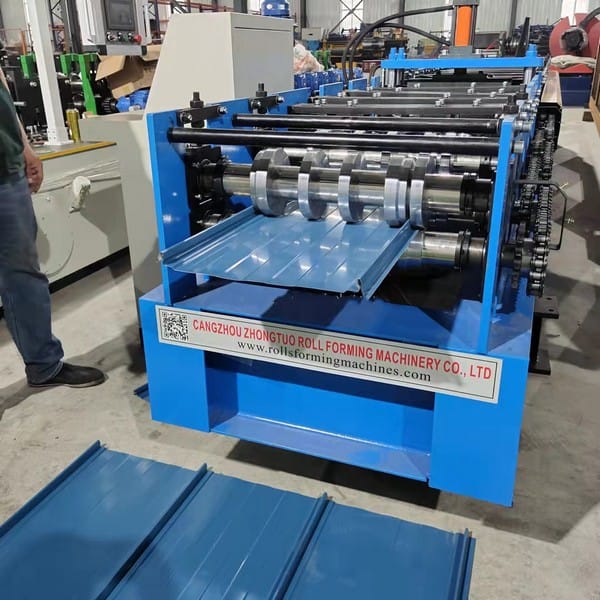

Self-lock standing seam metal roof machine for roof
Advantages of the profile:No need seaming machine,it is self-locked type,very easy to install.
The self-lock standing seam roof roll forming machine is used to make unexposed screw roof sheet.

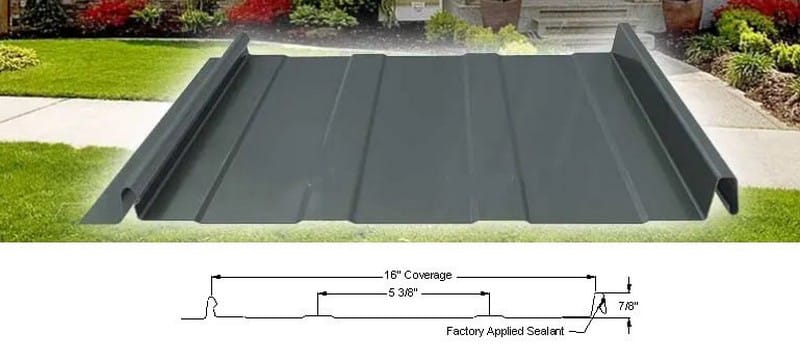

Firstly, the standing seam roof panels have a concealed fixing or seaming method by turning up the edges of two adjacent panels, and then folding or interlocking them. In this way, the seaming or fixing parts are invisible, and therefore sometimes we called the panels concealed fixing panels!
Self-lock standing seam metal roof machine for roof | ||
1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm Width:as per profile drawing |

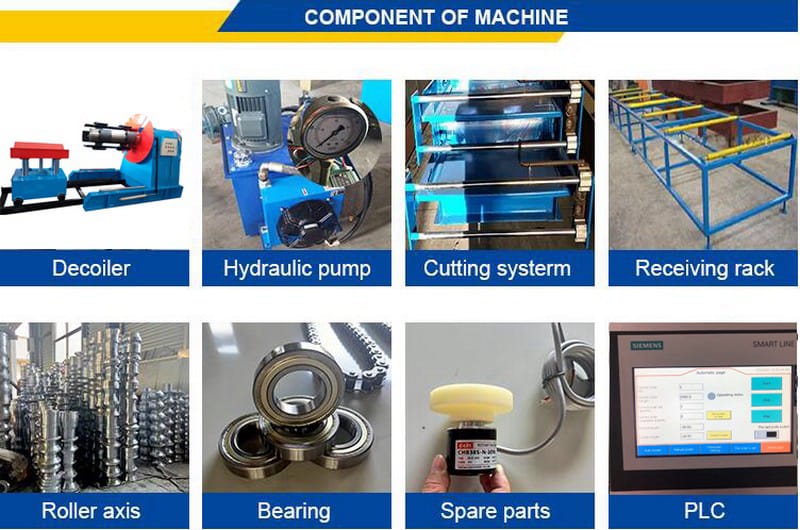

2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） |
3.Main body | Roller station | 18 rows(As your requirement) |
Diameter of shaft | 70mm solid shaft | |
Material of rollers | 45# steel, hard chrome plated on the surface | |
Machine body frame | 350 H steel | |
Drive | Chain transmission | |
Dimension(L*W*H) | 5800*900*1200(customize) | |
Weight | 3.1T | |
4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
5.Power | Motor Power | 5.5KW |
Hydraulic system power | 4KW | |
6.Voltage | 380V 50Hz 3Phase | As your requirement |
7.Control system | Electric Box | Customized(famous brand) |
Language | English(Support multiple languages) | |
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
18.Forming Speed | 15-20m/min | The speed depends on the cutting length |

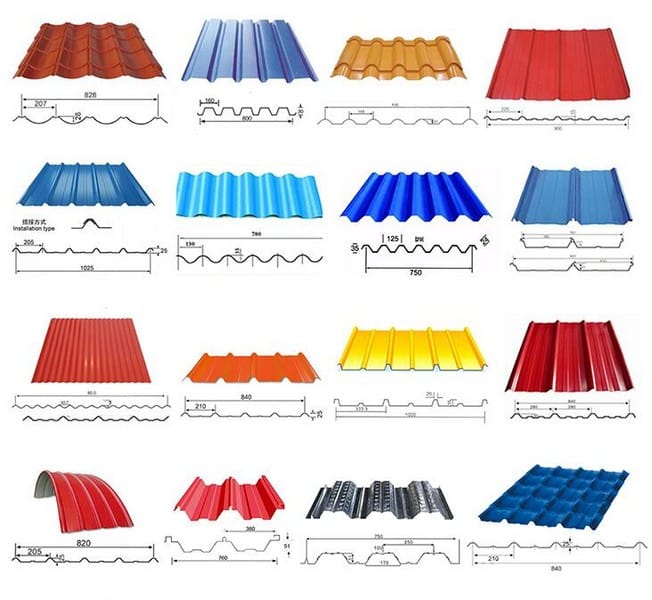

Products Display

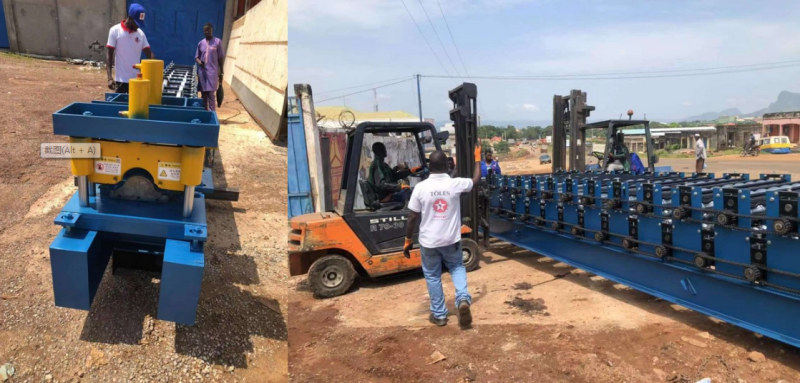

Customer Unloading Photos
Customer good feedback of our machines:
