C10 C21 Long span Color Steel roof panel roof tile making machine roll forming machine
C10 C21 Long span Color Steel roof panel roof tile making machine roll forming machine for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
C10 C21 Long span Color Steel roof panel roof tile making machine roll forming machine | ||

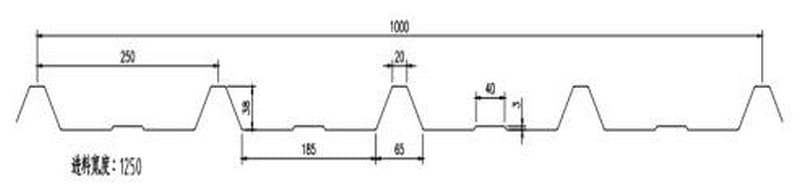

1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm Width:1000mm/1250mm(customized) |

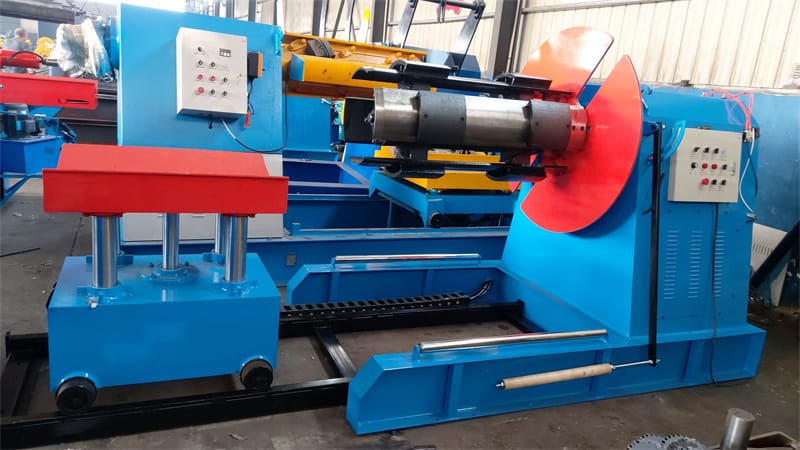

2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） |

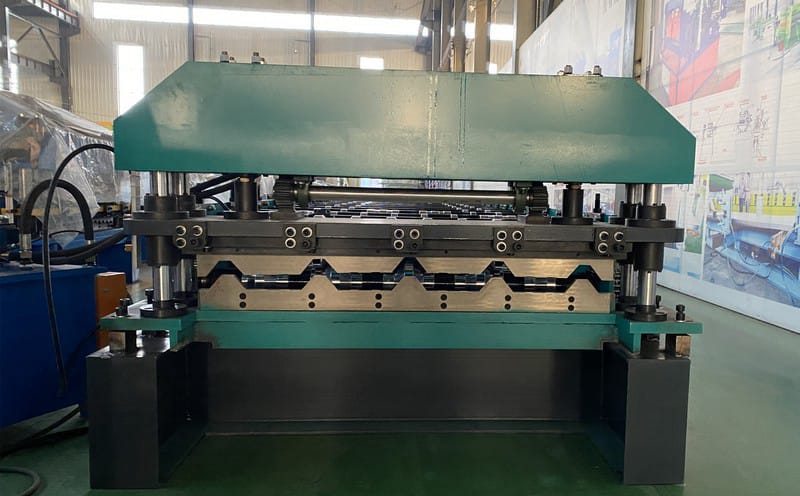

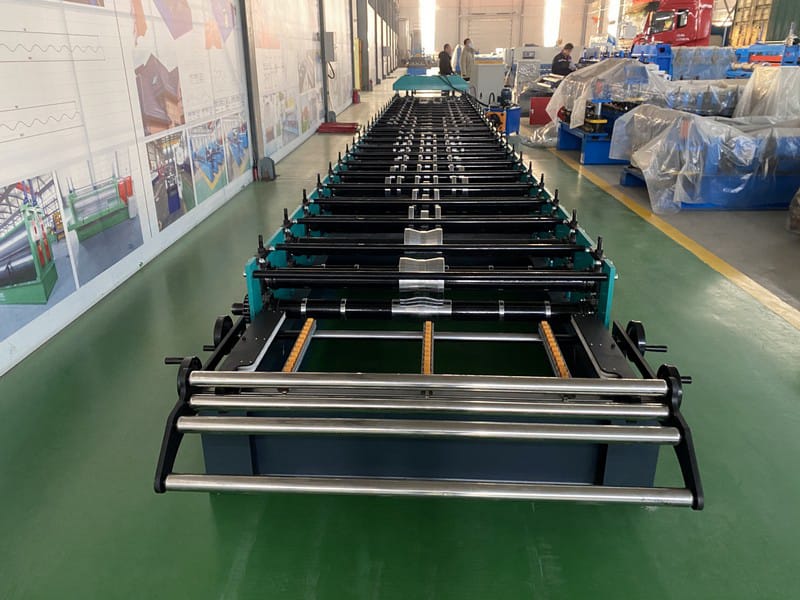

3.Main body | Roller station | 18 rows(As your requirement) |
Diameter of shaft | 80mm solid shaft | |
Material of rollers | 45# steel, hard chrome plated on the surface | |
Machine body frame | 350 H steel | |
Drive | Chain transmission | |
Dimension(L*W*H) | 6500*1600*1600(customize) | |
Weight | 6.5T | |
4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
5.Power | Motor Power | 5.5KW |
Hydraulic system power | 5.5KW | |
6.Voltage | 380V 50Hz 3Phase | As your requirement |
7.Control system | Electric Box | Customized(famous brand) |
Language | English(Support multiple languages) | |
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. |
