Colored steel PPGI Roof tile ridge edge roll form machine

NO.4 ROAD, ECONOMIC DEVELOP ZONE, BOTOU CONUTY, CANGZHOU CITY, CHINA

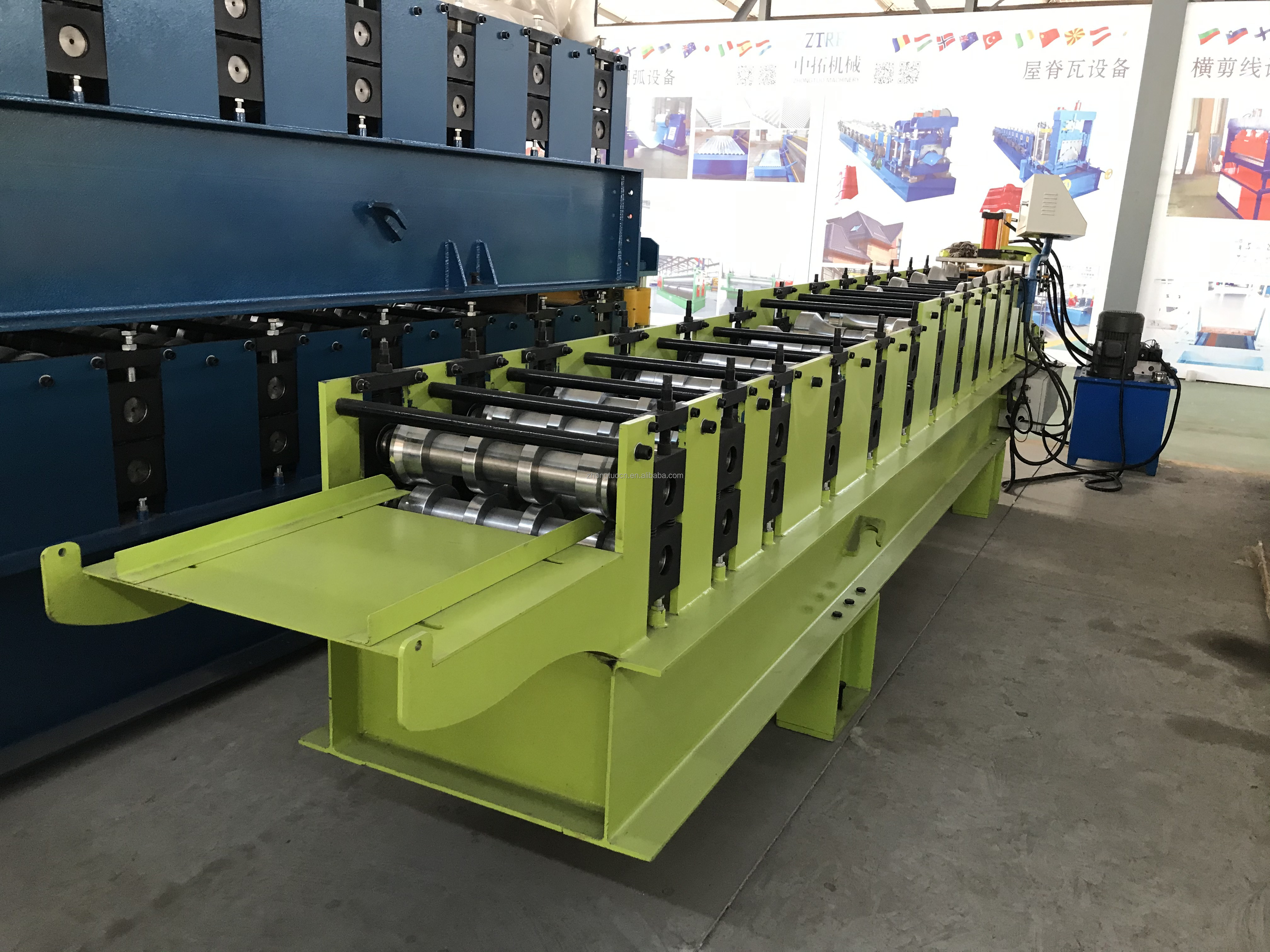

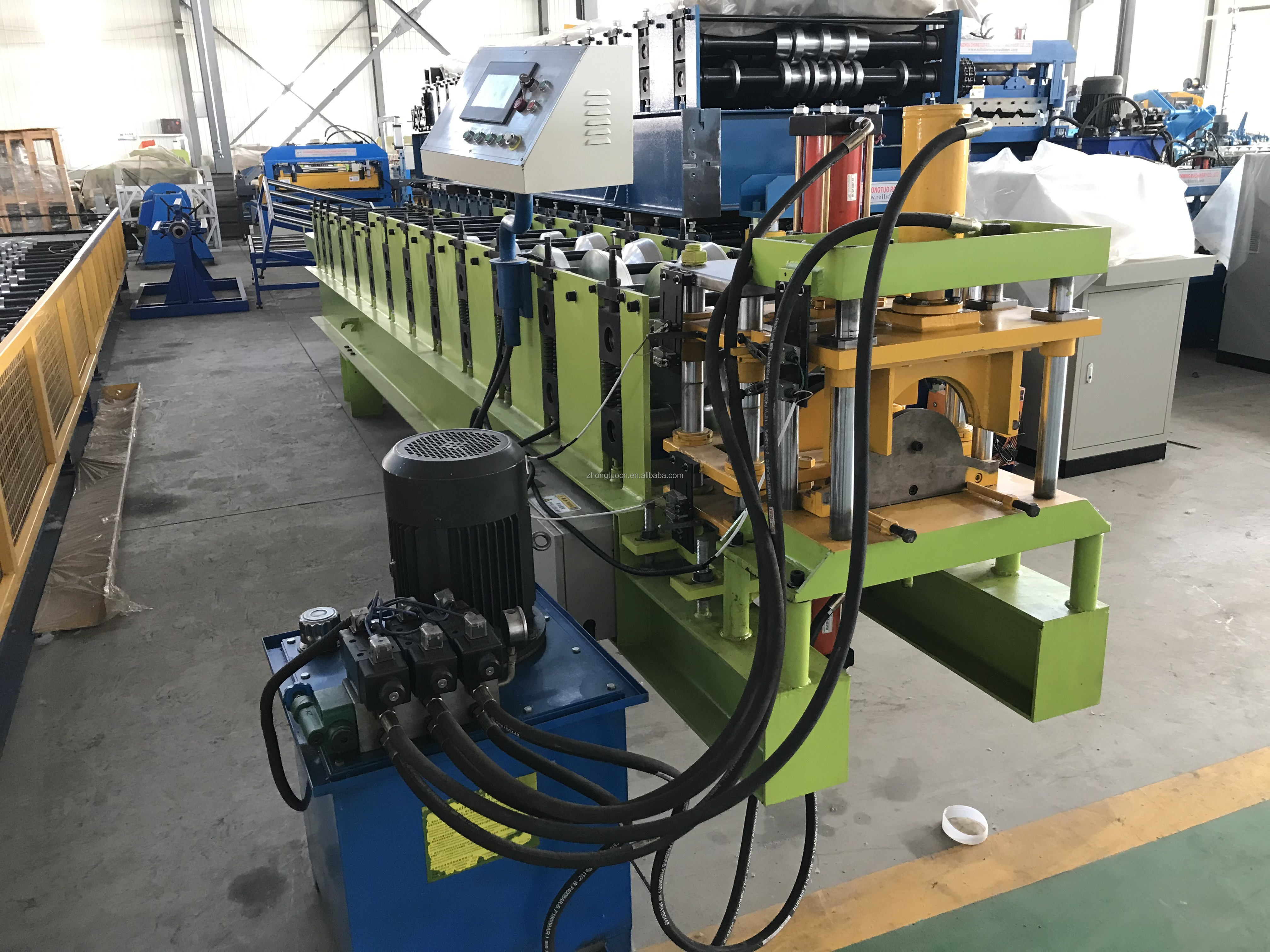

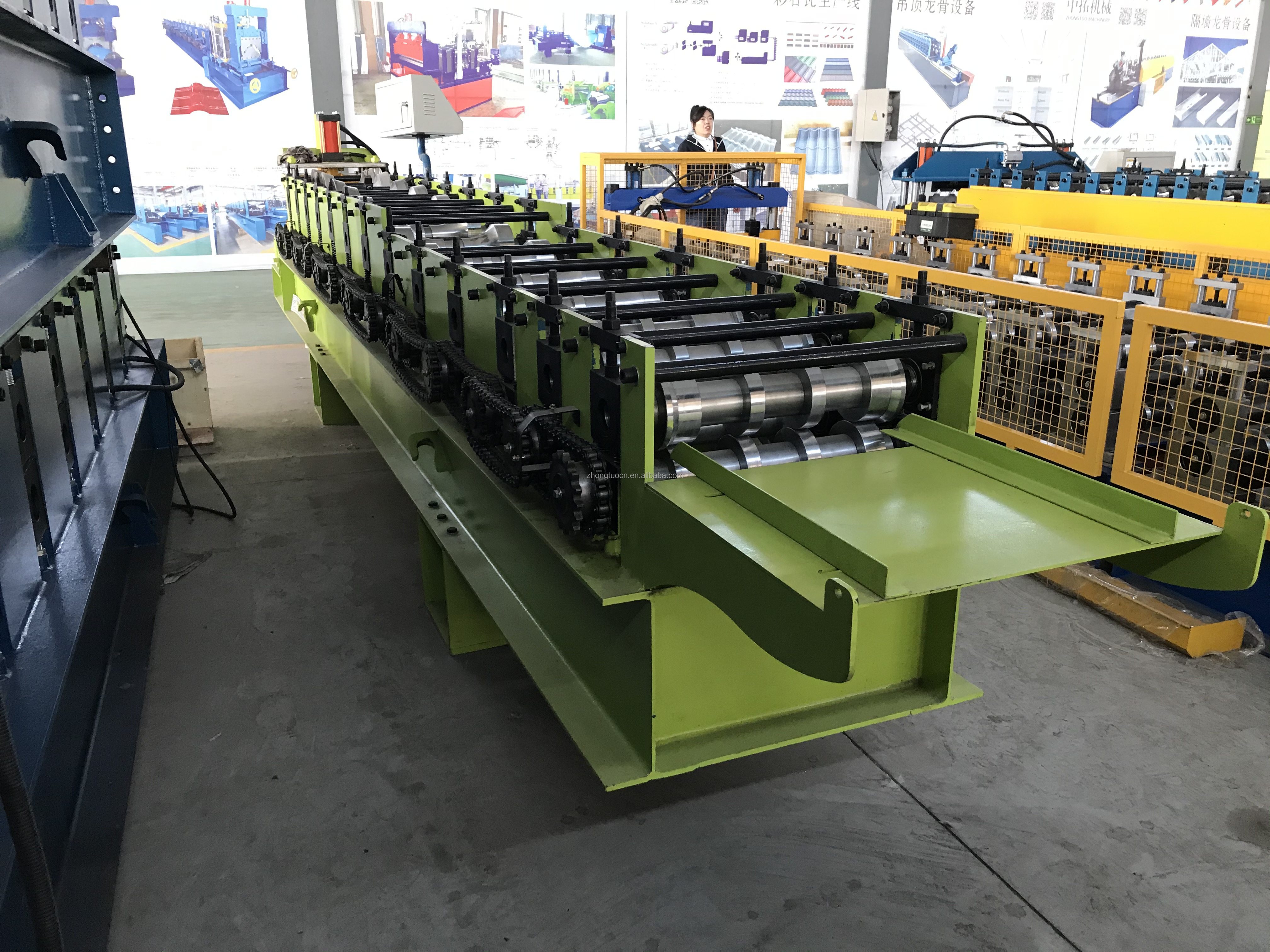

Colored steel PPGI Roof tile ridge edge roll form machine

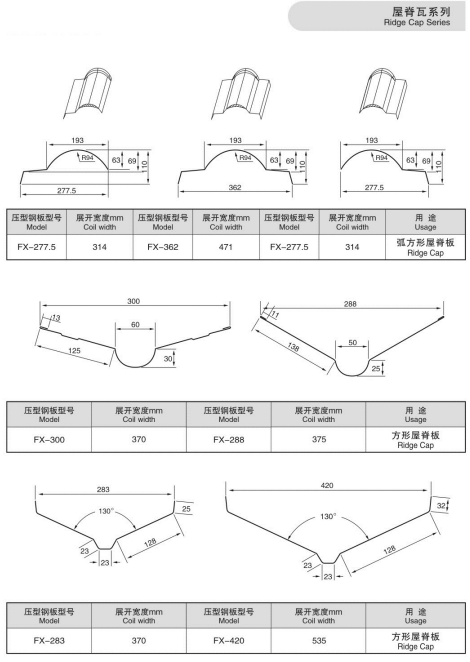

Colored steel PPGI Roof tile ridge edge roll form machine is used to produce the roof ridge cap,the final produce profile and size and be customized as customer's request.

Colored steel PPGI Roof tile ridge edge roll form machine
1.Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free）
3.Main body	Roller station	13 rows(As your requirement)
	Diameter of shaft	70mm solid shaft

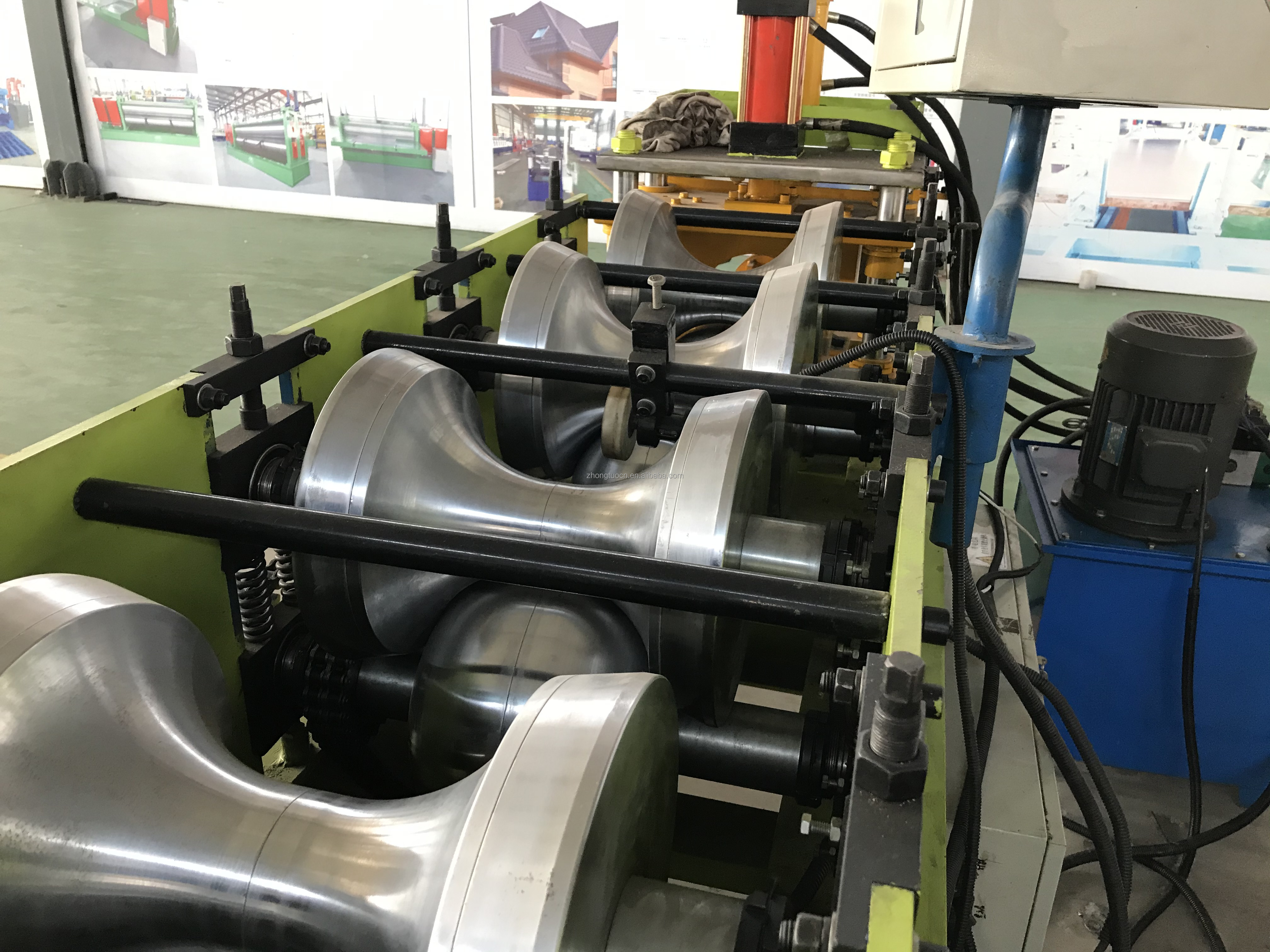

	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	Chain transmission
	Dimension(LWH)	550016001600(customize)
	Weight	2.5T

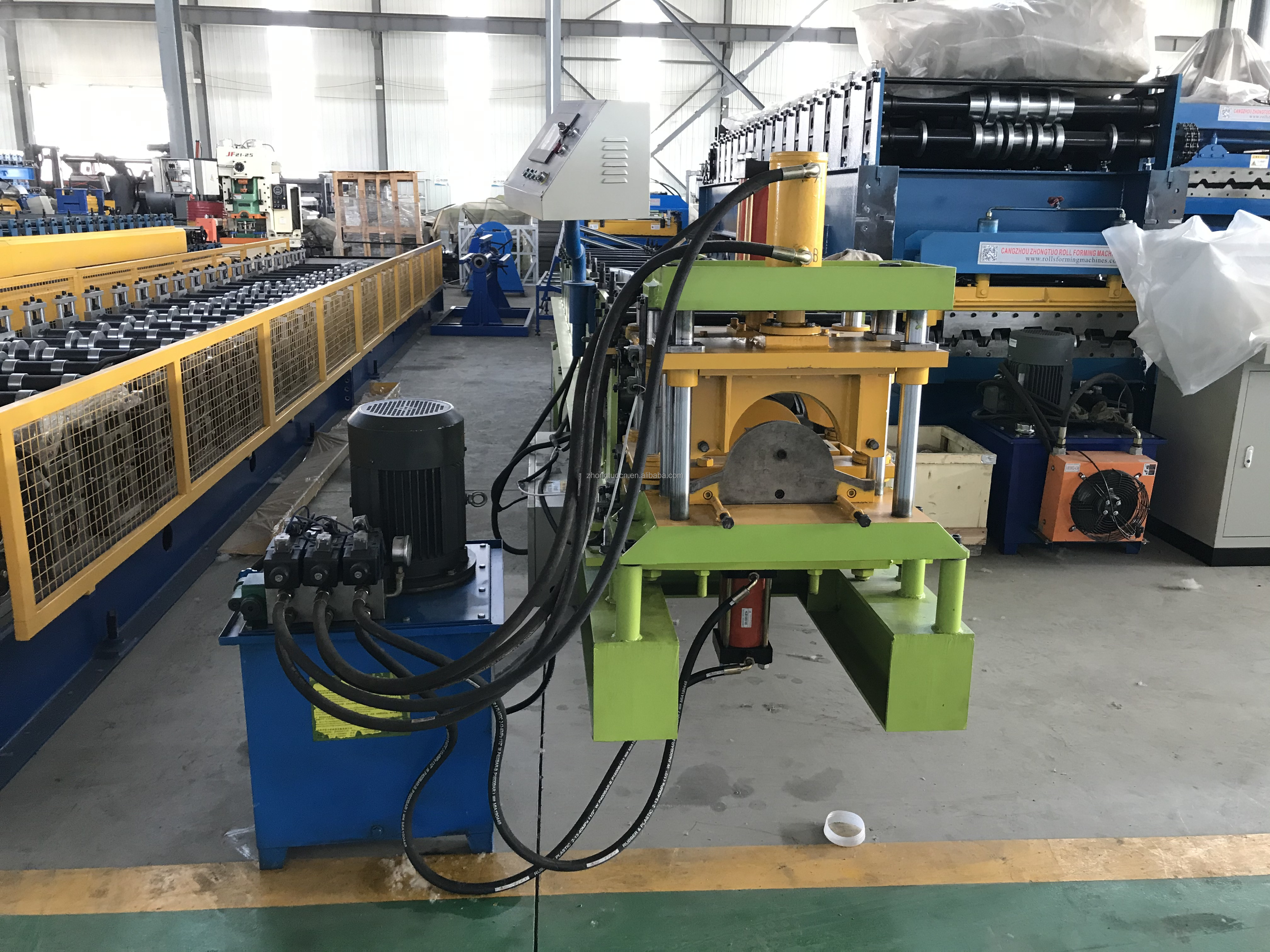

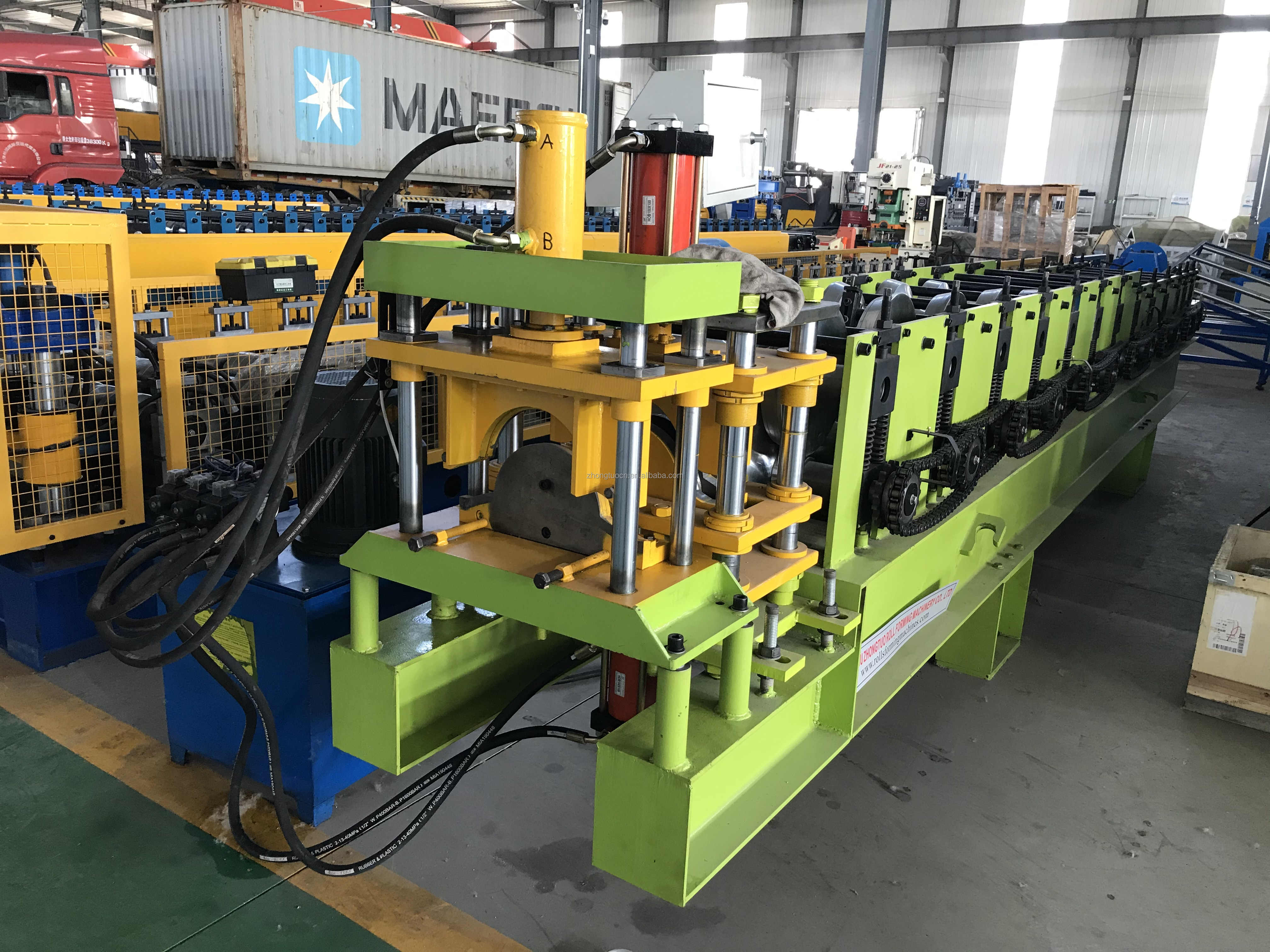

4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	4KW
	Hydraulic system power	3KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	3-5m/min	The speed depends on the final cutting length too
