​Roofing Ridage Edge Trim Roll Forming Machine
NO.4 ROAD, ECONOMIC DEVELOP ZONE, BOTOU CONUTY, CANGZHOU CITY, CHINA

Roofing Ridage Edge Trim Roll Forming Machine

Our profile Roofing edge trim roll forming machine for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
F5 profile Roofing edge trim roll forming machine
1.Formed Material
PPGI,GI,AI
Thickness:0.3-0.8mm

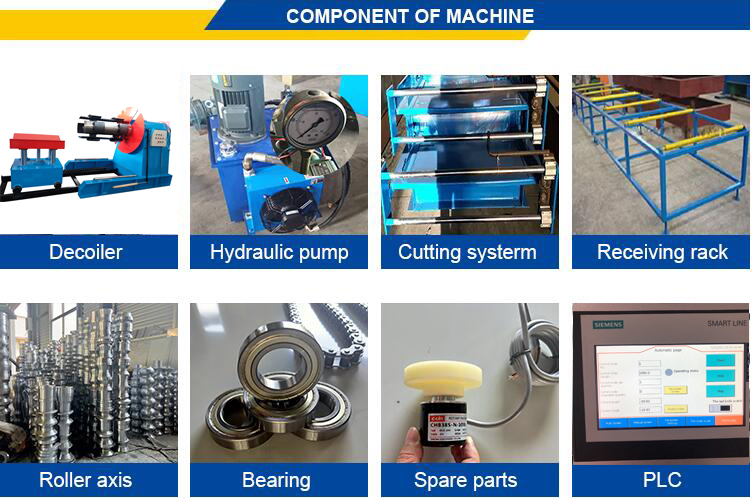

2.Decoiler
Hydraulic automatic decoiler
Manual decoiler(will give you as free）

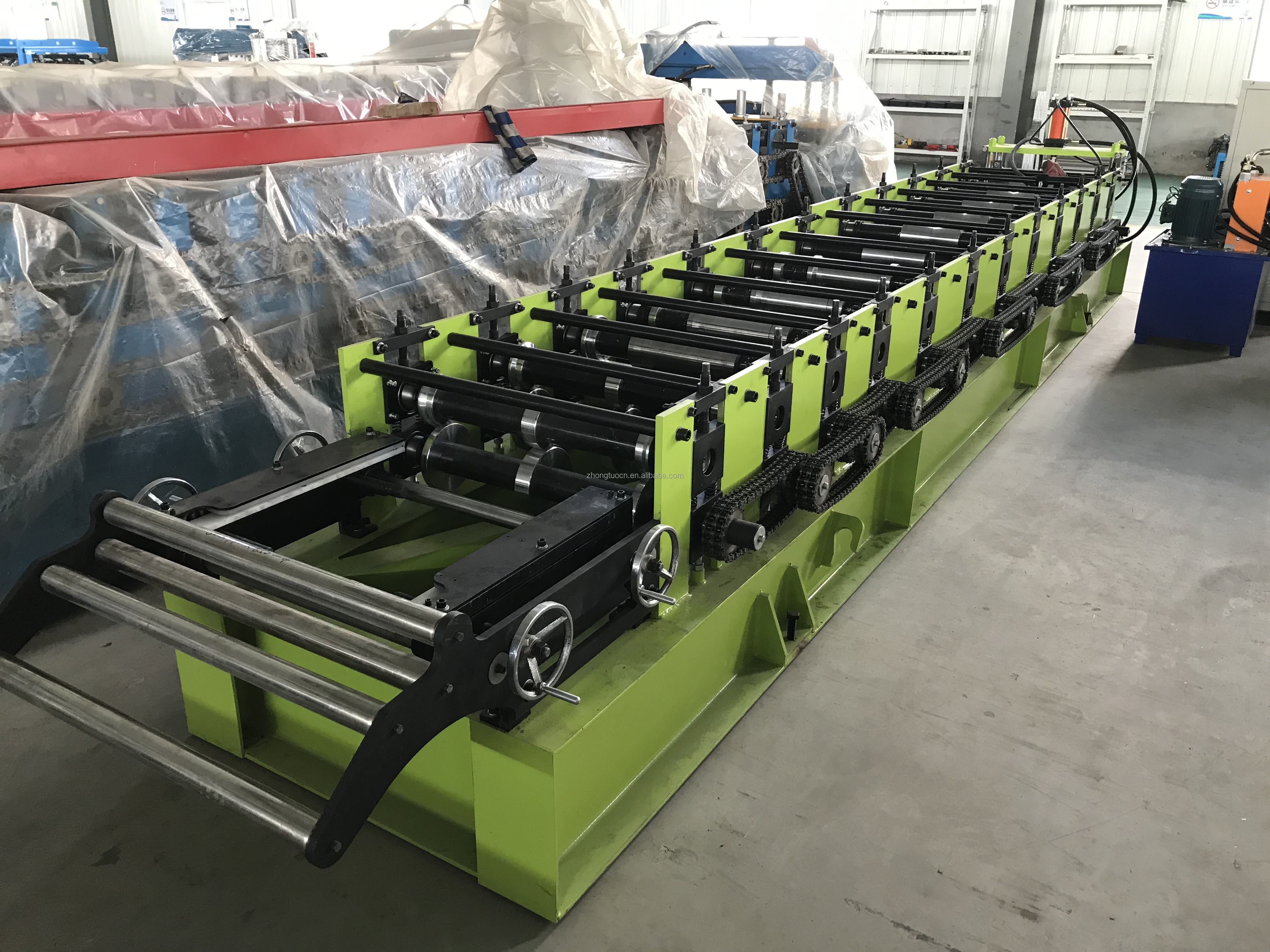

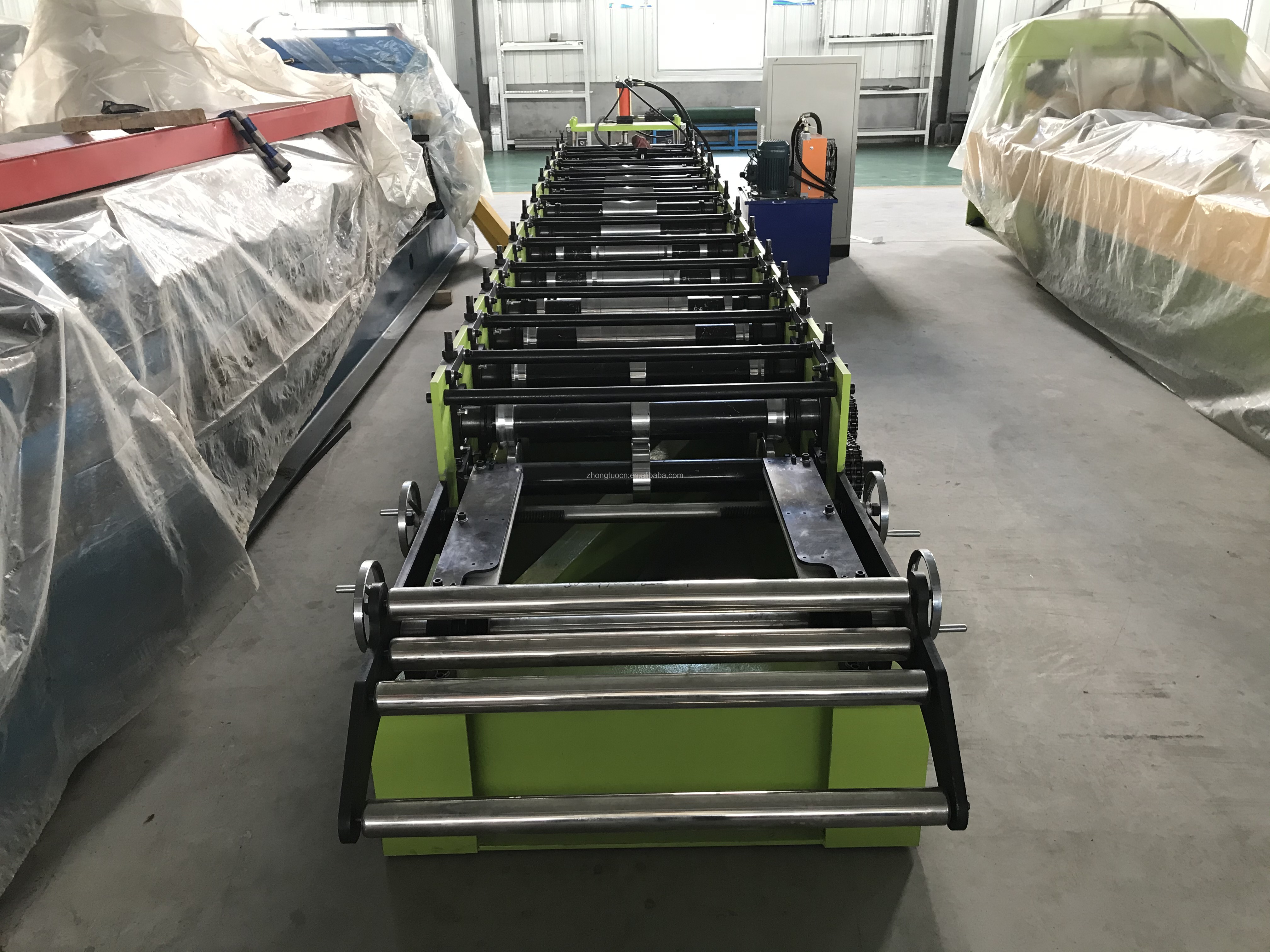

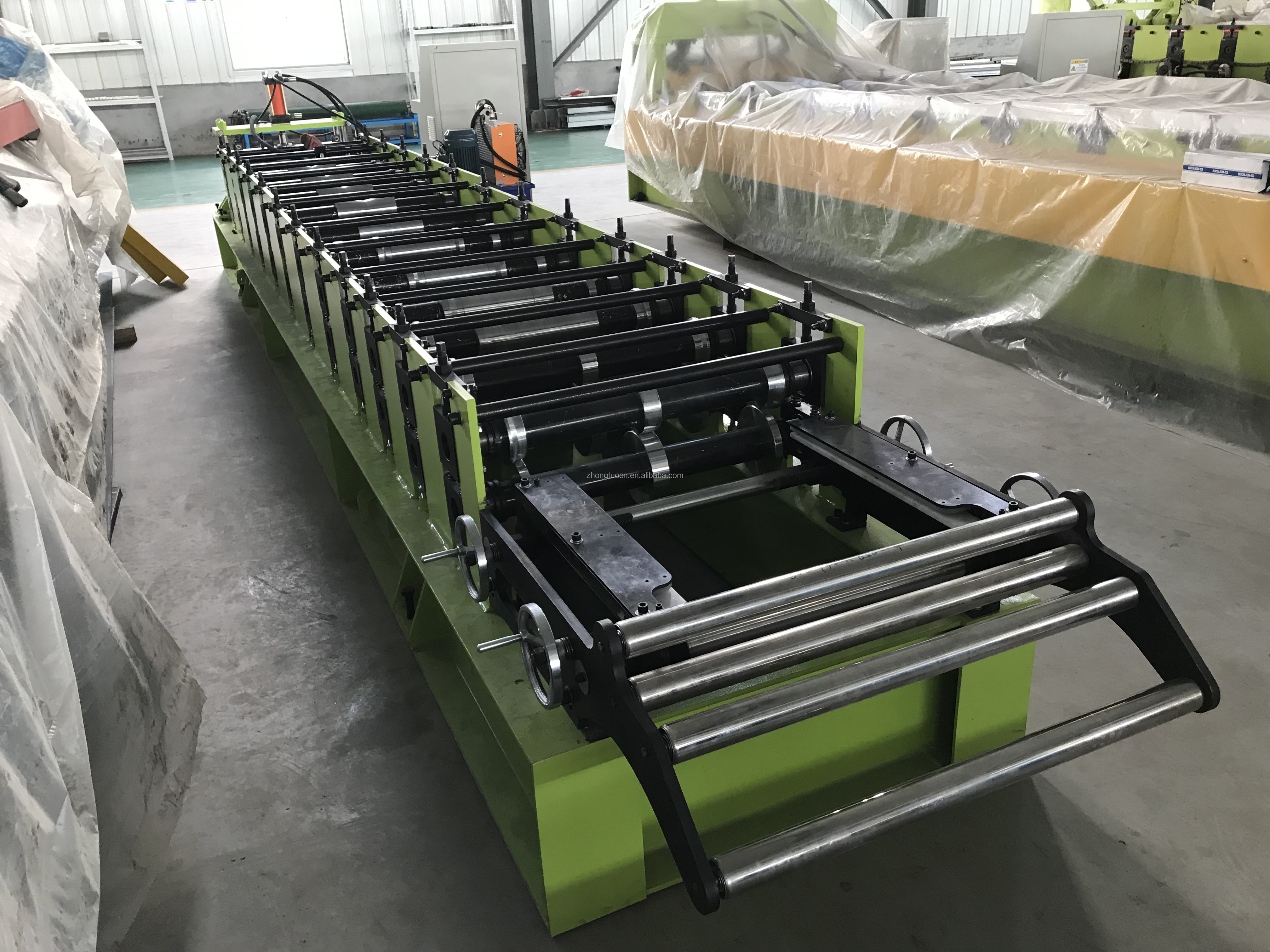

3.Main body

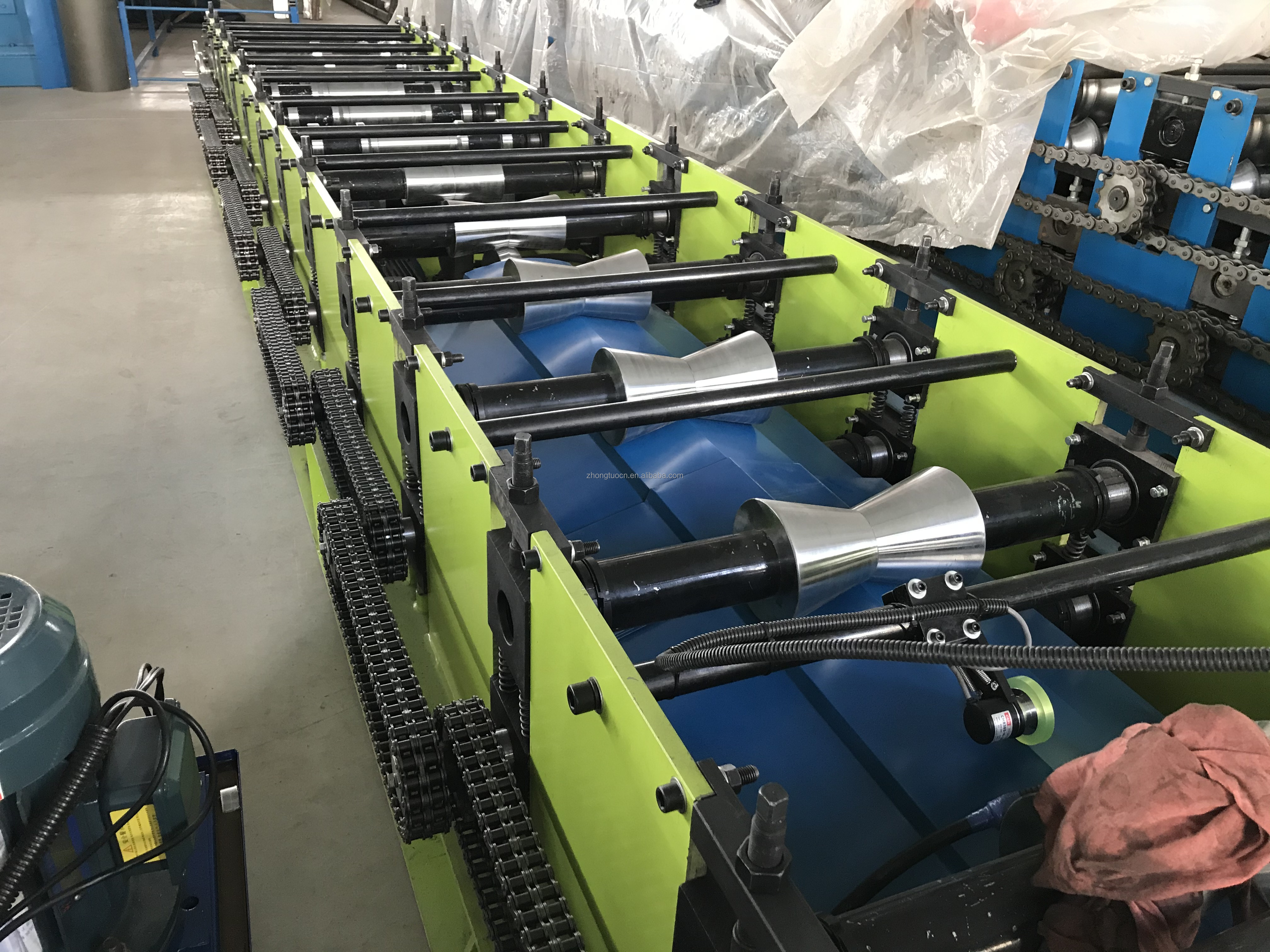

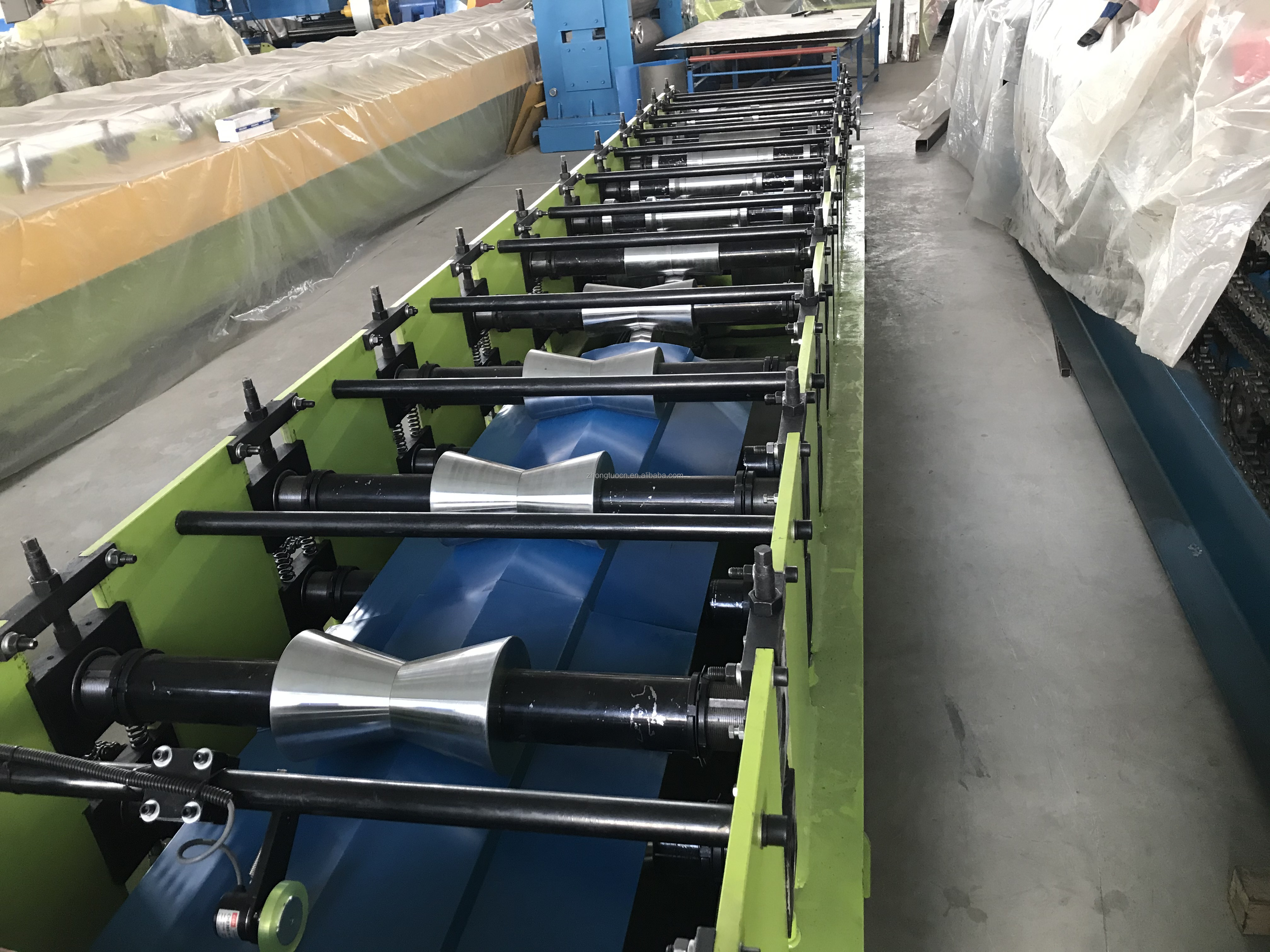

Roller station
13 rows(As your requirement)
 Diameter of shaft
70mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Chain transmission
Dimension(L*W*H)
5500*1600*1600(customize)
Weight
2.5T

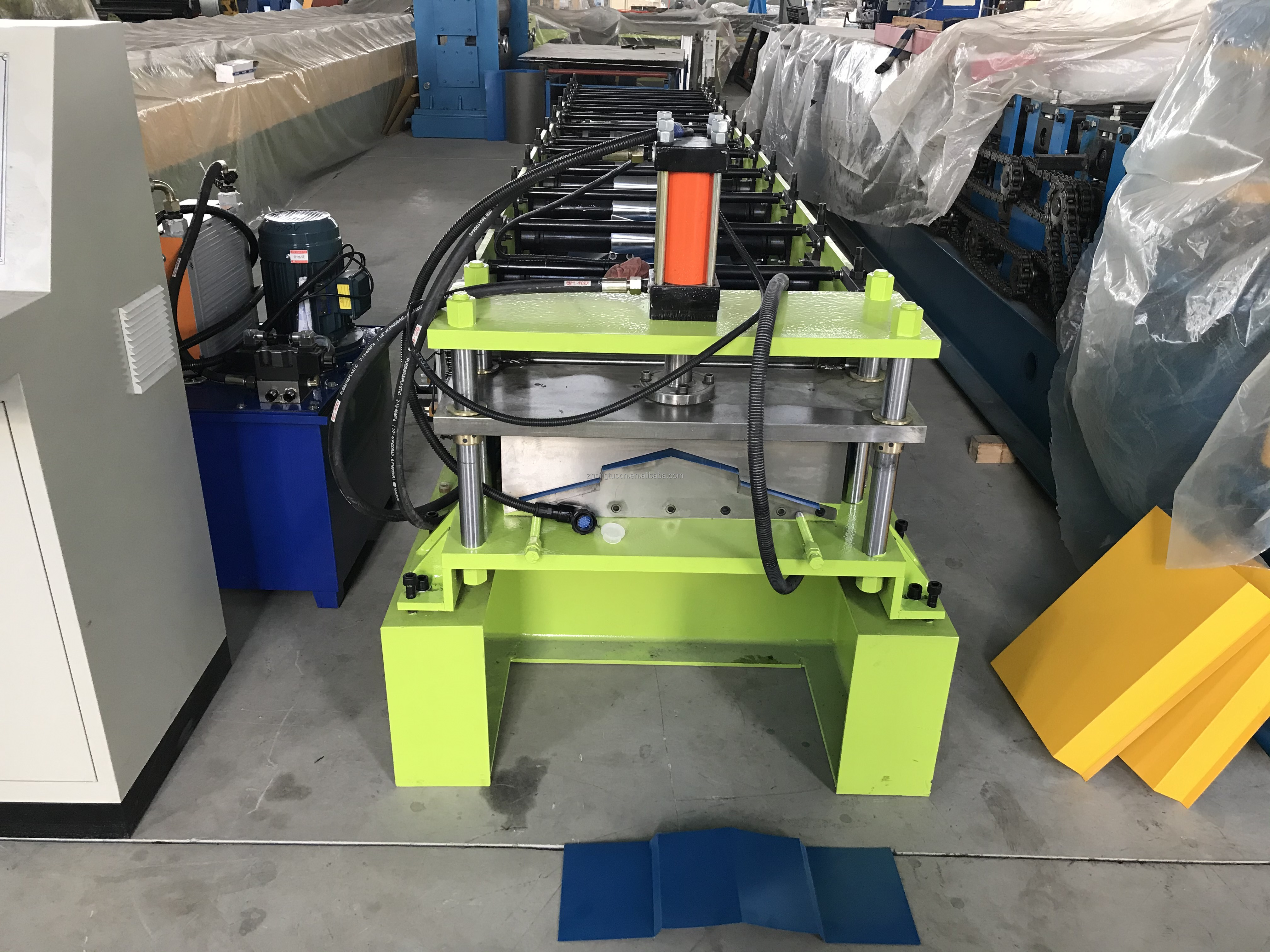

4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
4KW
Hydraulic system power
3KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed
3-5m/min
The speed depends on the final cutting length too
Cooperated brand
Products Display
