Adamante Metal Roofing Tile Making Machine Roll Forming Machine for Azerbaijan

NO.4 ROAD, ECONOMIC DEVELOP ZONE, BOTOU CONUTY, CANGZHOU CITY, CHINA

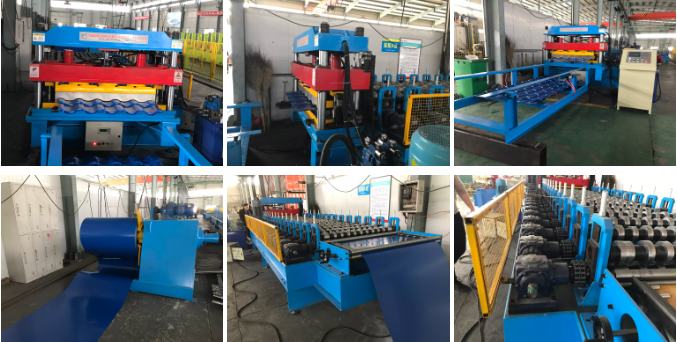

Adamante Metal Roofing Tile Making Machine for Azerbaijan

Adamante tile is very popular in Azerbaijan market.The advantage of our machine:
High speed:8-9m/min
Transmission:By gearbox
Integrated pressing and cutting mold which can improve the speed of the machine .
3D molding cutting type,very beautiful design

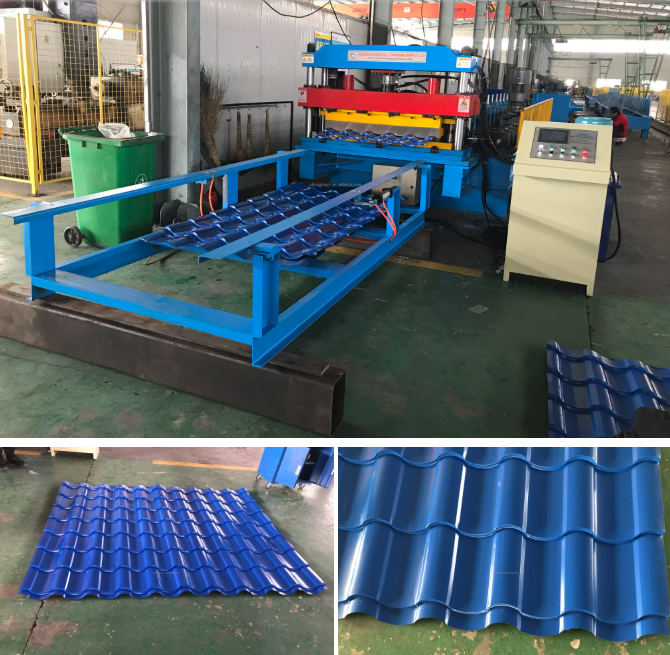

With auto stacker which can receive the tile automatically

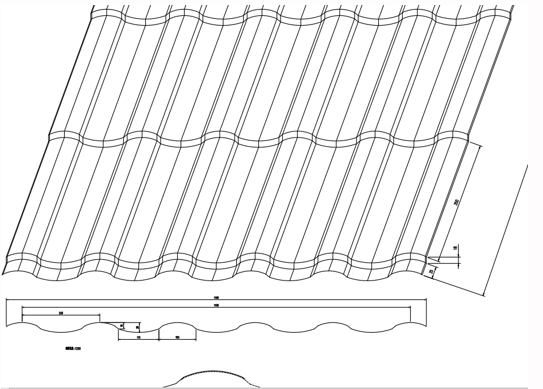

Here is one drawing profile for your reference:

step tile high speed rolling machine

Adamante metal roofing tile making machine roll forming machine for Azerbaijan
1.Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm Coil Width:1250mm
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free）
3.Main body	Roller station	13 rows(As your requirement)
	Diameter of shaft	80mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	Gearbox transmission
	Dimension(LWH)	950016001600(customize)
	Weight	8T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	15KW
	Hydraulic system power	11KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	8-9m/min	High speed to improve the production capacity

Adamante Metal Roofing Tile Making Machine Roll Forming Machine for Azerbaijan working video for your reference:
