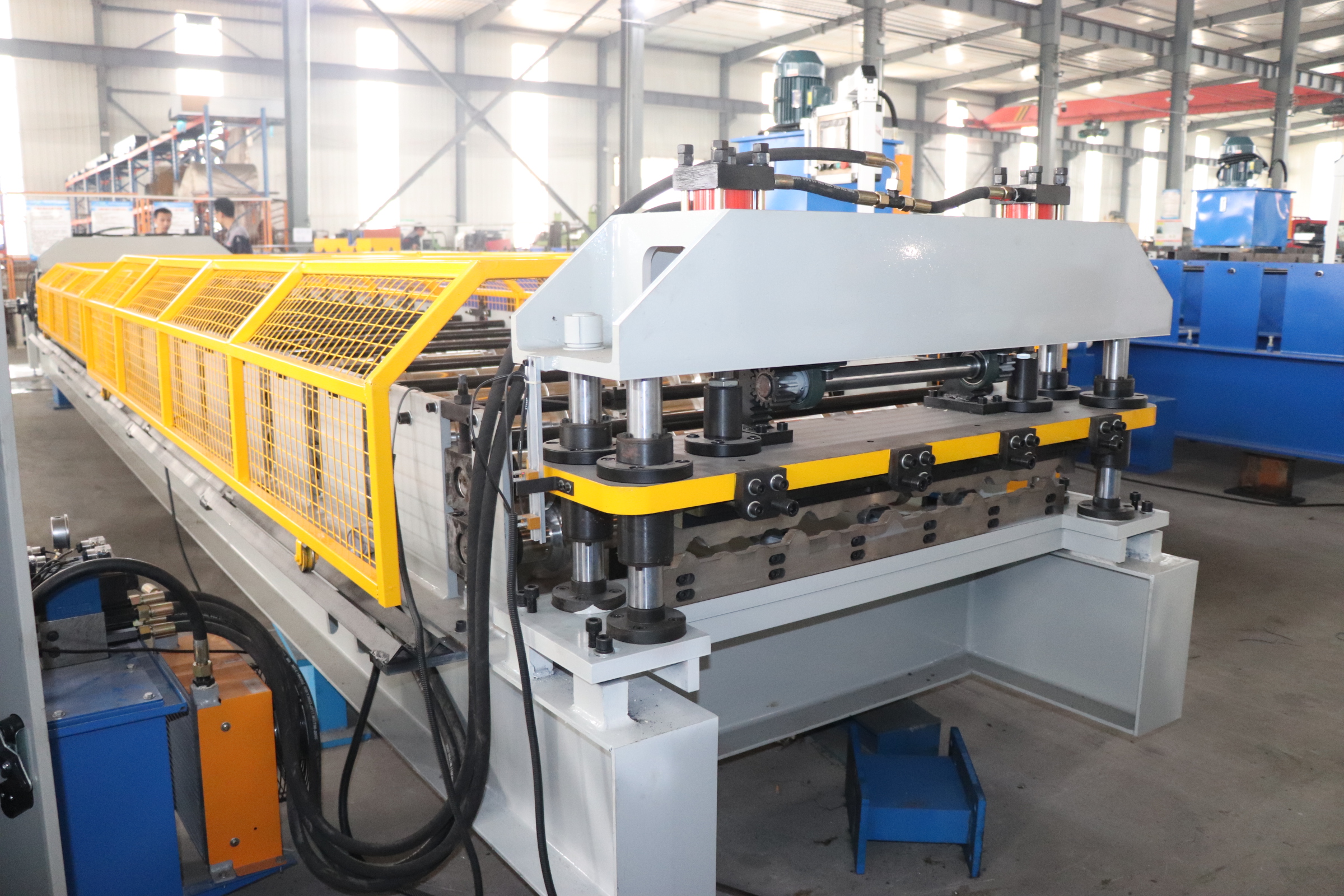

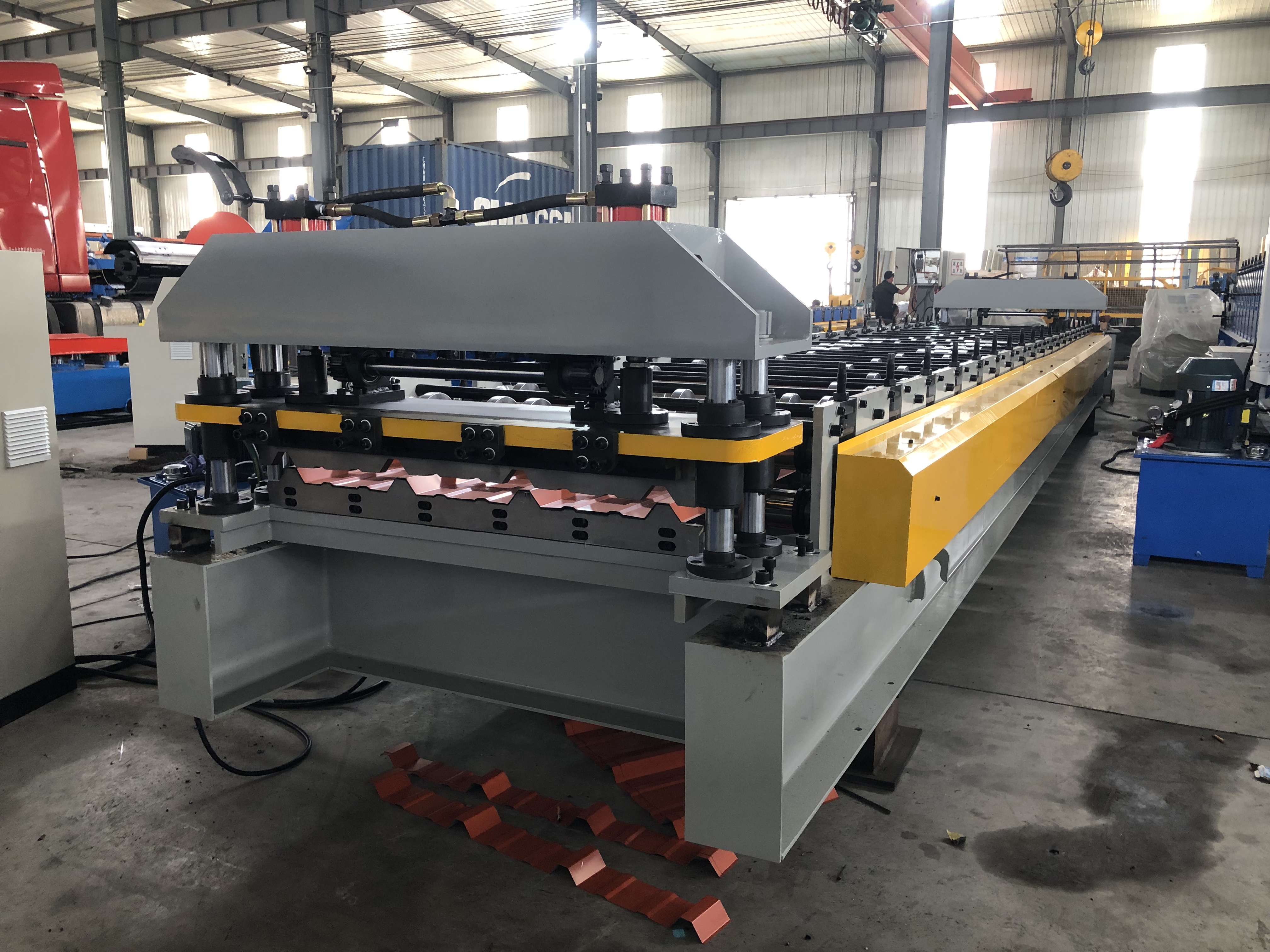

Shocked the U.S. Canada:AG R PBR Panel roofing sheet roll forming machine
AG roofing sheets making machine specializes in the production of AG sheets, which are very popular in the US market. We have a full range of customized systems, with fully automatic and semi-automatic types for you to choose from.
Our Zhongtuo roof tlie making machine has the following advantages:

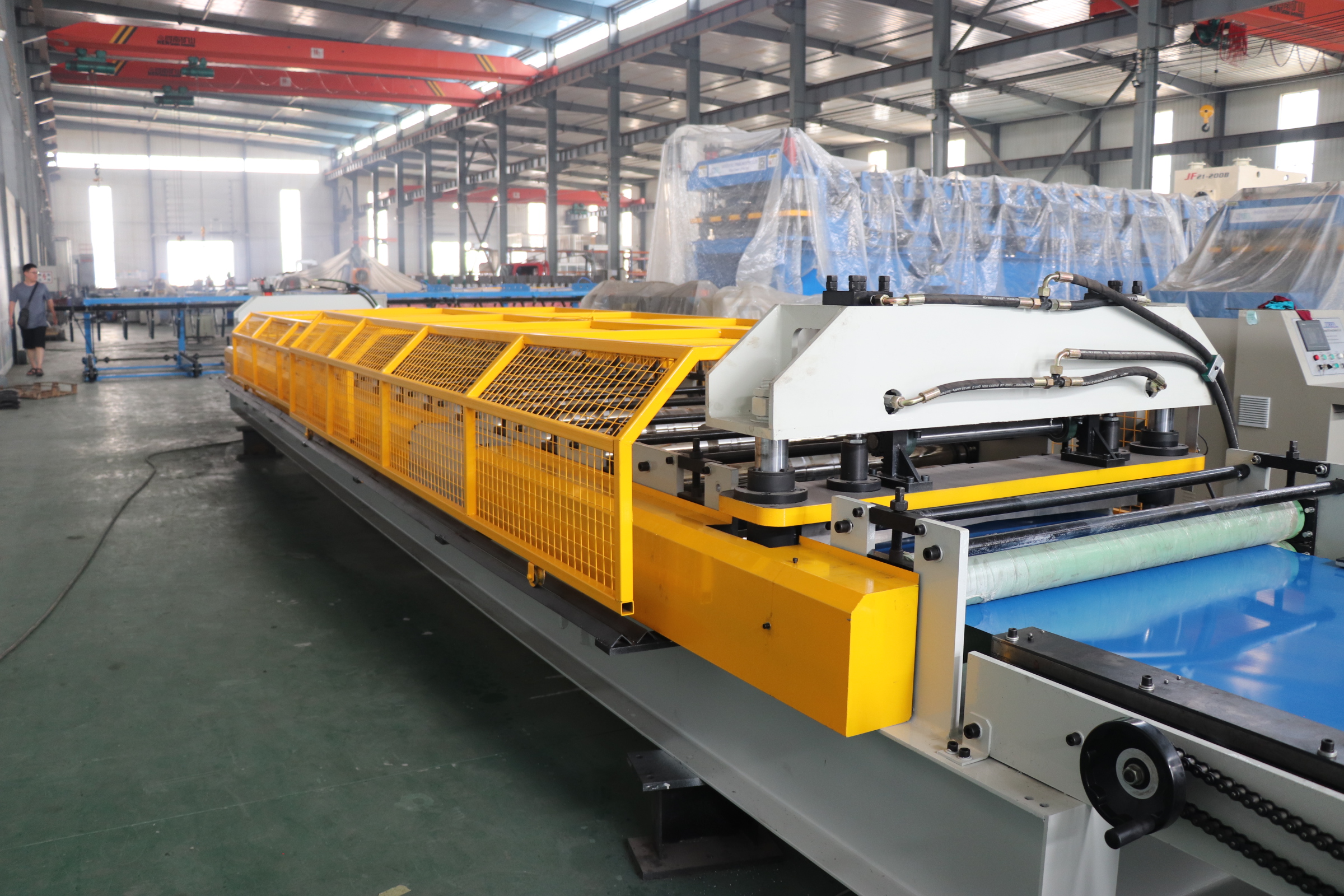

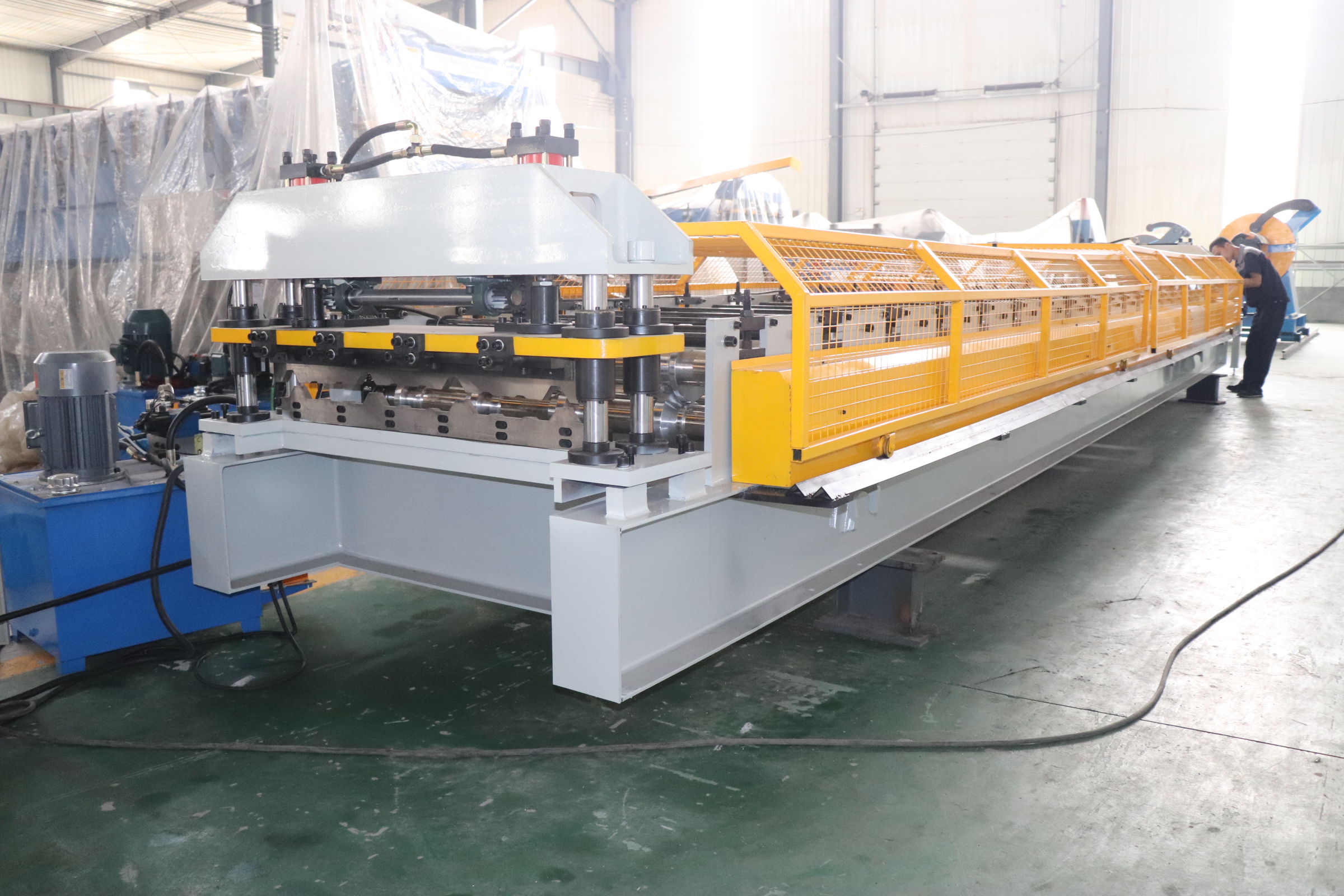

The machine is made of welded structure of 20 mm thick center plate and the base frame is made of 400 H steel, which ensures the stability of the machine
Easy operation and installation: The machine has PLC automatic control system. Length, speed and number of panels can be set on the screen. When you receive the machine, just plug in the aviation plug and the machine is ready to work, making it easy to install even if you don't have a lot of experience.
This is R panel profile drawing:
Customer usually use PPGL or GI as raw material.
Our AG panel / R panel tile machine configuration:
For our machine, have several options for you choose, according to your situation and budget:
1. Pre-cutter
Pre cutter is use for cut off the material in advance if you want to change steel coil, then can save some raw material.
Here our machine have two options, manual cutter and hydraulic type, costs is different.

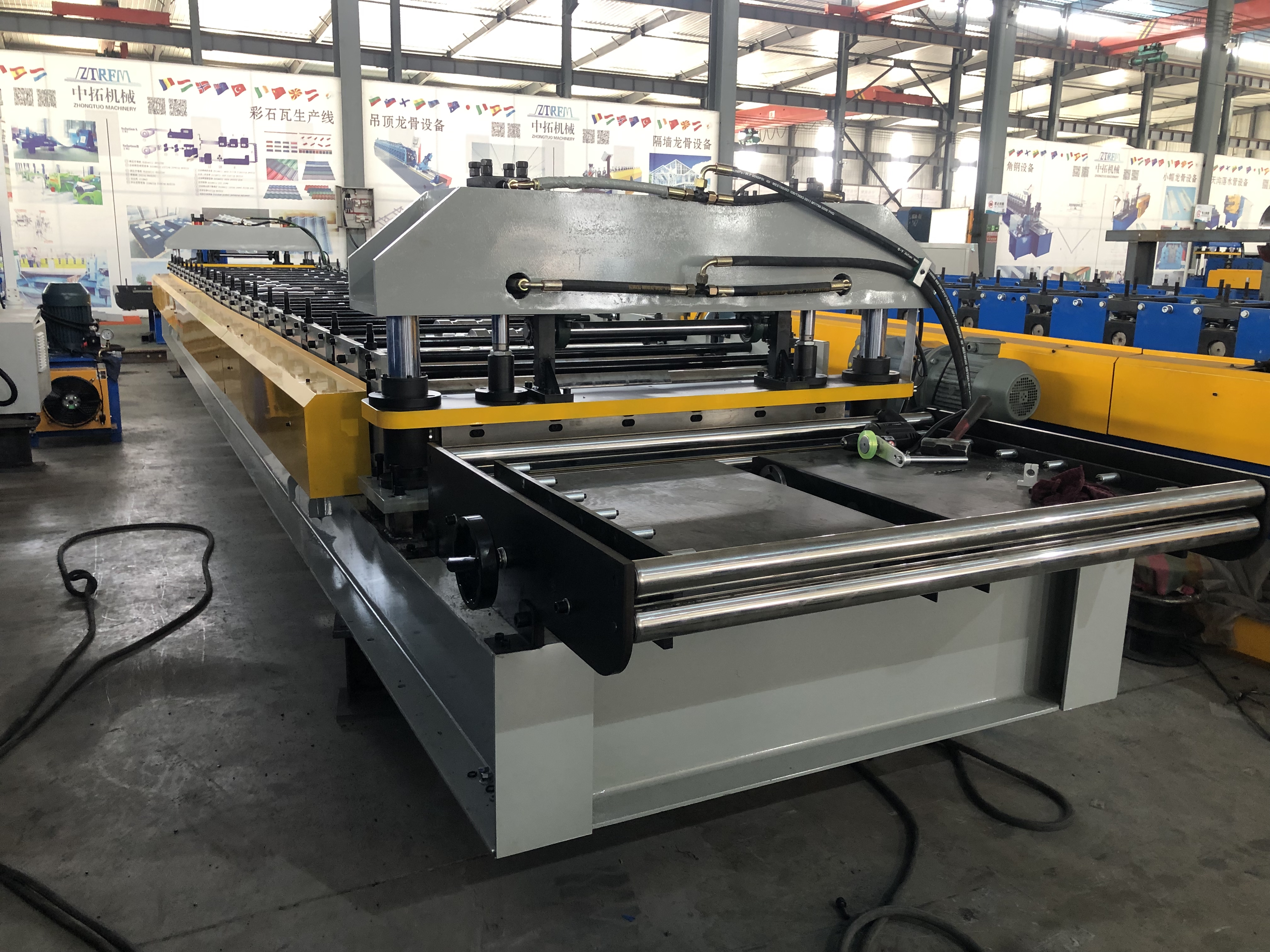

2. Machine cutting system
Our Zhongtuo hydraulic cutting type more powerful, can cutting thicker material no problem. But it moving not fast as electric cutter. And when the temperature goes very high, will come no powerful to cutting.
3.Shaft and Roller:

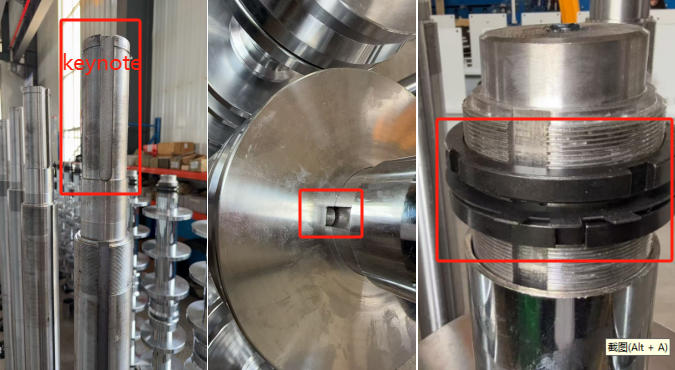

Double locking nut with thrust pad and keynotes to ensure that the roller lock cap does not loosen during equipment operation. The keynotes of the roller and the keynotes of the shaft are tightly matched, and the roller will not slip. Many factories do not have keynotes.
4. The shaft is machined twice by lathe, then by grinder, and finally by milling machine to ensure dimensional precision and roller fit accuracy.

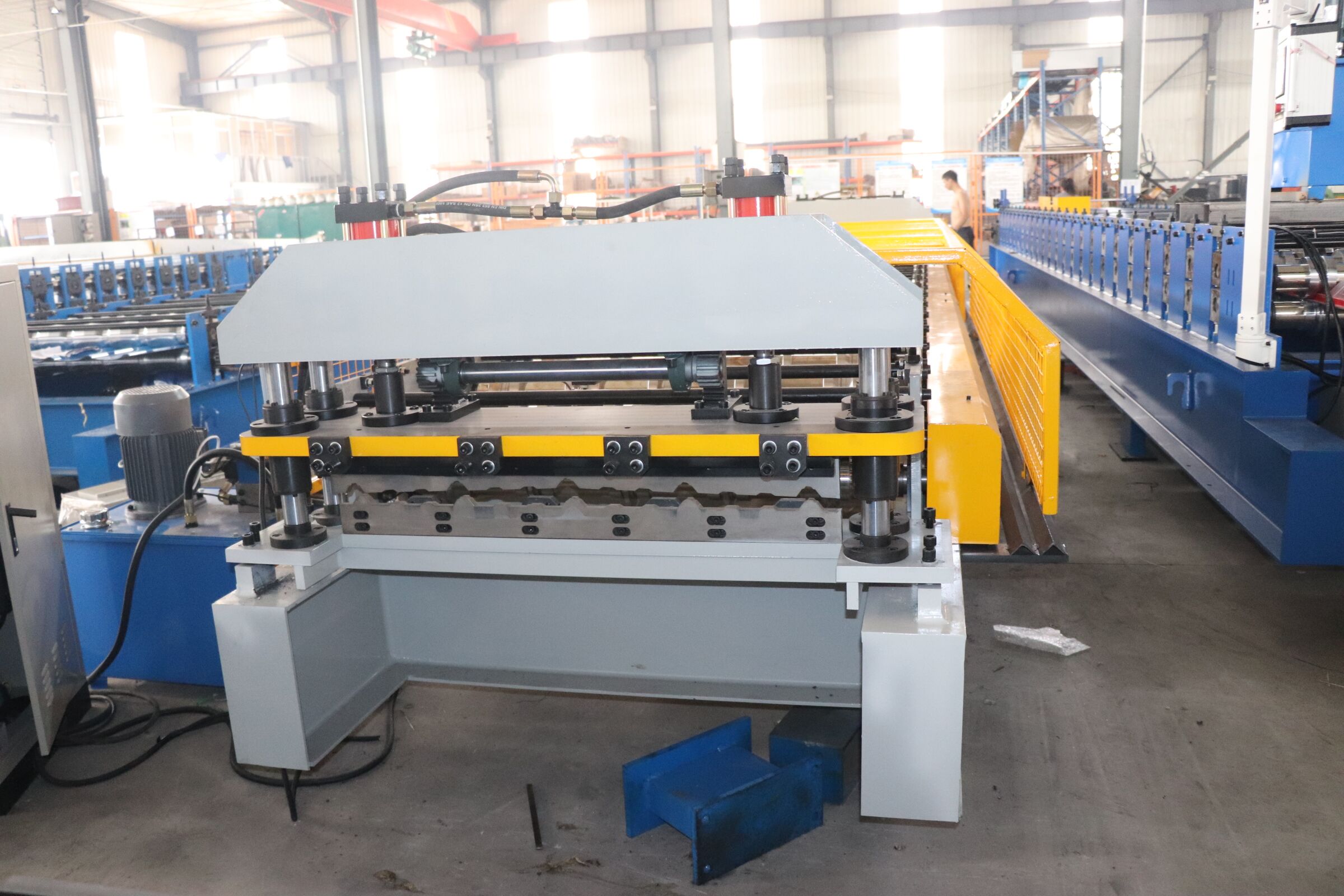

5. The overall bolt connection structure of the cutting blade is easy to maintain and repair. The blade is embedded with double row bolts to ensure that the blade is easy to use, durable, and will not be damaged; Cast steel oil pipe ensures cleanliness, lubrication, and oil injection ensures durability
3. Test the flatness of the plate. We will measure the diagonal of the plate, package normal size accuracy, to ensure that the finished product in the customer's factory, if it is for their own use, the effect is better, if sold as a commodity, more competitive, and there is a more open market!
