Corrugated metal roofing sheet machine

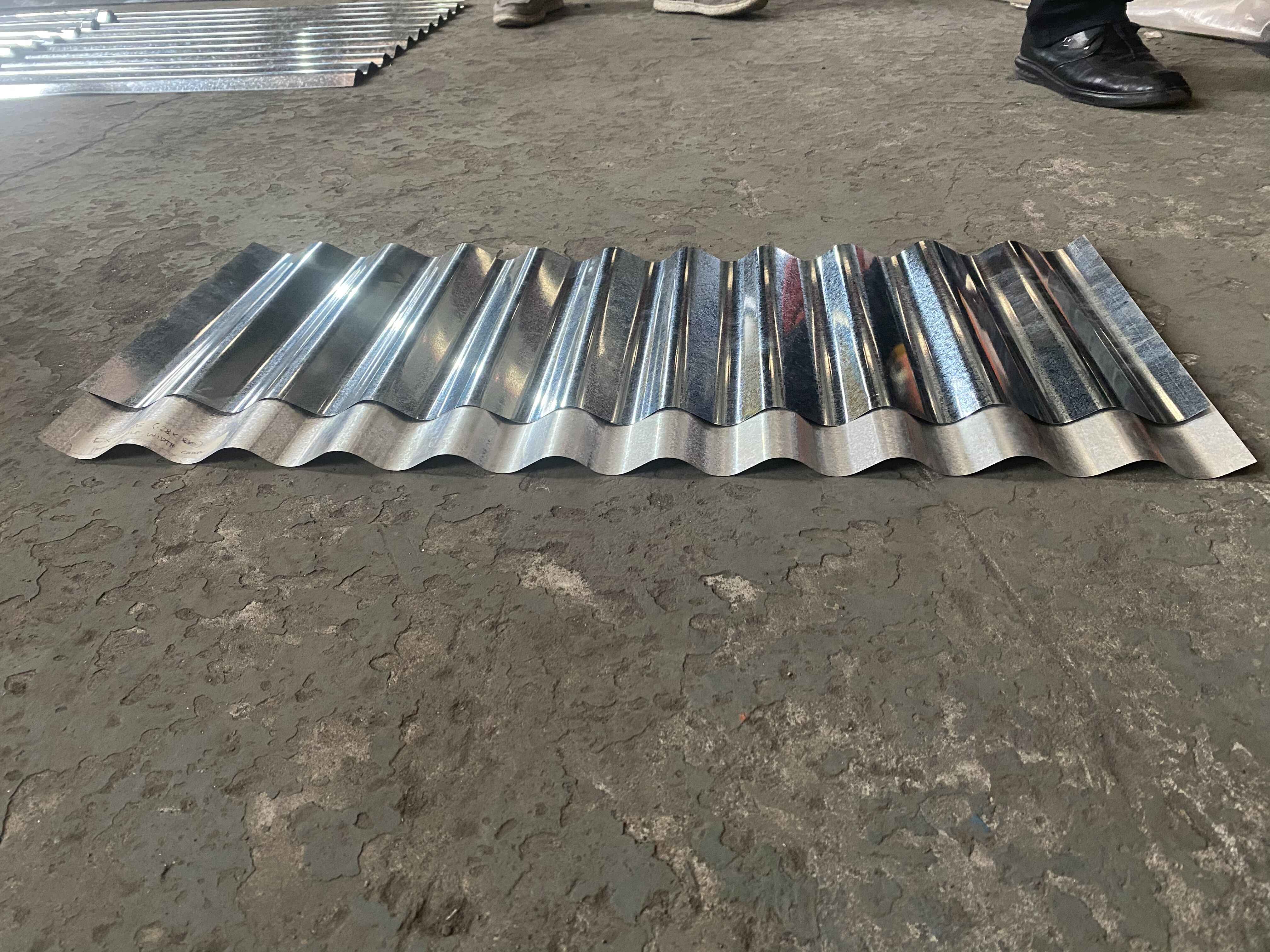

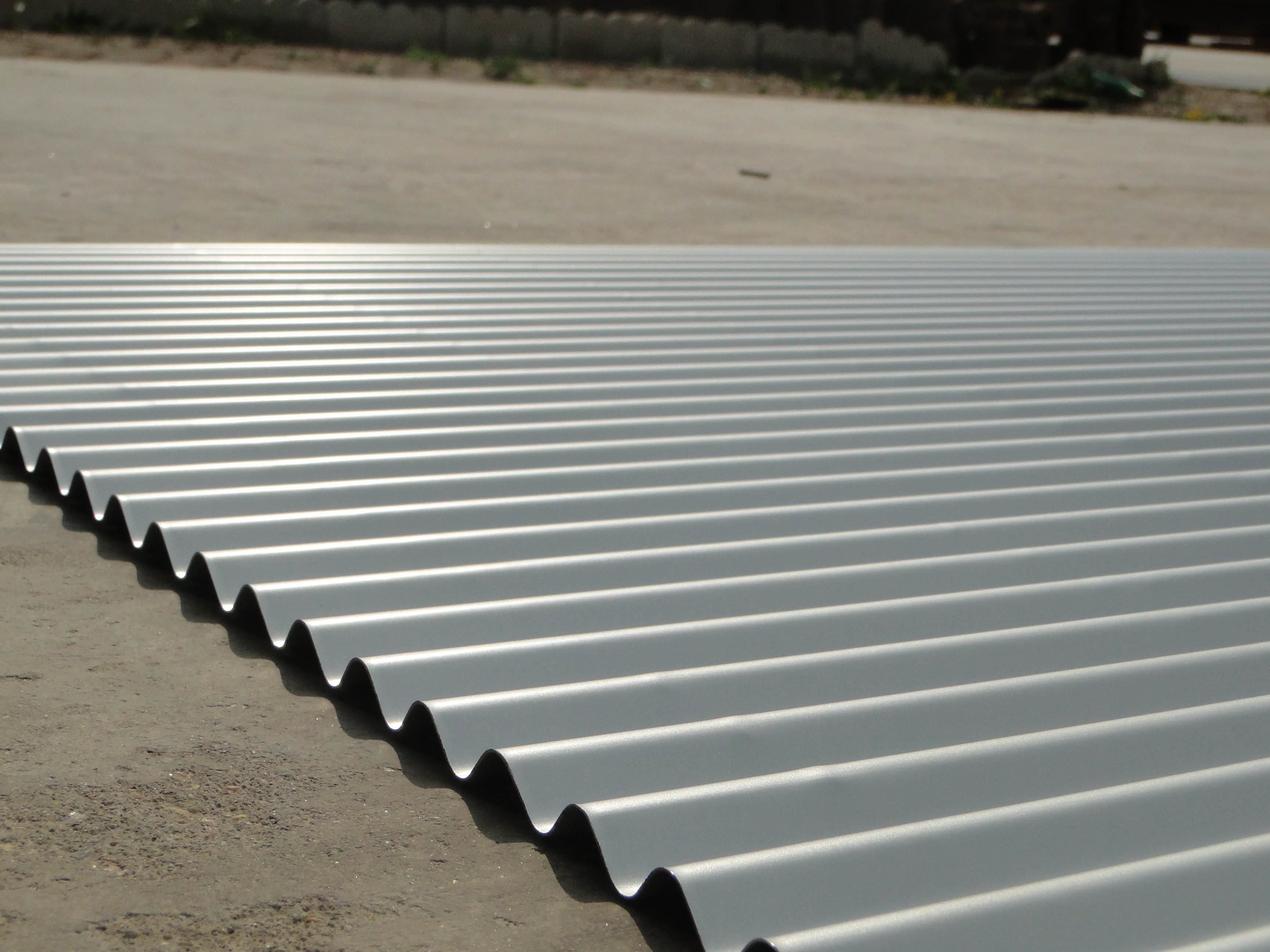

What is Corrugated metal roofing sheet ?

According to different requirements of thickness , normally we divide to 3 types:

• Thin sheet from 0.13 to 0.25mm Corrugated roofing sheet

• Thicker sheet from 0.25 to 0.8mm.

• Strong sheet like 0.5 to 1.5mm

• Wire types

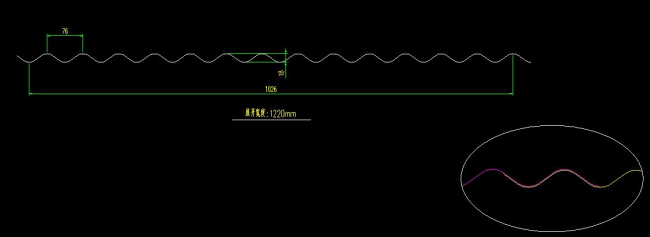

Popular drawing profile for your reference

1. Popular in Argentina, if you want to check more, please visit our website:

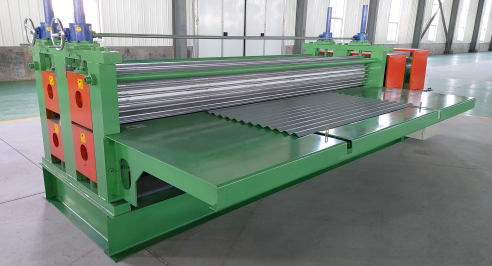

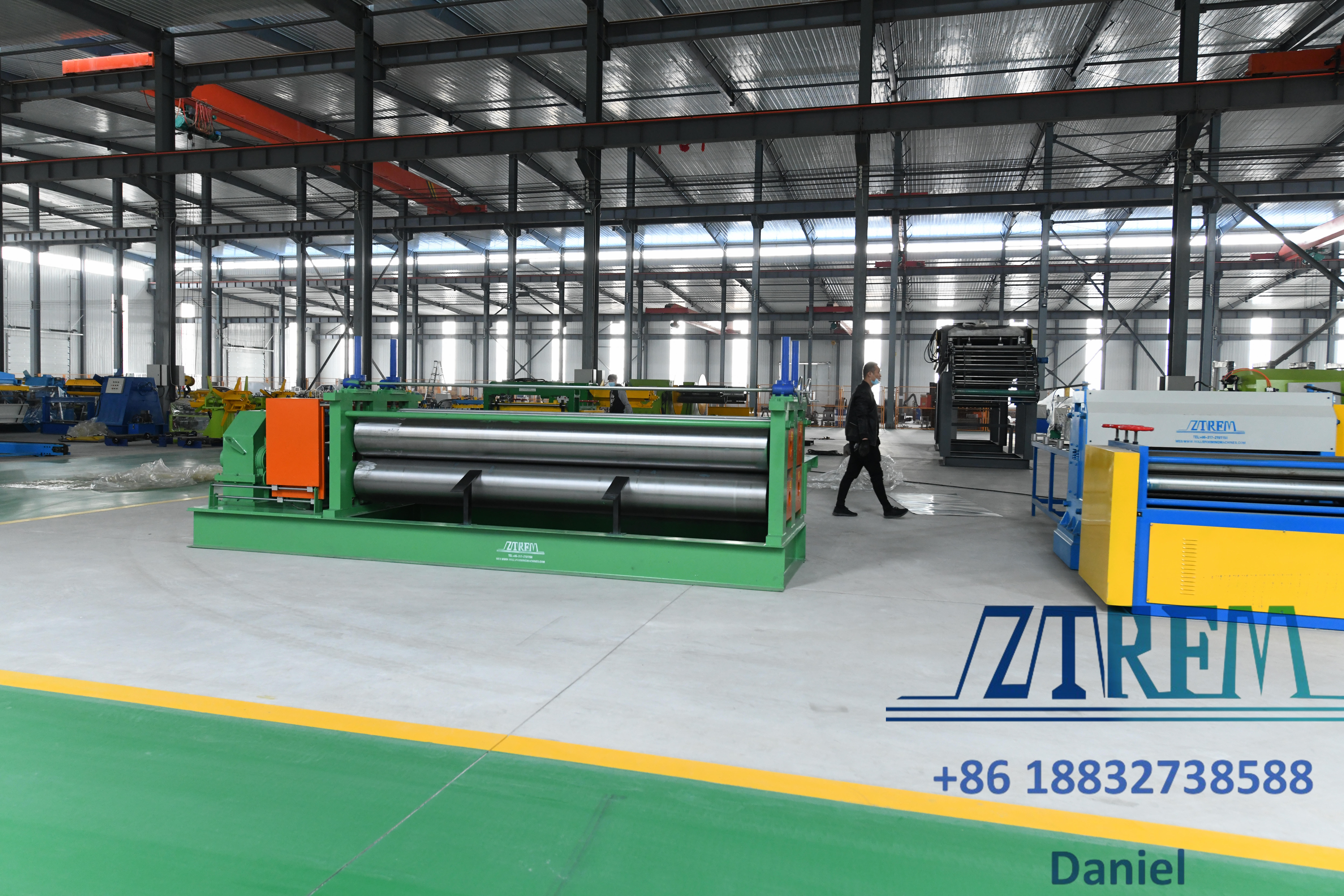

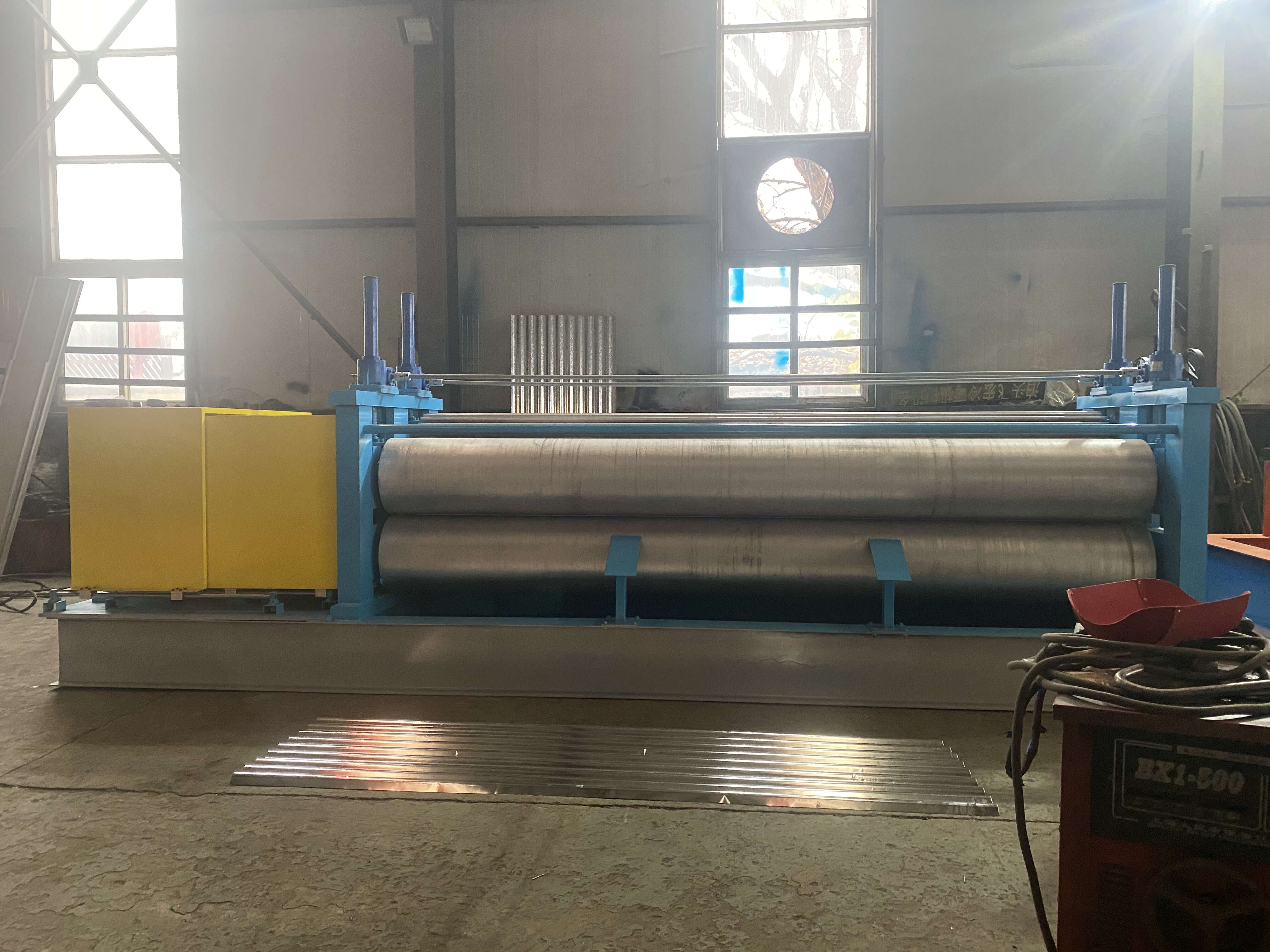

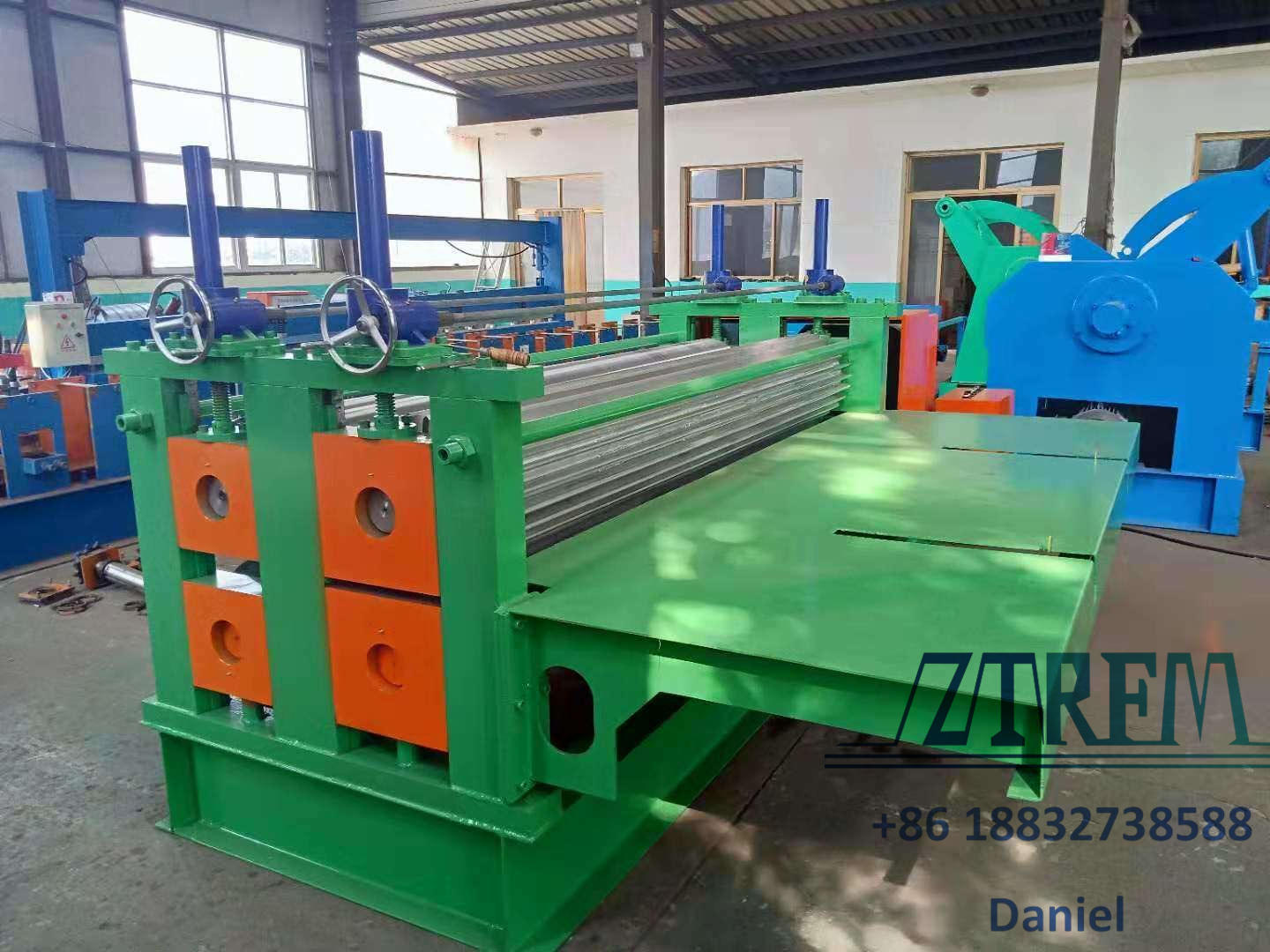

Horizontal round wave machine

When choose this type?

1. When you want to make many types round wave,like different wave height and different wave distance.

2. When thickness between 0.13 to 0.25mm.

Horizontal round wave machine basic parameters

1. Feeding width: ≤1250 mm and it also adjustable.

2. Length: can be customized. The width could be 3 meters, 4 meter or 6 meters

3. Thickness: 0.13-0.5 mm, please specify the material nature like SG550 full hard, or normal one.

4. Speed: 10-15 pieces/minute

5. Shaft diameter: 450 mm

6. Power: 7.5 KW

7. The movable range of the feeding platform: 750-1200 mm

8. Control method: electric control box, forward and reverse rotation, speed regulation

Why Choose Zhongtuo Horizontal round wave machine

For different thickness, it is easy to adjust, we adopt turbocharger adjustment method, only need to adjust one side; Other, they use the normal handrail, acuracy and effectiveness will be lower

Easy adjust with clear marks
The gear shaft has more processing procedures than others, which can solve the problem of small side rebound. The thinnest is pressed to 0.12-0.13 mm, and 2-3 sheets are fed at a time.

Common problem when using Horizontal round wave machine

1. The R angle is too small, and the arc feels shocking and unsightly

2. The wave crest is not right, and the arc length on both sides is different

3. Edge rebound • The smaller the side, the harder it is to press, the thinner the harder it is

    How we solve it?

    1. Enchance the shaft process hardness and accuracy.

    2. Carefully processing gear.

    3. Meanwhile if you like,we can also use the gearbox as transmission method, but price will be a little higher.

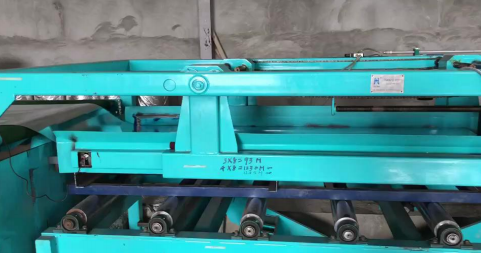

Horizontal machine needs thin sheet cut to length machine

As to cut to length machine, it will help you cut the coil to specified lenght. Also you can buy sheets from market. If you need, we have high speed and normal speed cut to length machine for your reference.
