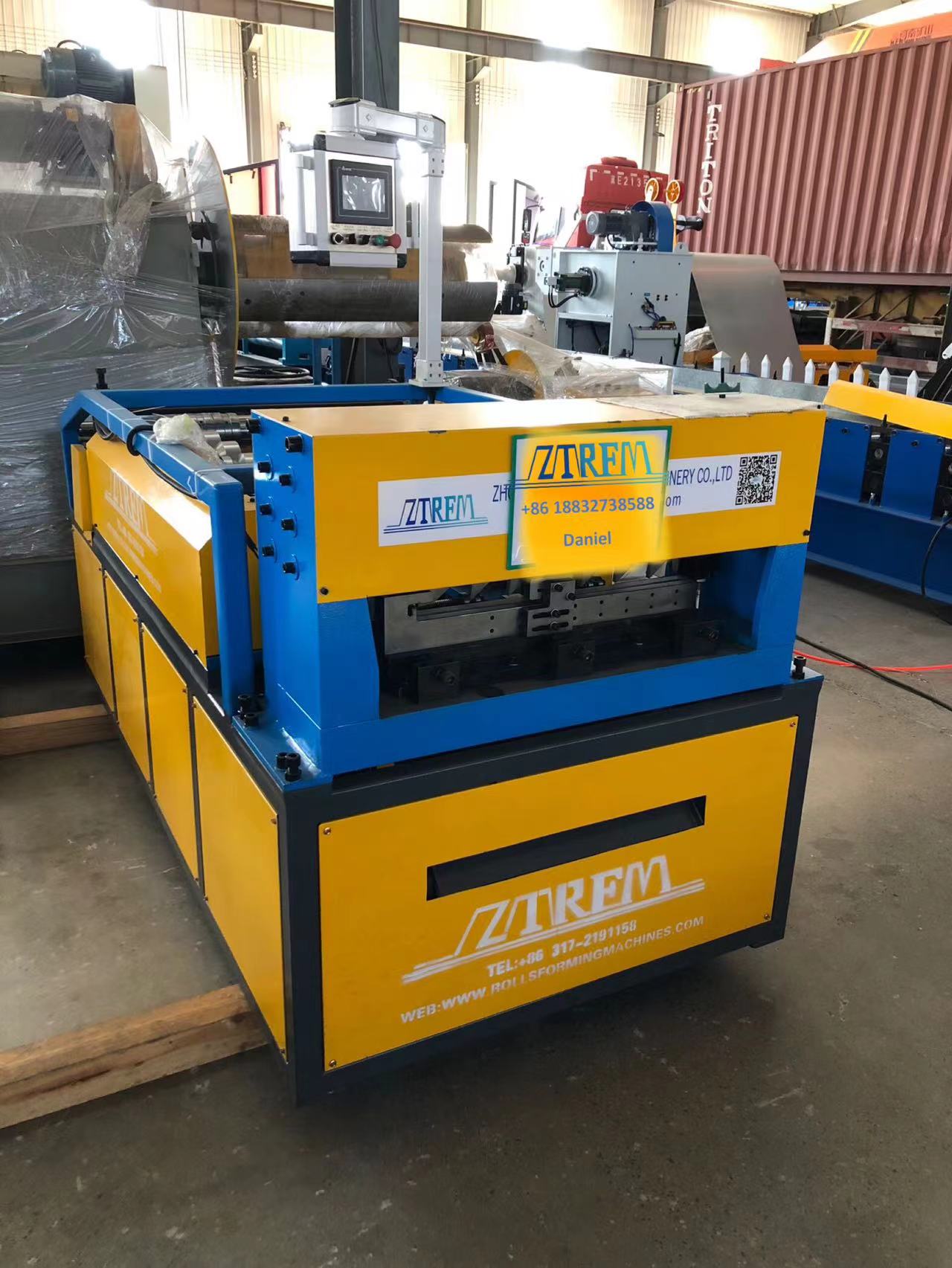

Portable Stand Seam Machine for Metal Roofing is a remarkable device that has revolutionized the metal roofing industry. It is designed to accurately and swiftly form standing seam panels, enabling seamless installation. With its portable nature, the ZTRFM Portable Standing Seam Panels Roll Forming Machine for Metal Roofing can be easily transported to different job sites, saving time and effort. This machine empowers roofing contractors to produce high - quality panels on - site, enhancing the overall efficiency of the roofing process.

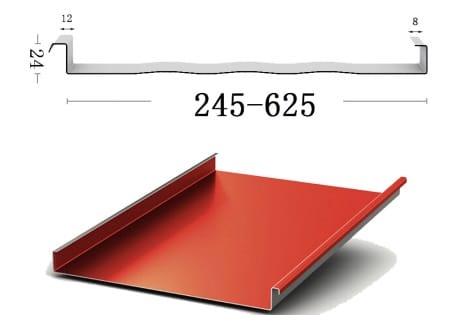

Our machine can produce pattern like these:
The features of ZTRFM Portable Stand Seam Machine for Metal Roofing
1.Install wheels in the machine,so it can go to the construction site and produce onsite.
4.Rollers with bearing inside which can eliminate linear velocity inconsistency,it can make the final product perfect.
5.Full automatic-save labors.
Machine details introduce:

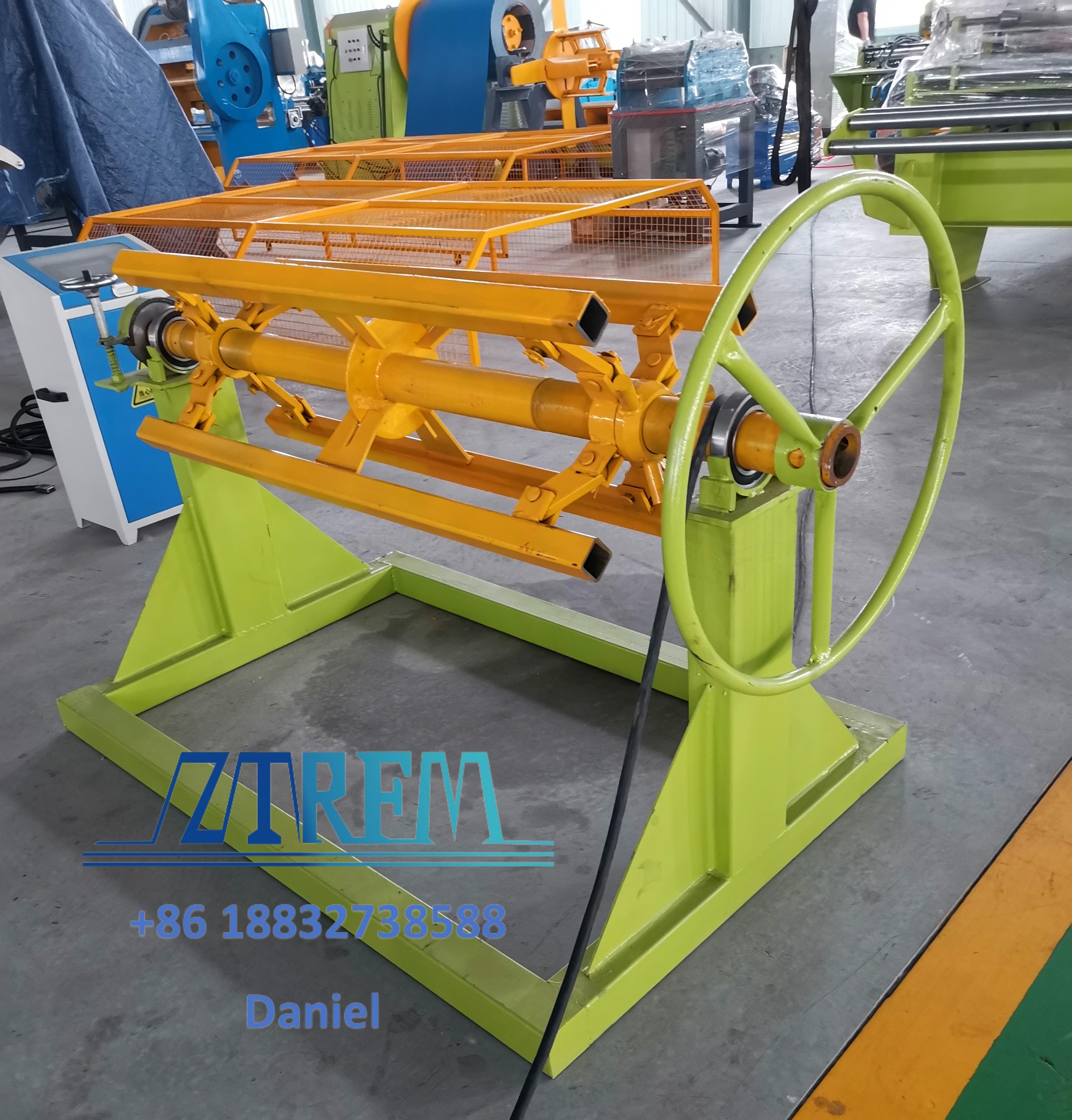

Part1. Manual Decoiler
Decoiler is an evitable part of roofing roll forming machine to hold and safely pay off the steel strip. A decoiler, also call uncoiler, unwinds steel coil, which can be feed into continuously running machineries such as roll former or automatic punches.Decoiler machine is suitable for all kinds of coil material feeding and the decoiler can work with straightener..

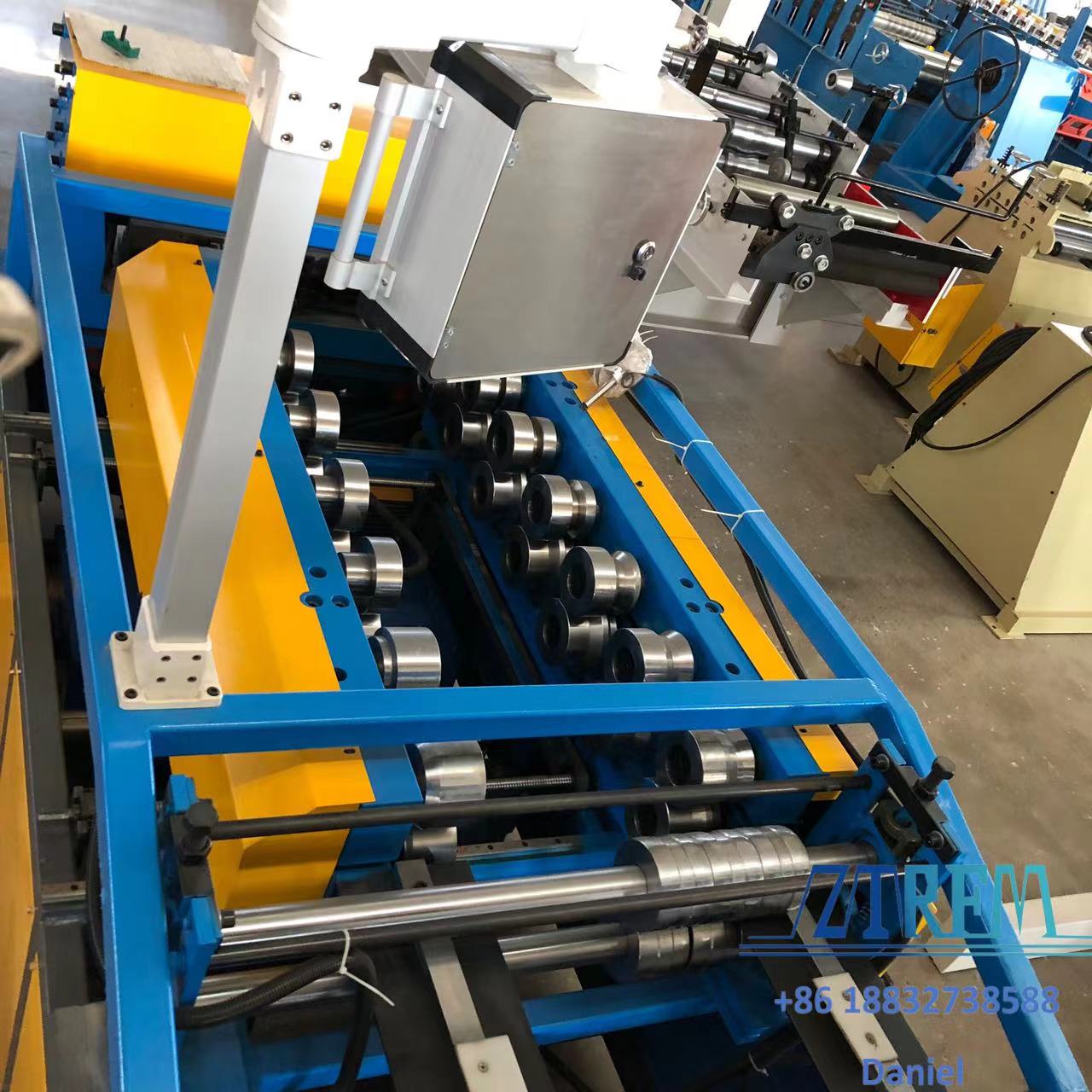

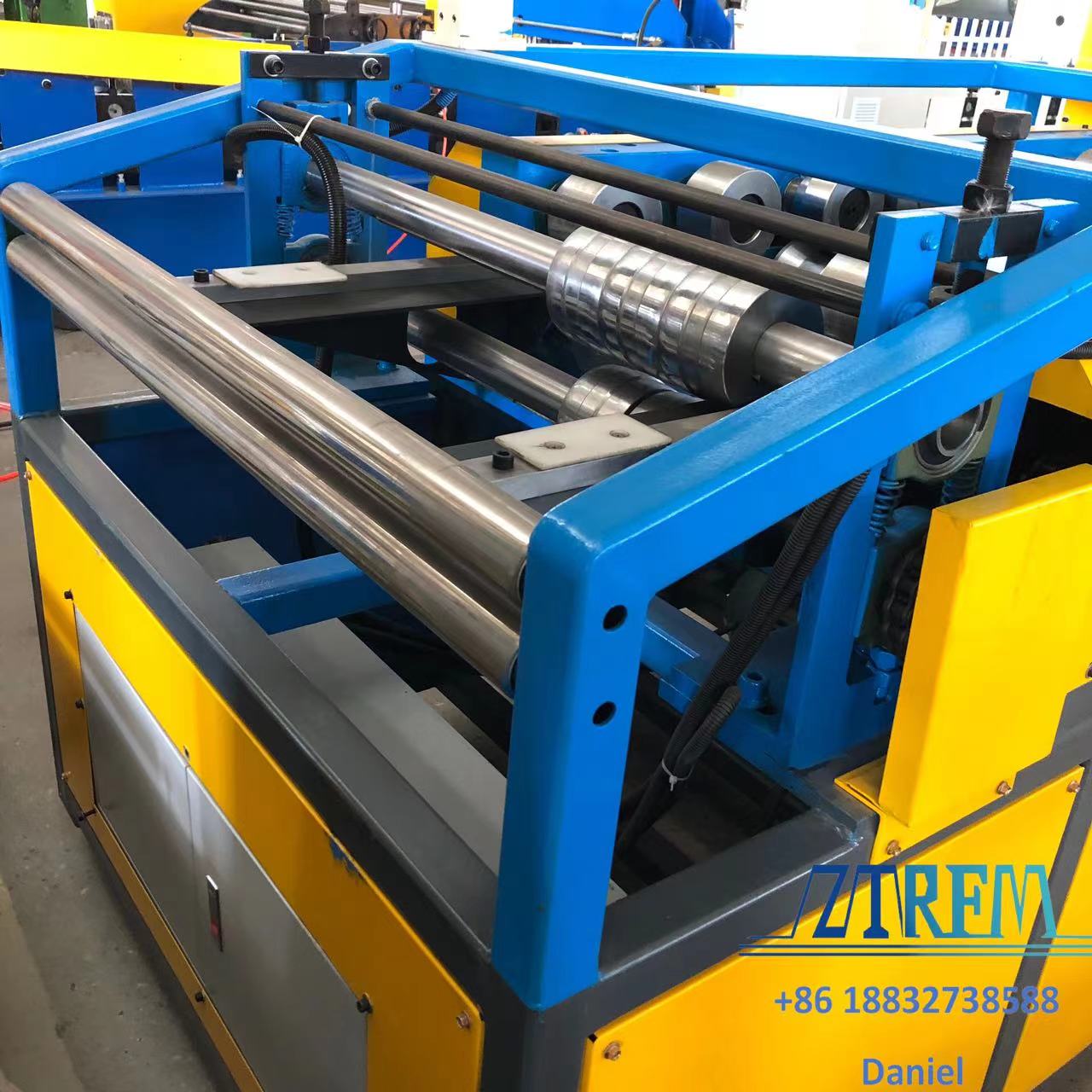

Part2. Main Machine
Machine body frame adapt square tube welded with steel panel,we as possible as we can improve machine to reduce area.
Drive type is gear transmission,keep machine working steadily and ensuer production speed.
Our machine rollers adapt 45# steel, hard chrome plated on the surface,roller station have 7 rows and can customized as your requirement.
Diameter of shaft is 80mm solid shaft.

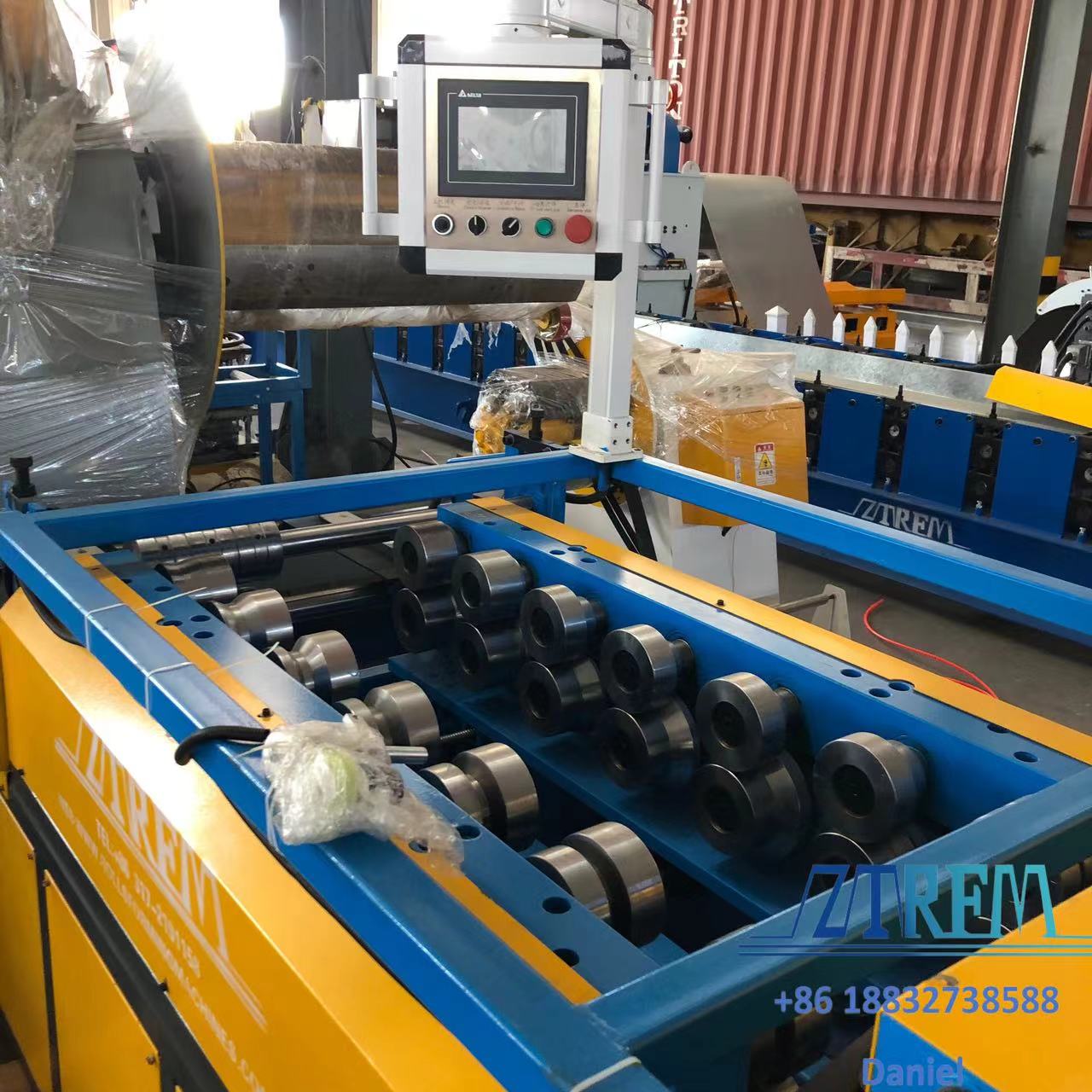

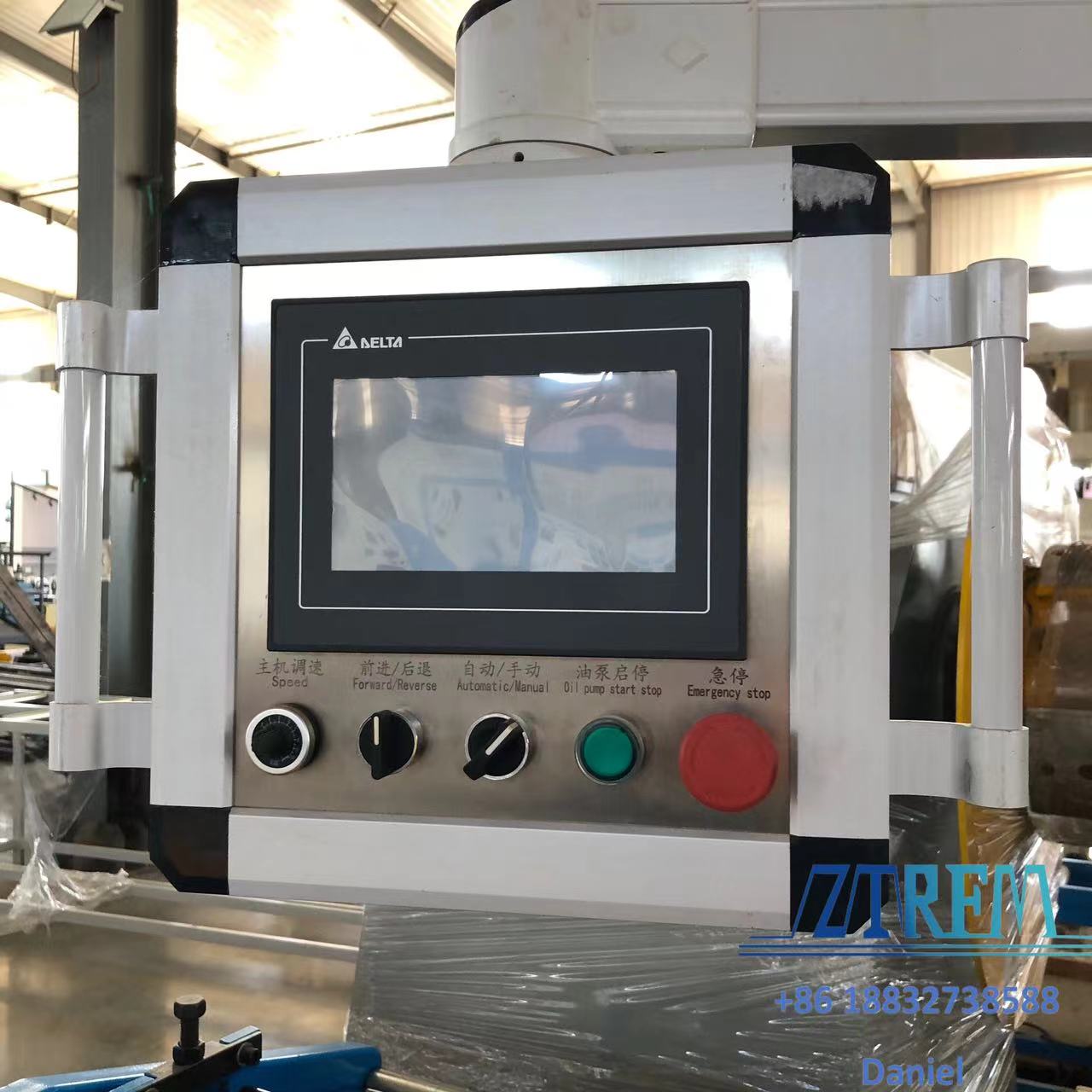

Part3.PLC control system
Our machine adopts rocker PLC system, which can adjust the position of PLC 360 degrees according to the change of the site, which is convenient for workers to operate. Machine can through PLC automatic chnange producing width to produce diffferent size standing seam panel.
Part4.Cutter system
Our machine cutter system adapt Cr12mov material(no scratches, no deformation), and through PLC control to automatic cutting production,can cut production naturly.

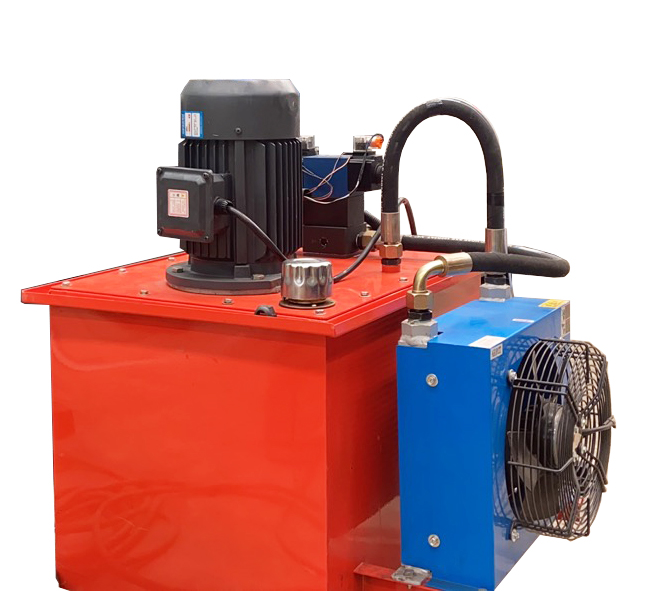

Our hydraulic station also have more details:
(1)Our hydraulic motor power is 3KW and adapt 46# hydraulic oil;
(2)Hydraulic system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes.
(3)They are all large valves, and the meters are also high-quality meters, which are more durable.
Portable stand seam machine is widely used in the construction industry nowadays, the size of the machine is compact, easy to transport and maneuver, the machine can be transported to the construction site to use, greatly solving a series of problems in the transportation of the finished product
