Product Description

Zhongtuo factory series is a fully mobile pan former ideal for both the workshop and for on-site operation.All functions and adjustments are positioned to one side of the machine. It is easy to transport, light weight with two castors mounted on frame. This saves on freight costs, shortages and the need for difficult leak prone panel end laps.

The guillotine-shear cuts panels without distortion and burr-free.

equipped with 4 crane lifting eyes.

Portable&Efficiency Standing seam roofing sheet machine

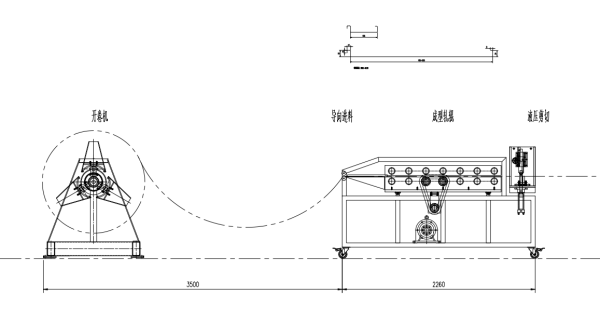

Working flow of Small portable linear roll forming machine for wall panel or roofing sheet:

For this portable machine, you can either use it as the production line or use separately. When working as the production line, the working speed can reach 15 to 25 meter per minute. If you use it as the production line, ZT machinery can supply the hydraulic decoiler and receiving table.

Portable&Efficiency Standing seam roofing sheet machine

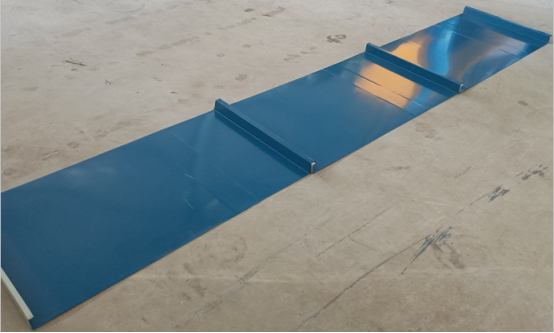

Here are some sample for your reference of portable linear roll forming machine for wall panel or roofing sheet:

Portable&Efficiency Standing seam roofing sheet machine

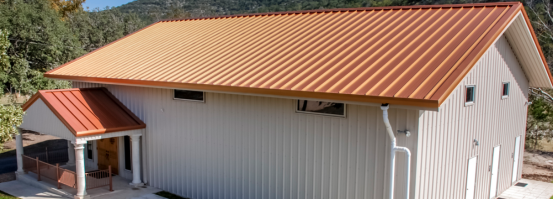

Our stand seam roof panel use in daily life:

Portable&Efficiency Standing seam roofing sheet machine

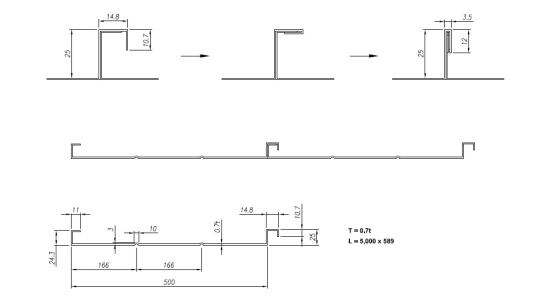

How to do the installation of such roofing sheets:

 Portable&Efficiency Standing seam roofing sheet machine

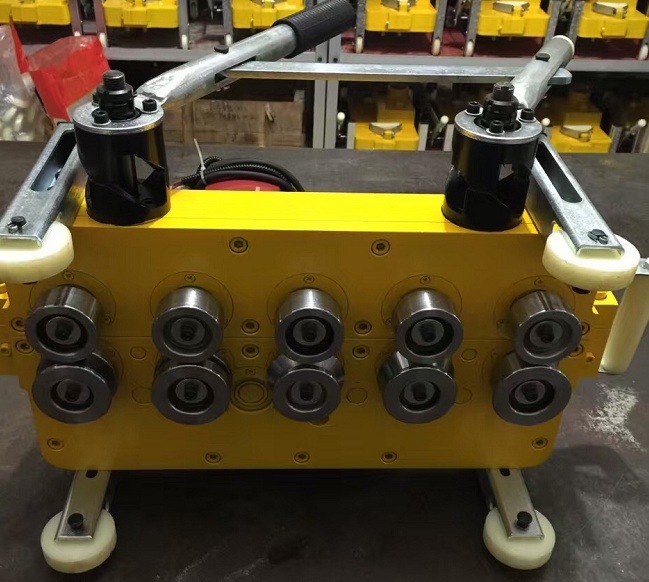

When do the locking of such metal roofing sheets, you need such tools:

Portable&Efficiency Standing seam roofing sheet machine

Here is the working video of how it works:

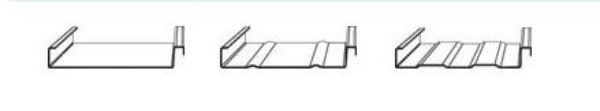

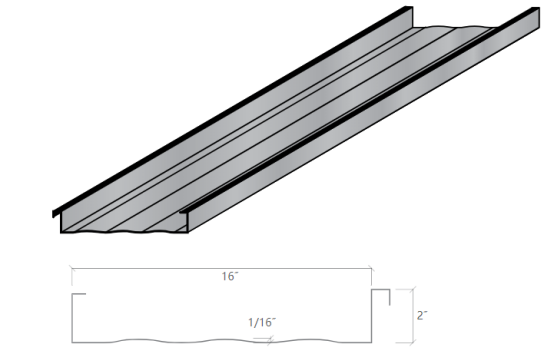

Manual and small portable linear roll forming machine could be used to make roofing panel within width 300 to 1250mm. But this is manual version, so it is easy to put any project on site, you can make any width you need easy. Meanwhile it is portable conveniently. Some drawing profile for your reference:
Portable&Efficiency Standing seam roofing sheet machine

Linear roll forming machine parameters for your reference:

Material width: 180mm a 1250 mm
Material thickness: 0.5 - 0.7mm
Drawing profile height: 25mm
Working speed: 7 meter per minute
Power: 0,55 kw
Voltage: V 380
Machine size: 1700x940x820mm
Machine weight: 250kg

Portable&Efficiency Standing seam roofing sheet machine

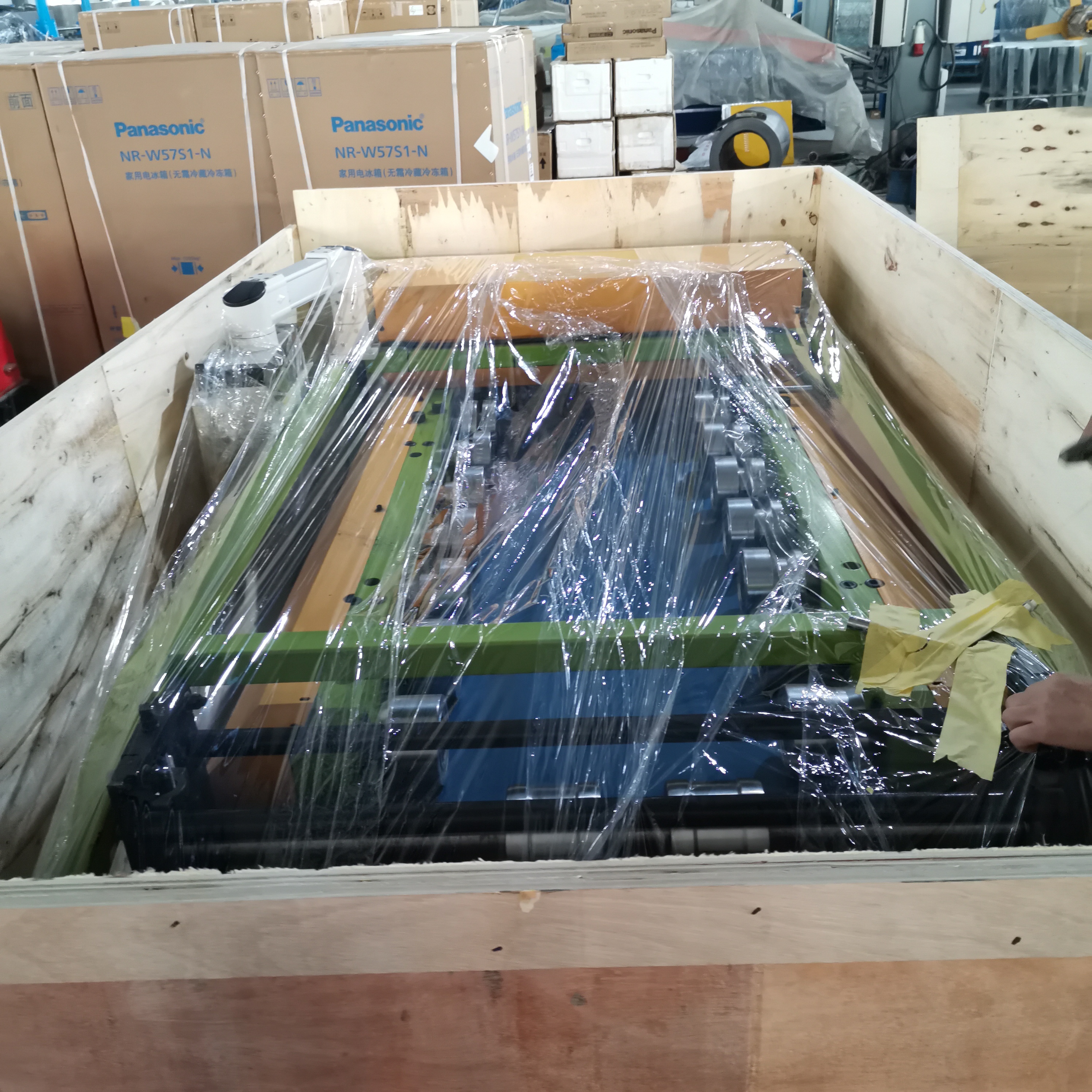

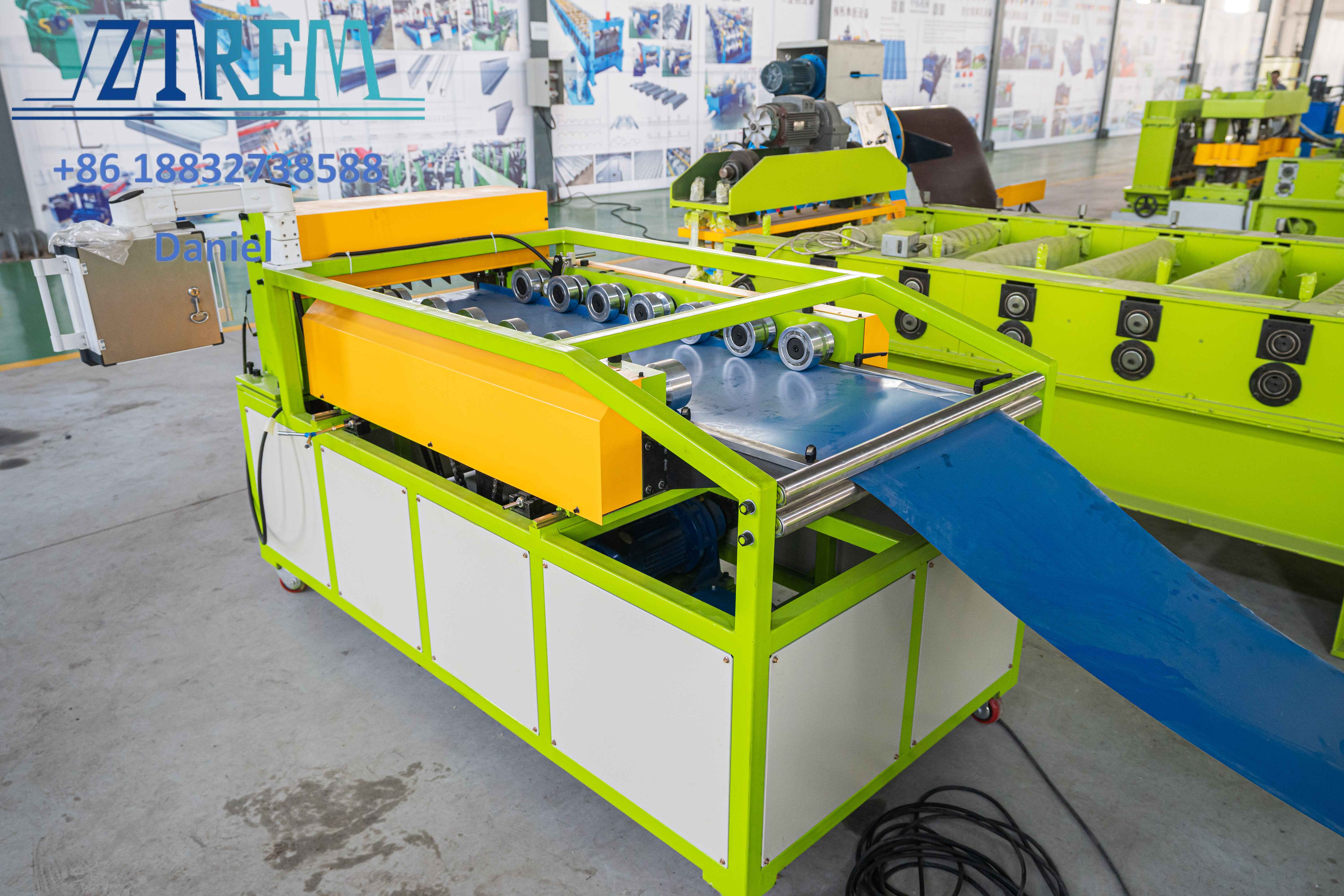

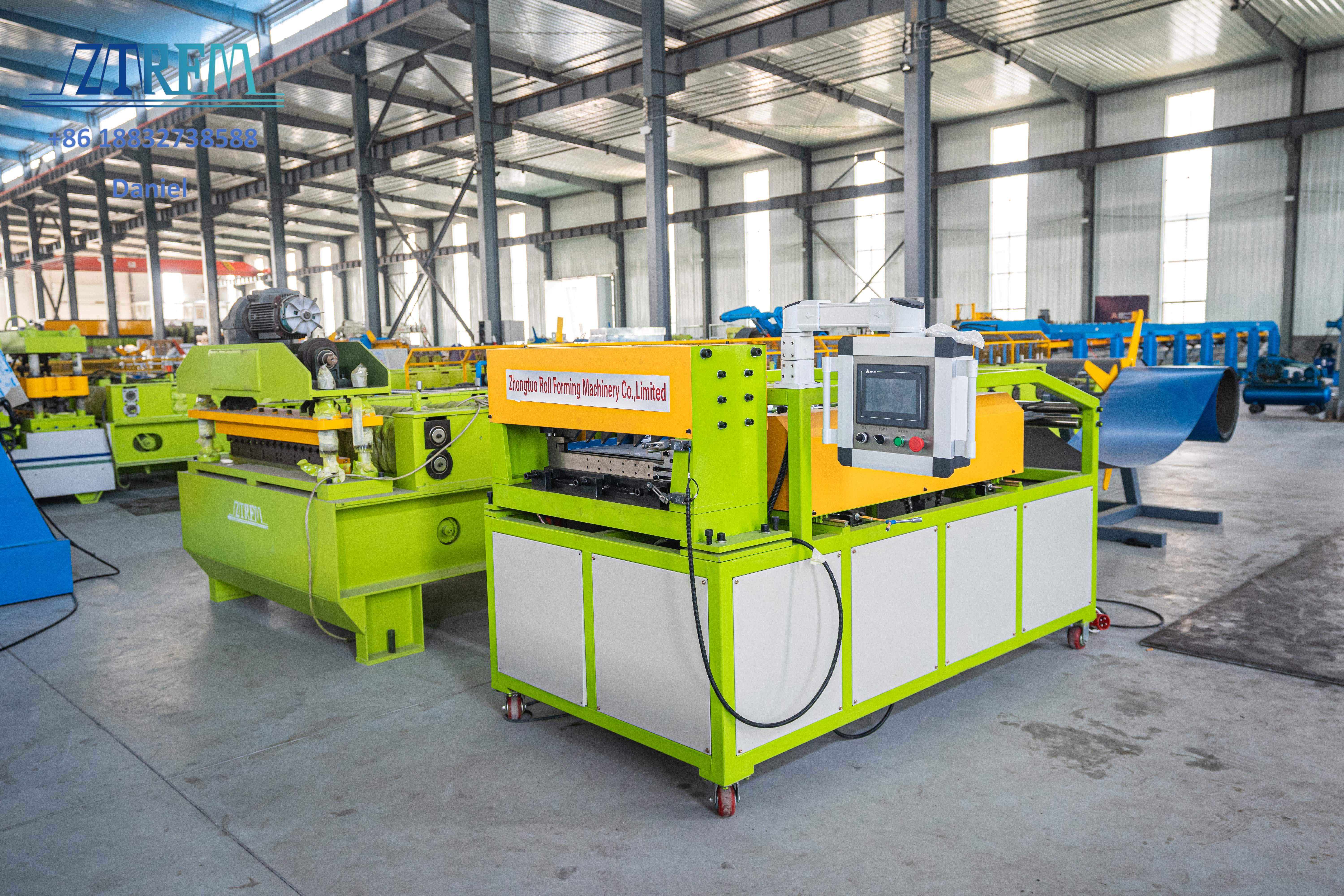

Machine pictures for your reference:

The machine produces panels for standing seam roof with a double seam. The machine works with all types of roof covering: steel (including polymer-coated), copper (including painted), aluminum, zinc, aluzinc, zinc-titanium. The material may be in rolls or in sheets. Optimized configuration of grading rollers ensures high quality of the profile.

Portable&Efficiency Standing seam roofing sheet machine

The portable standing seam roof tile make machine has the following significant advantages:

‌Efficient construction‌: The machine is easy to carry and operate, and can be produced at the construction site, which is more practical

‌High precision‌: The swing machine can make roof sheets overlap and install tightly

‌Cost saving‌: Reduce dependence on physical factories and operators, and can produce suitable panels according to the actual needs of construction site construction, reducing material loss.
