Trapezoid Roof Roll Forming Machine
What is the Trapezoid Roof Roll Forming Machine

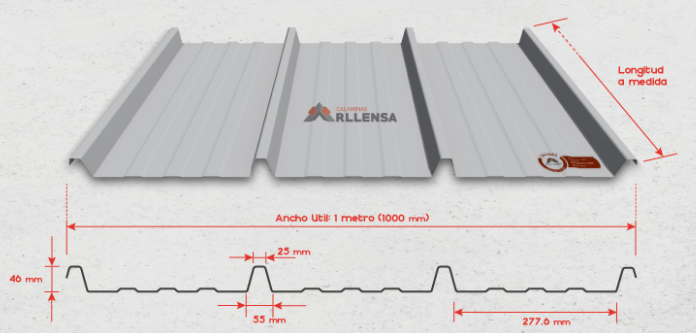

The Trapezoid Roof Roll Forming Machine is a kind of equipment used in the construction industry. It is mainly used to produce trapezoidal - shaped roof panels.
This machine can roll - form metal coils, such as steel or aluminum coils, into trapezoidal profiles with specific dimensions and shapes. The produced trapezoidal roof panels have good strength and stability, and are widely used in the roofing projects of industrial plants, warehouses, and some public buildings. They can not only provide reliable protection for buildings, but also have a certain decorative effect. In addition, the Trapezoid Roof Roll Forming Machine has the characteristics of high production efficiency and high degree of automation, which can improve the production speed and quality of roof panels, and save labor and time costs.

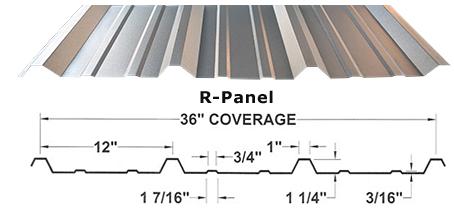

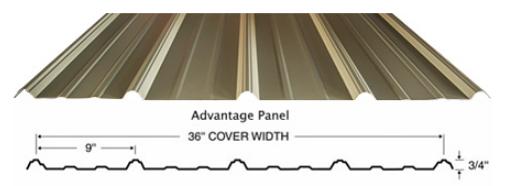

These are some popular models

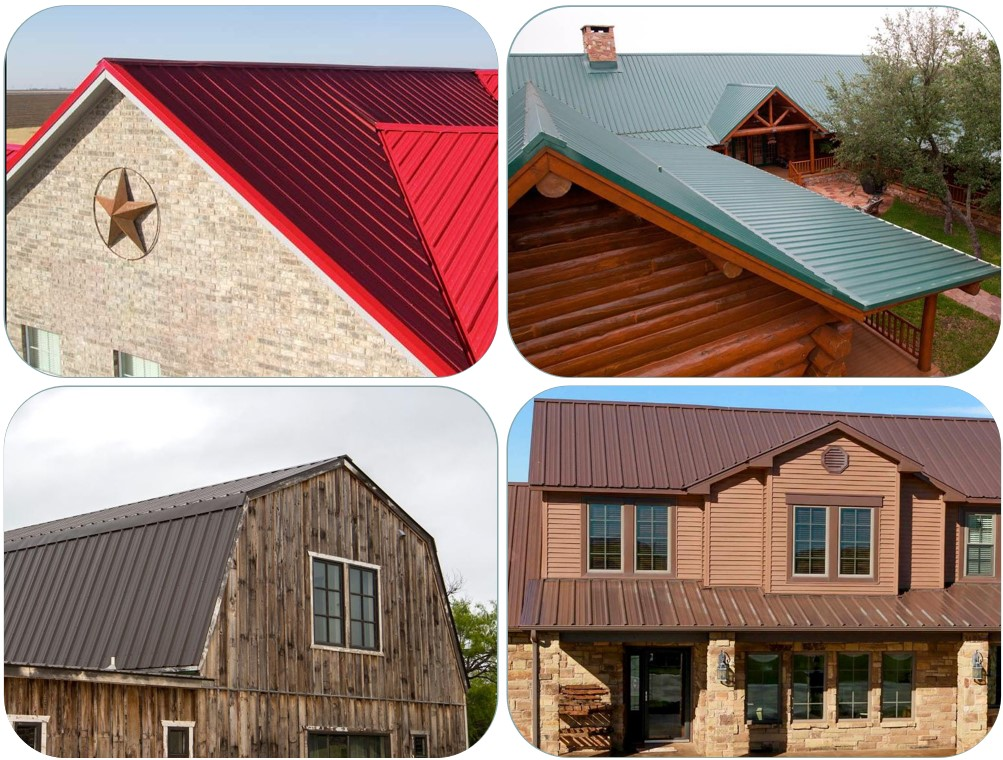

Roof tile molding machine finished product-metal roof tile application scenario
Trapezoid Roof Roll Forming Machine
Advantages:

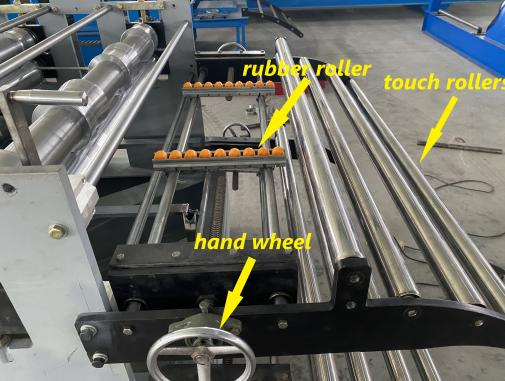

Feeding device 1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface. 3.There are two rows of orange plastic rollers can make the steel coil go into the machine smoothly.

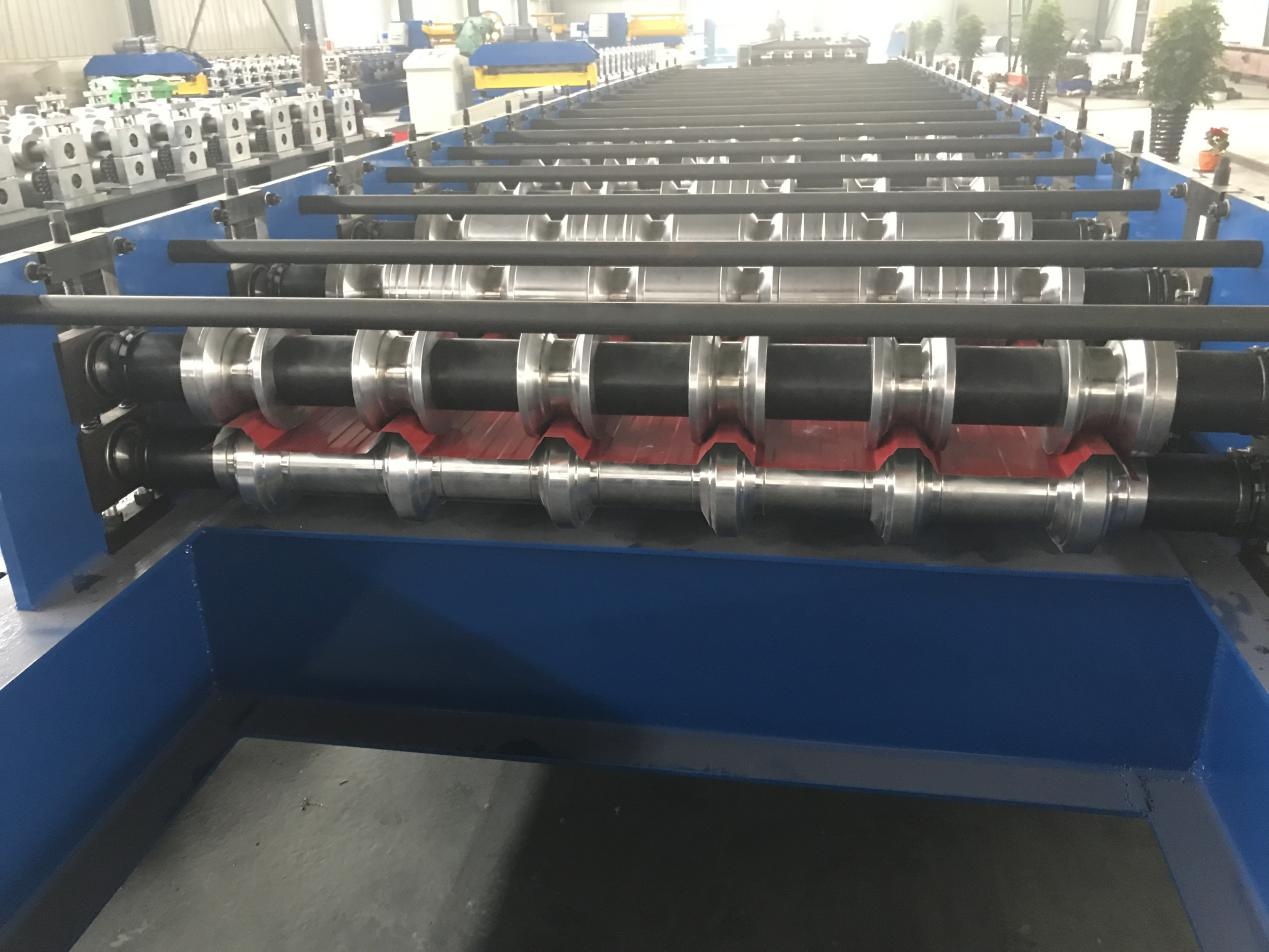

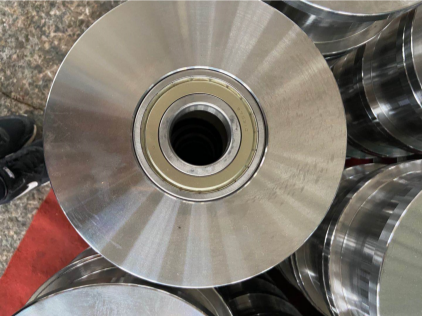

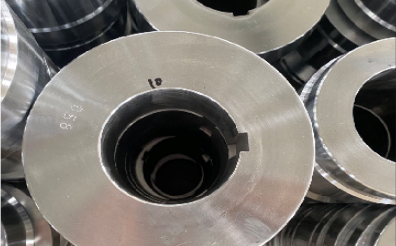

Roll forming and transmission device 1.rollers thick chromed good hardness for long service time.
2.Each roller has number and with keynotes, it can fix on the shaft stablely

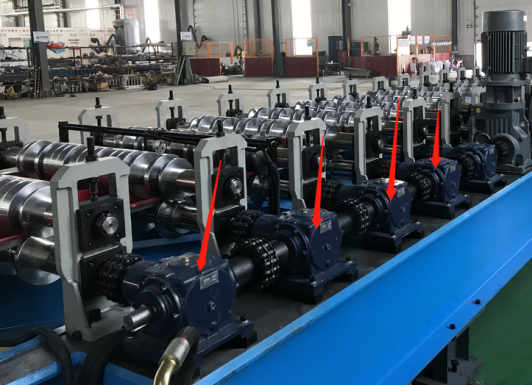

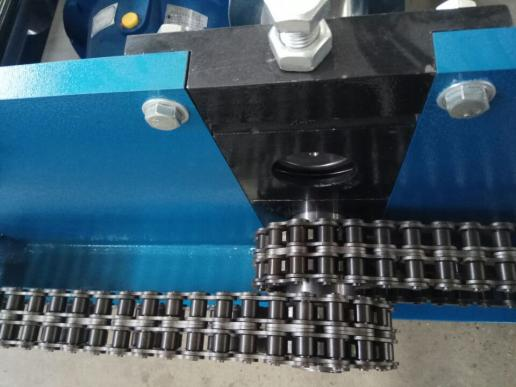

3.gear and double chain,stableHydraulic cutting device.

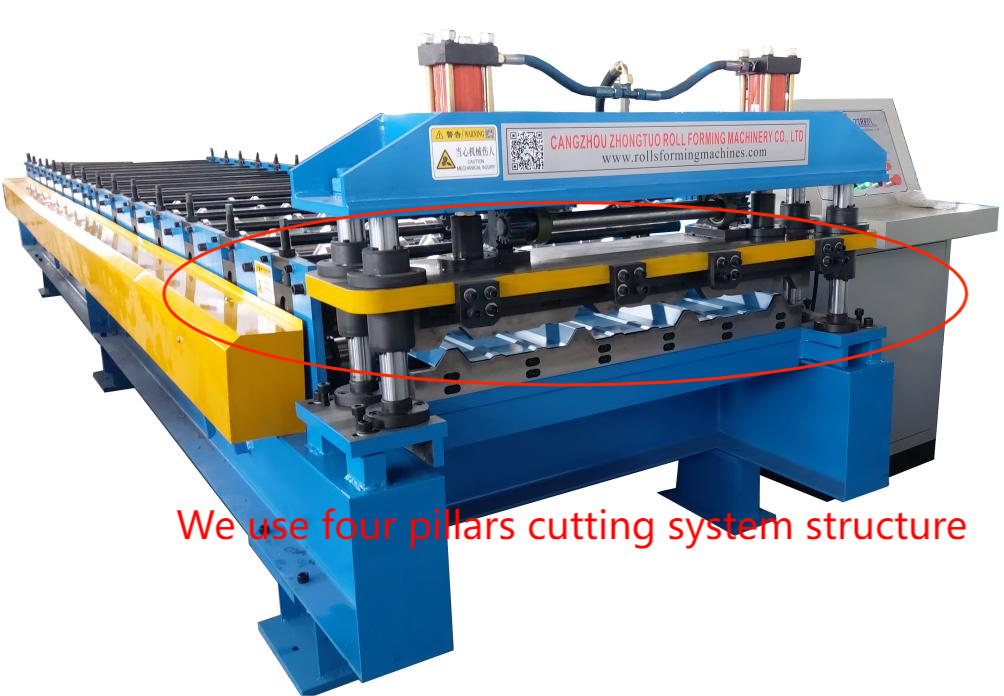

Hydraulic cutting device
We use four pillars cutting system structure, it can make sure the cutting stable.

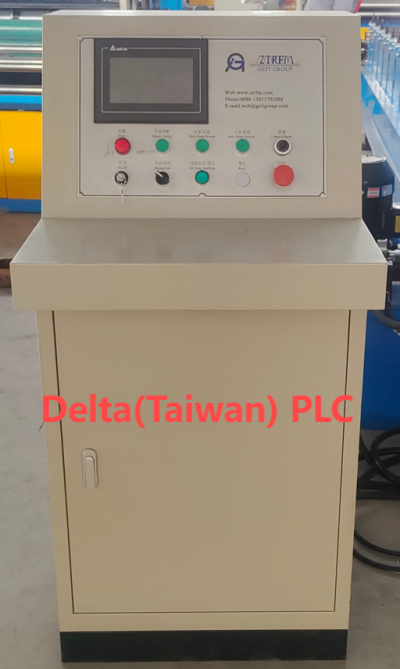

PLC control system
PLC brand:Delta(Taiwan) PLC, and transducer and touched screen
● Encoder brand:Omron
● Electrical components:Schneider
●Operating language:English and Chinese(or as requested)
You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.
