Trapezoidal Roof Sheet Machine

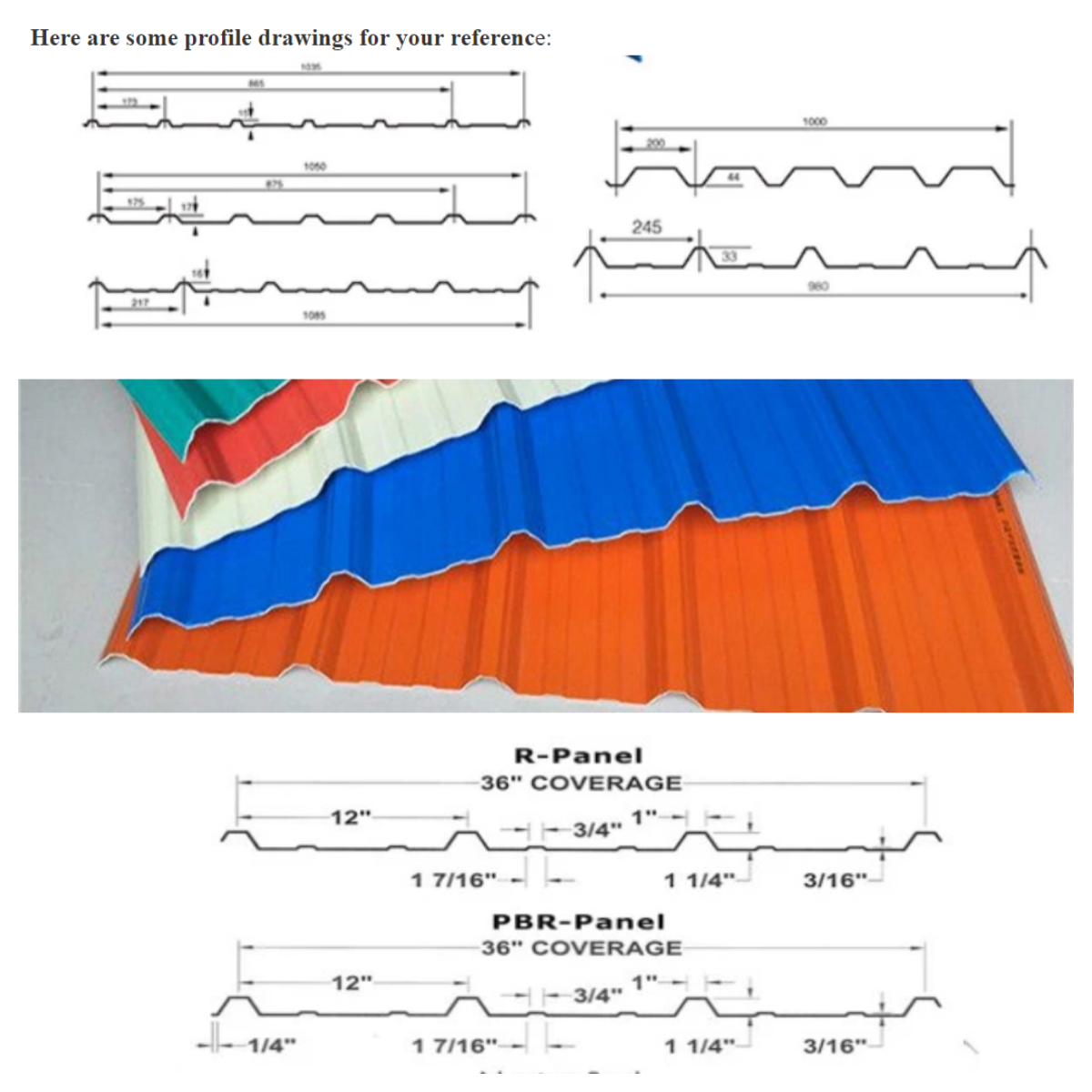

Trapezoidal roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand.Our machine can enough your all needs and customised for you.
Design idea:
Stable transmission-Double chain and gear drive,keynote rollers design.
Easy operation-Only need to set orders on the PLC control station,very easy operation .

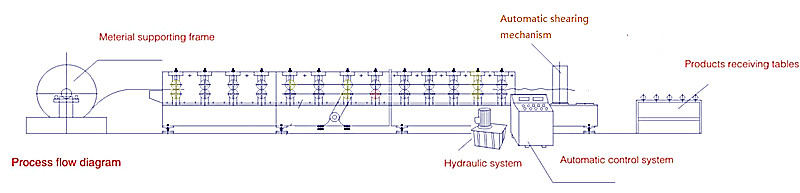

Processing Flow
Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving table
Raw material | PPGI,PPGL |
Material thickness:24/26 gauge （0.4-0.6 mm) | |
Machine frame
| 350mm H beam structure, with 18mm welded steel middle support plate. |
Material of rollers | High grade 45# forged steel,Chromed treatment |
Forming stations | Roller stations :18 rows |
Diameter of shafts | Φ80mm solid |
Material of shafts | High grade 45#,with heat treatment |
Forming speed | 15 m/min |
voltage | 380V/50HZ/3P (as requested) |
Transmission way | By 1 inch chain (double chains) |
Main motor | 5.5 KW |
Cutting blade material | Gcr12 quenched treatment |
Cutting type | hydraulic post cutting |
Driving method | By pillar type Cylinder |
Product display

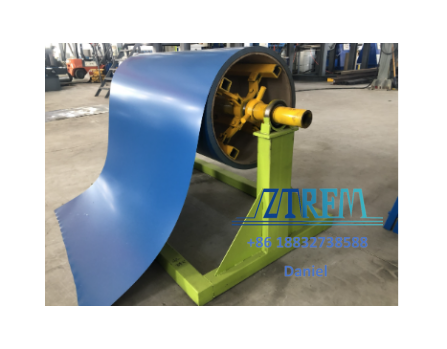

5T manual decolier for free
Capacity:5 tons
Coil inner diameter:450-550mm
Feeding width: max 1220mm
Structure: welded by the steel plates and profiled bar.
The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine

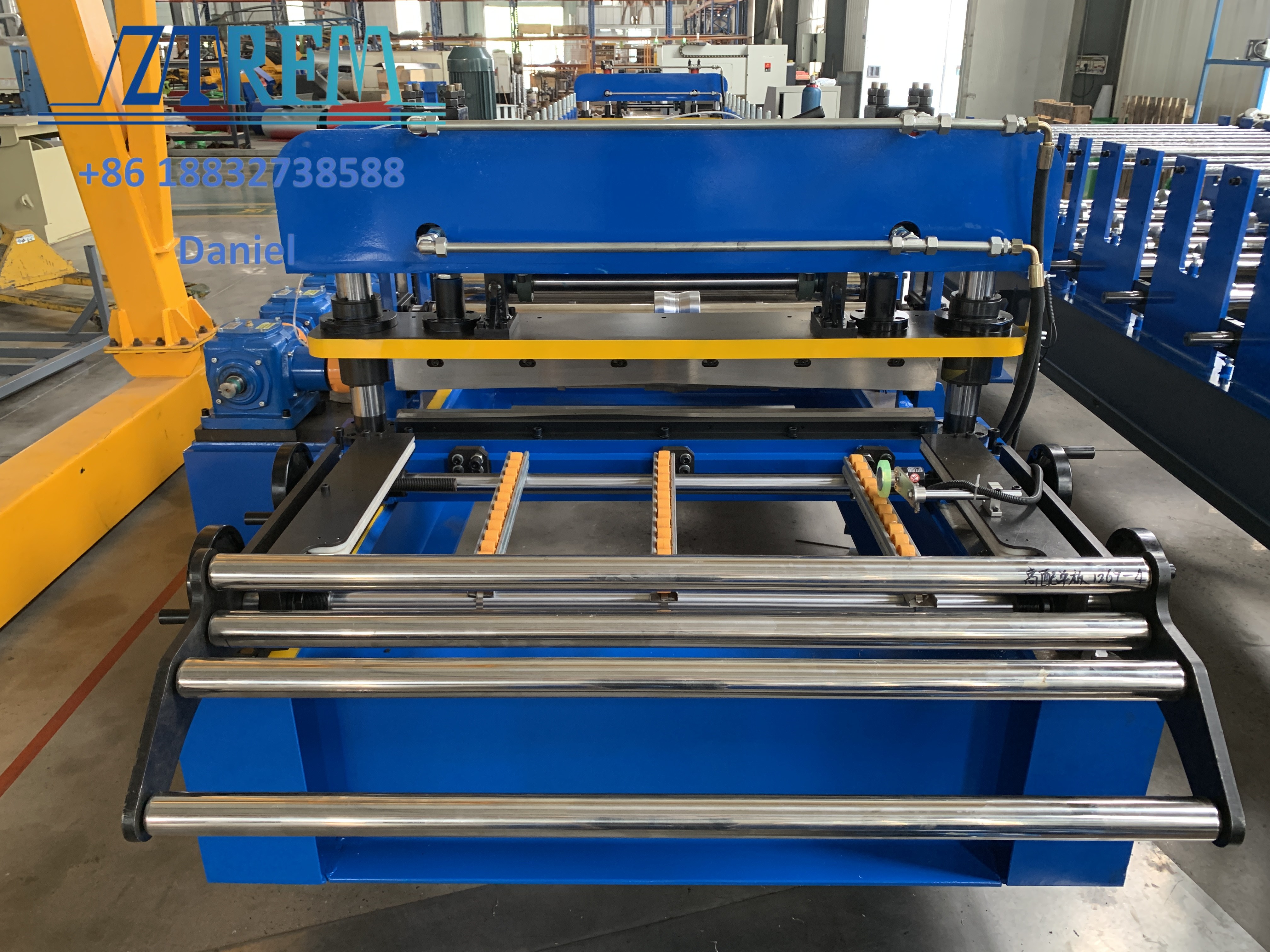

Feeding device
1. Hand wheels on both sides can be used to adjust the feeding width.
2. Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.
3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

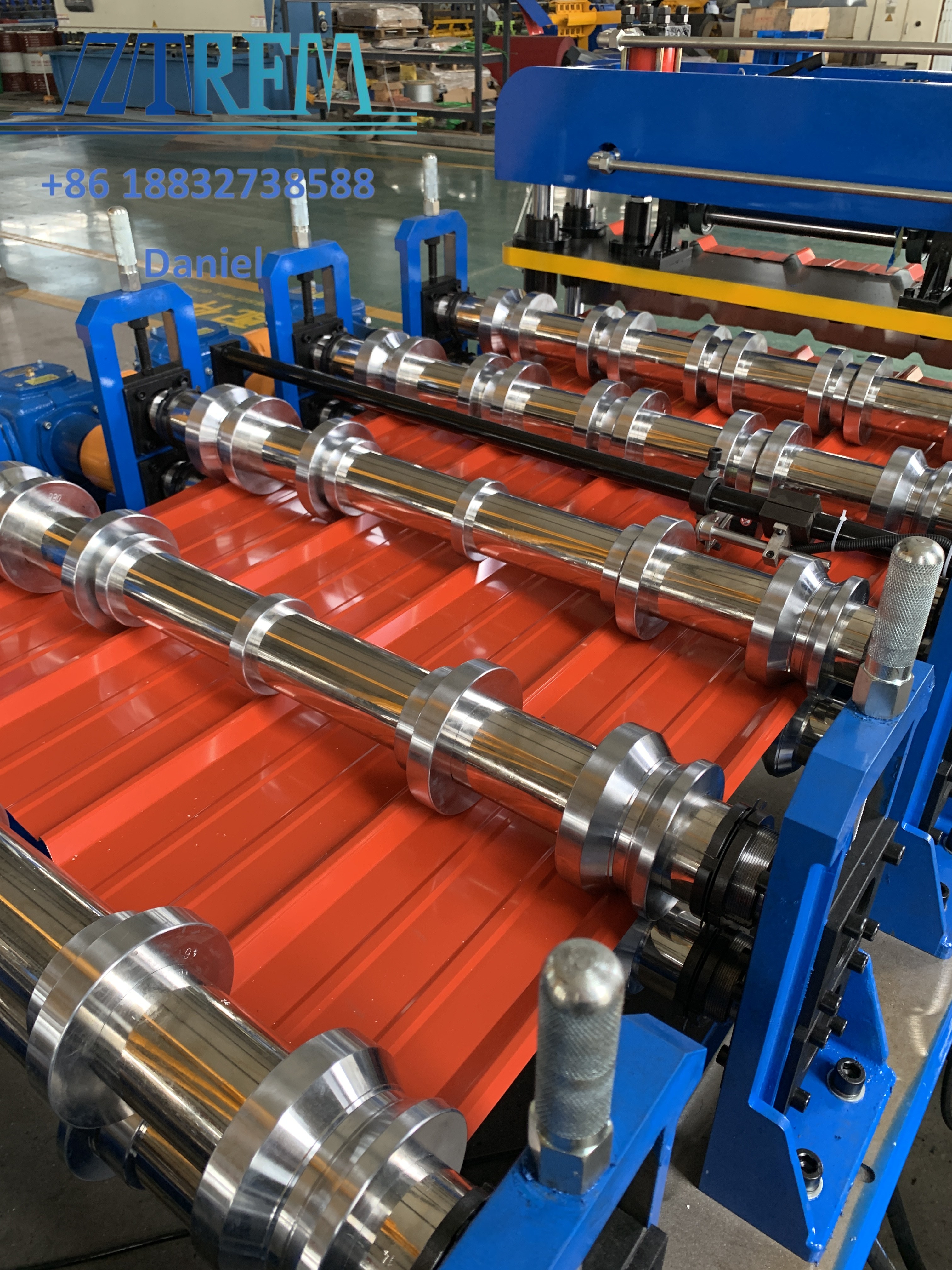

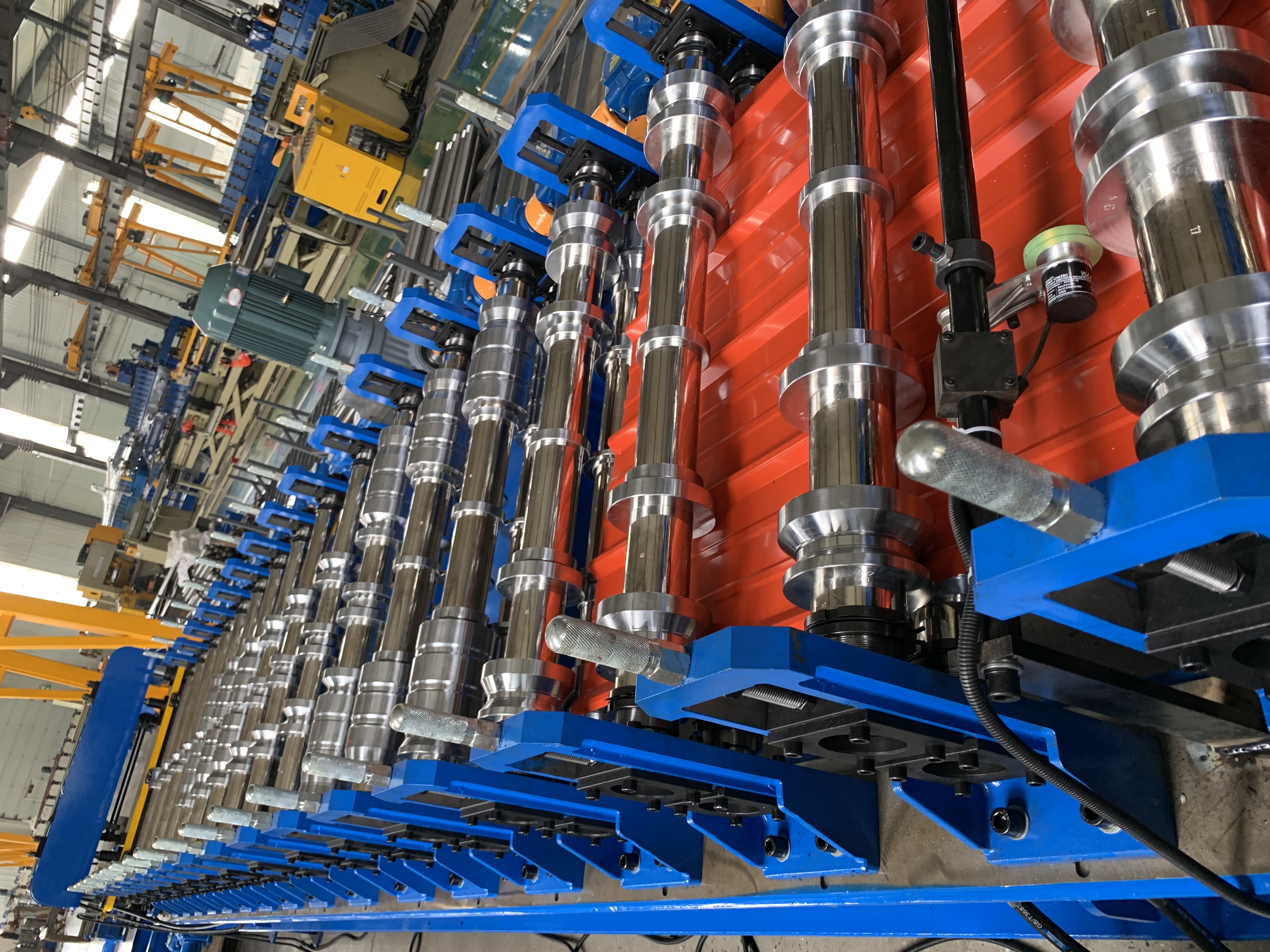

Roll forming and transmission device
1.rollers thick chromed good hardness for long service time.
2. Each roller has number and with keynotes, it can fix on the shaft stablely
3.gear and double chain,stable

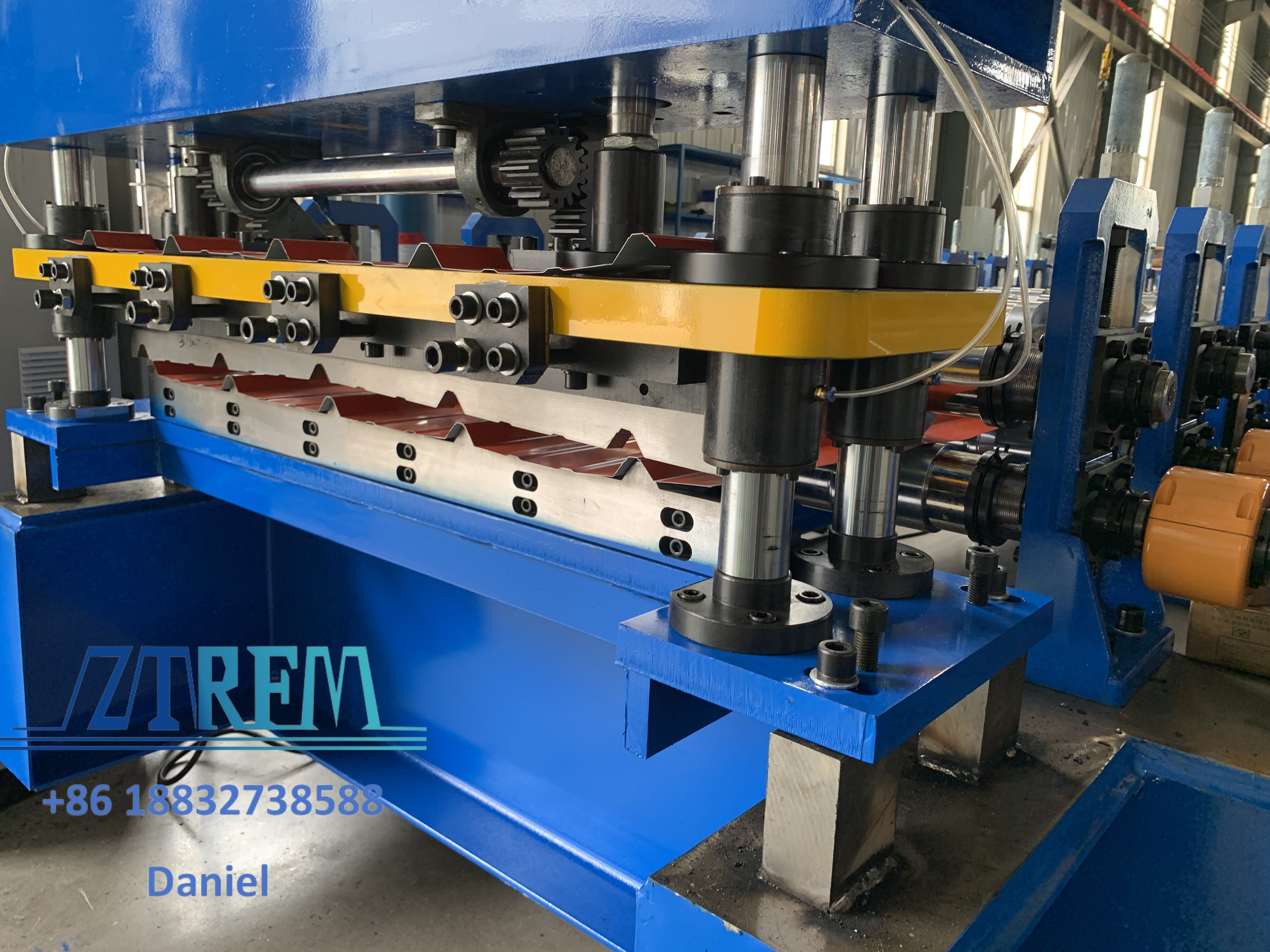

Hydraulic cutting device
We use four pillars cutting system structure, it can make sure the cutting stable

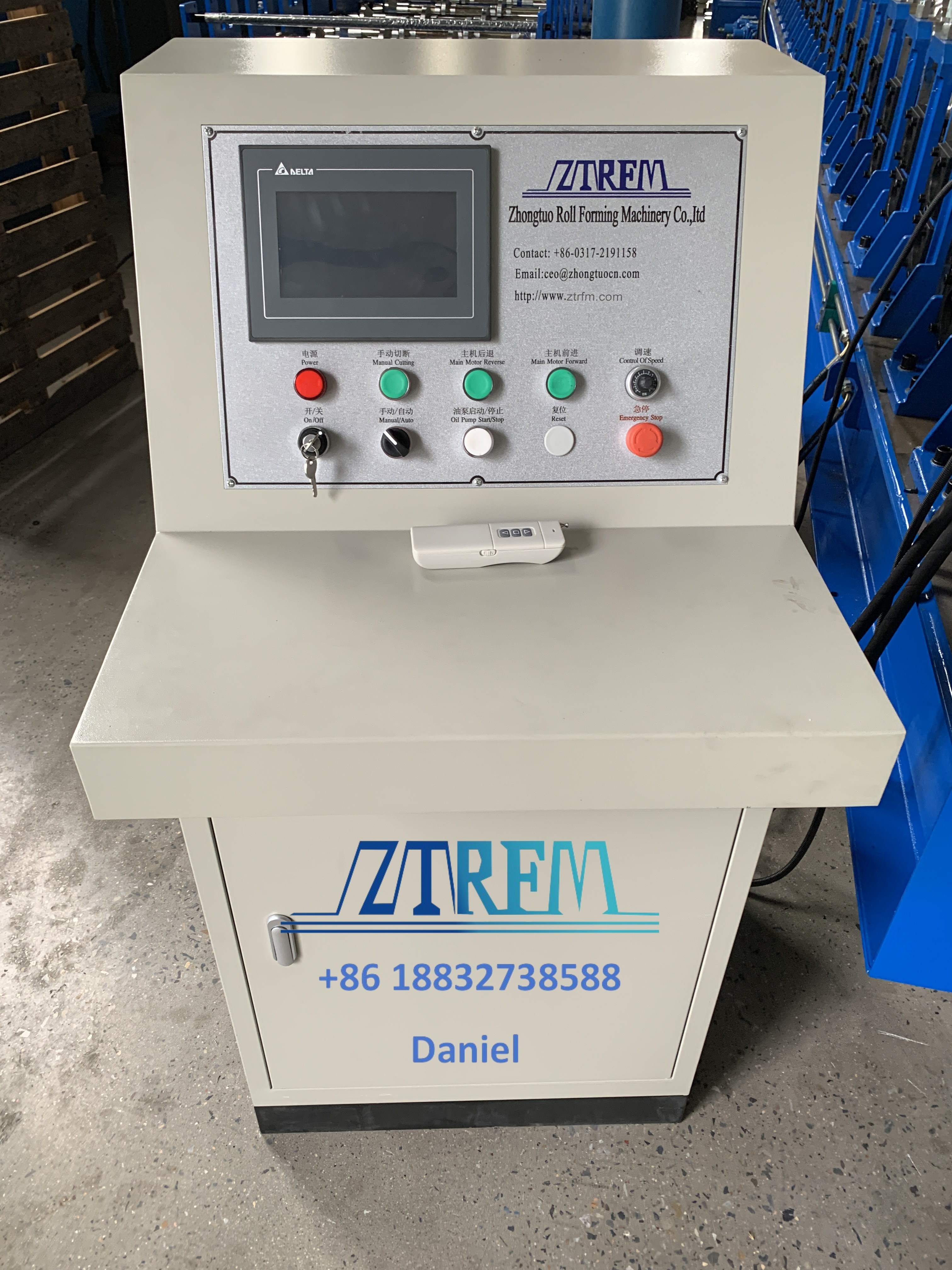

PLC control system
PLC brand:Delta(Taiwan) PLC, and transducer and touched screen
● Encoder brand:Omron
● Electrical components:Schneider
●Operating language:English and Chinese(or as requested)
You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

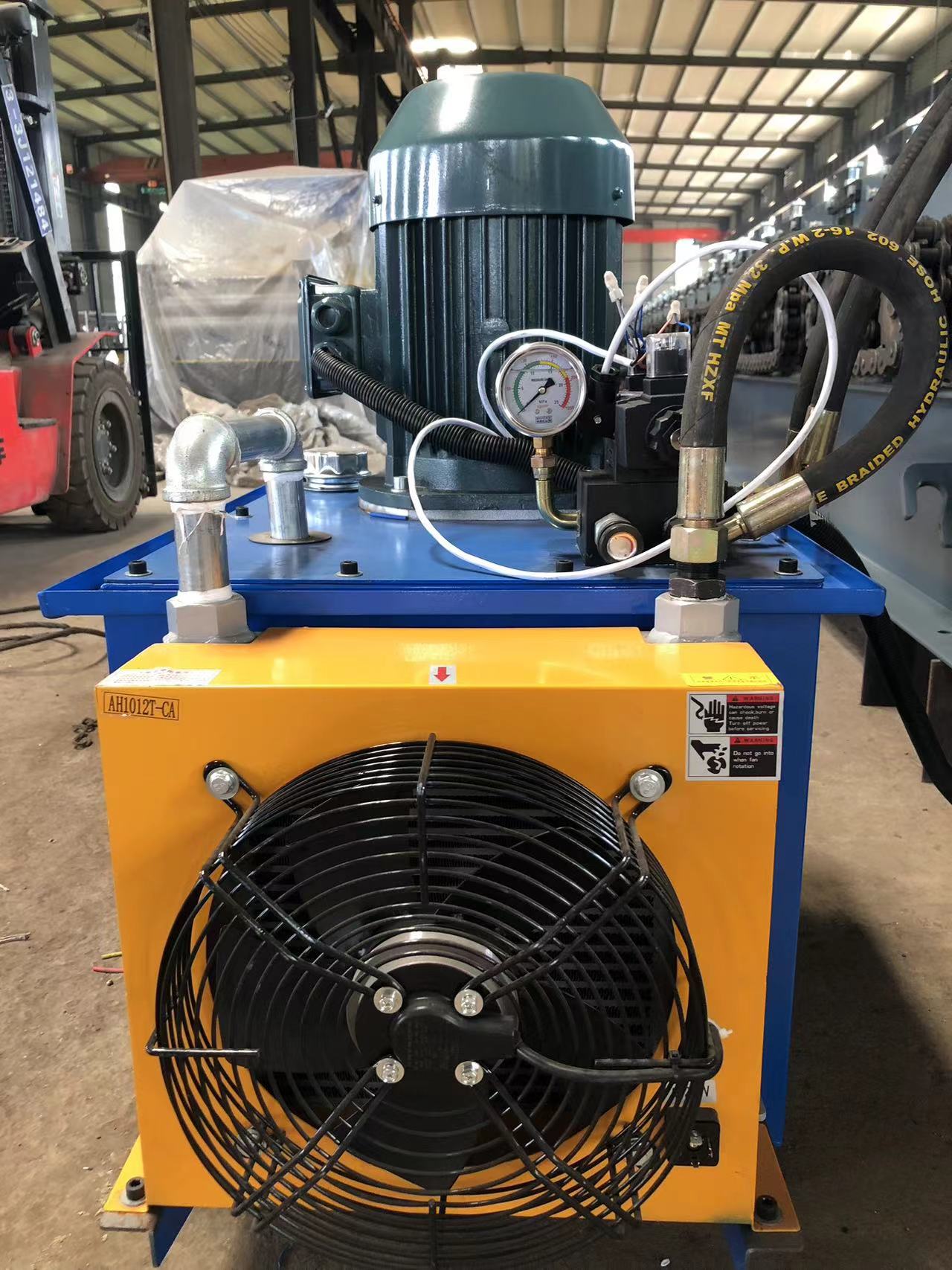

Hydraulic station
● Hydraulic station motor:5.5KW
● Hydraulic oil:46# hydraulic oil
● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve
