Dual Profile Roller Shutter Door Roll Forming Machine
Zhongtuo cold rolling forming machinery Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming Machine and within a short period of time it turned out to be one of the most distinguished companies in Security rolling shutters roll forming machine. We can produce a wide range of industrial doors includes sectional overhead doors and roller shutters and fire roller shutters and security doors also PU Foam Injection Shutter and etc.Steel roller shutters are very versatile and come with various options.
Here are some rolling shuter drawing profiles for your reference:

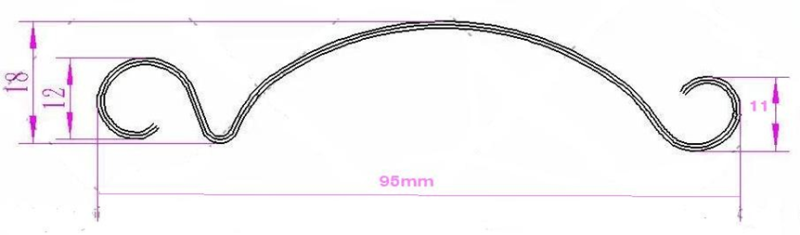

Profile 1:

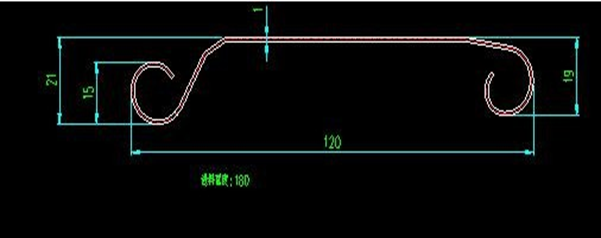

Profile 2:
Machine Parameter Dual Profile Roller Shutter Door Roll Forming Machine
| Roller stations | Left: 12 stations Right: 12 stations |
| Roller material | Gcr 12mov chrome plated surface |
| Shaft material | 40cr solid steel |
| Shaft diameter | 50mm |
| Working speed | 20m/min Not including cutting |
| Hydraulic cutting blade | Gcr 12 Mov Chromed and quenched HRC 58-62 |
| Hydraulic Cutting Power | 3kw |
| Hydraulic Oil | 46# |
| Transmission | Chain with protective cover |
| Electricity | 380V, 50HZ, 3 Phrase (Customizable) |
| Forming motor power | 11kw |
| Machine Frame | Middle plate 20mm |
| Color | Blue & Yellow (Customizable) |

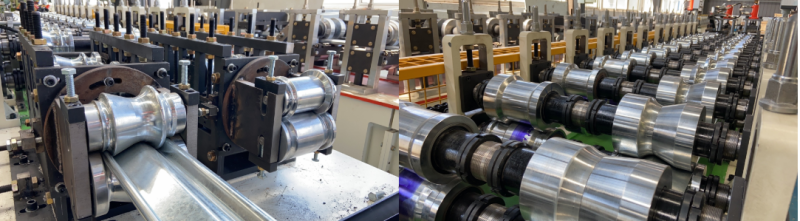

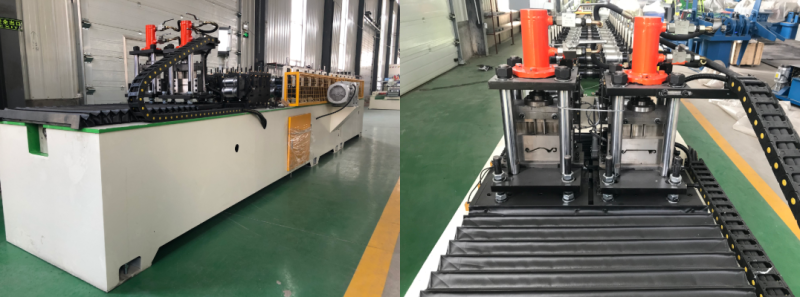

Machine Photos of Dual Profile Roller Shutter Door Roll Forming Machine
