Garage roller shutter door making machine are used to make various type shutter doors which can help prevent unauthorized access and vandalism to premises by adding an extra barrier between “outside” and whatever entrances they may be protecting. When open, the shutter doors provide an almost unobstructed aperture as the shutter and mechanism store above the doorway and out of the way. Furthermore, the doors are tough and have a long life with little maintenance required.

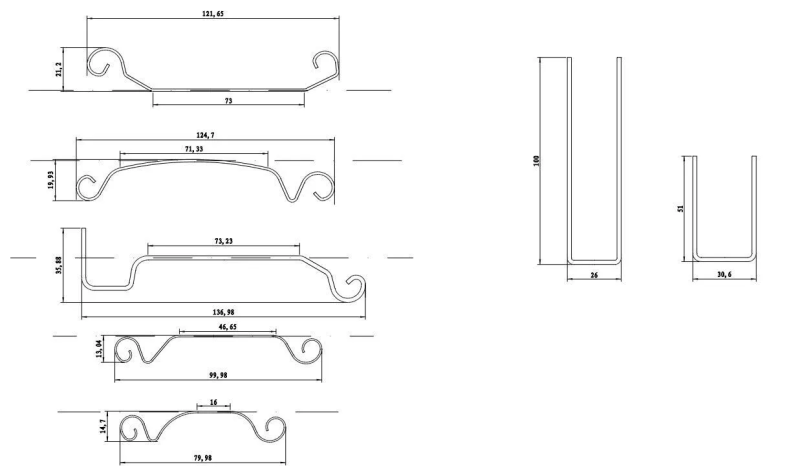

Drawing Profile of Garage Roller Shutter Door Roll Forming Machine
Machine Parameter of Garage Roller Shutter Door Roll Forming Machine:
| Roller Stations | 16 stations |
| Roller material | Gcr 15 steel after quenching processing HRC52-55℃, chrome plated surface |
| Shaft material | 45# solid steel |
| Shaft diameter | 70mm |
| Working speed | 25m/min Not including cutting |
| Hydraulic cutting | Servo cuttting |
| Transmission | Gearbox |
| Electricity | 380V, 50HZ, 3 Phrase (Customizable) |
| Forming motor power | 11kw |
| Machine Frame | Middle plate 20mm |
| Color | Blue & Yellow (Customizable) |

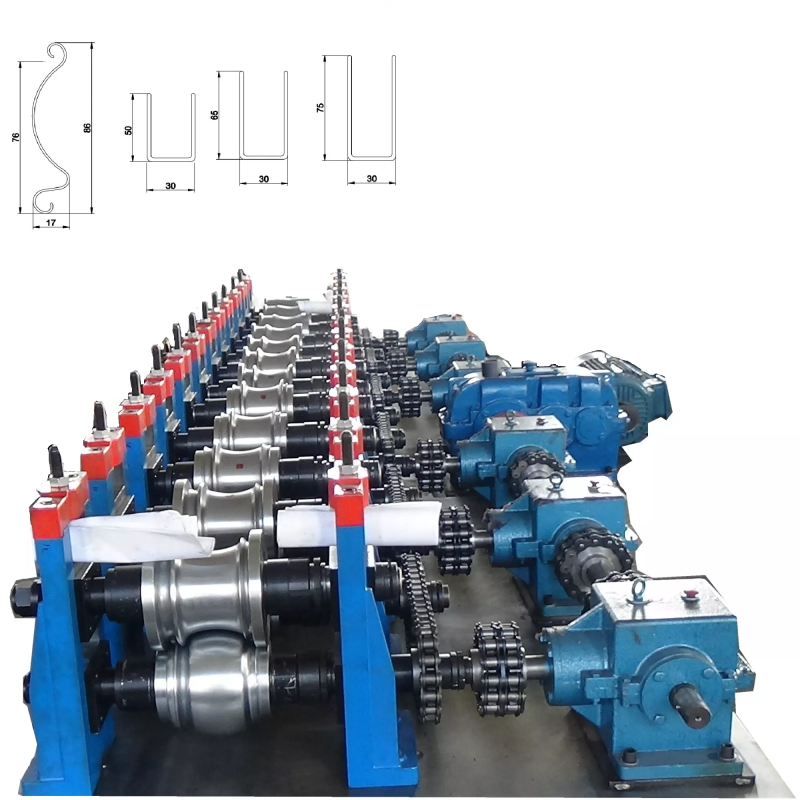

Machine Photos of Garage Roller Shutter Door Roll Forming Machine:
Garage Roller Shutter Door Roll Forming Machine Working Video for your reference:
