Aluminum PU Shutter or Window Rolling Shutter rolling forming machine

Aluminum PU Shutter or Window Rolling Shutter rolling forming machine is designed to make the PU rolling shutters in batch fully automatically. Thermal insulation shutter door is a door special function, its main characteristic is that it has excellent insulation performance.Thermal insulation shutter door is made of aluminum alloy or galvanized steel panel,it is filled with environmental friendly polyurethane foaming material in the middle of profiles which can effectively eliminate the noise, improve the bending resistance of profiles and have good thermal insulation effect.
It is applicable for residential houses, hotels, villas, banks, office buildings, industrial zones and so on.

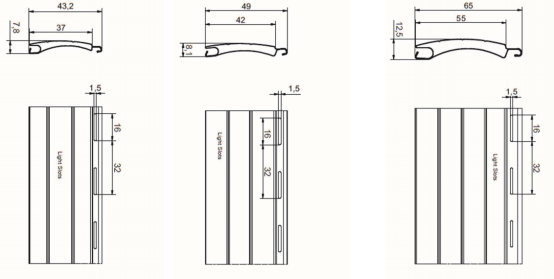

Here are some drawing profiles for your reference:

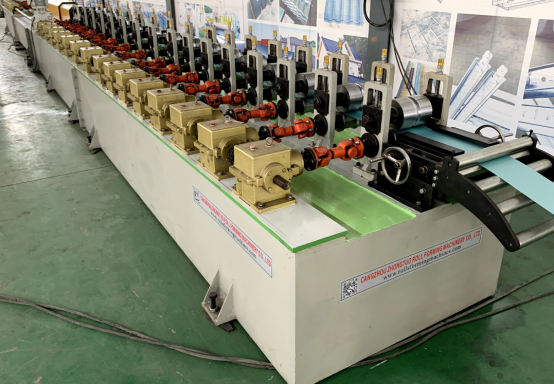

PU Rolling Shutter rolling forming machine:

Basic information of PU rolling shutter door machine:

1. Rolled strip thickness: 0.28mm -0.35 mm

2 .Rolled steel strip material: aluminum plate

3 .Production speed: 8--5 meters

4. Straightness error of rolled work piece≤±1.5mm/1500 mm

5. Angle error of rolled work piece≤±1.5mm/1000 mm

6 .The fixed length error of the rolled work piece is 10m±1.5mm

PU rolling shutter door machine working flow:

Molding equipment production process

Loading (load the steel coil into the inner supporting opener to hold it tightly)——Incoming plate calibration (through the feeding guide platform to correctly guide the steel plate into the forming host) —Roll forming——After forming, cut off the finished product supporting material out of the board

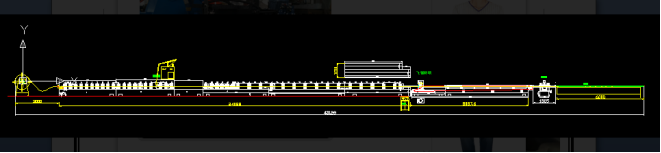

Basic elements of PU rolling shutter door machine:

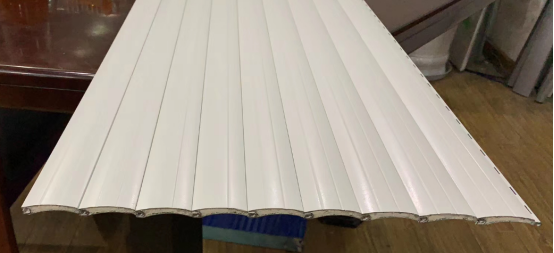

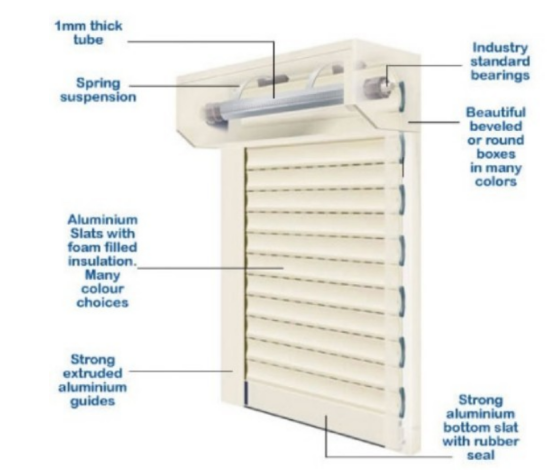

Aluminum PU Shutter or Window Rolling Shutter Usage:
