Roll-up Shutter Door Forming Machine

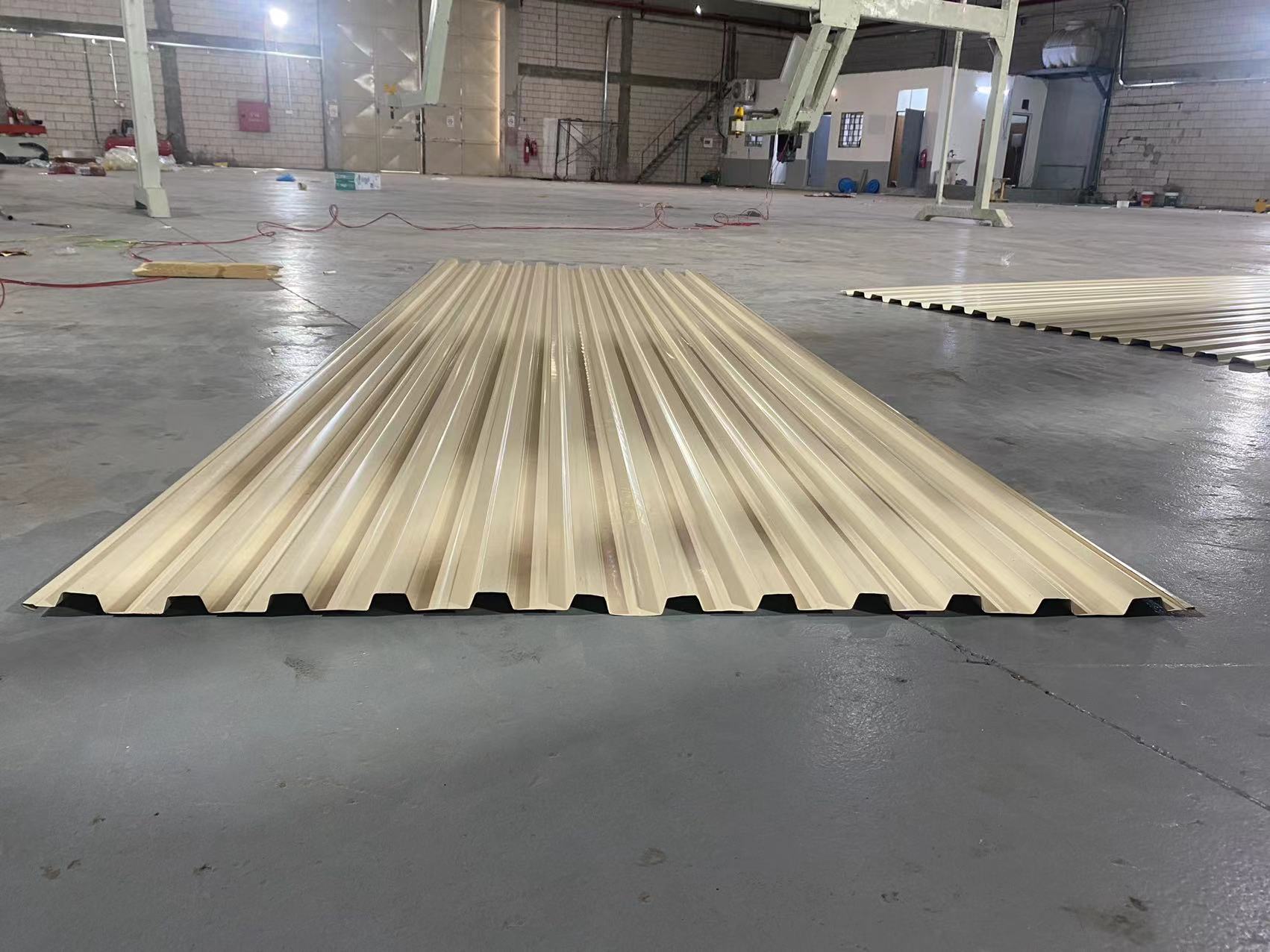

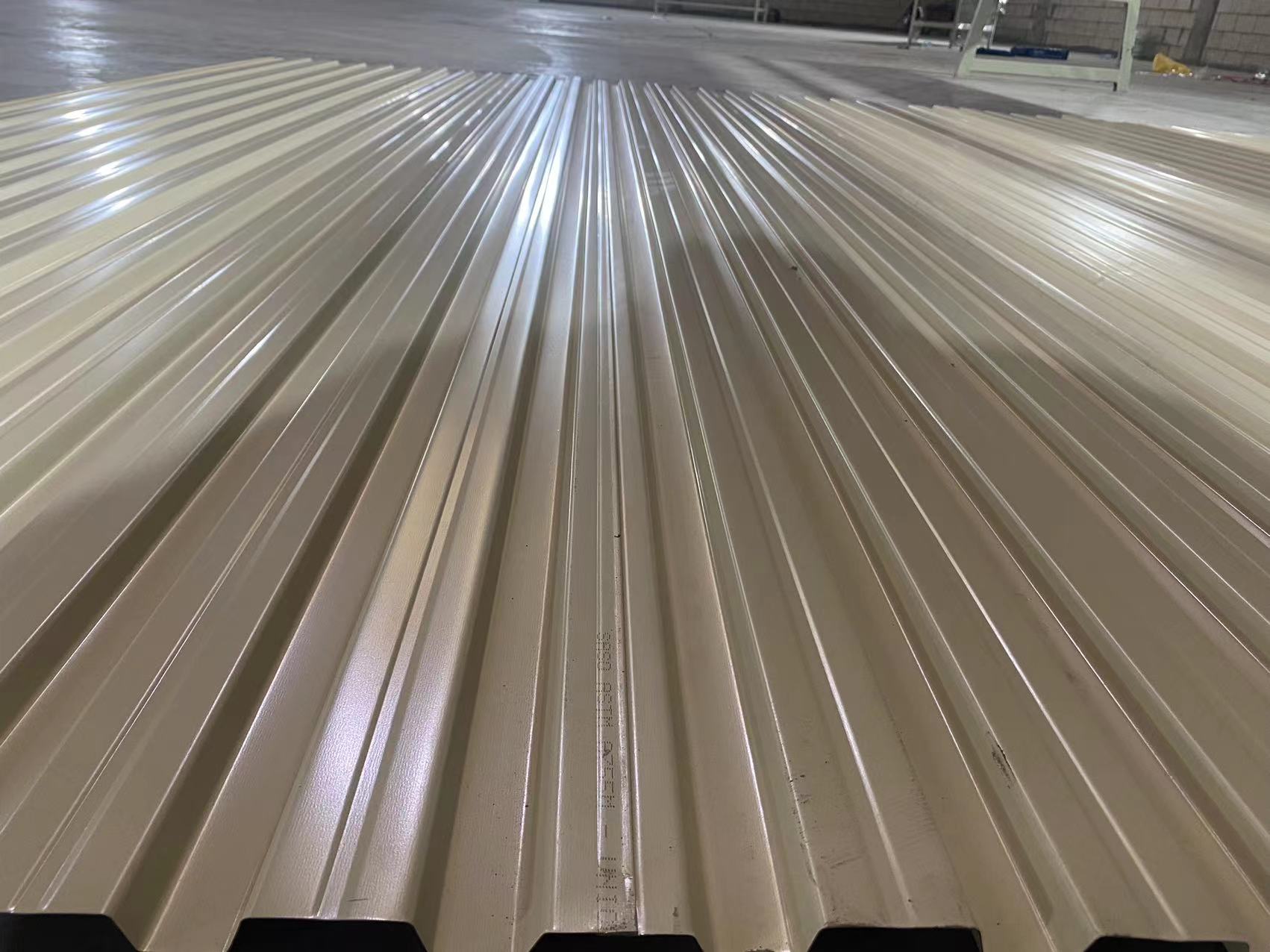

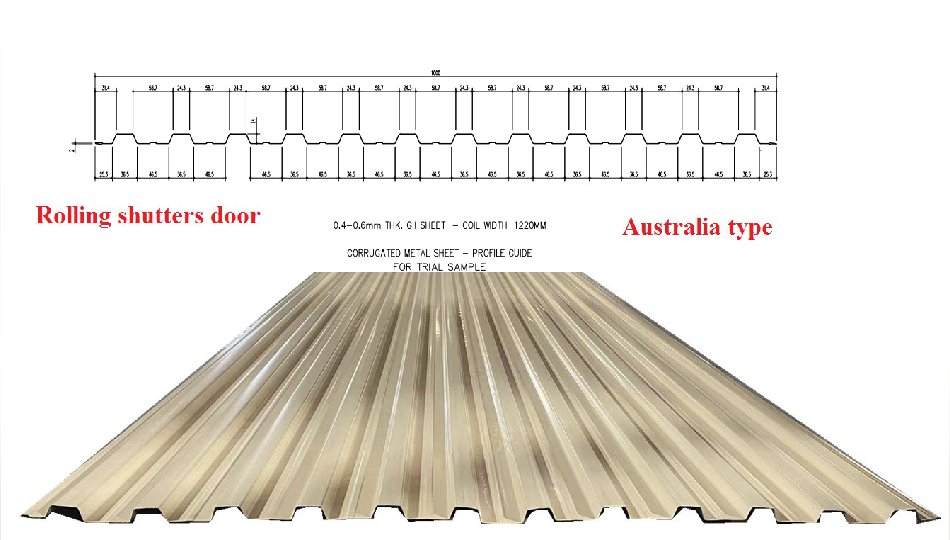

Roll-up shutter door forming machine open be called Aussie rolling door molding machine, this machine feeding width 1220mm, production thickness 0.4-0.8mm, Aussie rolling door is widely used in North and South America, Saudi Arabia and other countries, beautiful, high safety factor.

Using Materials:GI&PPGI&G550

Materials thickness:0.4mm-0.6mm

Rolling shaft materials:shaft materials 45#STEEL(80mm); tempering treatment to prevent deformed and improved hardness

Rollers:45#STEEL; Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life.

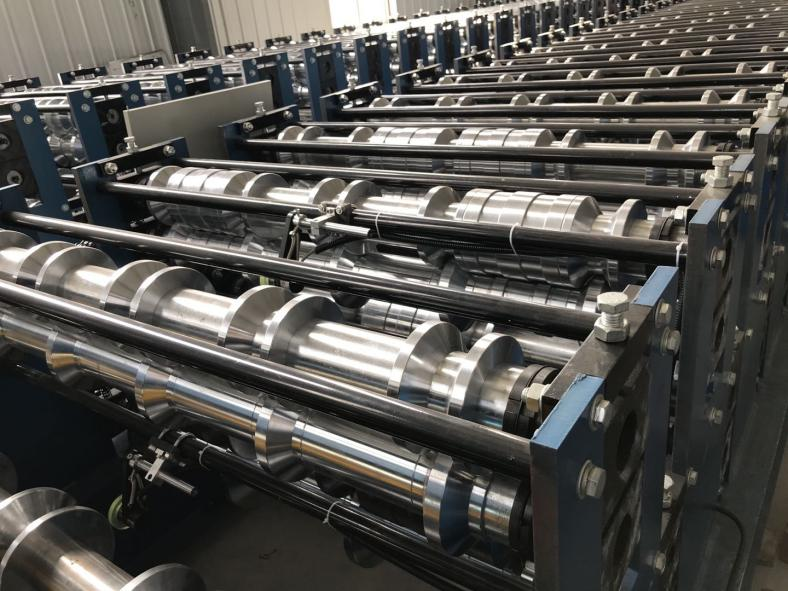

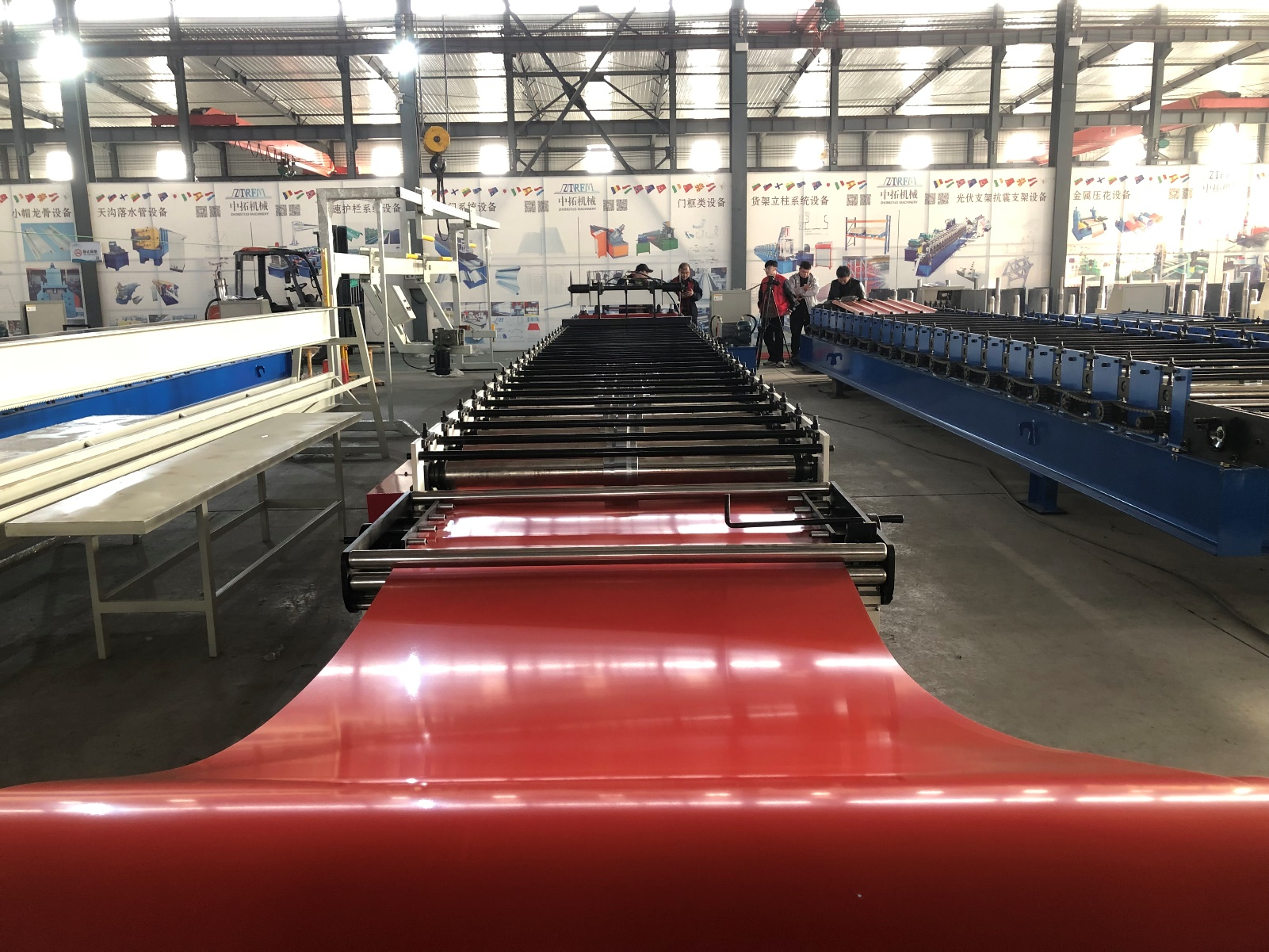

Roll-up shutter door forming machine with 29 roes roller station and steel plate structure ,  producing speed can reach 15-20m/min, machine using 2 * 5.5kw motor.

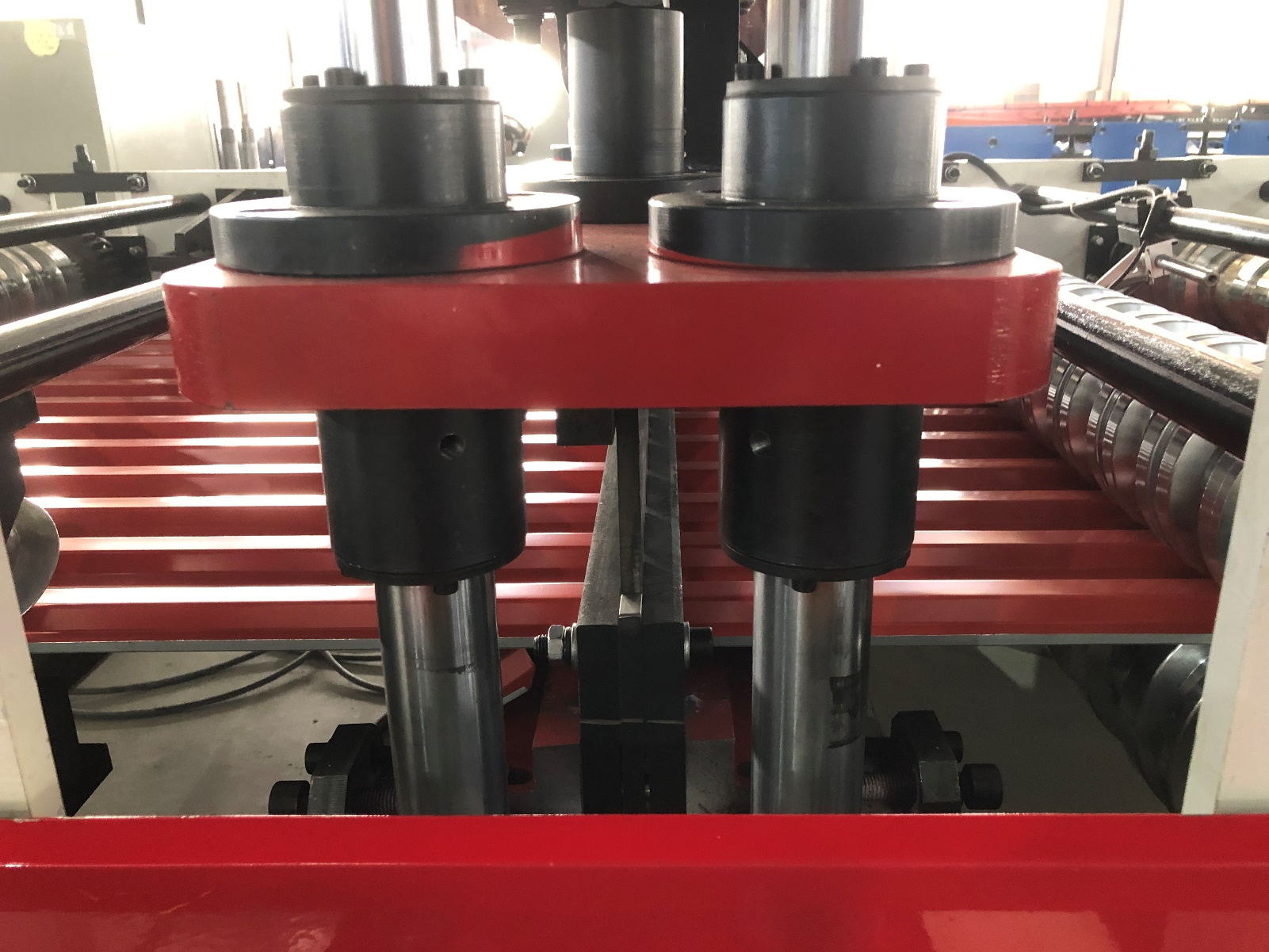

Machine cutting system adapt hydraulic cutting driving by pillar type cylinder and hydraulic motor power is 4kw and Equipped with fan on the tank, in case the oil temperature getting hot when the machine working for hours continuously, ensure the hydraulic oil in a constant temperature to have enough power for cutting device

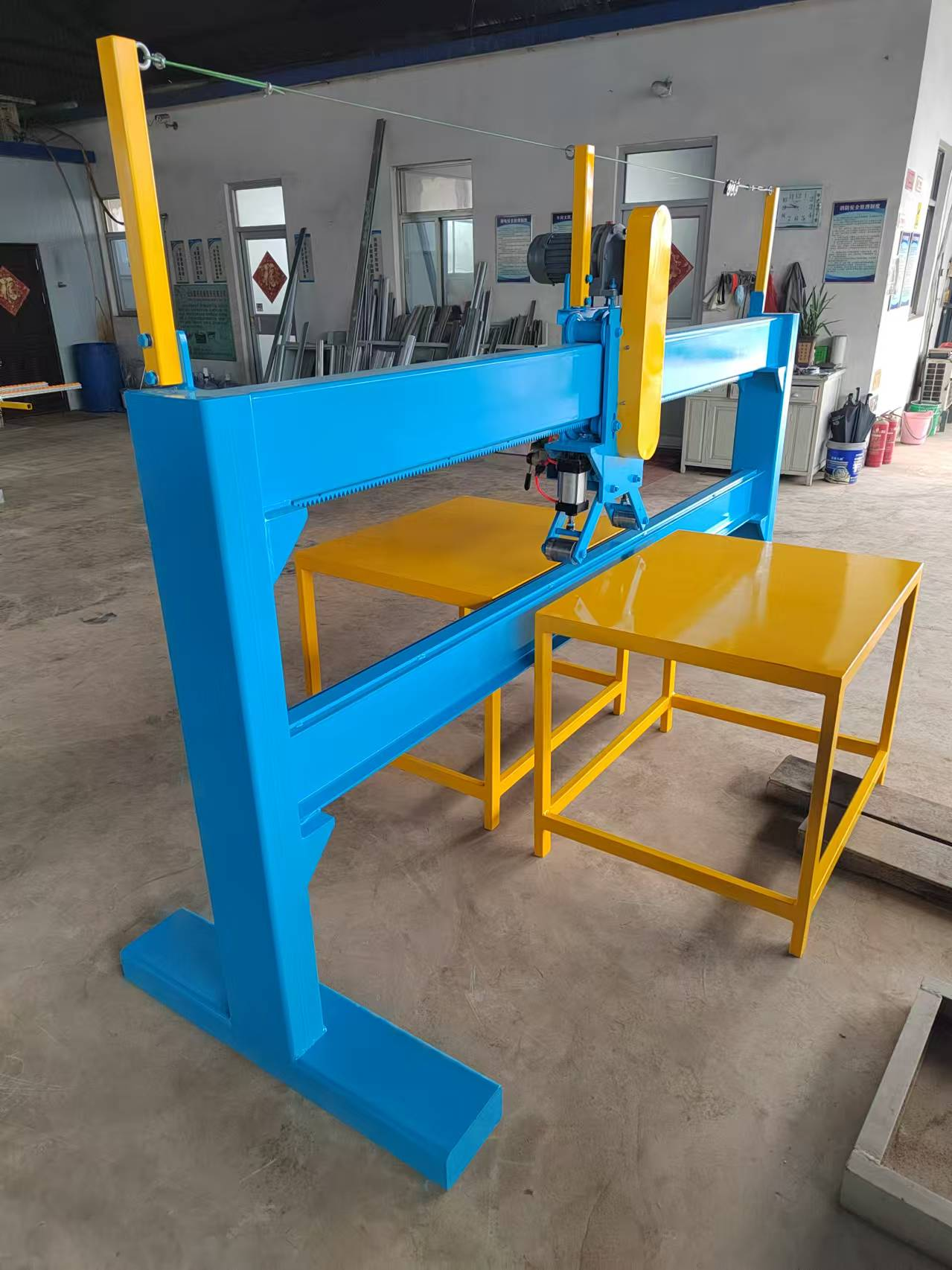

Usual adapt 6000*800*1500mm Rectangular tube for seaming machine, Seaming machine press force There are two types of press force: cylinder press force and spring force press force.
