Shutter Door Forming Machine

ZTRFM shutter door forming machine using Siemens control system and can customized as different country needs.Machine producing speed can reach 30m/min.

High Speed Roller Shutter Door Making Machine, also known as the Door Roll Forming Machine, is a remarkable piece of equipment. It operates with precision and efficiency. Firstly, it starts by feeding the raw materials steadily onto its conveyor belt. Then, it skillfully shapes and molds the materials through its rollers, gradually forming the structure of the roller shutter door. As it works, it carefully adjusts the pressure and speed to ensure the perfect curvature and smooth edges of the door panels. Moreover, it continuously monitors the whole forming process to guarantee the high quality of the final product. Once the forming is completed, it neatly cuts the door to the required size and releases it for further assembly or packaging. This machine truly plays a crucial role in producing excellent roller shutter doors for various applications.

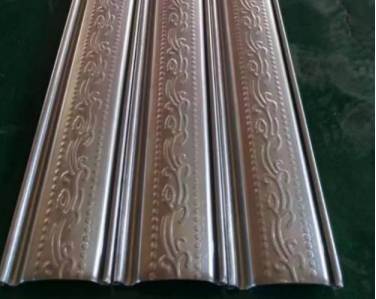

Finish production show:

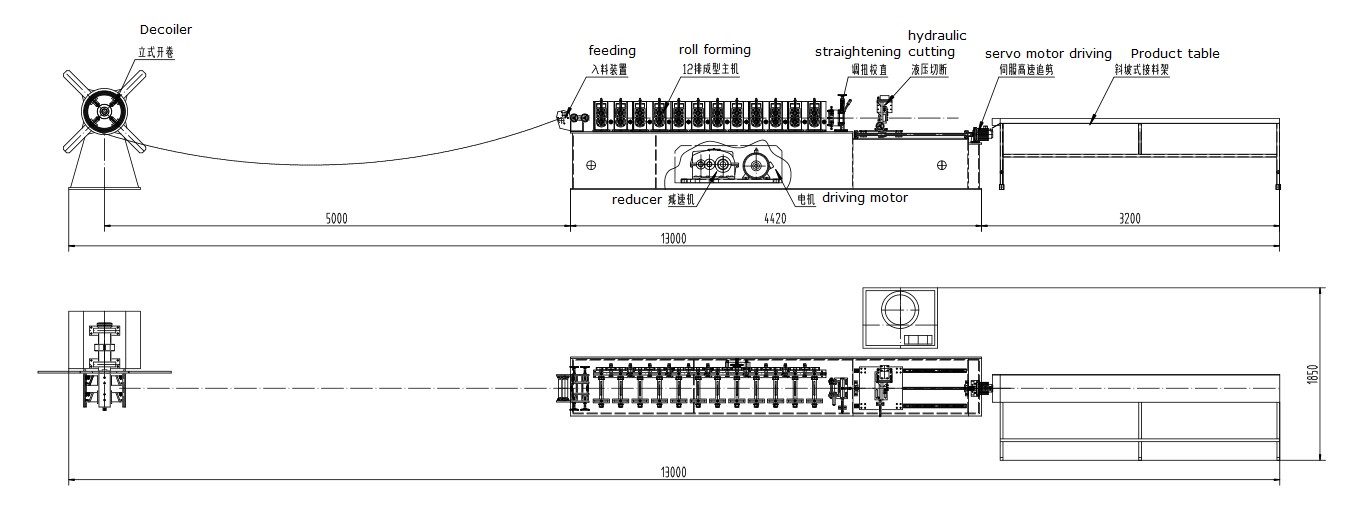

Machine working flow chat:

Details

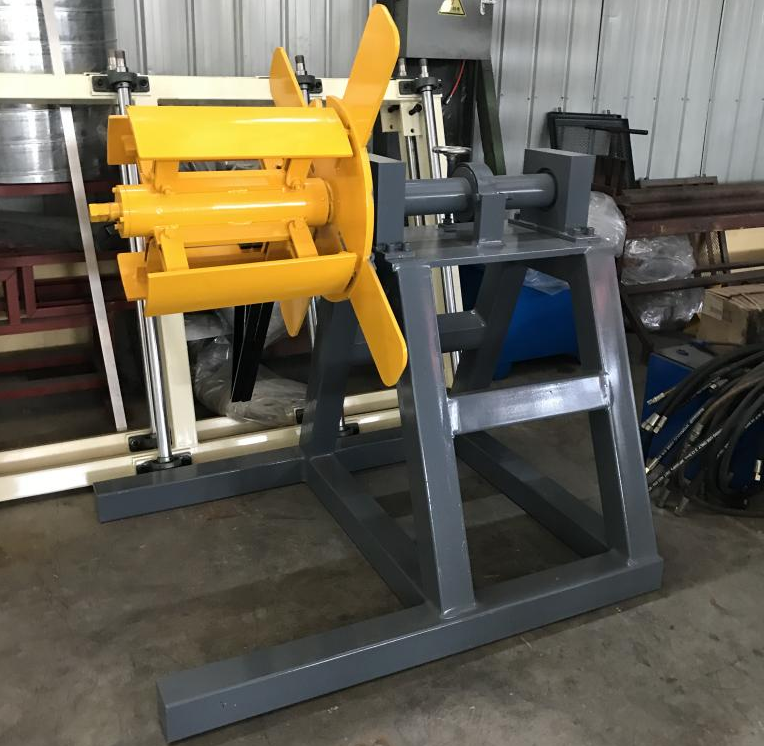

Machine equiped with 1.5tons manual decoiler ,it's passive work type and driven by roll forming machine.

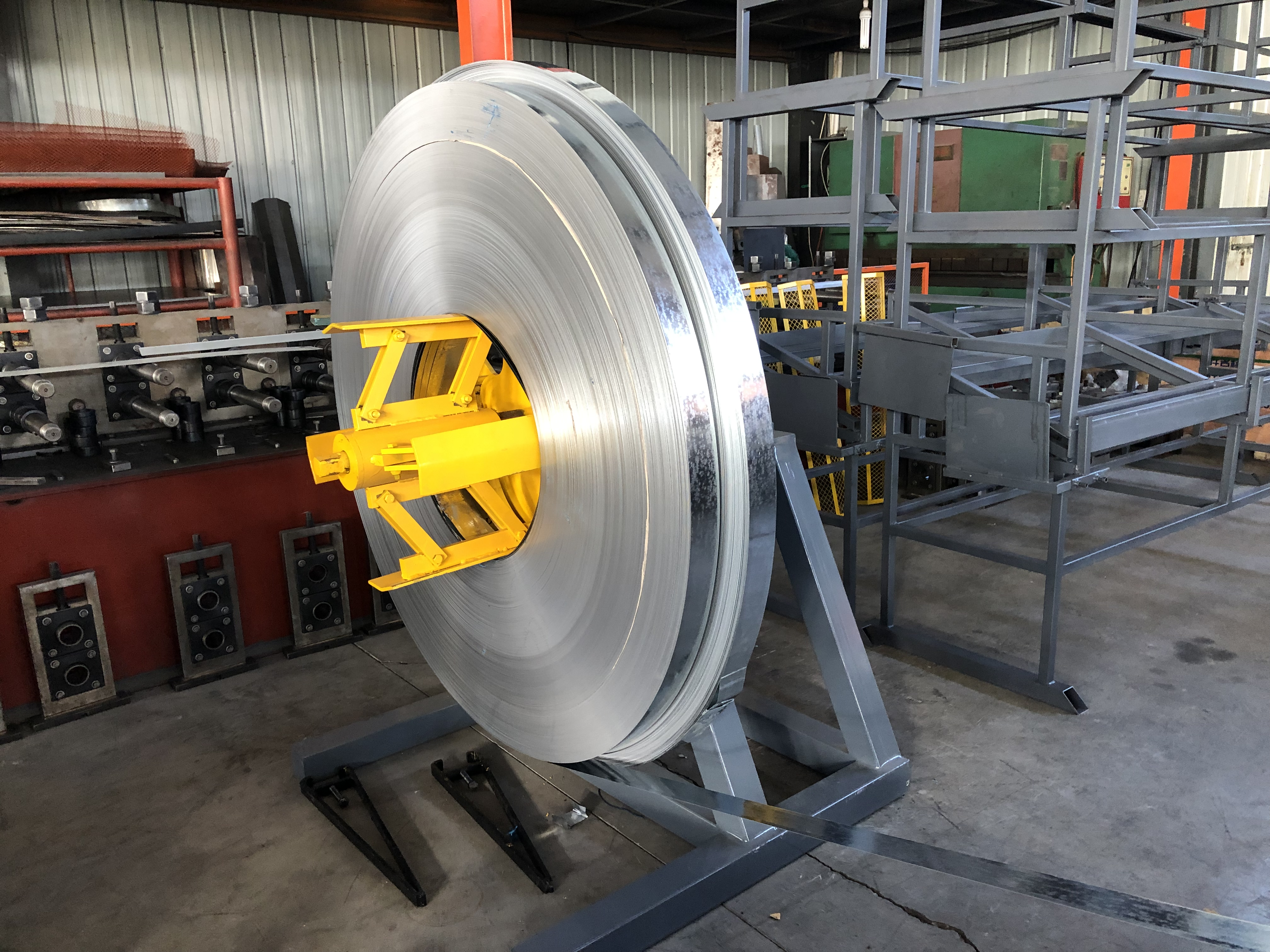

Coils inner diameter is 450mm-550mm and the coils outer diameter is 1500mm, support coils width is 100-500mm.

Machine also have careful feeding system,it can level coil to make sure coils neat clean and straight.

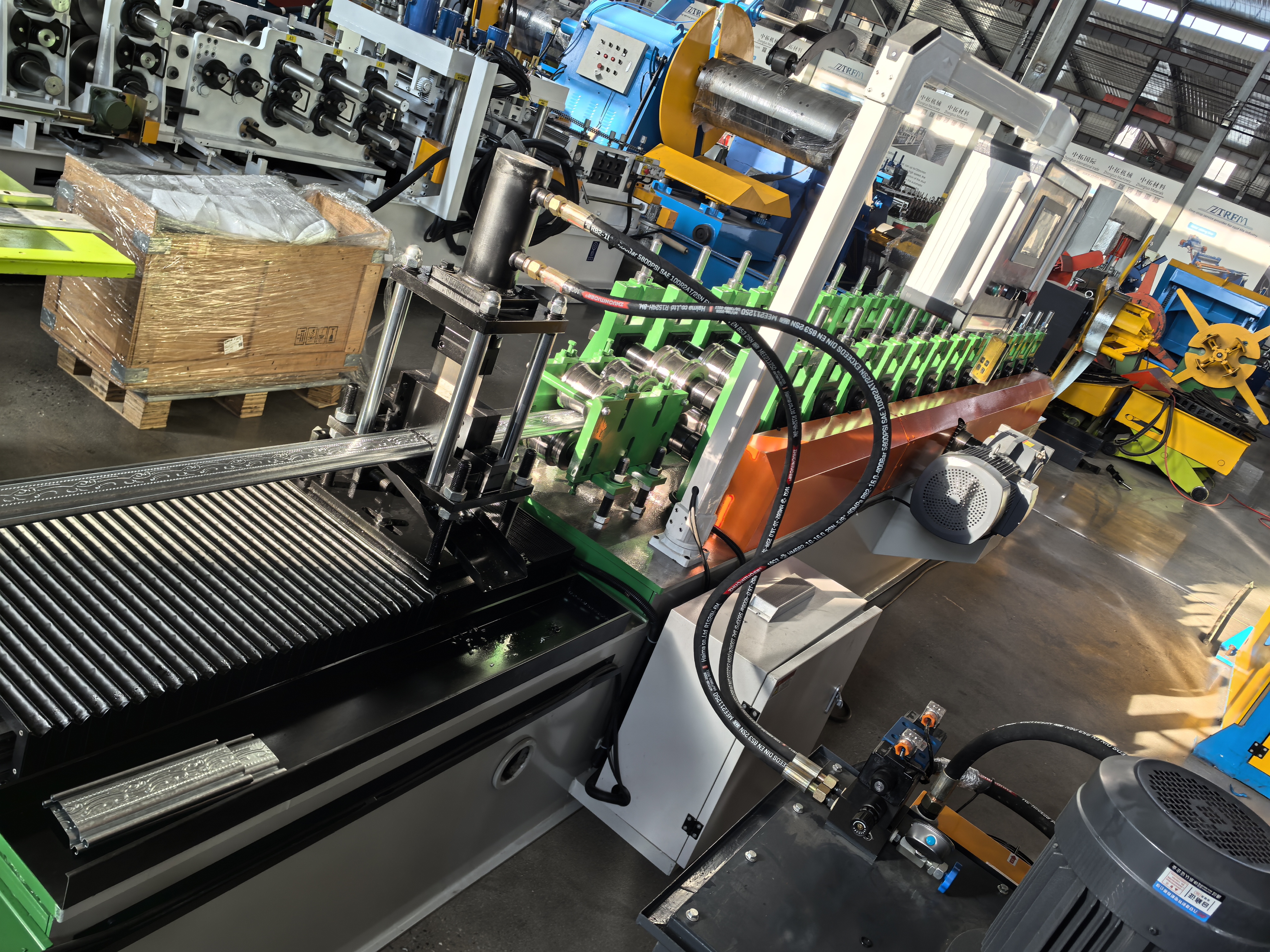

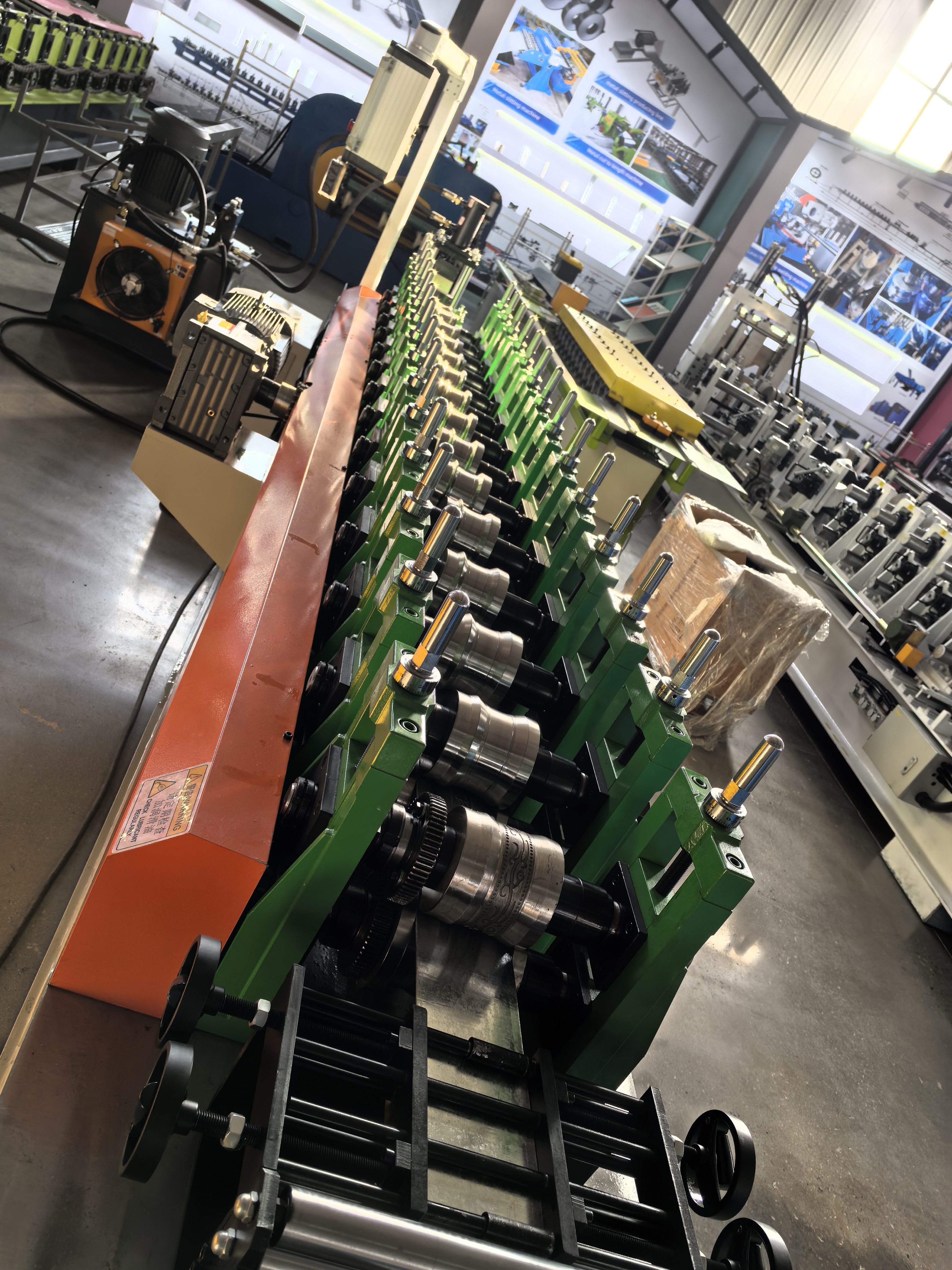

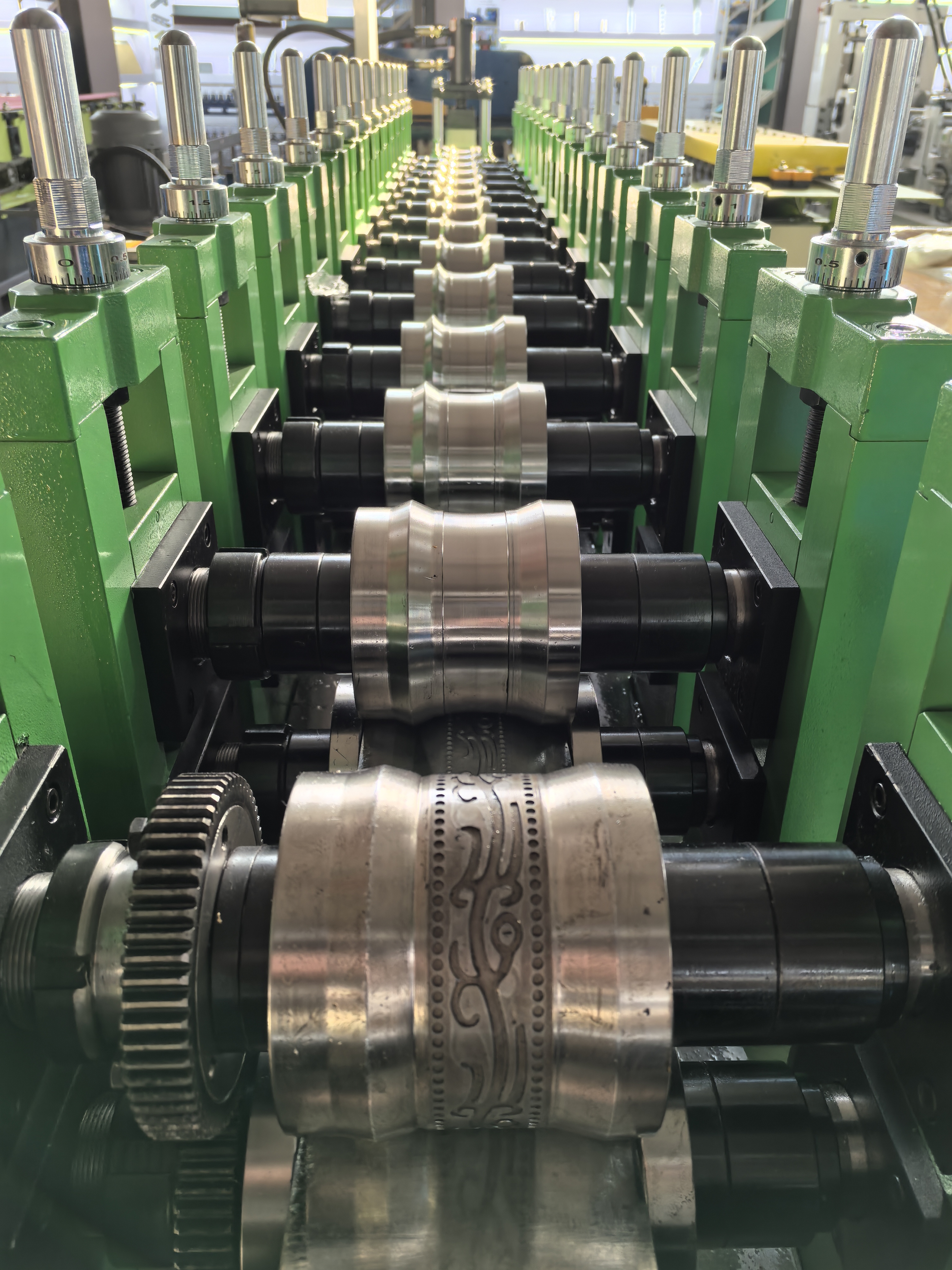

Machine main roll forming part is contain 13 station rollers and rolls materials is Cr12Mov with quenched  treatment; Shaft diameters is 60mm and materials is 45#steel with quenched treatment.Machine forming speed can reach 35m/min and drive vy chains .

Our machine control system using Siemens brand, more durable and accurate,it can control cutting speed , cutting length , forming speed and so on.And our encoder using Omron brand.
