                                           Rain water steel downpipe spout roll forming machines downspout gutter and elbow machinery

Rain water steel downpipe spout roll forming machines make precise and well sealed roof drain pipe for carrying rainwater from a rain gutter. Here are some drawing profiles for your reference:

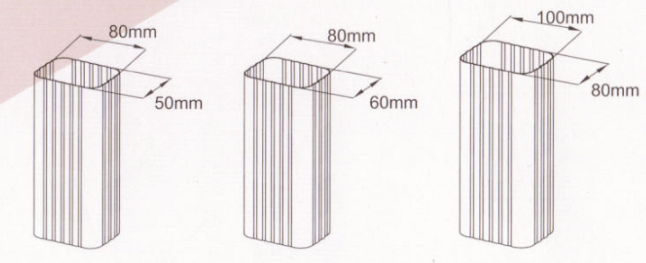

rain pipe drawing profile and size

Advantage of steel downpipe spout pipe;

Galvanized steel guttering resists thermal expansion and contraction,

which means that it remains unaffected from sudden fluctuations in temperature.

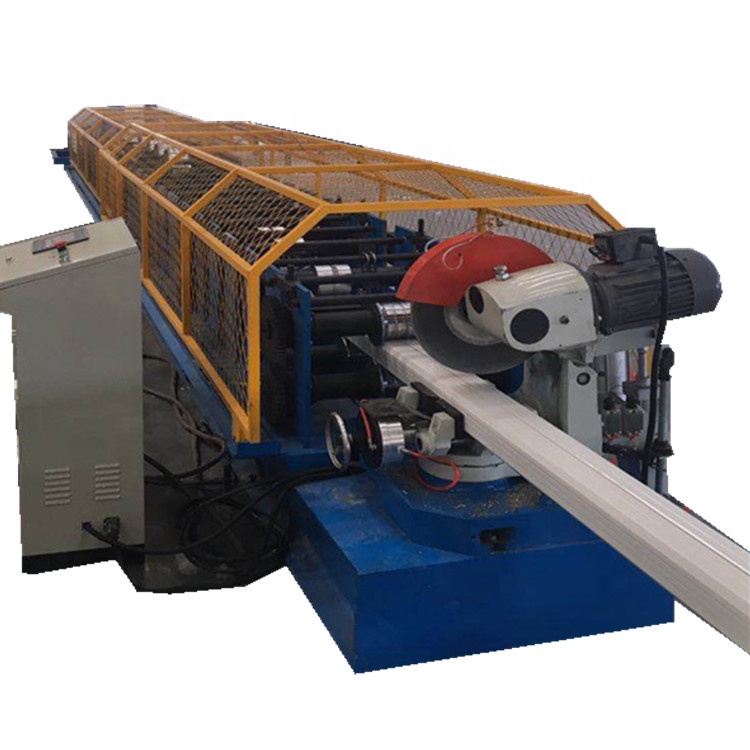

rain pipe rolling machine

Steel has an excellent lifetime value, as it can be recycled.

The downpipe forming machine we produce is customized according to the specific requirements of customers,

such as specification and raw materials. The machine is installed and tested before leaving the factory.

After receiving the machine, the customer can start production once connect wires and tubes.

We randomly send instructions to tell how to operate. Of course, we also have corresponding videos for reference.

Technicians Can also be sent to customer factory for guidance and training if necessary.

The downpipe roll forming machine also work with elbow bending machine,

which make flat pipe to curve according to construction requirement.

,Rain water steel downpipe spout roll forming machines downspout gutter and elbow machinery

Specifications



Machine Specifications
WeightAbout 5000kgs
SizeAbout 11m x 1.2m x 1m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialGalvanized Steel Coils
Thickness0.5-0.8mm
Coil width325mm
Yield Strength235Mpa
Main Technical Parameters
Quantity of forming rollers stations20-22
Diameter of forming rollers shafts60mm
Roll Forming Speed8-12m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMotor of roll forming machine: 5.5kw
Motor of sawing cutter: 3kw
Motor of elbow machine: 1.5kw
Electric voltageAccording to customer’s requirement
Main Components
Decoiler (manual and automatic for options)1 set
Guiding device1 set
Roll Forming system1 set

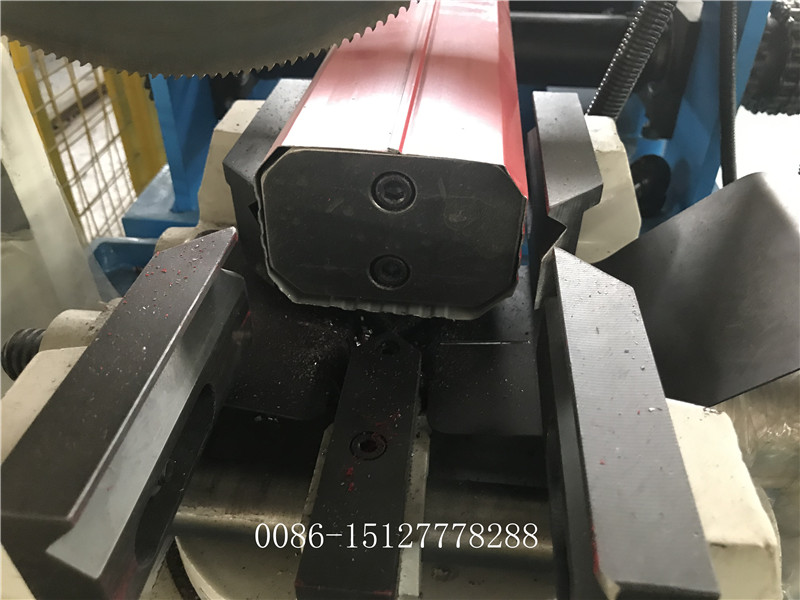

Sawing Cutting system1 set
PLC control box1 set
Elbow machine1 set
Run outs tables set
