Warehouse / supermarket metal steel shelving storage pallet upright rack cold roll forming machine
Description: warehouse super market Storage Rack Upright pilliar steel profile roll forming machine is designed to make the rack for bearing the shelf pannel or other goods.usually used in warehouse and supermarket.
warehouse super market Storage Rack Upright pilliar steel profile roll forming machine is design to make the shelf rack in batch fully automatically.

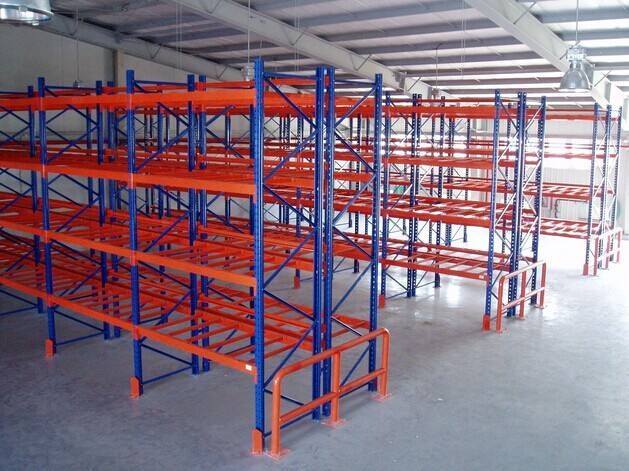

Combined structure, without any bolts, beautiful appearance, scientific structure, convenient installation and disassembly; layer height can be adjusted freely with a pitch of 50mm, each layer can carry up to 400kg under uniform distribution; the surface is treated by electrostatic spray, anti-corrosion Rust, sturdy and durable; widely used in supermarkets, enterprise warehouses and institutions; this product has reached the level of similar products in developed countries.
Based on the market needs, we designed the machine to make the rack first as to the other elements, we will introduce one by one.

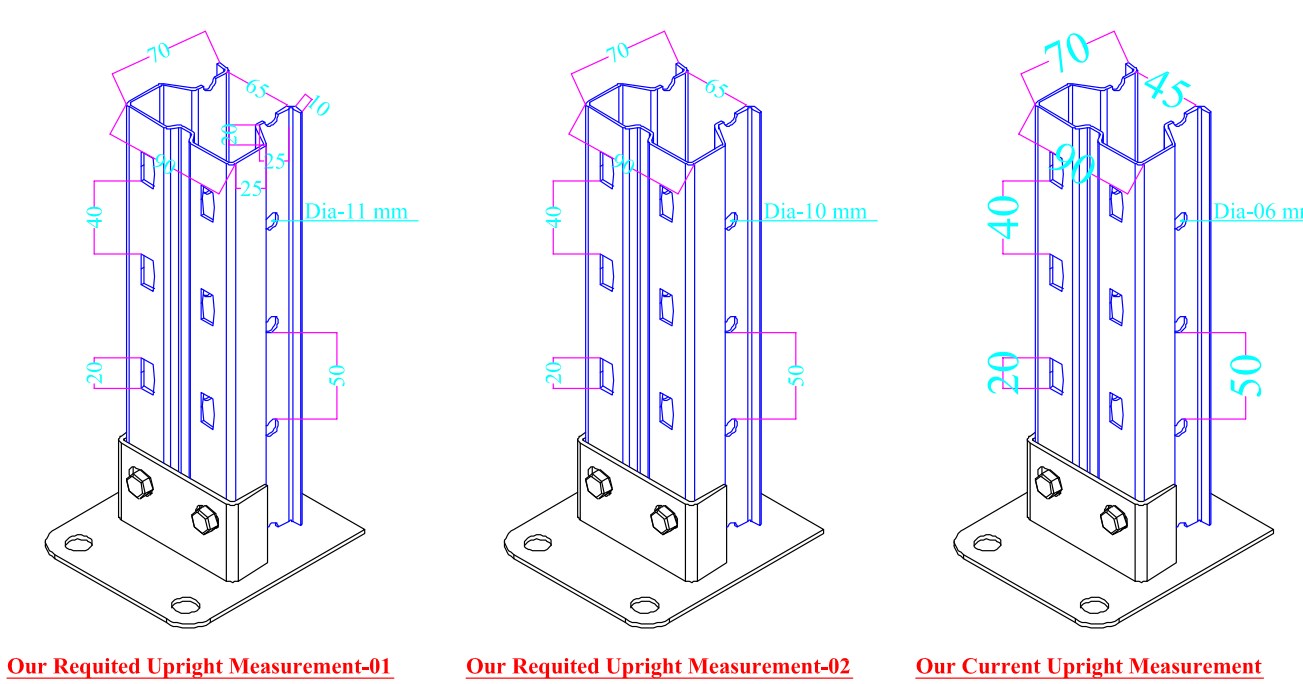

Take the following upright drawing profiles for example:

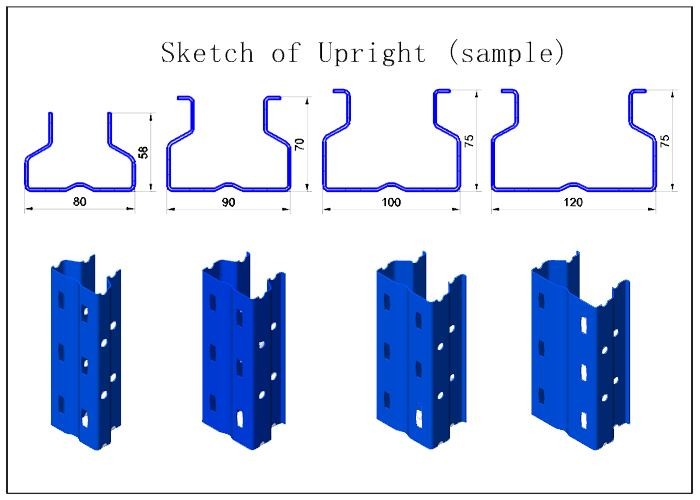

Upright Rack(also called Uprights or Upright Columns) vary in size and design depend on the load capacity and styles. Such as L Shape ( Light Capacity), C Shape (Medium Capacity), Special C Type for heavy Capacity. Holes(Tear Drop Design) and slots are punched during producing so that the load beams can be mounted into the Upright Racks. The heavy Upright Racks thickness up to 2.5mm.
Working flow of warehouse super market Storage Rack Upright pilliar steel profile roll forming:

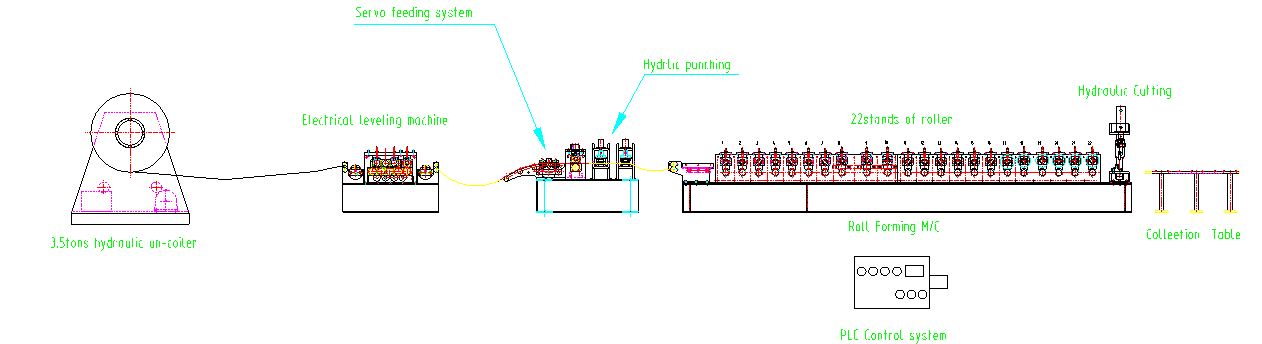

Decoiler-leveling-punching-roll forming-cutting -receiving

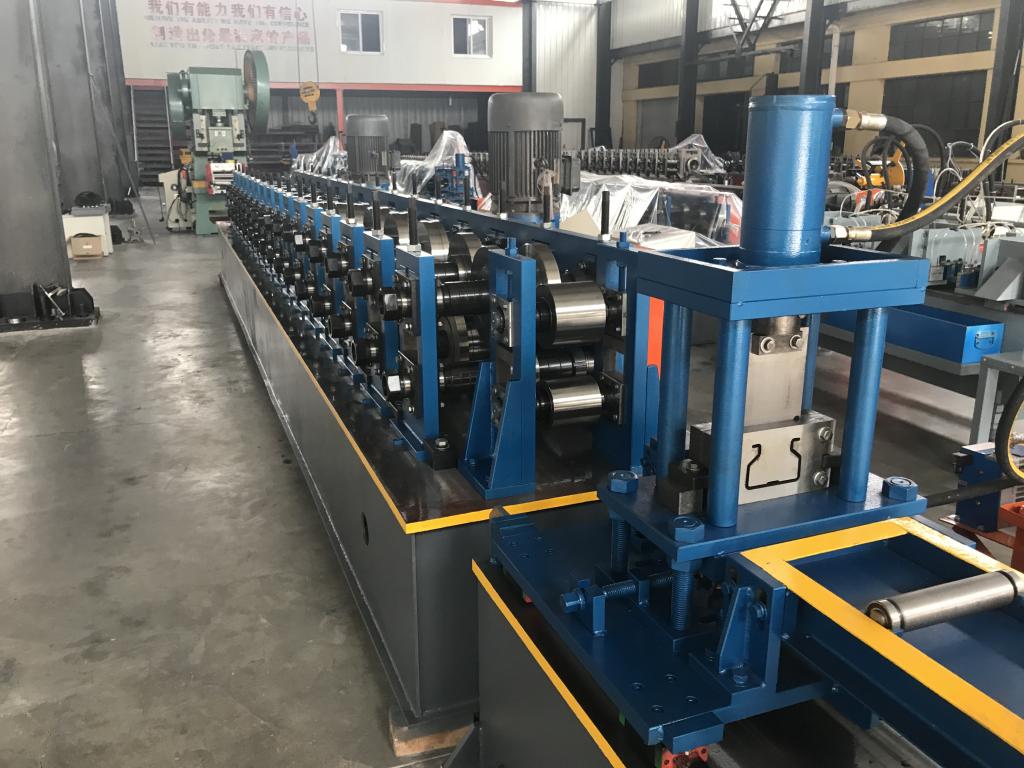

Composation of storage rack roll forming producing line:
1 | 3 Ton Manual decoiler | 1 set |
2 | Yang Li brand Punching system 80 Ton | 1 set |
3. | Coil feeder | 1 set |
4 | Leveling Machine | 1 set |
5 | Roll Forming for the shearing, please make good and update and change the cutting metod for good shape no any bending. The entire PLC brand Dleta. The Electrical component Schneider | 1 set |
6 | Hydraulic Cutting | 1 set |
7 | PLC Control System | 1 set |
8 | Hydraulic Station | 1 set |
9 | Run-out Table-(Un-powered) | set |

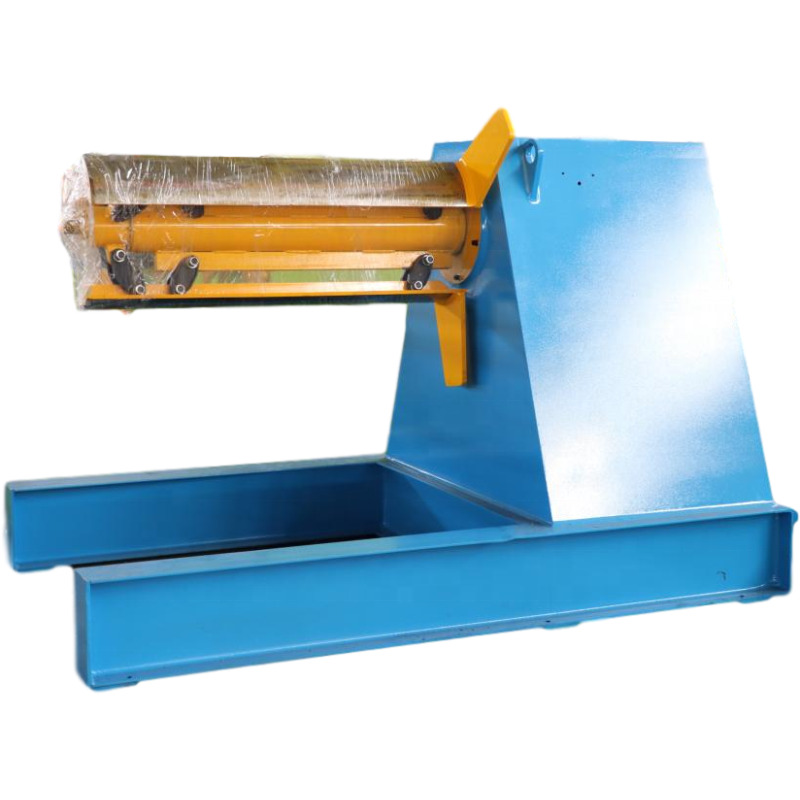

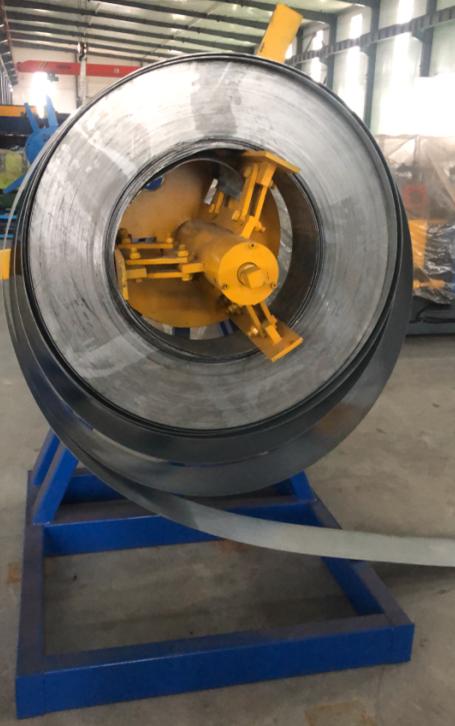

Manual decoiler
Coil inner Diameter: 460mm~520mm
Max out diameter of the coil:800mm
Expansion: Manual with brake
Max Coil Width: 500mm

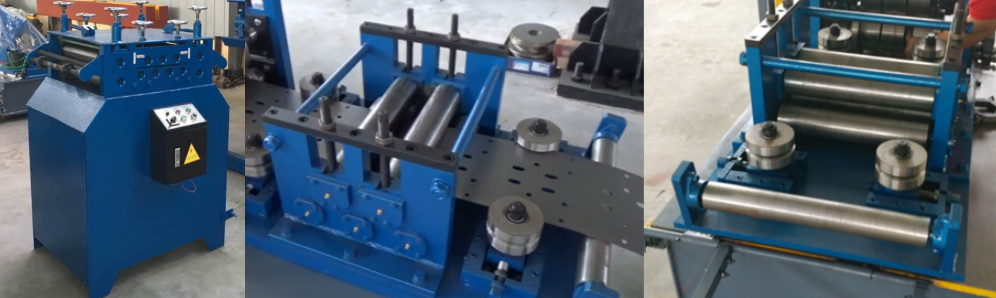

Leveling system
The coil from Decoiler is a little bit curves, so the leveling system is to help make the coil straight, neat and clear. We will take 7 rollers, upper three rollers and down four rollers to level the coil.
Leveling roller material: 45# steel after 62 to 65 degree quenching.
Frame: Middle plate
Frame thickness: 20mm
Punching device
Punching Press machine
Series JH21-80T
Brand name: YangLi
