Slotted angle rolling forming machine

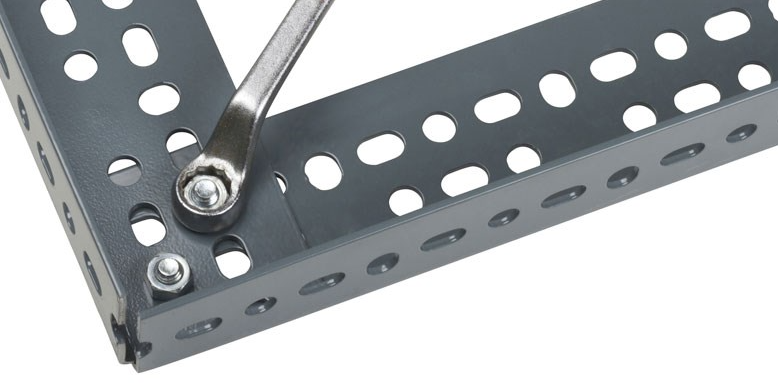

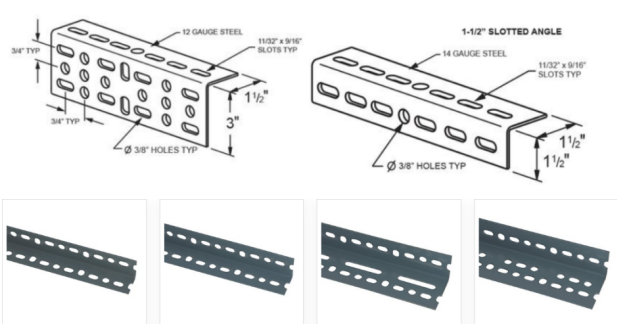

Slotted angle (also sometimes referred to as slotted angle iron) is a system of reusable metal strips used to construct shelving, frames, work benches, equipment stands and other structures. The name derives, first, from the use of elongated slots punched into the metal at uniform intervals to enable assembly of structures fixed with nuts and bolts, and second, from the longitudinal folding of the metal strips to form a right angle.Slotted angle rolling forming machine is designed to make the slotted angle in batch fully automatically with punching. Here are some drawing profiles for your reference:

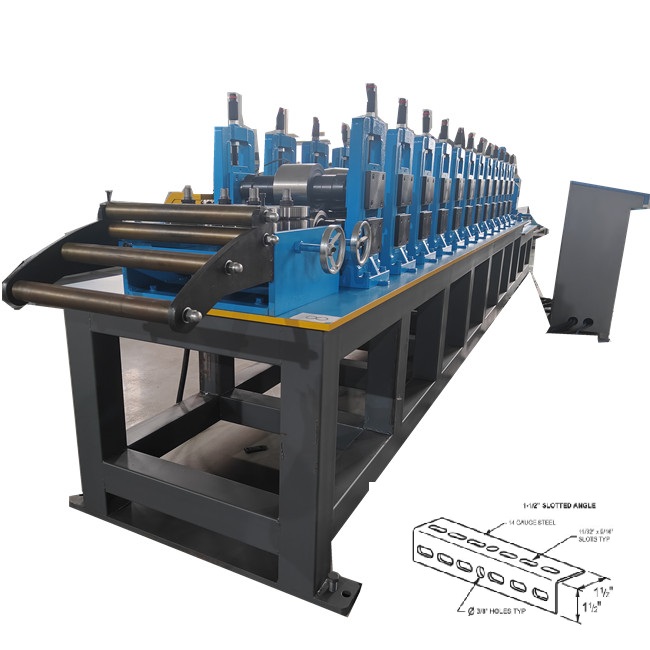

Slotted angle rolling forming machine:
Packing list-machine components | |||
No. | Name | Unit | Quantity |
1 | 3T uncoiler(manual decoiler) or hydraulic one | set | 1 |
2 | Leveling system | set | 1 |
3 | 60 Ton punching device | set | 1 |
4 | Main roll forming machine | set | 1 |
5 | Cutting device | set | 1 |
6 | Output table | set | 1 |
7 | PLC control system | set | 1 |
8 | Oil pump | set | 1 |
Feeding device | Bearing brand:Harbin |
Shaft material | 45# STEEL |
Shaft diameter | 80mm,solid shaft |
Roller material | |
Roller station | 16 stations |
Bearing | China famous brand Harbin |
Work speed | |
Work power | 22 kw |
Transmission | By gear(more precision and faster than chain) |
Voltage | AC 415V,50Hz,3Phases(Or as customers’ request) |
Appearance | Good appearance with no burrs in steel body nor traces of rust or defects in painting. Good electrical and hydraulic cable organization Car painting make the machine more glossy |
For the punching machine, you can choose to use the YangLi brand, or normal brand punching machine and then the cost will be different.
Where is the slotted angle used:
