Cold Formed Steel Angle Bar Rolling Forming Machine for Storage Rack

Cold formed steel angle bar is made by cold forming steel plate or steel strip, and it is a strip steel with two sides perpendicular to each other. Its wall thickness can not only be made very thin, but also greatly

Simplify the production process and improve the production efficiency.

For the wall angle rolling forming machine is designed to make the steel angles in batch fully automatically. Customers will ask for “angle iron”, which we refer to as Hot Rolled (HR) and cold rolled steel angle. Within this category, there are two main types:  bar size and L shapes. Here are some popular sizes for your reference:

The bar size describes smaller angles, 1/2″ x 1/2″ x 1/8″ up to 2-1/2″. The L shapes are larger, and are commonly stocked from 3″ x 2″ x 3/16″ all the way up to 8″ x 8″ x 1″. The most common grade for the HR Angle is A36, however it can also be available in ASTM A709 Gr 36, A529 Gr 50, A572 Gr 50, and weathering steel grade ASTM A588.

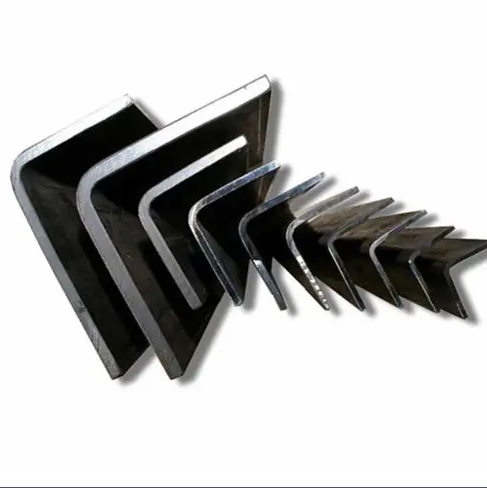

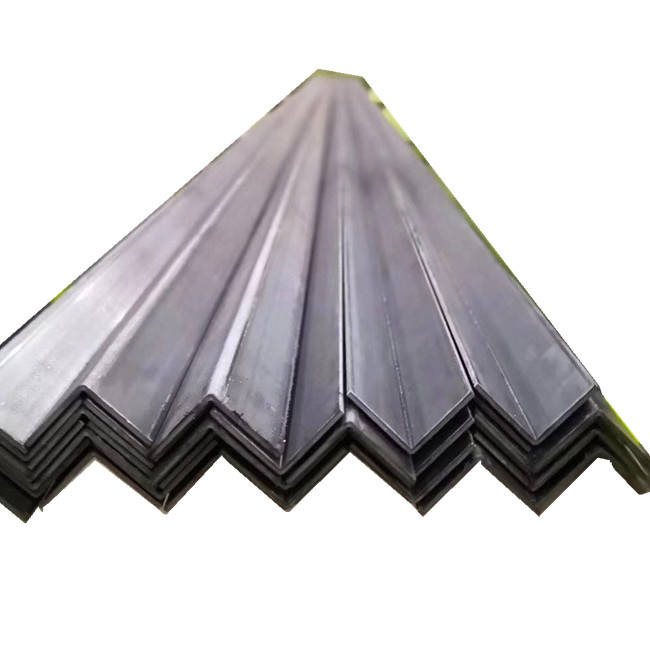

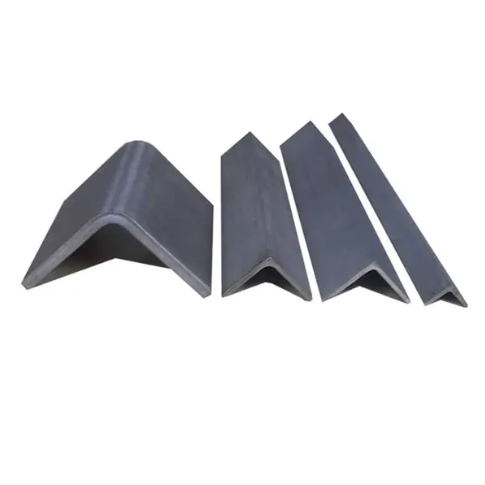

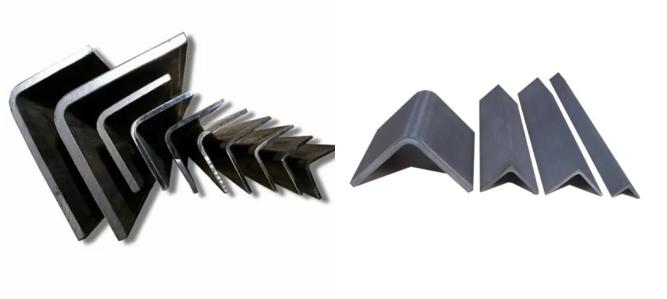

Low Carbon Steel, 1/6 Inch Thick Wall, Angle Iron Roll Forming Machine pictures for your reference:

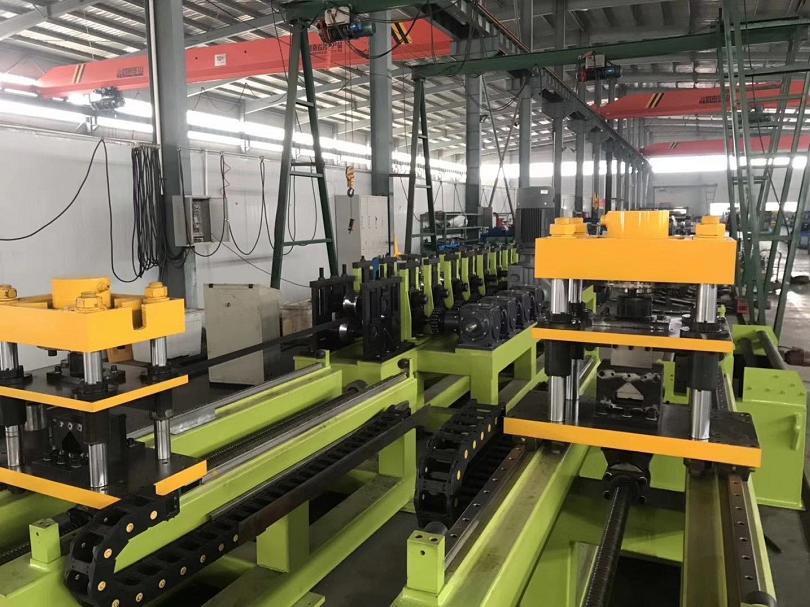

For reaching the high speed of Cold formed steel angle bar rolling forming machine, the machine we designed by the following features:

1. For the shearing part, Zhongtuo machinery design flying tracking cutting saw. By this way, it can increase the machine working speed around 10 meters.

2. We use the gearbox as transmission. By this way it can handle the thickness to 6.0mm from 3.0mm.

3. We use the molding frame as the machine frame, the machine frame thickness could reach 45mm.

4. The machine weight is around 16 Ton then when machine working in high speed, it also keep steady.

5. To the transmission part, we use two motors of 7.5 kw then it can pass the power to the roller more evenly.

6. For the rollers, it designs by Cr12MoV to make sure the hardness is no problem.

For the Cold formed steel angle bar especially for the thick coil, the wall angle R degree it is hard to make perfect like the hot rolled. But we can make sure the R degree as beautiful as possible. Here we do the production and design like the following control method:

Before do the production, please confirm us what is your R degree requirements then we will consider and make in exactly like your standard requirements.

Optional Note:

Actually for the wall angle rolling forming machine, we also have small lines for thin sheet. And same design, we can also use it to make U channel rolling forming, Stud rolling forming, Purline rolling forming machine and other profile.When you have need, please contact us at any time. More economic design and slow speed like this.
