Selective Pallet Racking rolling forming machine

Selective Pallet Racking rolling forming machine is designed to make the pallet racking part in batch fully automatically. Selective Pallet racking is the most widely used storage pallet rack, consisting of frame, beam and other components. The frame is assembled by uprights and bracings and beams are fixed to uprights by hooks. The height of each layer can be adjusted by 75mm, the capacity of each layer can be up to 4500kg. It’s convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift, balance-weight forklift, common forklift and stackers can also be used.

The system is composed by many elements, here I will take the rack pallet drawing profile for example to show you how the machine is designed, in the following part,we will show the beam rolling forming machine, shelf panel rolling forming machine and other bracing element.

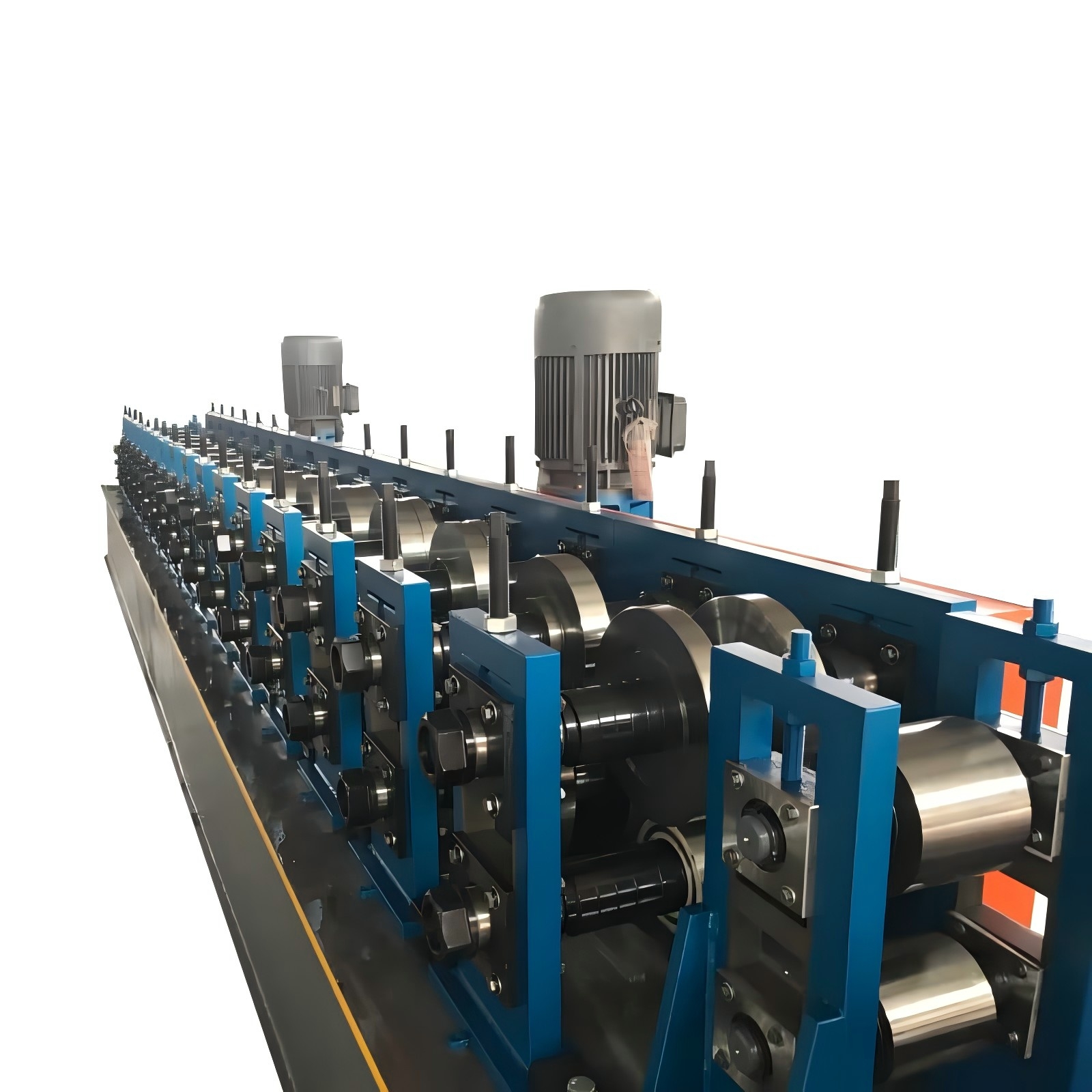

Detail of the selective pallet racking rolling forming machine

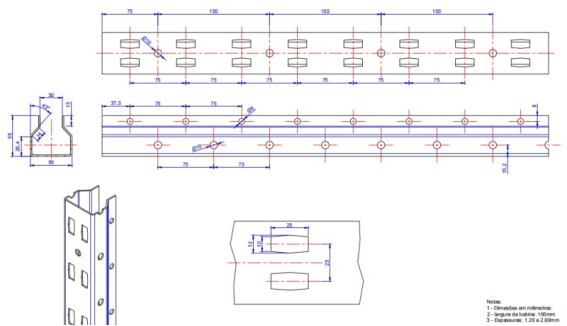

Drawing profile of the pallet rack

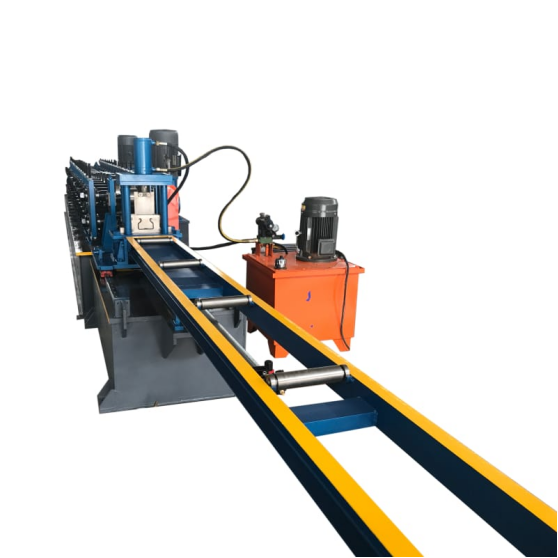

Selective Pallet Racking rolling forming machine

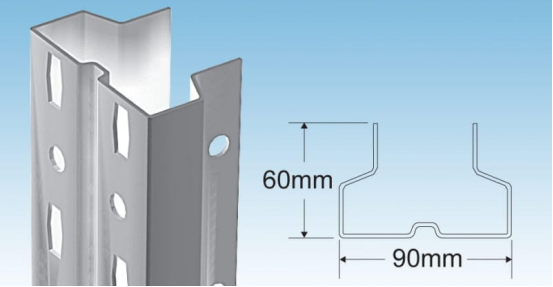

Selective Pallet Racking System:

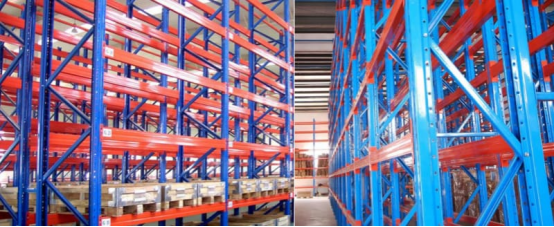

Application of the pallet rack

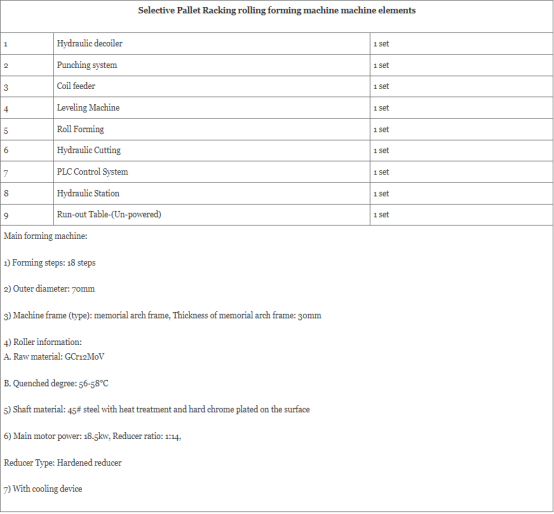

Main parameters of Selective Pallet Racking rolling forming machine

Selective Pallet Racking rolling forming machine Cost effect elements:

For giving the quotation exactly, here we share some points which will effect the cost of the rolling forming machine.

1.Which type decoiler you like to choose, hydraulic decoiler or manual decoiler.

2.The leveling beach accurately leveling or just the normal type.

3.The main rolling forming machine part, we use the gearbox type or the gear type or the chain transmission.

4.The frame you choose molding frame or middle plate frame.

5.The shearing part you choose flying tracking shearing or jus the hydraulic shearing.

6.The receiving table you choose the manual type or the automatic type.

7.The rollers you choose Gcr15 or SKD11.

8.And the most important the punching machine which type to choose. We use the hydraulic punching station, or world famous punching machine.

And there more elements like speed and automatic degree, all will effect the machine cost.

Now let us check more details if the Selective Pallet Racking rolling forming machine:

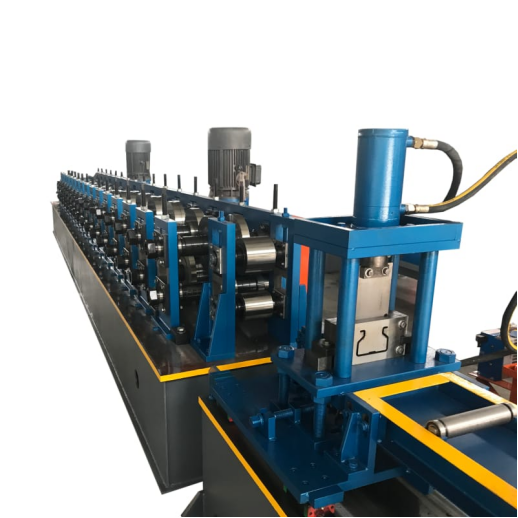

Selective Pallet Racking Rolling Rorming Machine

The roll forming system of selective pallet racking rolling forming machine
