Heavy duty Upright Roll Forming Machine for warehouse shelf
Our machine can produce different sizes and thickness for both light upright and heavy upright,high precision in holes and length.We also support customization.
There are three types of shelf shelves: light shelves, medium shelves, and heavy shelves.
Light shelf column parameters: height 2m, 38*38 (mm), each layer bears weight: 100kg-150kg;
The column specification of the medium-sized laminate shelf is 80*40 (mm), and each layer can carry 200-250KG. Column height 2m;
Heavy-duty storage shelves: These shelves generally do not have standard specifications, and the column specifications are designed according to customer needs.
Our machine can produce different sizes and thickness for both light upright and heavy upright.

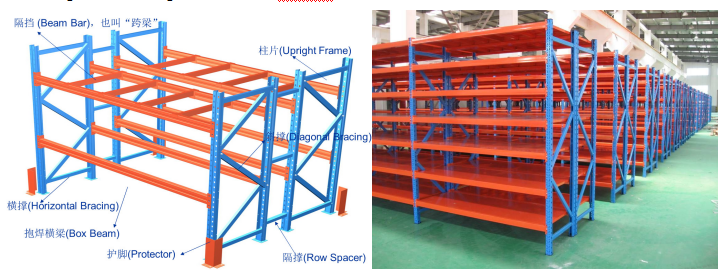

The composition and picture of the fnished shelf:

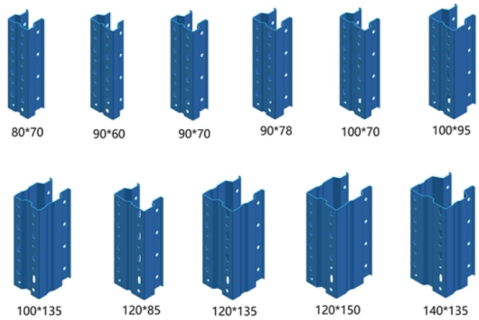

The profile drawings of the Upright:
The layout of the whole production line:
Heavy duty Upright Roll Forming Machine for warehouse shelf
The main technical specifications:
1. Hydraulic decoiler: 5 tons capacity(support customization)
2.Leveler: 7 rollers,up 3 down 4
3.Punching machine:Yangli brand,pneumatic,80Tons,with servo feeder

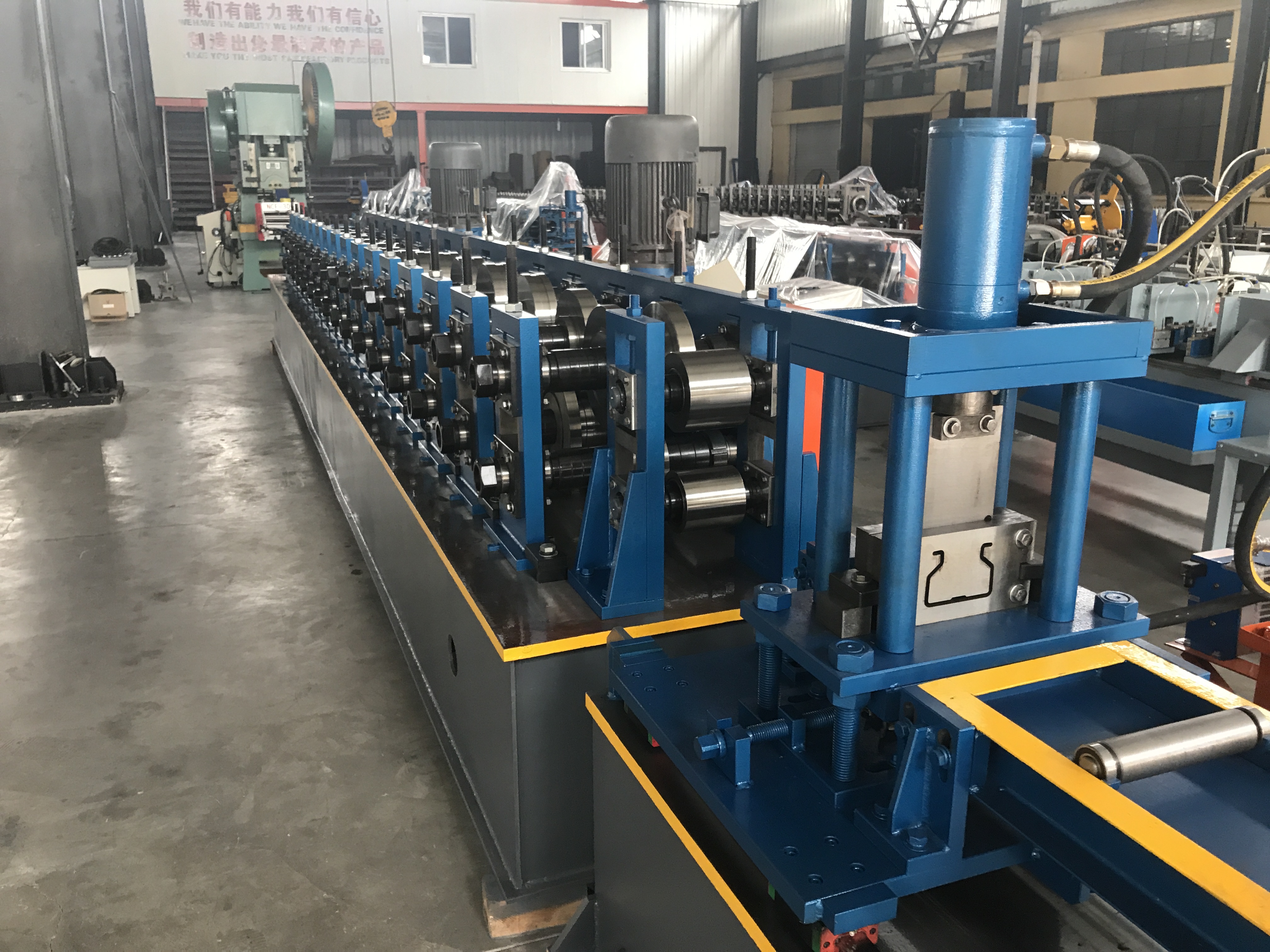

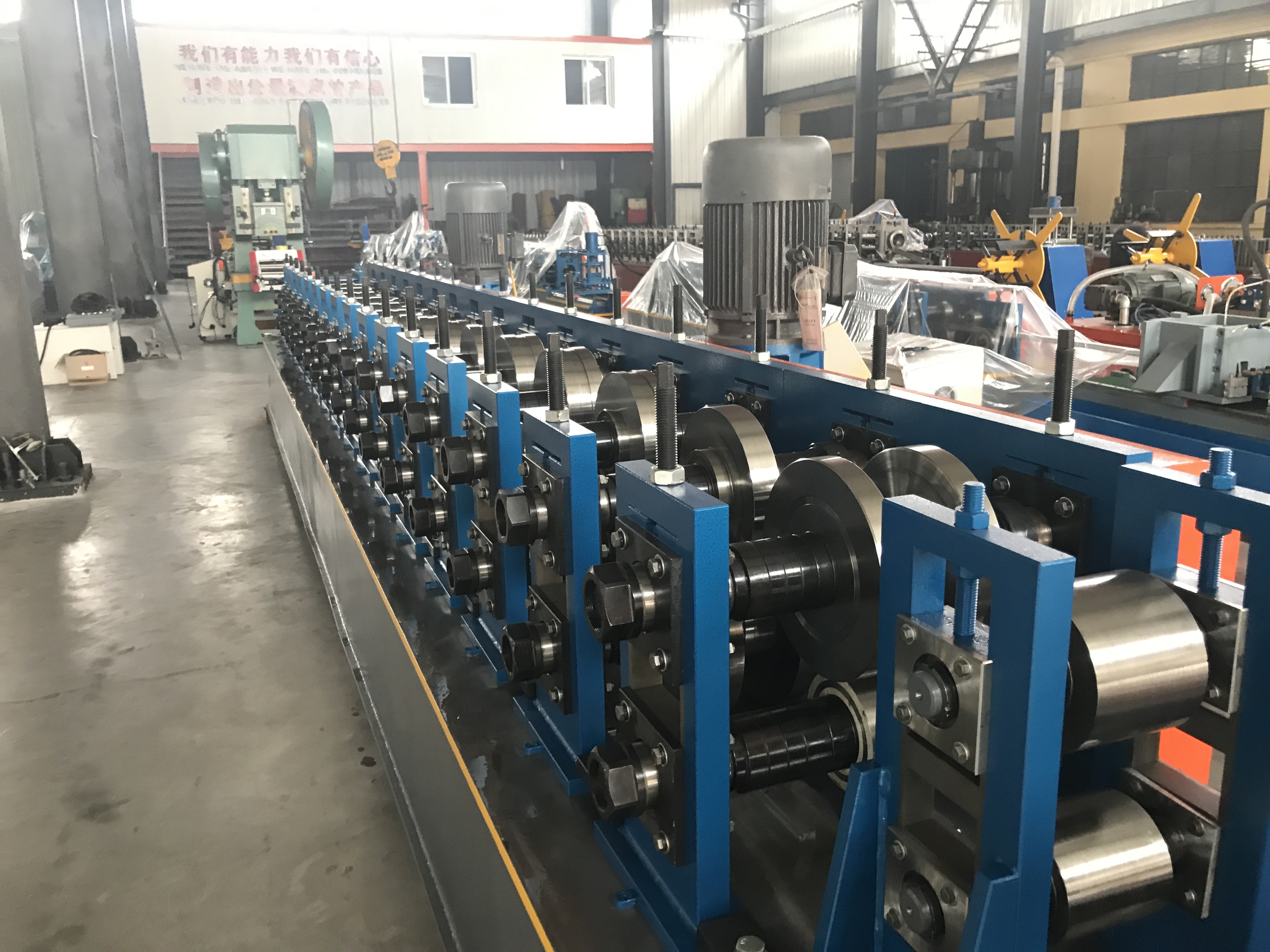

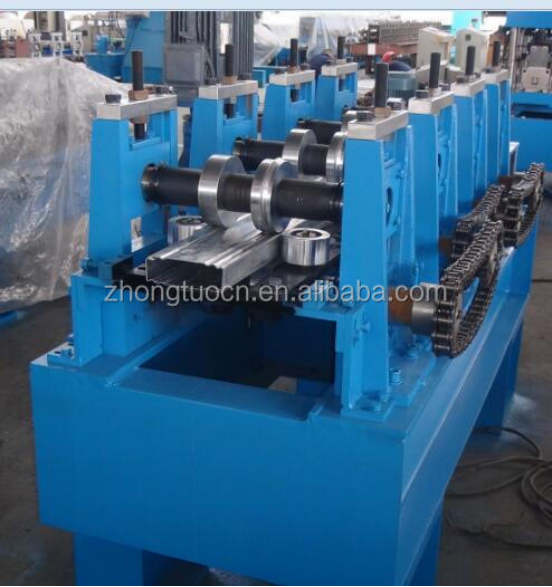

4. Roll forming machine:
l 16 roller stations
l Roller material:Cr12 with quenched treatment
l 70mm shaft diameter
l Shaft material:45# steel
l Main motor power:11kw*2 sets
l Transmission:By chain(Gear and gearbox for optional)

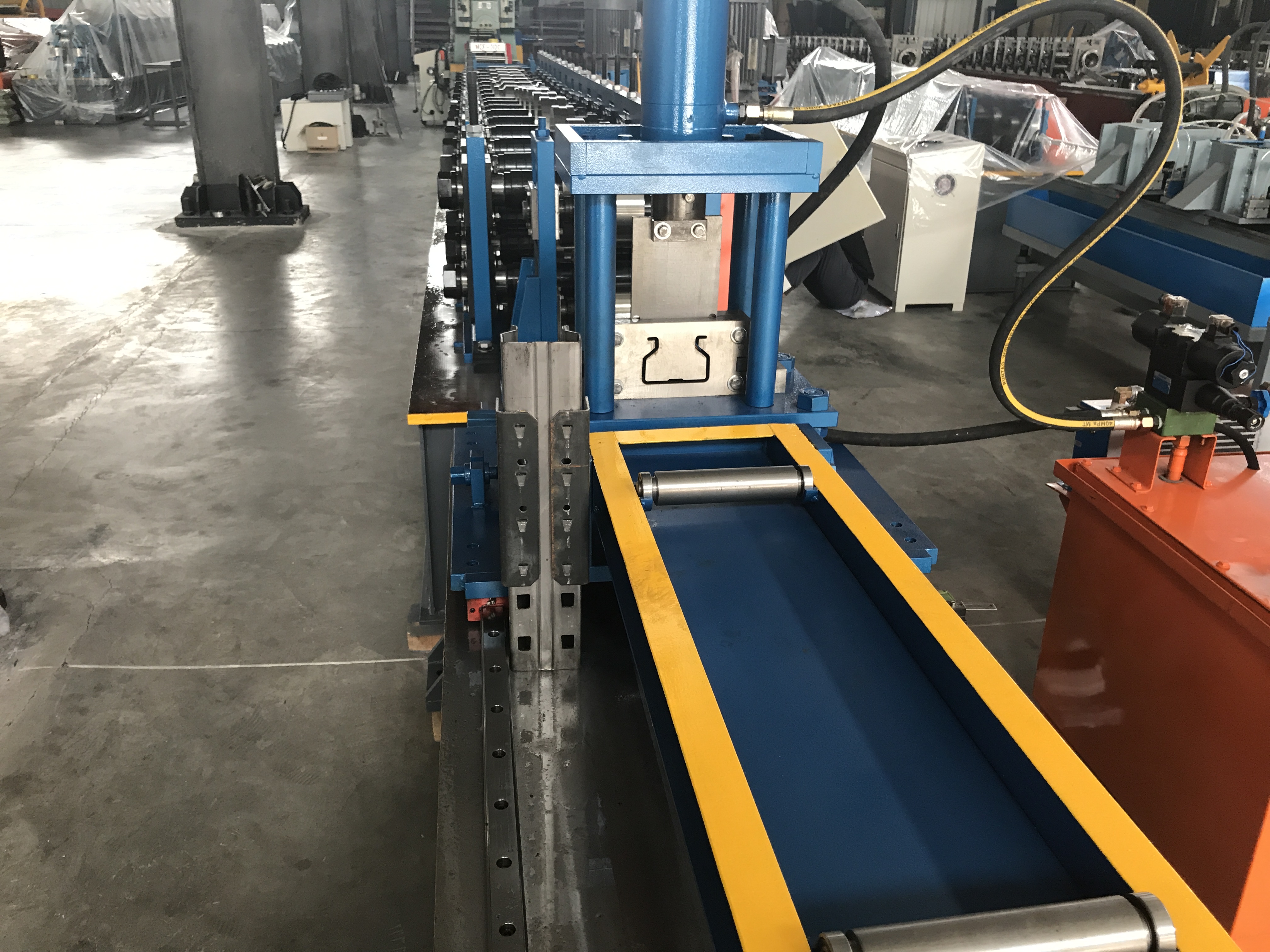

l Cutting system:Hydraulic cutting system,no waste material
l Hydraulic power:5.5kw
l Cutting length tolerance:+/-0.5mm

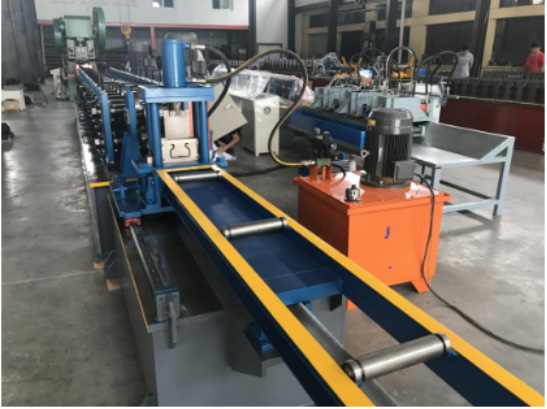

5.Run-out table:6 meters
6.Control system:PLC system,DELTA brand or Siemens brand

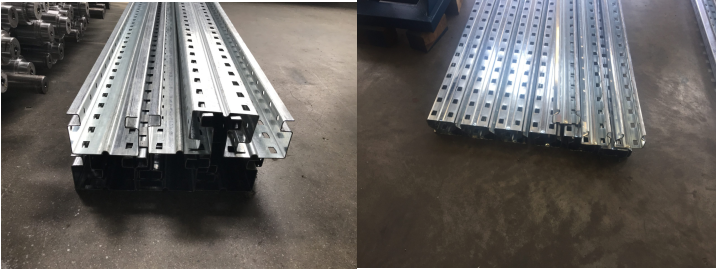

The finished product:
