Description:Automatic Shelving and Storage Racking Roll Forming Machine can produce the profile with following different size, with servo feeding device and punching bed.. Special sizes of the profile can be designed in our company.
High Quality Rolling Storage Rack Machine
Automatic Shelving and Storage Racking Roll Forming Machine is for producing the storage rack for workshop. It can uncoil, level, punch and continuously roll forming with automatic cutting to length. It is the essential equipment in the steel structure industry.
The machine can be customized based on the customer’s specific technical requirements.

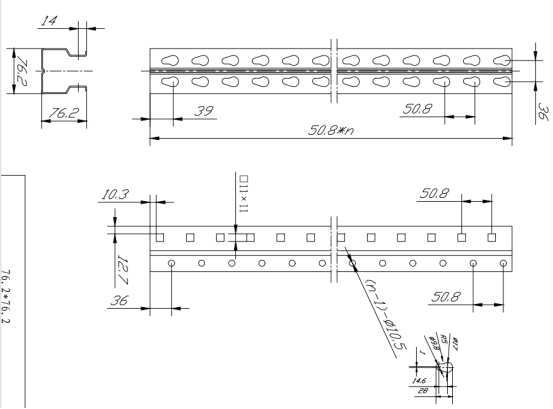

Profile drawing (the profile can be especially designed according to customer)
Work flow
Uncoiling→ Leveling→ Head cutting and welding→ Servo feeding→ Punching→ Roll forming→ Straightening device→ Post cutting→ Run out table
High Quality Rolling Storage Rack Machine
Upright Machine Design
1. If you have single sizes to make, we have fixed type upright rolling forming machine.
2. If you want to make many sizes, we can recommend the fully automatic type with the size changing.

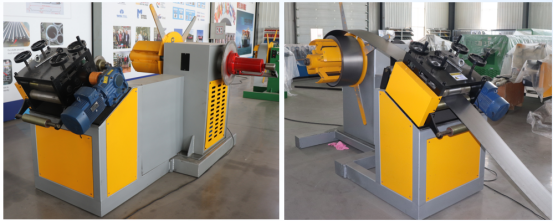

Decoiler
You can choose manual one or hydraulic one.

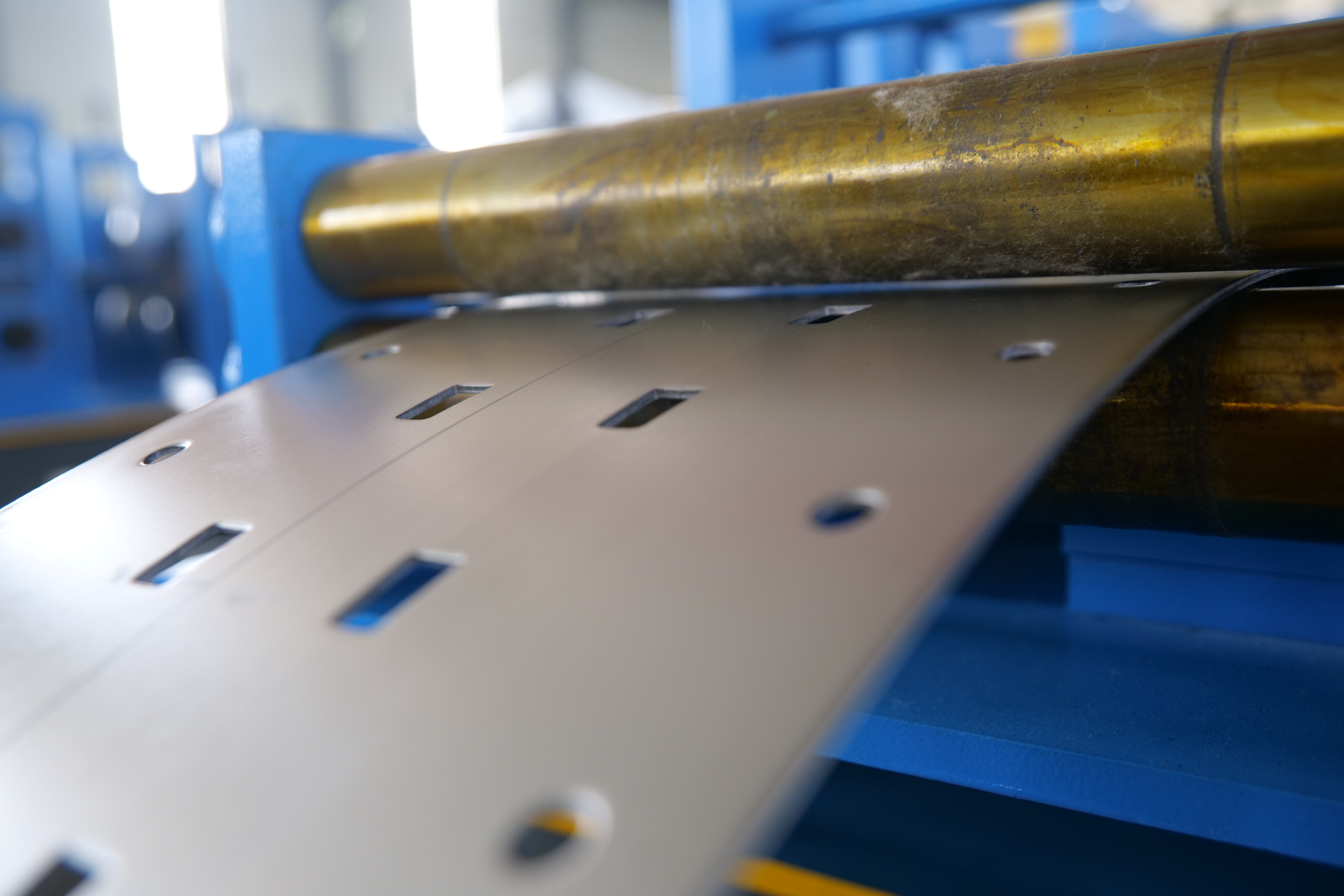

Punching Options

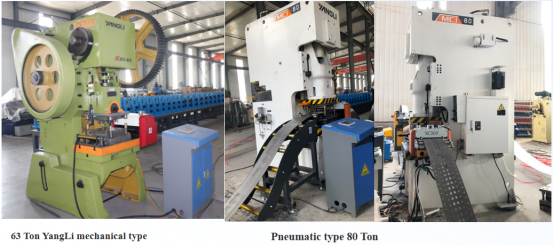

For the punching part, you can choose normal brand punching machine, or world famous brand punching machine.
Note: if we use bigger one, it will be faster and more durable.

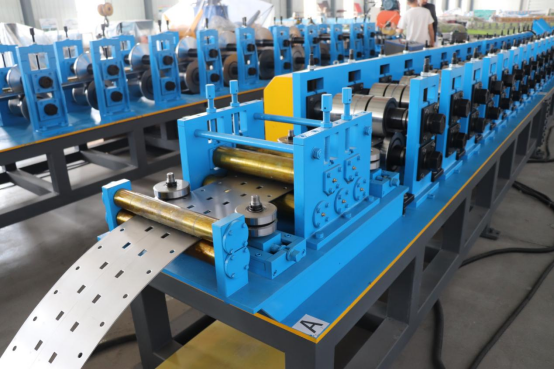

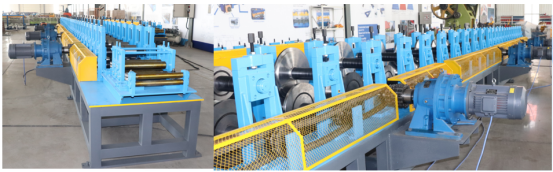

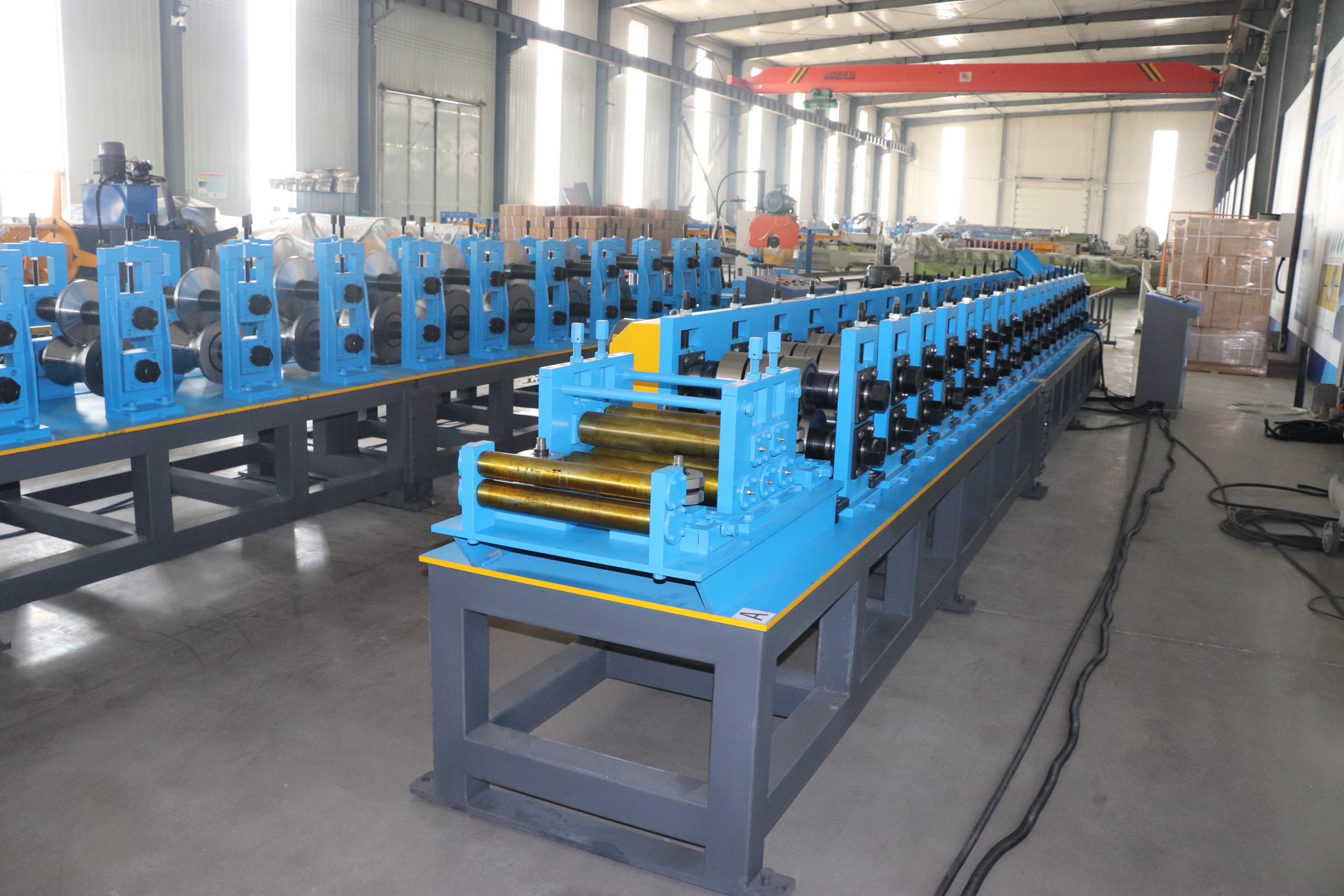

About the rolling forming machine

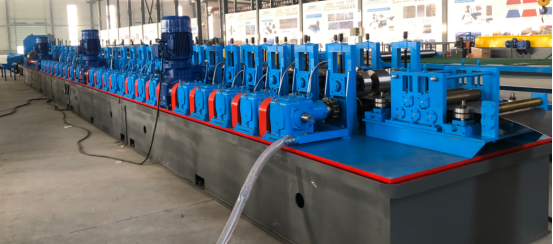

For the machine design, we have the following types for your reference Gearbox type :
Moldiing frame with gearbox type and with water cooling system. More faster and more durable
Moding frame with chain
If you choose to use gear transmission, we only can use pillar frame. If we use molding frame and then we have to use the chain transmission. Compared with pillar frame, molding frame more stronger.

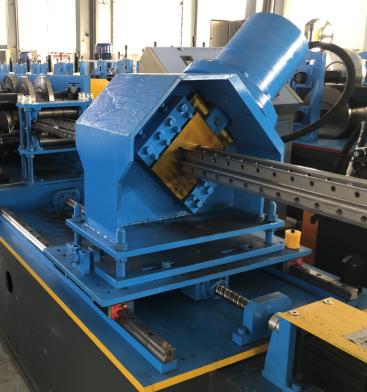

As to the shearing part.
As to the shearing part, we can the servo tracking shearing. But as the punching speed is not so high, even if we use servo tracking, the speed also can not be too high. Max around 10 to 15 meter per minute.

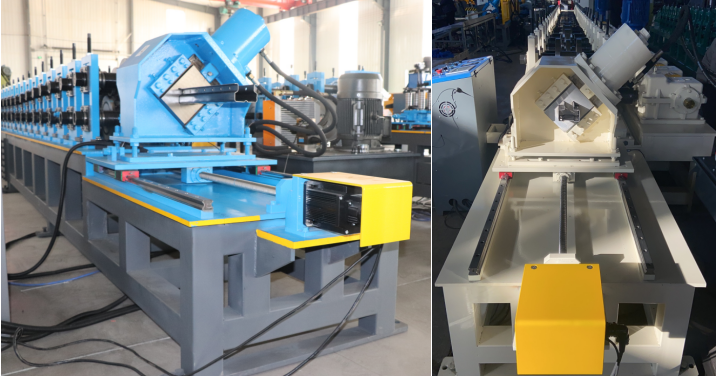

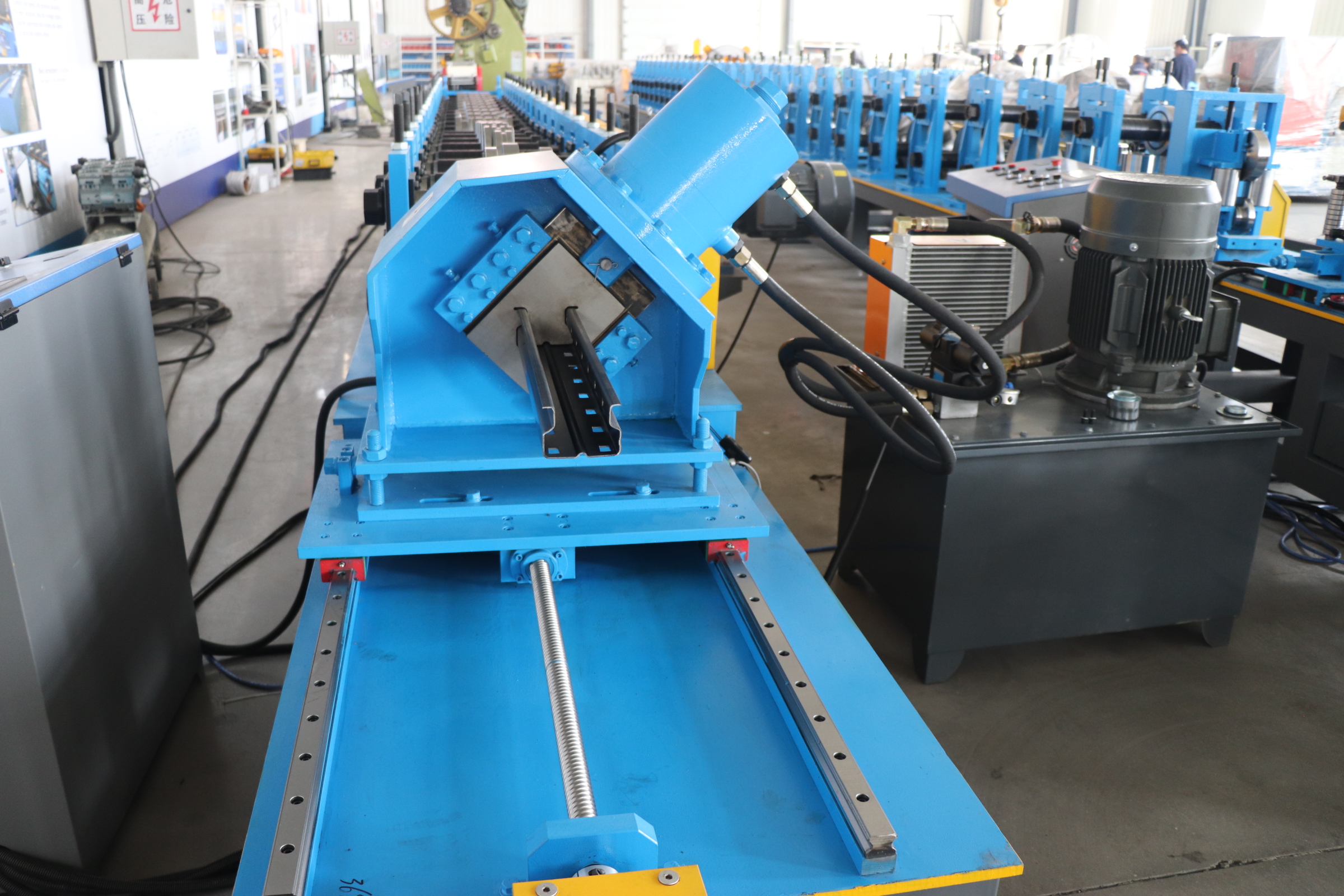

Mainly hydraulic sheairng. When shearing, it will consider the holes, there will be no half holes cutting.
The working principle is far infrared shearing
When automatic size changing means
Automatic sizes changing means when you want to make many sizes, when width or height changes.
We can make it by PLC control. But you need to change the cutting baldes.

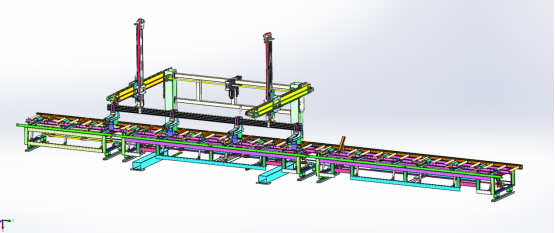

Receiving table
For the receiving table,you can choose the manual one, or you can choose the automatic one.
