Description:Upright Rack(also called Uprights or Upright Columns) vary in size and design depend on the load capacity and styles. Such as L Shape ( Light Capacity), C Shape (Medium Capacity), Special C Type for heavy Capacity. Holes(Tear Drop Design) and slots are punched during producing so that the load beams can be mounted into the Upright Racks.

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine

Pallet Rack Uprights/Upright Rack Roll Forming Machine is designed to make the upright in batch fully automatically. Featuring a 3″x 3″ standard column design and 5″ x 8″ base plate. Regular duty uprights are constructed of 16 gauge steel with a 16,100 lbs. capacity. Heavy duty uprights feature 14 gauge steel construction with a capacity of 23,300 lbs. (regular and heavy duty capacities based on 36″ maximum shelf spacing). Uprights utilize a bolt together design for easy component replacement. Beams can be adjusted every 2″. Upright Rack(also called Uprights or Upright Columns) vary in size and design depend on the load capacity and styles. Such as L Shape ( Light Capacity), C Shape (Medium Capacity), Special C Type for heavy Capacity. Holes(Tear Drop Design) and slots are punched during producing so that the load beams can be mounted into the Upright Racks. The heavy Upright Racks thickness up to 2.5mm.

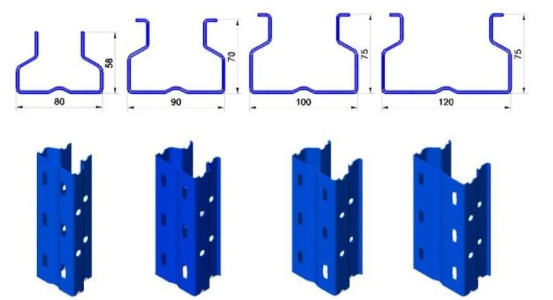

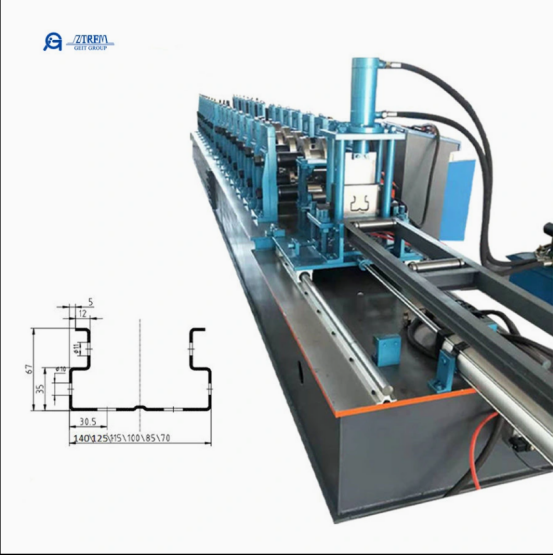

Here are some drawing profile for your reference:

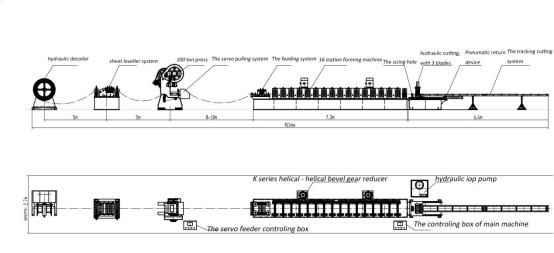

Working flow

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine

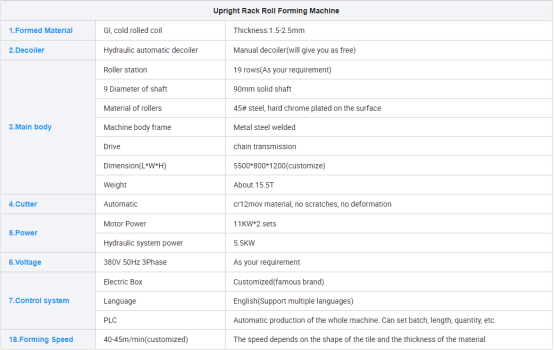

Main parameters

Product Description

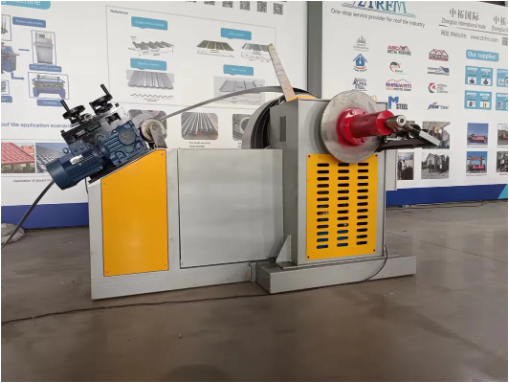

Hydraulic decoiler

1. Has power, it can work automatically
2. Automatically adjust the decoiler to fit into the coil accorind to the coil diameter
3. With Pneumatic braking system
4. With press arm to keep coil from loosing
5. With speed sensor to match with whole line's speed
6. levelling rollers: up 3 + down 4

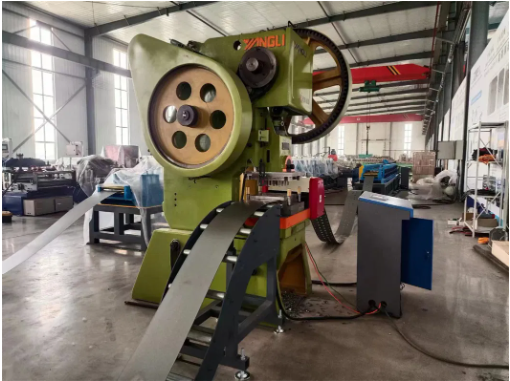

Punching machine
Pressure:63 tons
Brand: Yangli Brand, China
Speed: 60 times/min
servo feeding device installed on the punching machine

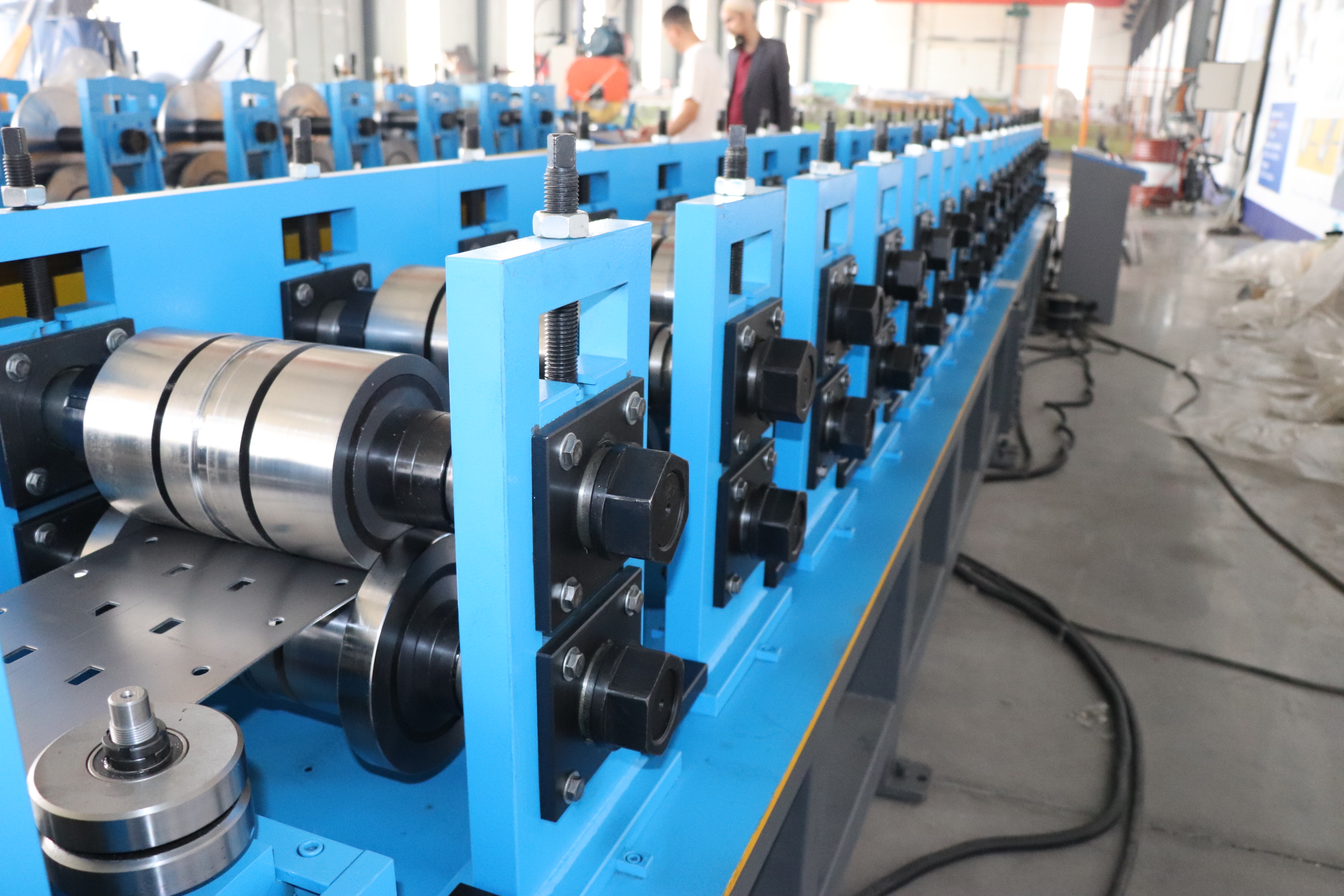

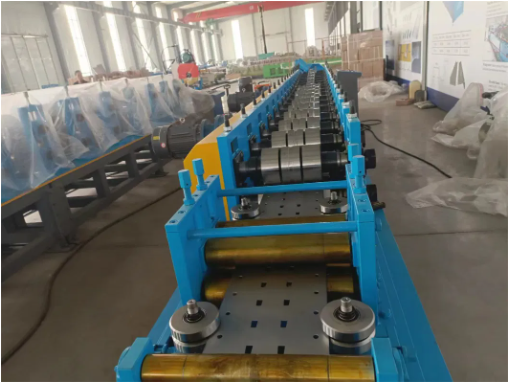

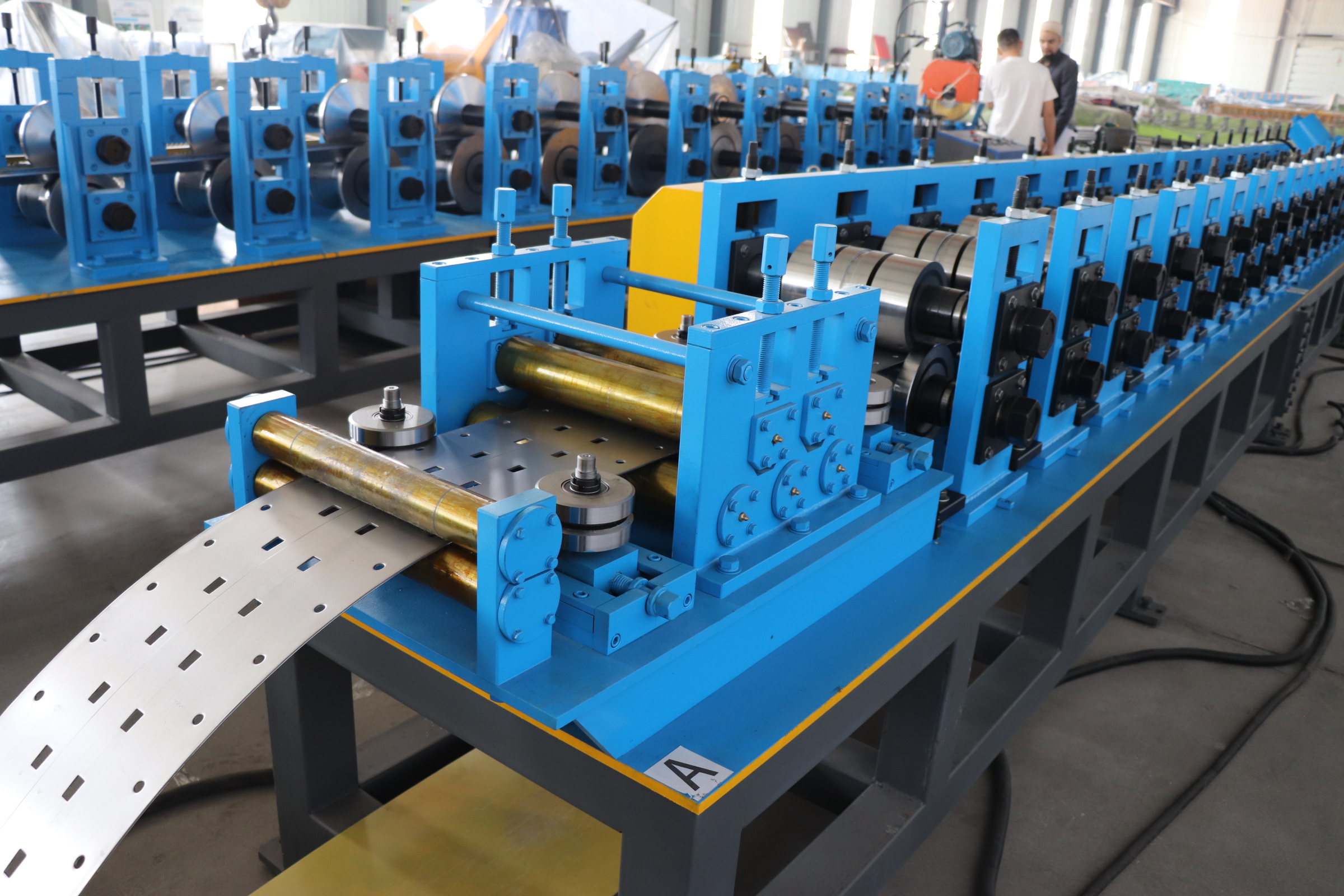

Main forming machine:
rolling station:19 rows
shaft diameter: 70mm
shaft material: 45#, tempering treatment
rollers material: GCr15, Cr12 quenched
machine structure: arch structure
basice frame: steel plate welded, box structure

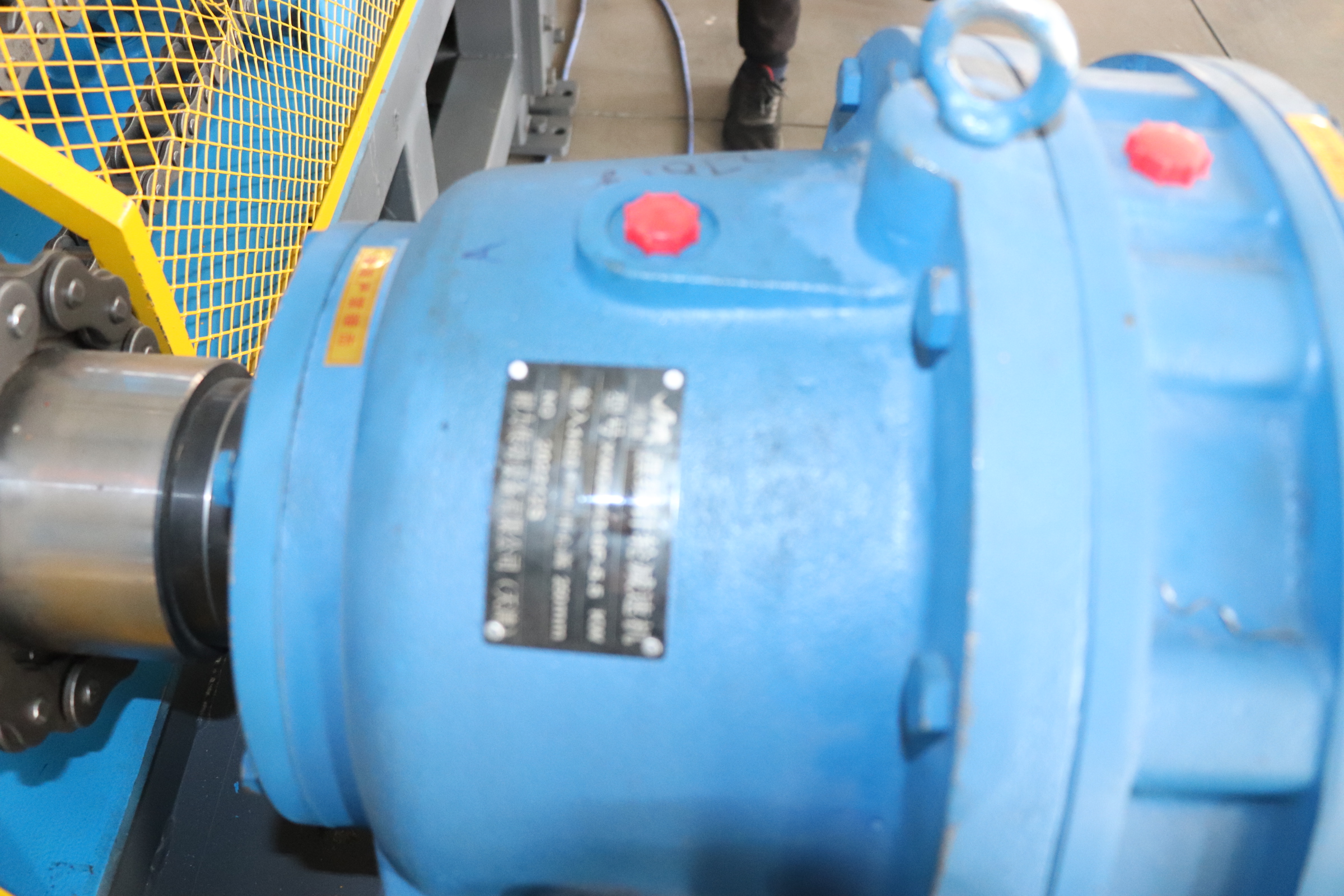

transmission : by chains
main motor power: 11kw+11kw

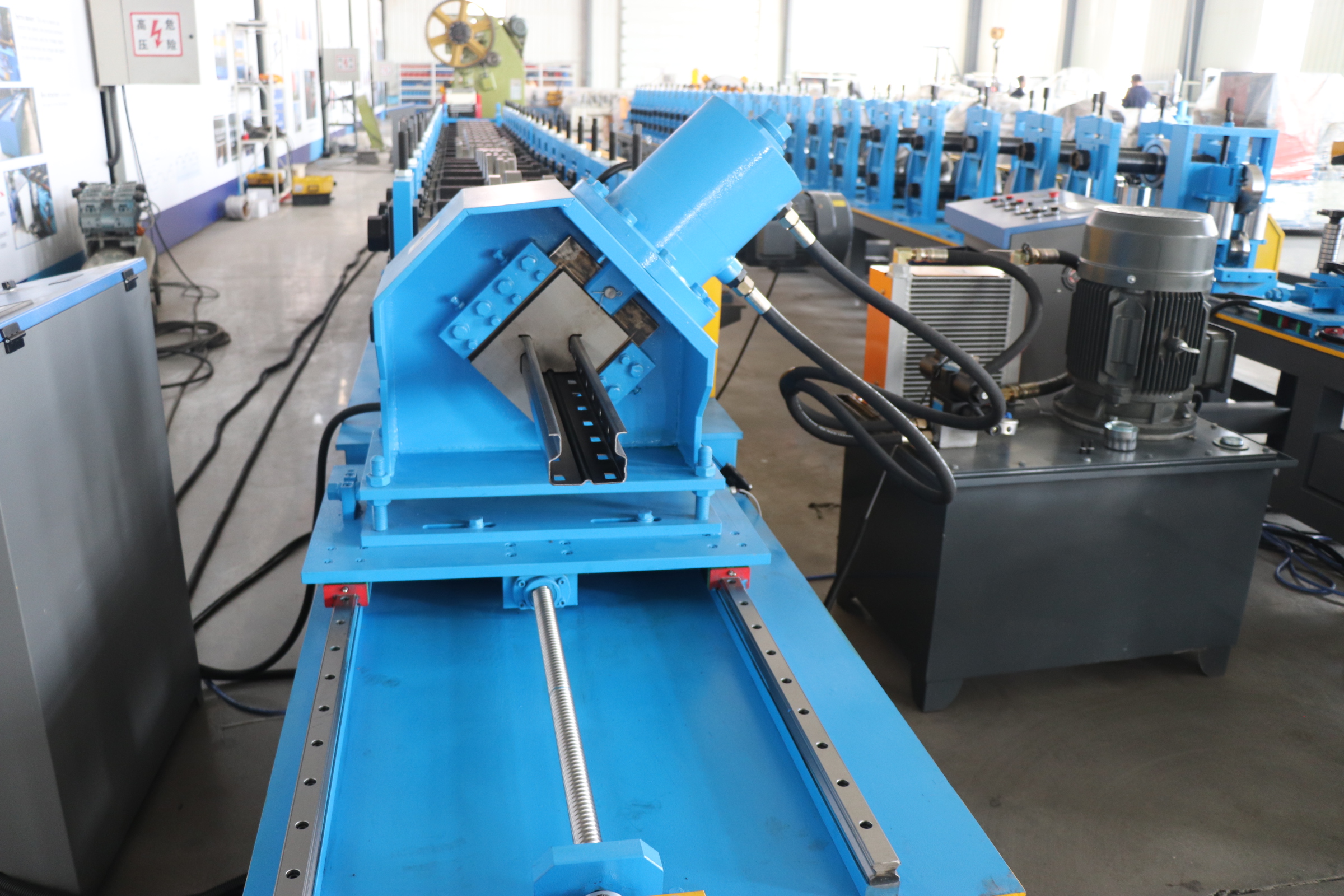

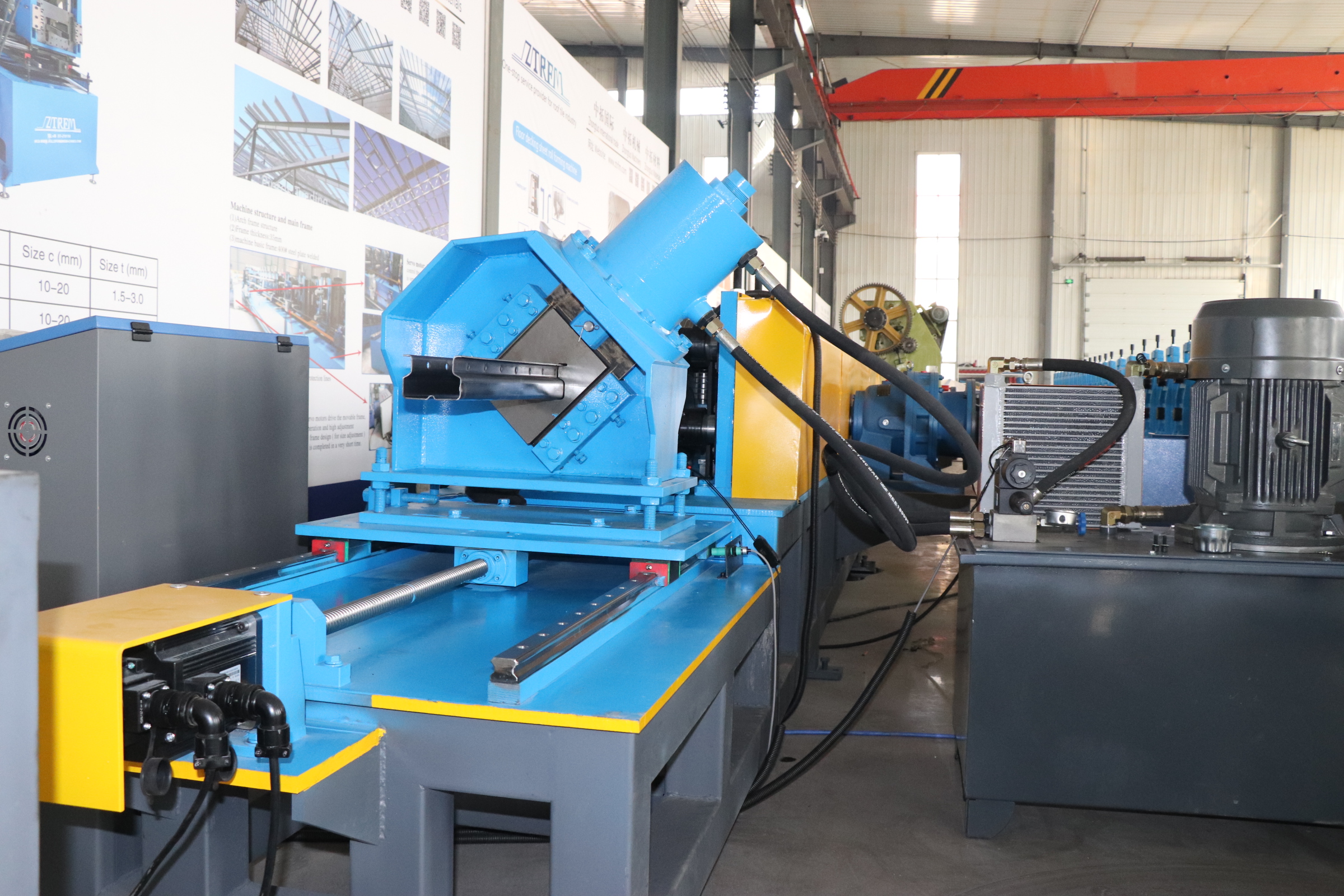

cutting type: hydraulic cutting
hydraulic station power: 5.5kw

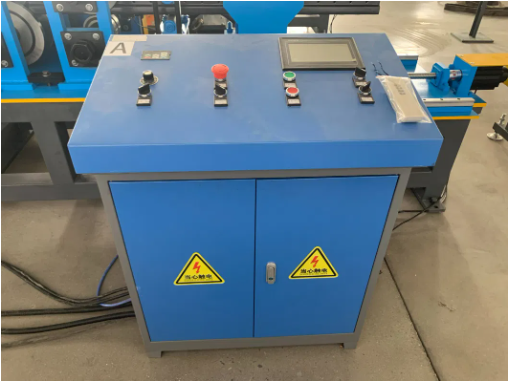

PLC electric control cabinet
PLC, frequency: Delta brand/ Simens brand
low pressure electric part: famouse brand
encoder: Omron brand
