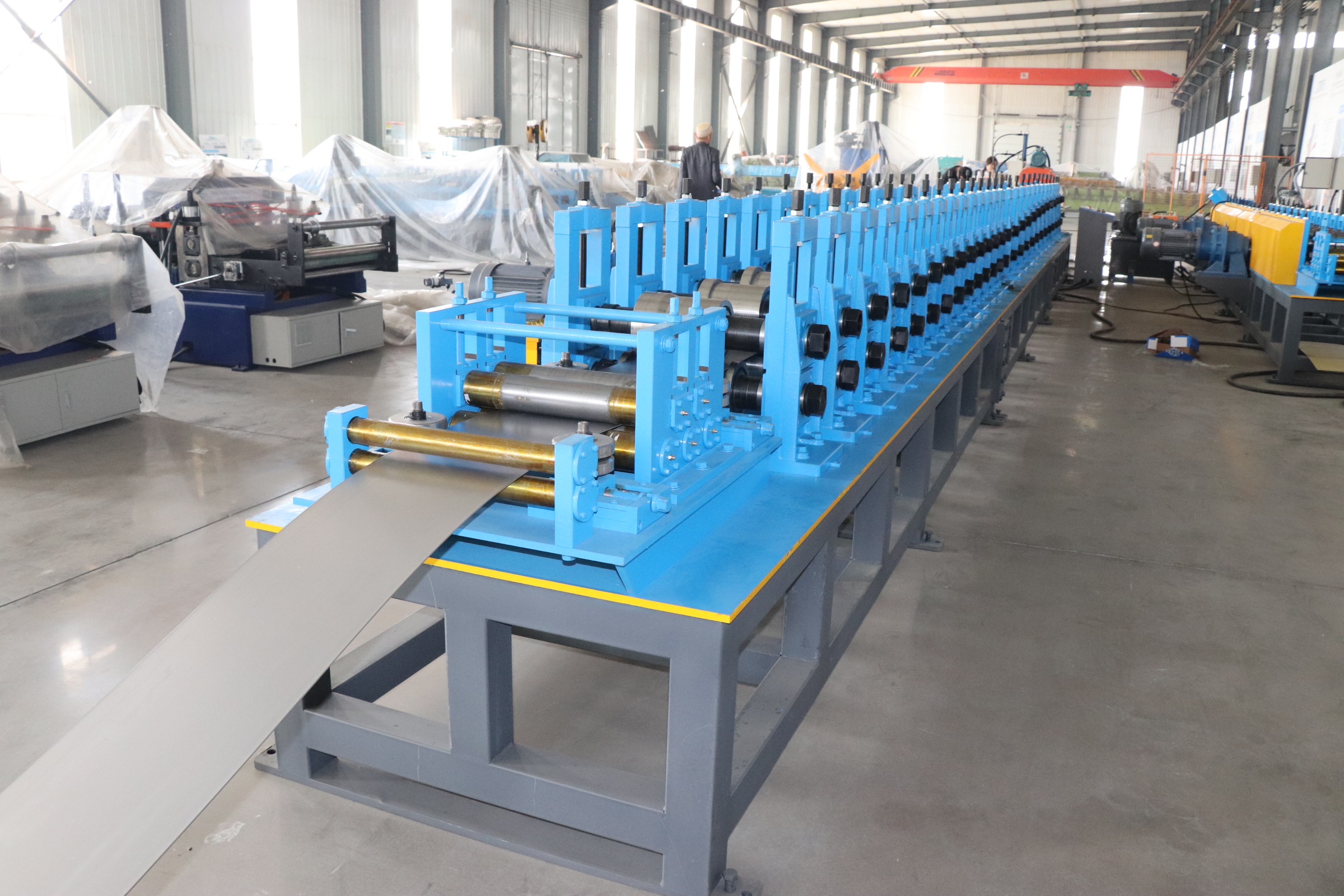

Storage upright Racks Roll Forming Machine

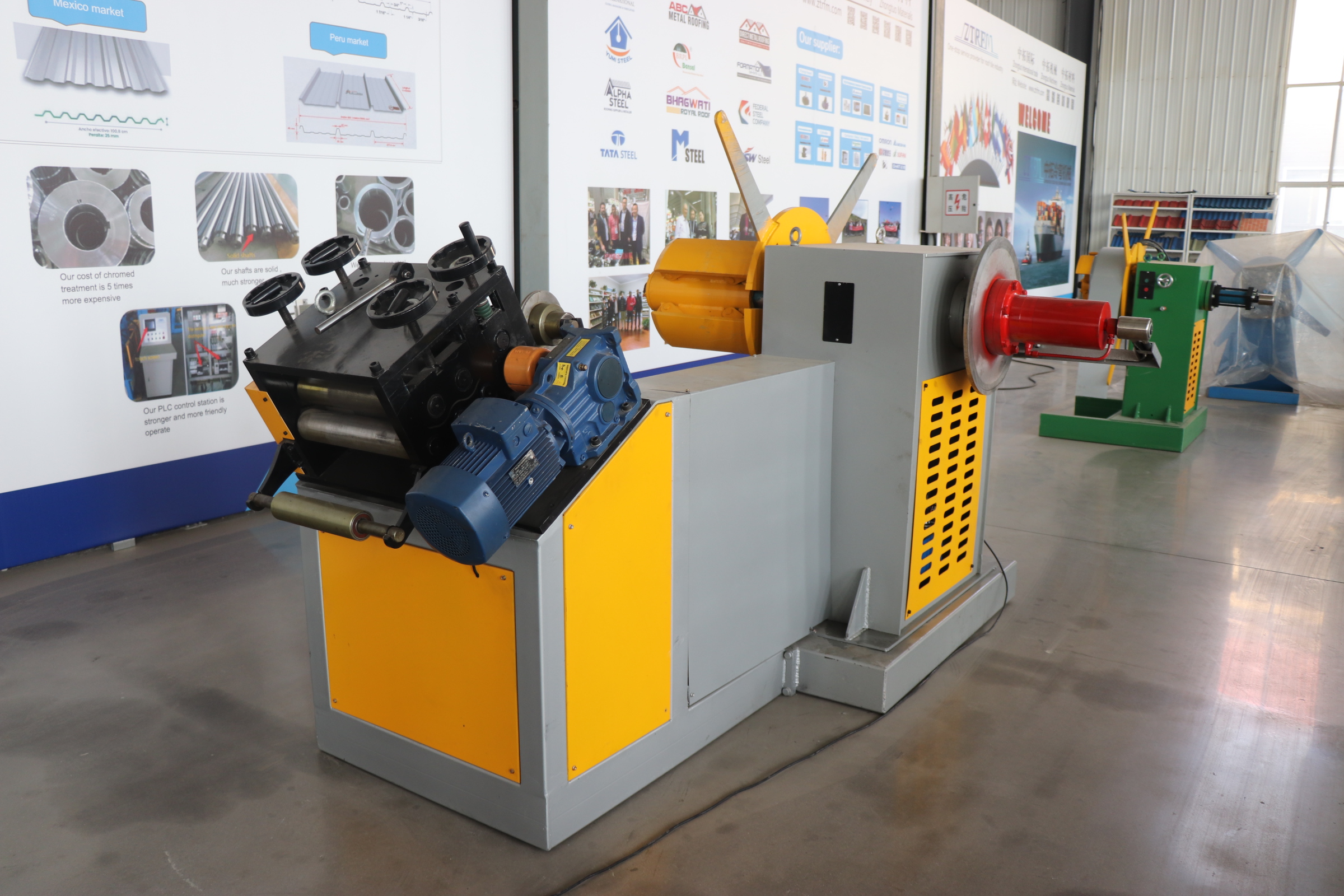

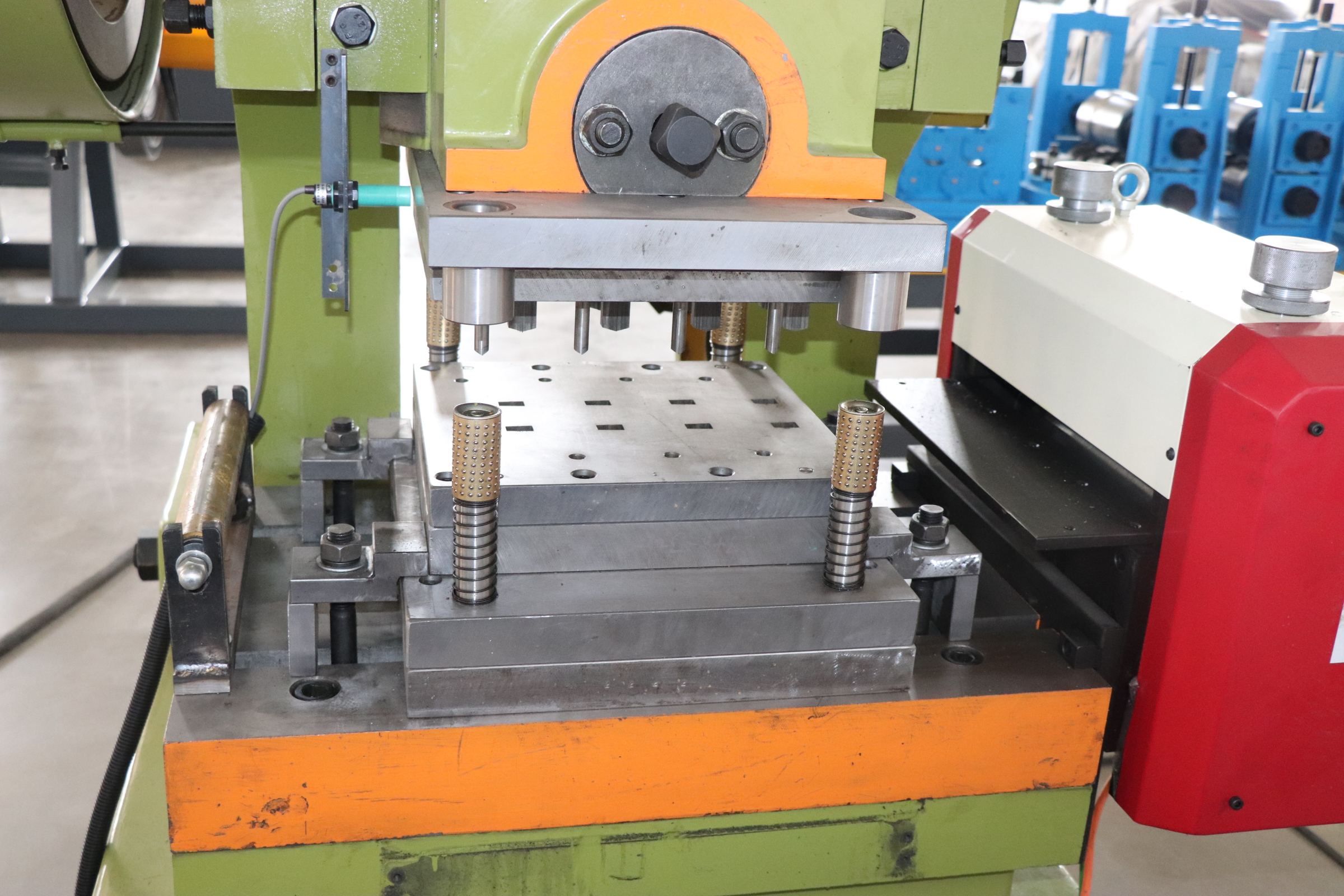

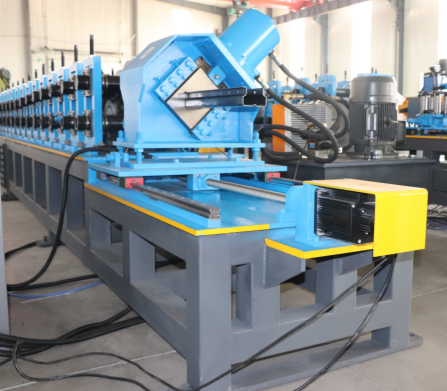

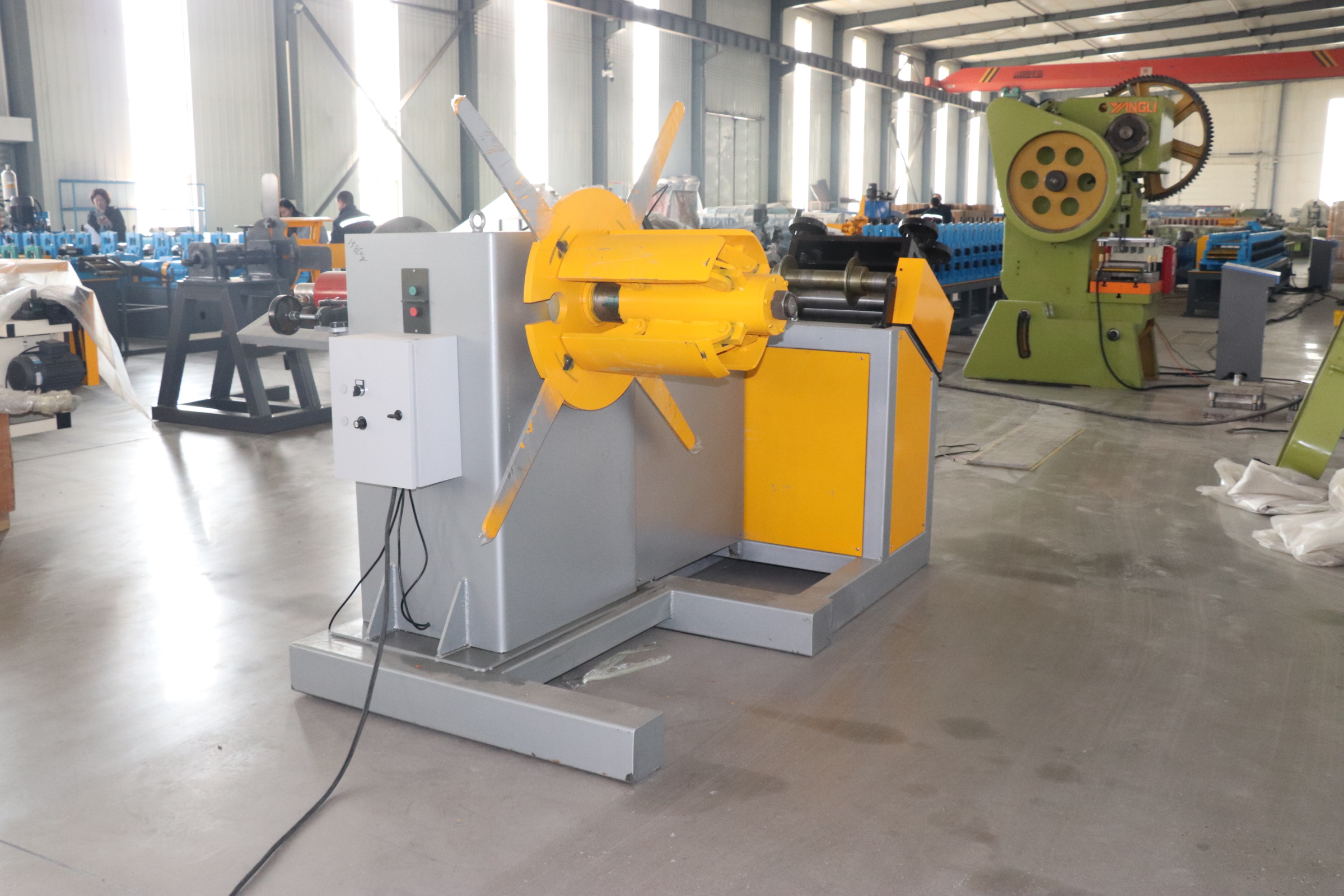

Storage Racks Roll Forming Machine consist with 3 ton manual decoiler, leveling device, hydraulic punch with servo feeding, forming and post cut, plc controller, hydraulic station and run out table.

working speed of rack machine about 4m/min with hydraulic punch.working speed of upright machine about 8m/min with  punch machine, if you make loop at the floor, speed faster.

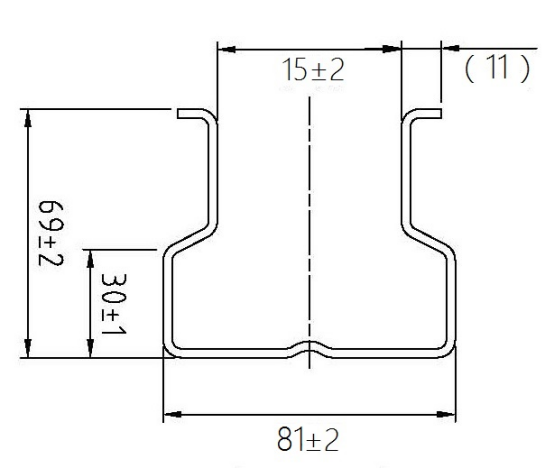

Here is one drawing profile and finished product:

Working flow

Storage upright Racks Roll Forming Machine

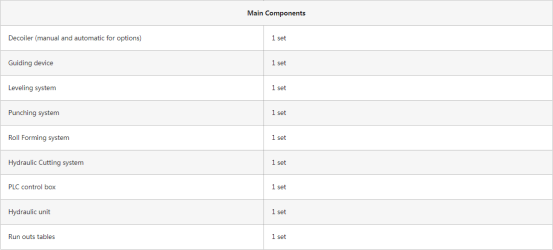

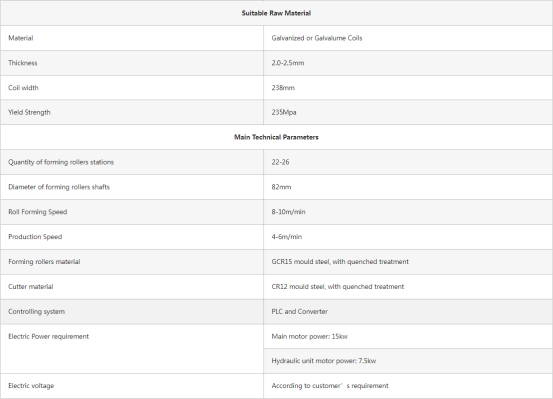

Specifications

Main features of RACK upright forming machine:
1. The shelves racks are flat, with high precision within 1mm
2. The 82mm solid shaft and H-shaped steel are used as the underframe, so that the machine can withstand long-term production without deformation of the machine, thus ensuring long-term production of racks
3. The rollers are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of racks.
4. Our cut frames and punch frame are stress-relieved to ensure that they are not deformed during the long-term production process, making the final racks smooth.
5. Use Mitsubishi or Siemens operating system with stable performance, simple operation, once input length and quantity,rack machine automatically produced and the cutting length tolerance is within ± 2mm

Advantages of Pallet Racks

· Improved inventory control

· Inventory circulation

· Improved accessibility

· Increased safety and efficiency

APPLICATION

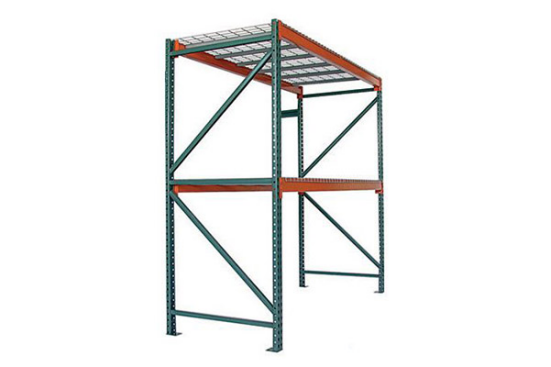

Racks provide secure upright storage as well as quick and easy upright set-up.

JSR machinery factory manufacture Rack forming machine professionally.
Operate easily , work automatically with PLC controller control.
Decoiler-Punch- forming -cut – run out
