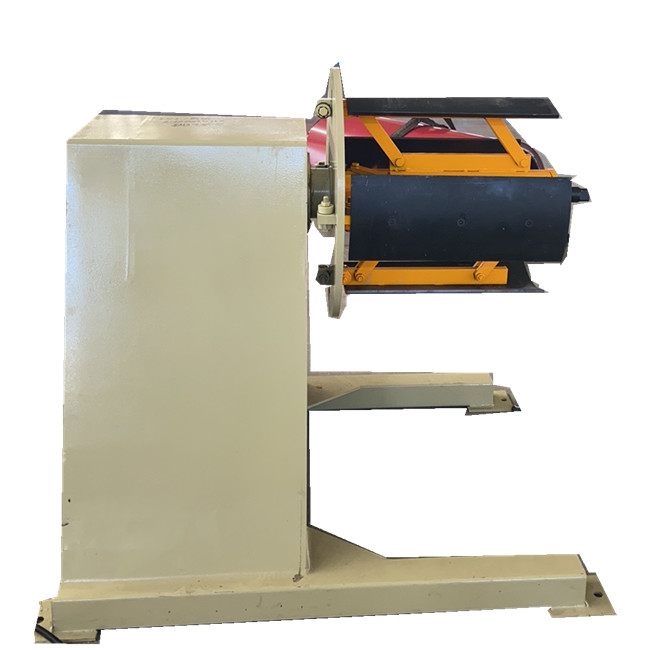

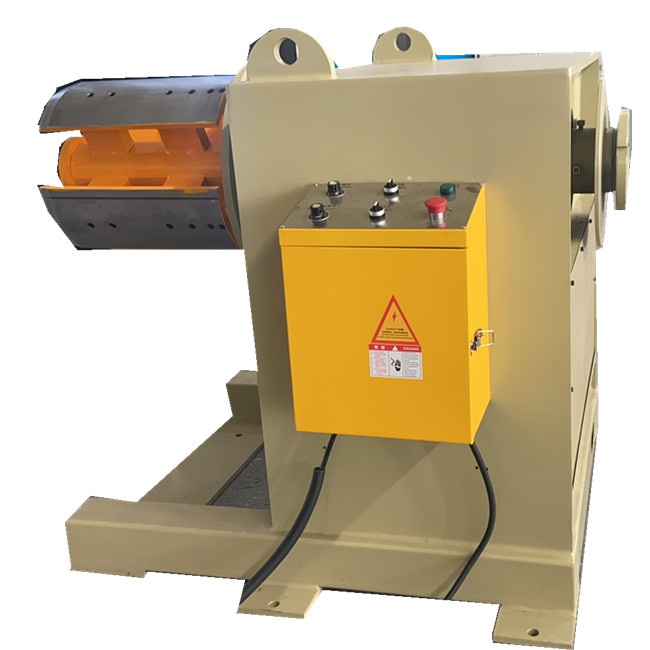

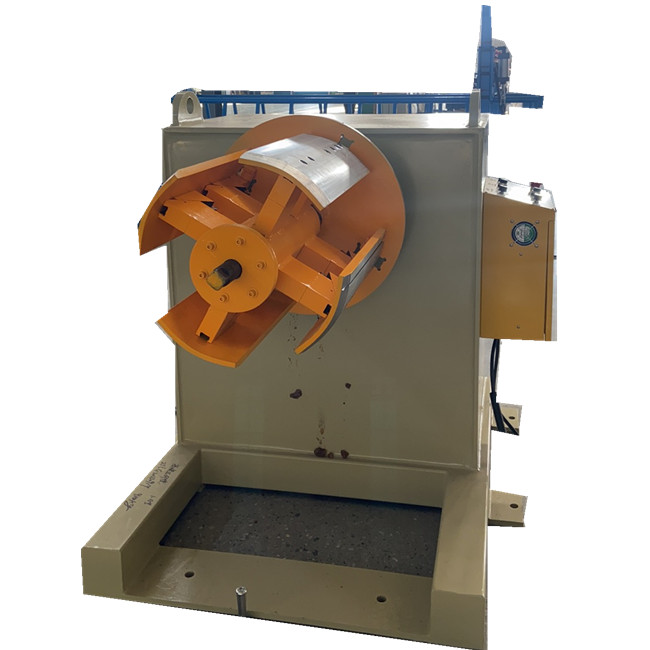

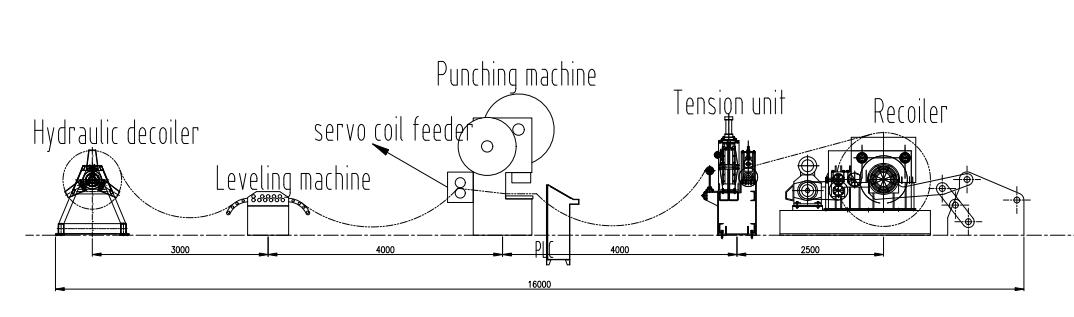

Automatic punching line from decoiler to recoiler or cut to length

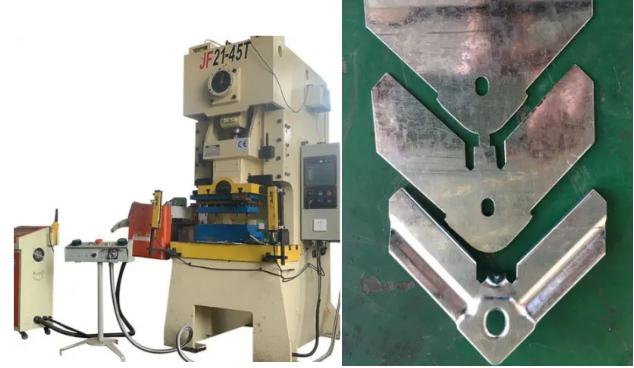

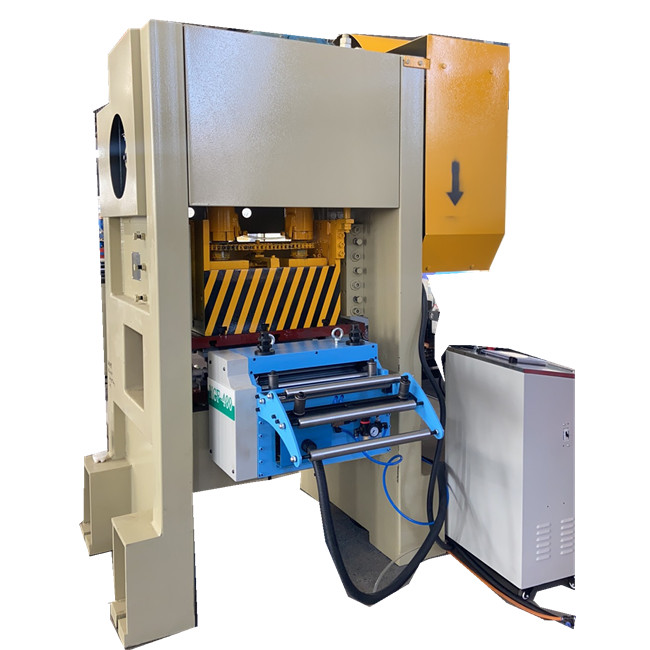

The stamping or punching automation production line includes a progressive die punching machine. This is the core equipment of the entire production line, used to process metal materials into the required parts. Progressive die punching machines have the characteristics of high precision and high speed, which can effectively achieve continuous stamping processing.

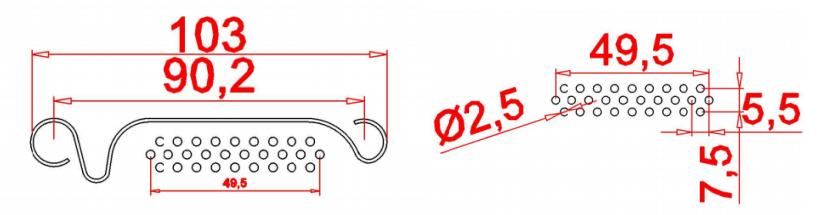

Punching also based on the drawing profiles, which kind of holes you want to punch.

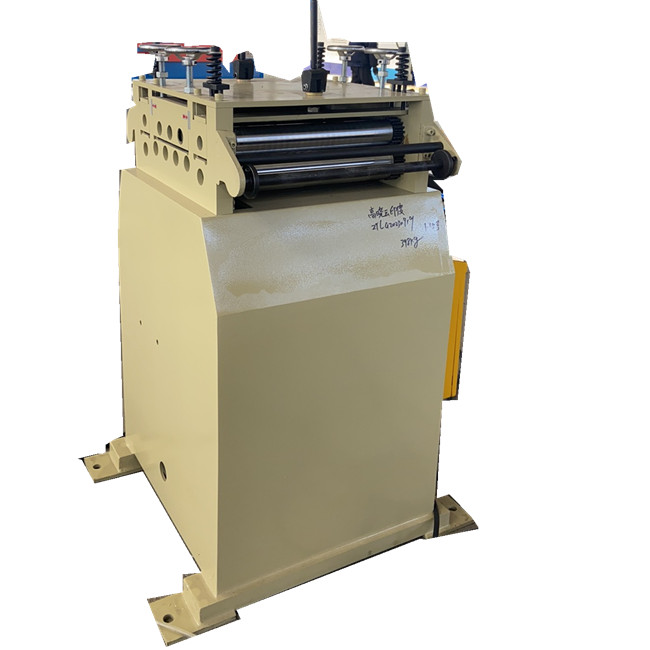

The production line is also equipped with an automatic feeder. This equipment is responsible for automatically feeding metal strips from the feeding tray into the progressive die punching machine, ensuring continuous material supply. The automatic feeder detects the position and length of the metal strip through sensors, controls the feeding speed and position, and ensures accurate feeding.

You can choose to use the cutting device to get length you want after punching or recoiler after punching.

The stamping automation production line also includes an automatic collection system. This system mainly consists of a collector and a conveyor belt, used to collect and discharge waste and residue generated during the stamping process. The automatic collection system can effectively collect and transport waste to designated locations, improving production efficiency and environmental hygiene.

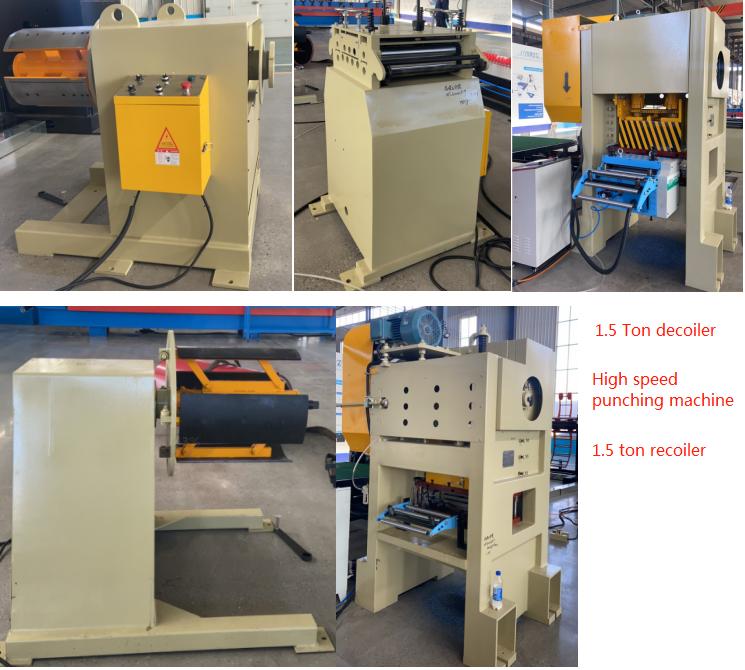

As to the small thin sheet punching lines all elements will be smaller also like this:

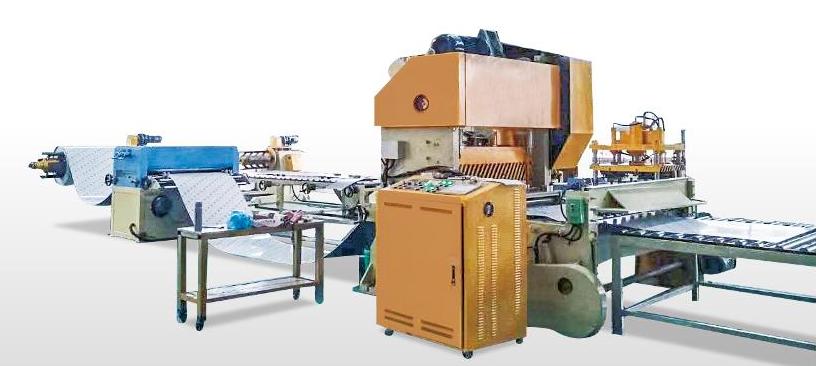

When punching for the big lines, you can choose more bigger pressing or punching machine. And we can also design the punching elements from coil to plate shape directly.

About the punching line, here is one video for your reference. If you want to know more information, please contact us at any time.
