  NC SYSTEM Hydraulic Press Brake, CNC bending machine

NC SYSTEM Hydraulic Press Brake is also called as the CNC bending machine which is used for bending the metal to the specified shape or profiles. By the mold and pressure power to bend the metal to the specified shapes. As to the NC and CNC, all we could make,  no matter which type you need, we can design for you. Now we introduce the NC SYSTEM Hydraulic Press Brake for your reference:

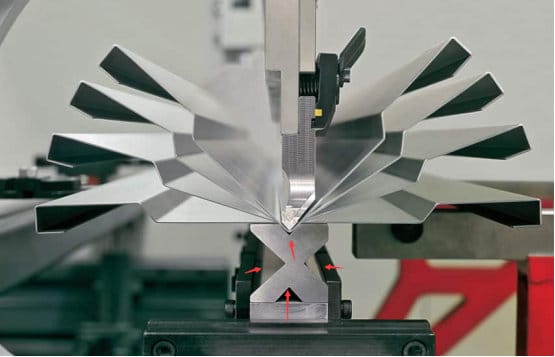

CNC bending (2).jpg

Different with the rolling forming machine, be the bending machine, you can bend any types but you need to bend angle by angle, one by one the working process will be a little complicated and speed will be a little slow. For those profiles, where the demand is not huge, but you need various types, the pressing machine is good for you. Here is the machine pictures and parameters for your reference:

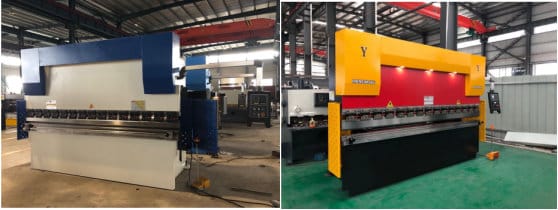

CNC bending (4).jpg

ONE  Specifications

Nominal pressure

630KN

Bench width

3,200mm

Pole distance

2,400mm

Throat depth

250mm

Slide stroke

100mm

Max. Open height

340mm

Main motor

Type: China shuangta Y132M-4

Power:7.5KW

speed:1460 r/min

Pump

TypeSUNNY  CPO-16-P-10R

Pressure31.5mpa

Rated16Ml/r

Dimension (L*W*H)

3400*1700*2200mm

Weight

4,500kg
