Wooden Texture Metal Embossing machine

Description

Embossing worm pattern

Delivery Time & date

35 days by 20GP Container

Customer desired pattern -Material thickness: 0.4 to 1.0mm

Input coil width:1200mm   Coil width: 2440mm

Main parameters of the machine

1.Embossing roller: ø440*1250mm; (we make it longer than you required width and then you can use it more easily)

2.Material of embossing roller:60CrMnMo

3.Hardness of embossing roller surface: HRC 58~62

4. Depth of hardness surface: 5-10mm (to make sure the machine can be used long time.)

5.Bearing: Torrington spherical roller bearings ,TWB 3003136 ;

6. Embossing thickness adjusted through the dial.

7. Bearing box: 400*400*160mm.

8.Driving: 11kw AC motor,reducer:BWED53-17*11-11KW 4P，11KW inverter.

9.Speed : 1-10m/min

10.Pressure mode: worm reducer pressure,  2pcs

11. Closed shields, safety devices.

12.Independent control cabinet

  Main pictures for your reference:

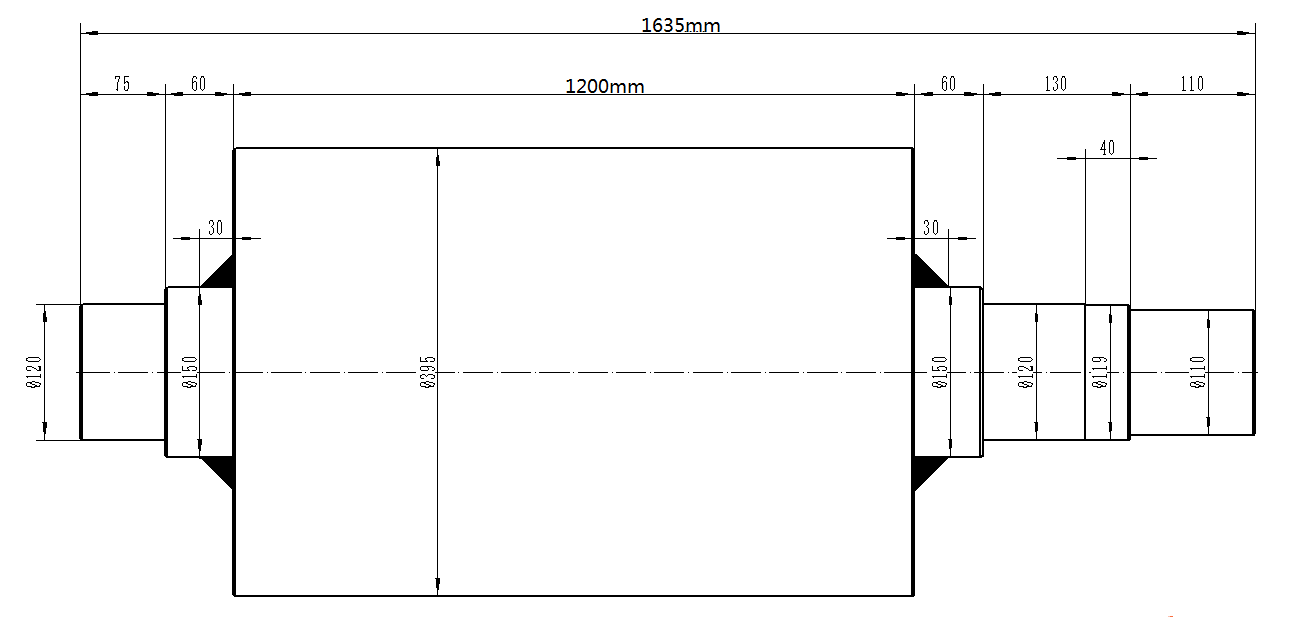

Machine shaft design:

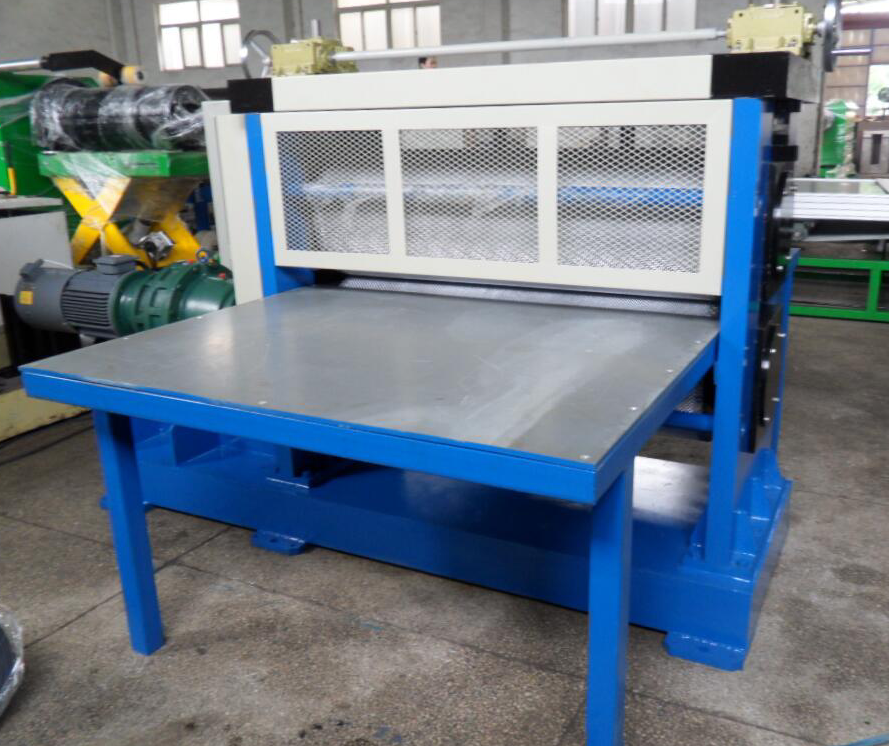

We will make one more receiving table for you as you do not need the whole line. By this table, you can pick up the embossed sheet in bath. No need to pick up one by one.

For the gearbox as the transmission, we will package it up as it is safer.

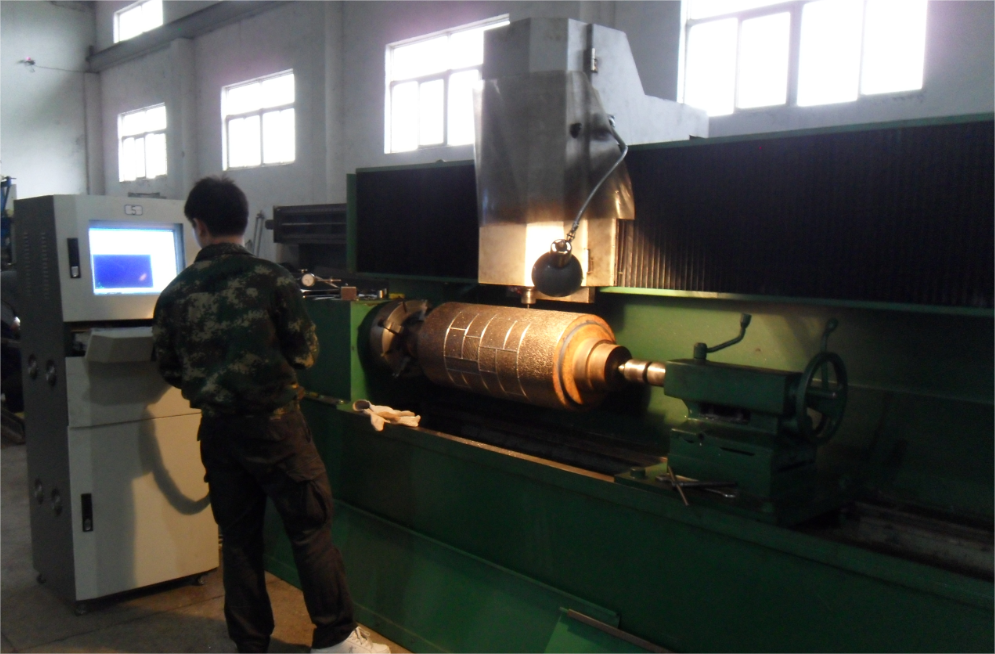

Our factroy process tools:

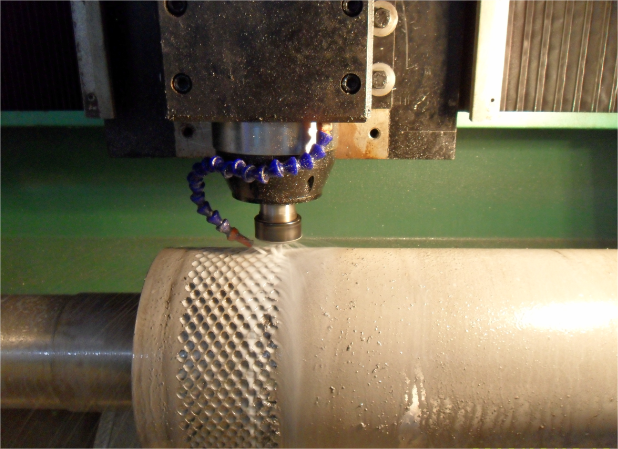

CNC ENGRAVING MACHINES:
