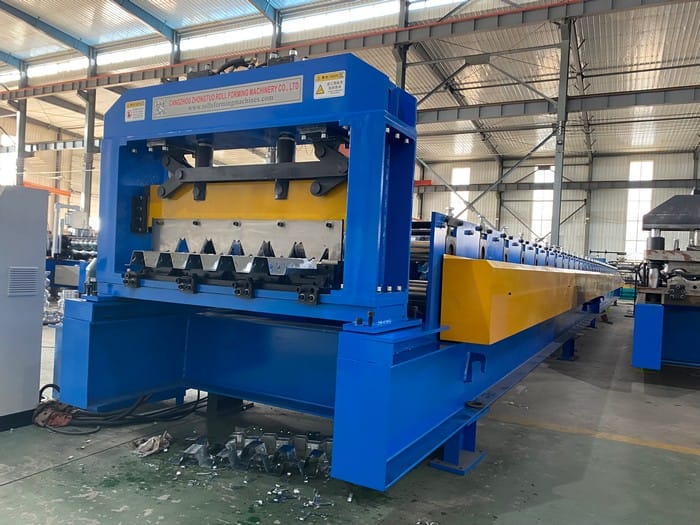

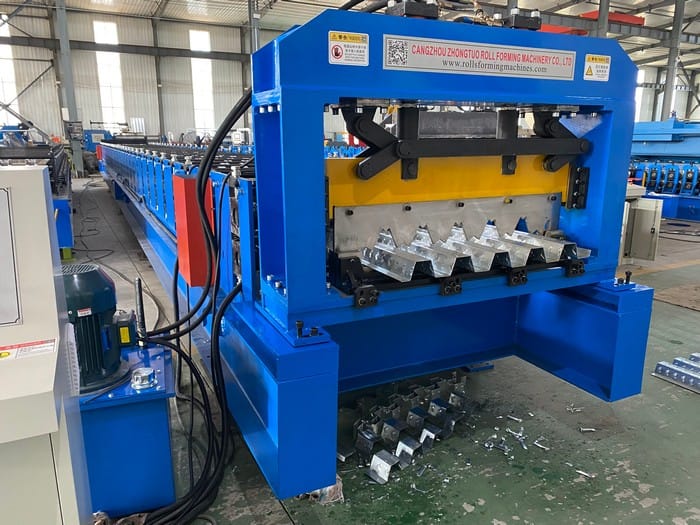

Galvanized Steel Floor Decking Roll Forming Machine is designed to make the metal decks in batch fully automatically. Here we take one steel decking machine we made for the Philippines. This profile valid width is 800 and the wave height is 60mm.
Main Feature of Steel Floor Decking Roll Forming Machine for Philippine:
1. Metal deck plate adapt to the requirements of the rapid construction of the main steel structure, can provide a firm working platform in a short time, and can be used
to lay multiple floors of pressed steel plate, layered concrete slab water construction.
2.As the tensile reinforcement of concrete floor, the metal deck plate improves the stiffness of the floor and saves the amount of reinforcement and concrete.
3.Pressure plate surface has embossing between the metal deck plate and concrete to produce the maximum binding force, so that the two into a whole. Metal deck floor usually has stiffening rib, so that the floor bearing plate system has a high bearing capacity.
4.Under cantilever condition, metal deck plate is only used as permanent template. The length of the cantilever can be determined according to the section characteristics of the bearing plate. In order to prevent the crack of the cantilever plate, negative reinforcement should be provided at the support according to the design of the structural engineer.
Main Parameters of Steel Floor Deck Roll Forming Machine for Jordan;
Forming steps | 30 roller stations |
Rolling method: for rolling methods, we use the separated molds rolling forming. | |
Shaft diameter | 90mm, the embossing roller=120mm |
Design type | Middle plate welded |
Machine frame thickness | 20mm |
Machine frame | 400# H steel welded |
roller material
| 45# steel, surface hard chromium plating. |
shaft material | 45# steel adjusting the density |
Work speed including shearing | 8-12m/min |
Transport | By chains of 1.25mm |
Power of main machine
| 11kw x2 two motors to give the power more evenly to the machine |

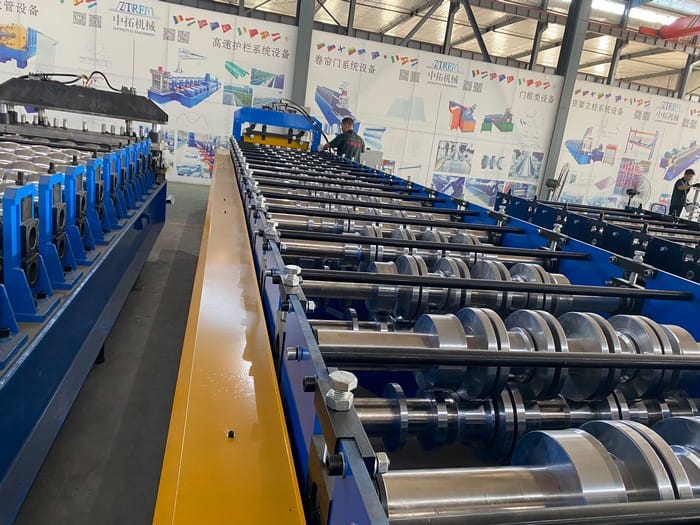

1. We use the double chain for big power and long time to use.
2. Strong shaft with keynote.

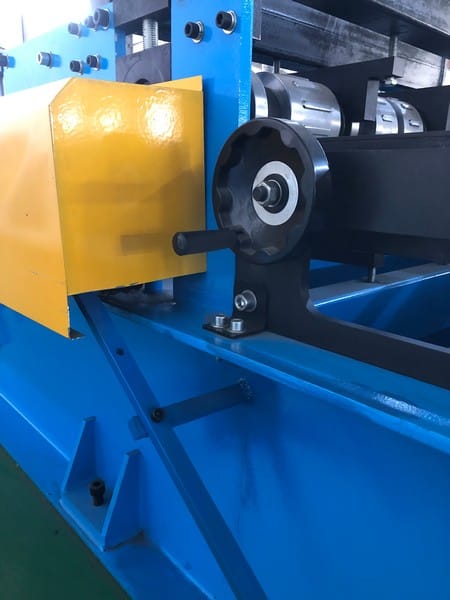

3. Leveling with gear outside and with the protection rollers.

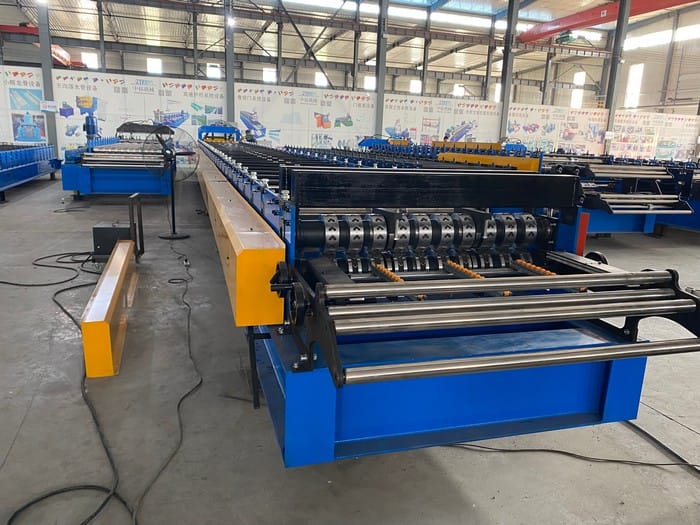

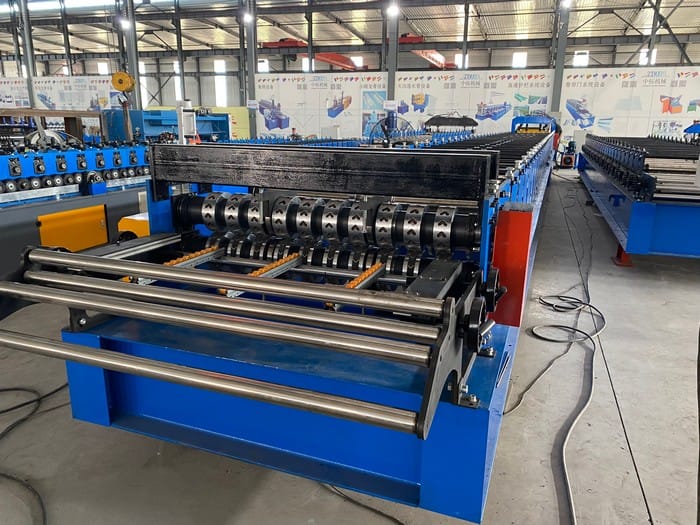

4. 120mm strong embossing roller with protection shaft.
5. A clutch device is installed for the embossing roller, which can connect or cut off its driving force. It is easier to connect when feeding, and disconnect the power after the coil enter into roll former, so as to avoid the coil curve caused by the inconsistent speed between the embossing roller and other forming rollers.

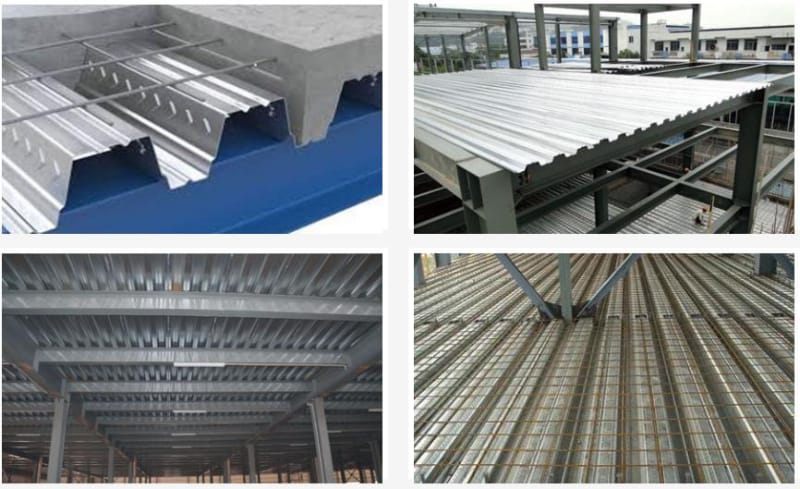

Where to use the Steel Floor Deck:

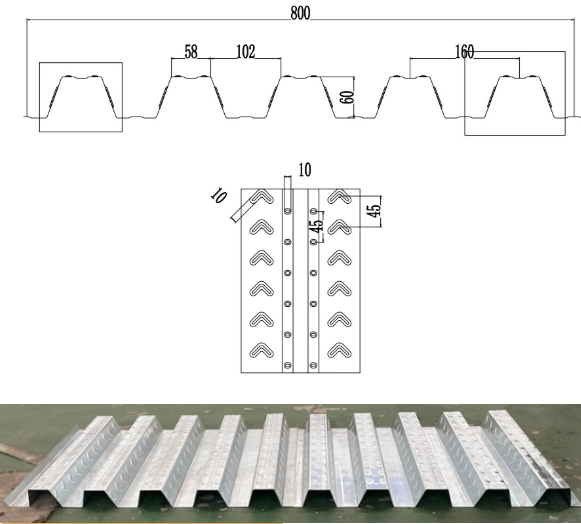

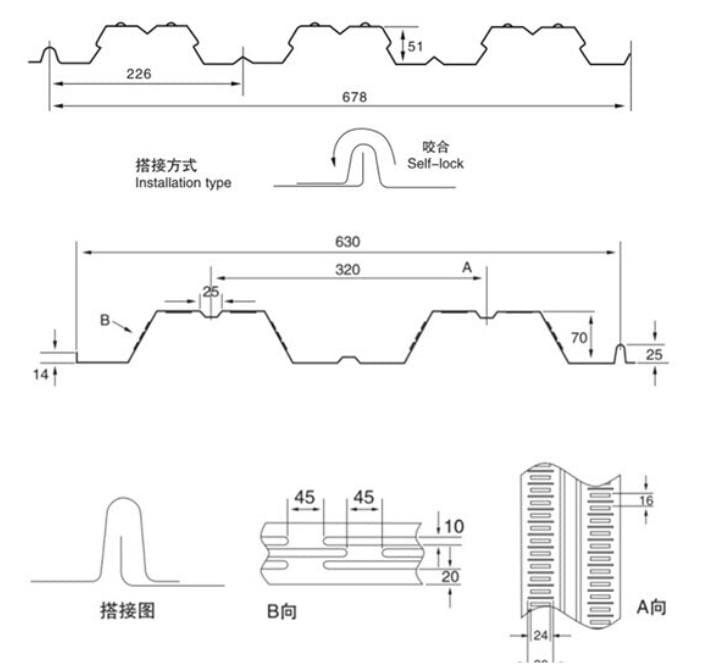

More profiles of metal decking for your reference:
