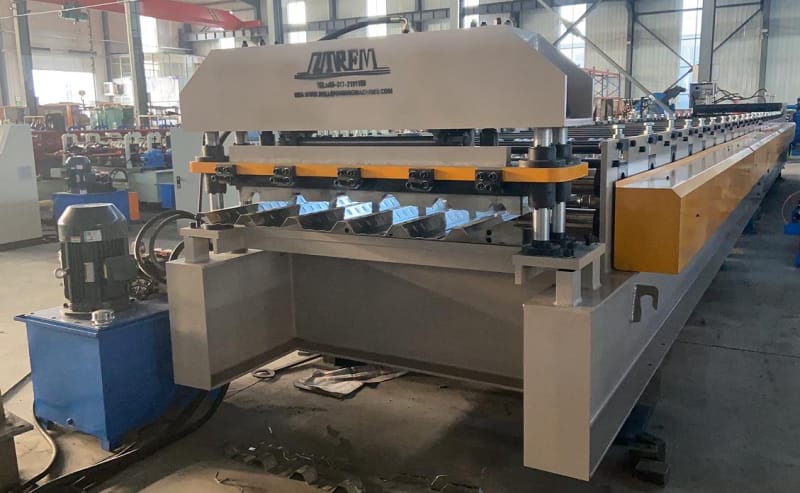

Steel Decking Roll Forming Machine for the United Arab Emirates

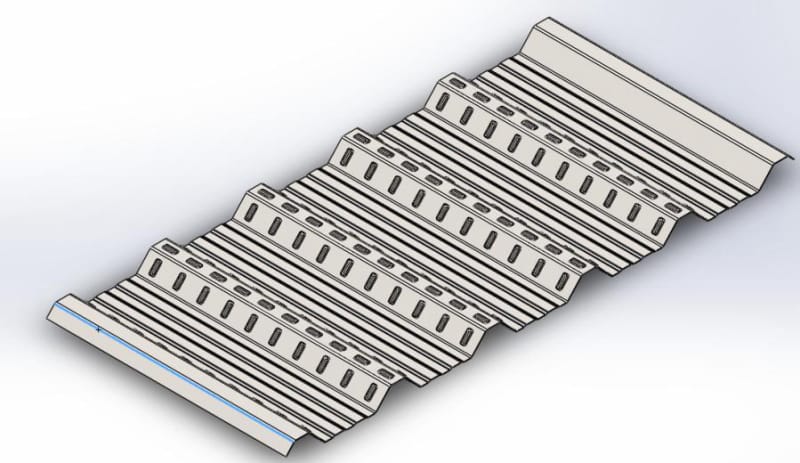

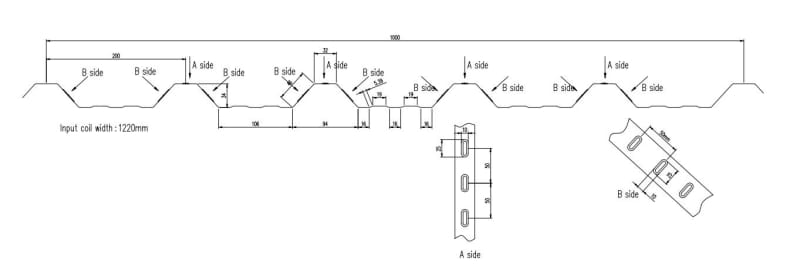

Steel decking machine for the United Arab Emirates is specially designed making the metal decks in batch fully automatically. This metal decking machine we made is with hydraulic cutting automatic control in PLC and with embossing. As to the decoiler, you can use the manual one or the hydraulic one. Here is one the drawing profile of metal decking for your reference, this one we made for United Arab Emirates.
Steel decking machine for the United Arab Emirates:
Packing list-machine components | ||||
No. | Name | Unit | Quantity | Remark |
1 | 7T hydraulic decoiler | set | 1 | Automatic |
2 | Main roll former with hydraulic shearing with metal embossing | set | 1 | Chains drive |
3 | PLC control station | set | 1 | Delta brand |
4 | Hydraulic oil pump | set | 1 | With cooling system |
5 | Product collect table | set | 1 | Manual/3 m length |

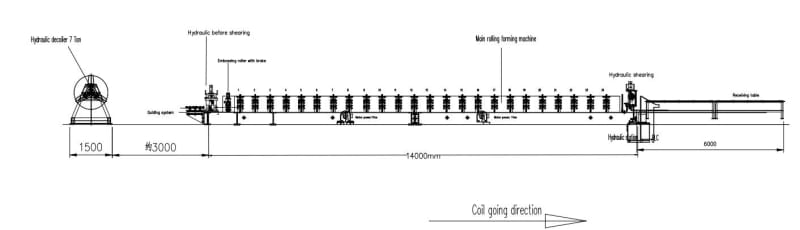

Machine working flow for your reference:
Hydraulic shearing before
1.Should have enough roller before cutting system to avoid hitting after cutting for safety.
2.Button Control for operating the cutting system. Operating system should near the cutting area.
Embossing and Roll forming Roller
1. High Grade steel and top class chrome protection.
2. Should be able to roll Galvanized sheet with high grade.
3. Should have excellent protection against humid weather.
4. All roller and shaft should be rust proof.

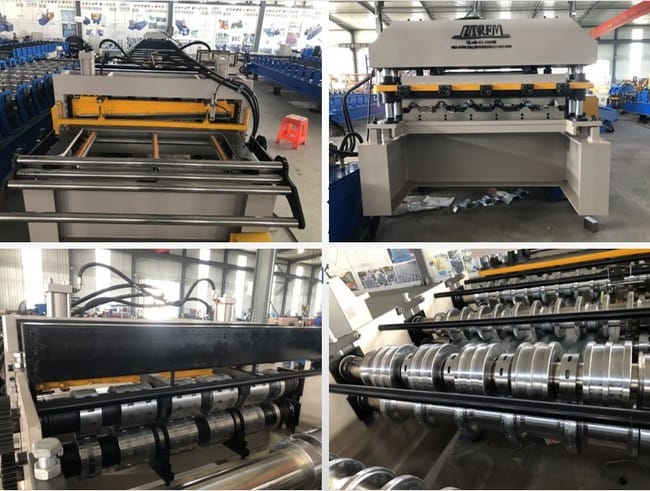

Advantage of our metal decking machine rollers:
For all of our rollers, spacers and shafts, we all mark numbers on it, it’s very convenient for you to maintenance the machine in the future. There is ball bearings inside the rollers, to make all the rollers run at same speed when machine is run. 3. Because the rollers inside with ball bearings, our rollers is bigger than others, so work speed is faster. 4. All rollers and spacers, we do 3mm thickness chrome coating, to increase hardness and anti-rust. Some factories maybe use 1-2mm chrome coating.

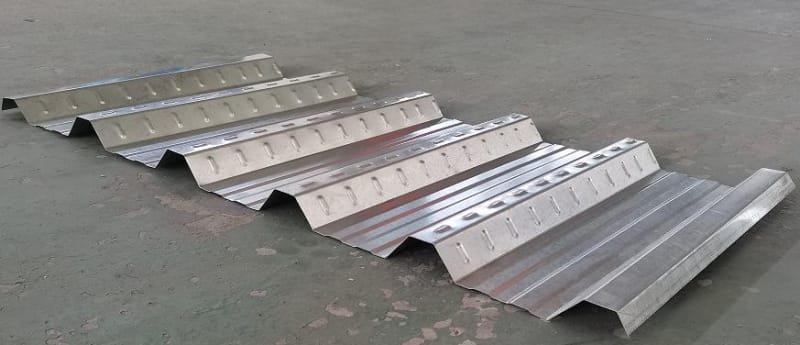

Now let us check the metal decking made by this machine:
Metal decking machine for the United Arab Emirates testing video for your reference:
For more information, please feel free to contact with us.
