Description:B-Deck is a 1 ½” deep, wide rib roof deck section that provides a support surface for various types of roofing materials. It is used as a secondary structural member to provide for lateral force distribution to the structure’s vertical force resisting systems. Standard cover width is 36” with either a galvanized finish or prime painted.
1.5″ Type B Roof Deck Roof Deck Floor Decking Machine

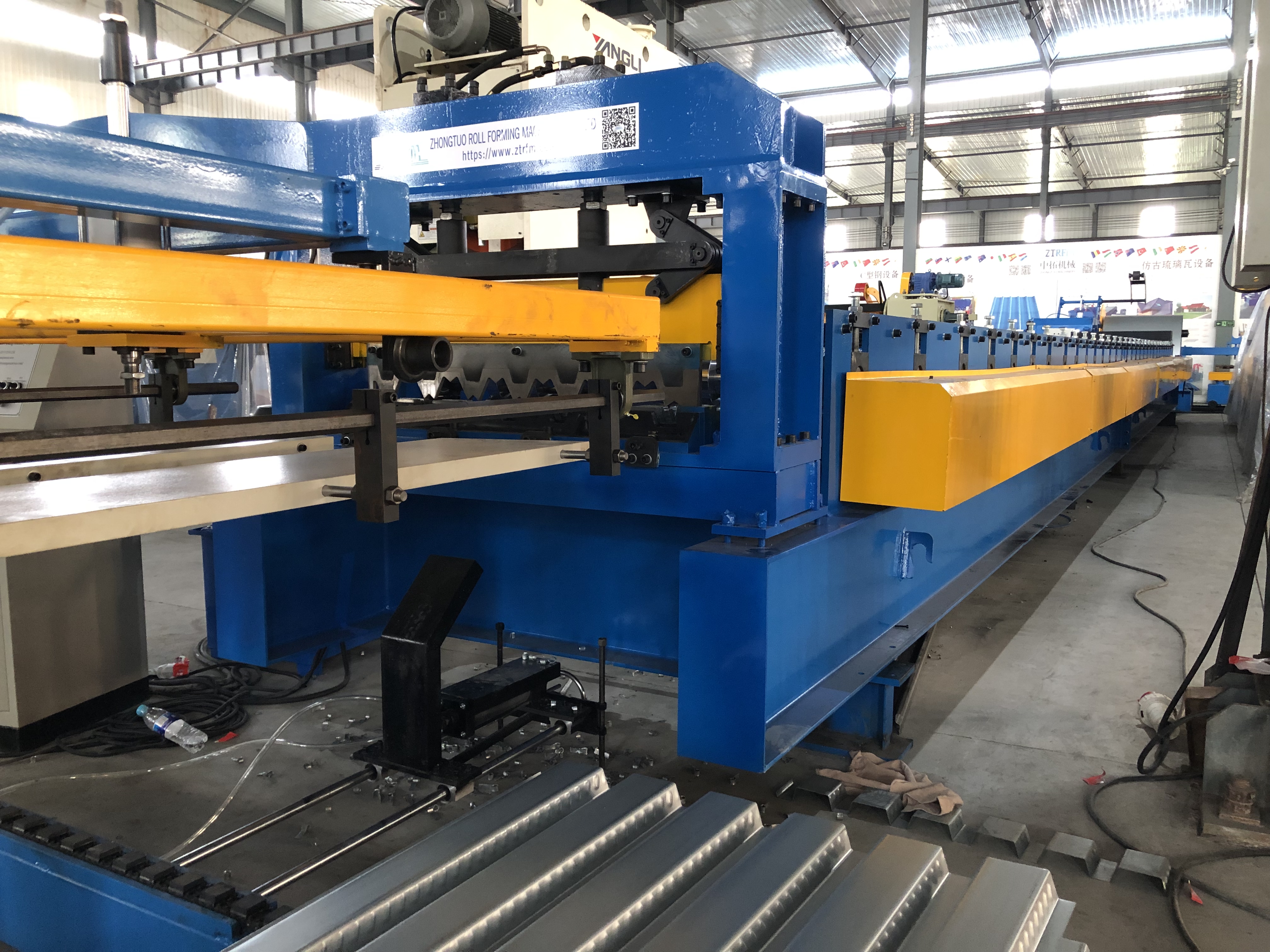

B-Deck roll forming machine is a metal deck machine manufacturing a popular structural metal decking named B-Deck.
B-Deck panels with noticeable features such as lightweight,strong,economical,and easy to install will be suitable for construction which requires lightness but sustainability.In practice,B-Deck decking sheets are used frequently for applications like flooring,siding,and roofing.
Type B-Deck is classified into 2 types B roof deck and B floor deck with unique points for each type but identical dimensions 36’’ coverage and 1.5’’rib.B roof deck is a composite metal floor deck panel to have concrete poured over it.

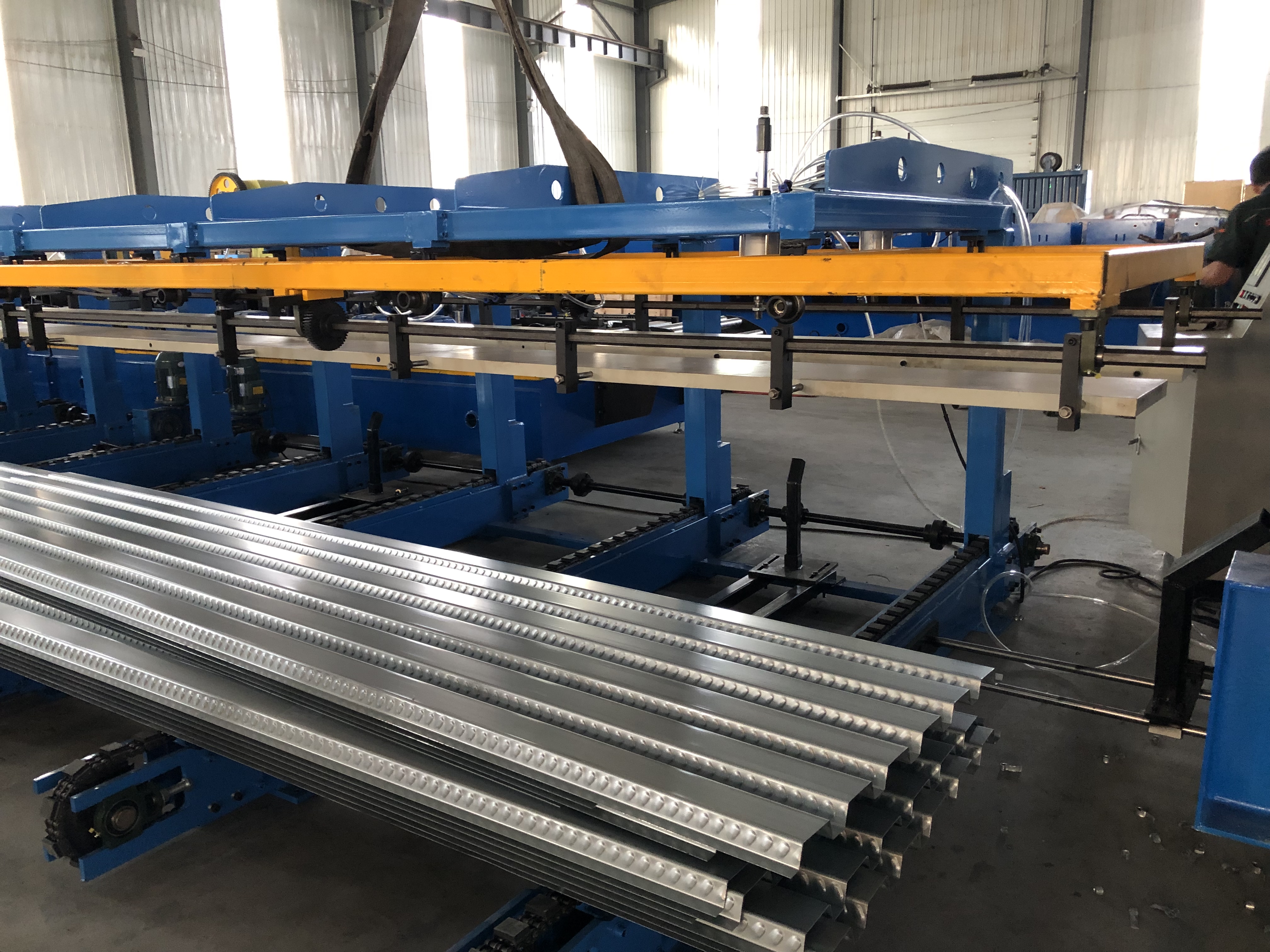

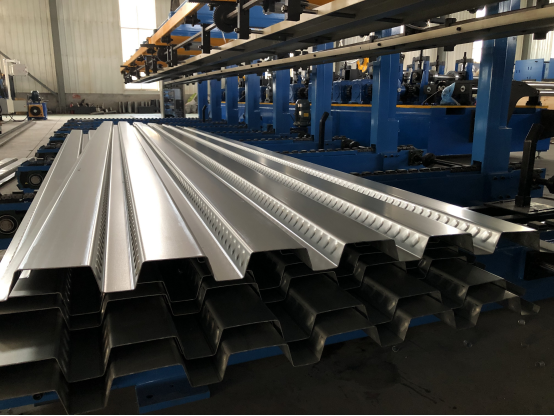

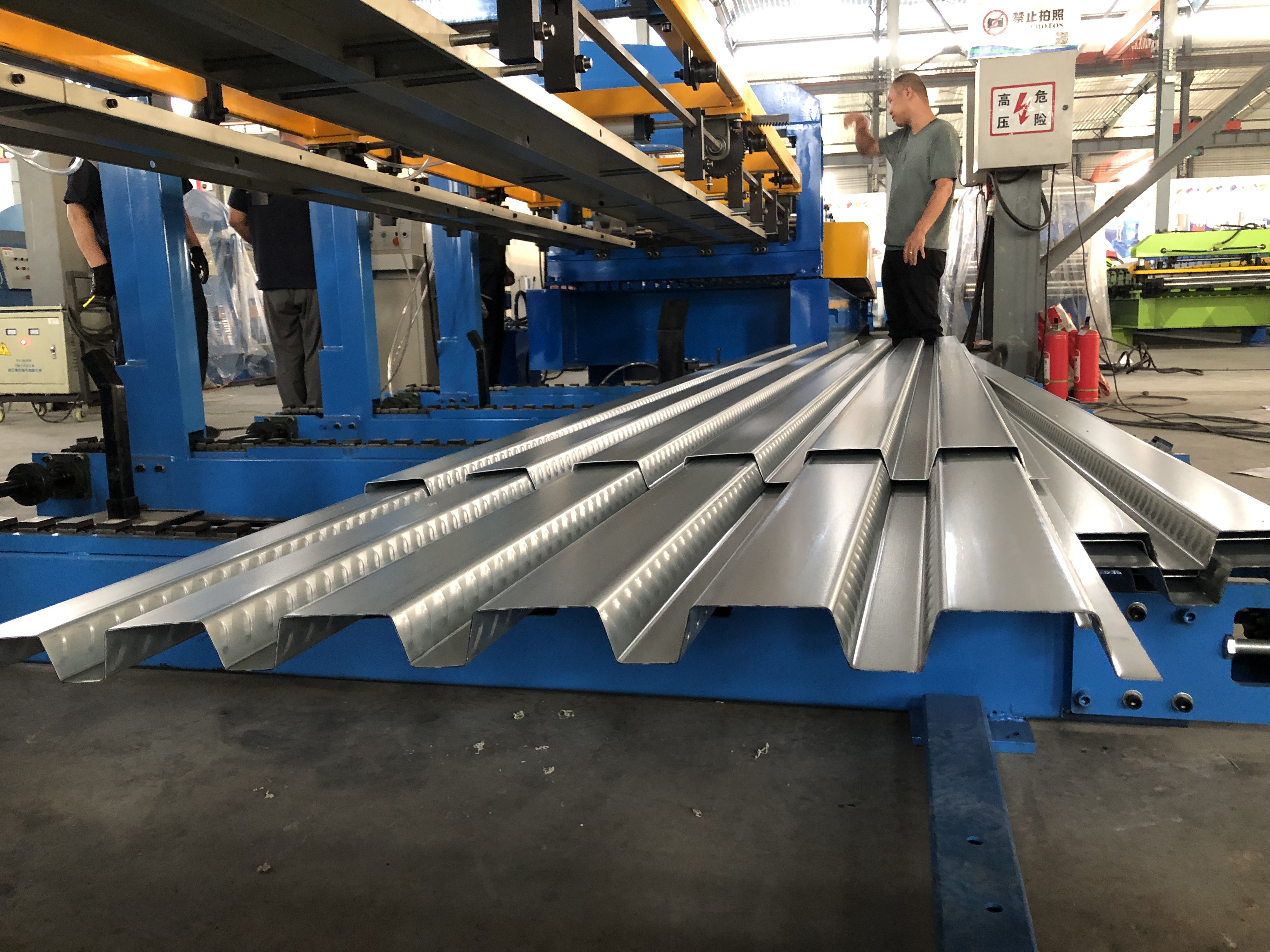

Here is one drawing profile and finished product:
Work flow of the Eaves Flashing Making Machine:
1.5″ Type B Roof Deck Roof Deck Floor Decking Machine

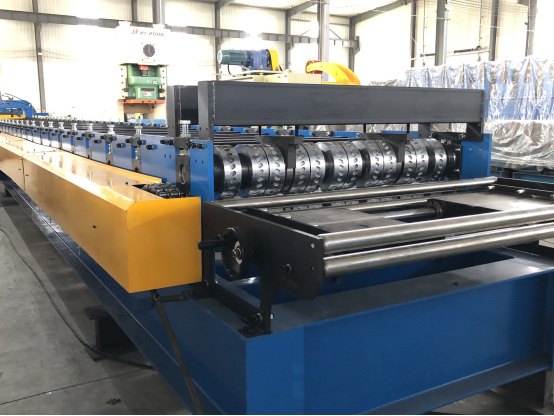

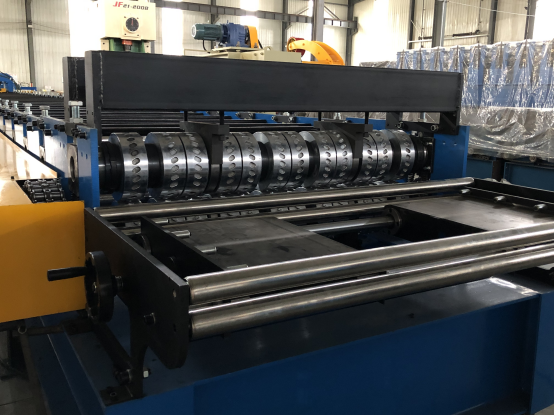

Feeding Device
1.There are 2 rollers at the feeding device, which can be rotated to reduce the friction of the feeding and avoid scratches on the surface of the material.
2.Touch stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.
3. With a hand wheel to adjust the feeding width, making the feeding more accurate.

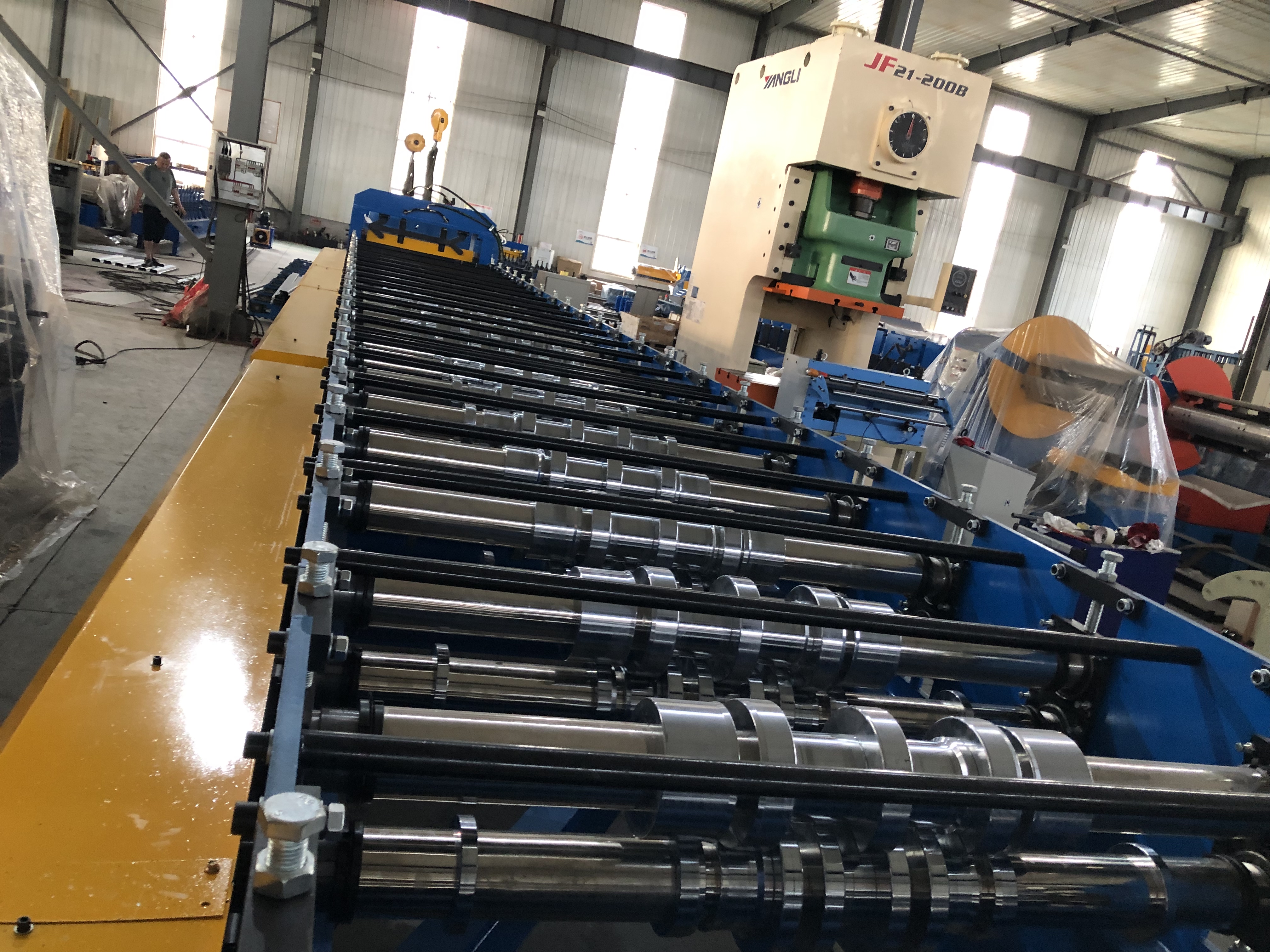

Roll Forming Device
1.rollers Gcr15 quenching treat HRC58-60 good hardness for long service time.
2. Each roller has number and with keynotes, it can fix on the shaft stablely
Our machine use very thick material to manufacturing the machine basic frame, ensure very stable when it running. The machine especially add diagonal bracing to make sure stability.

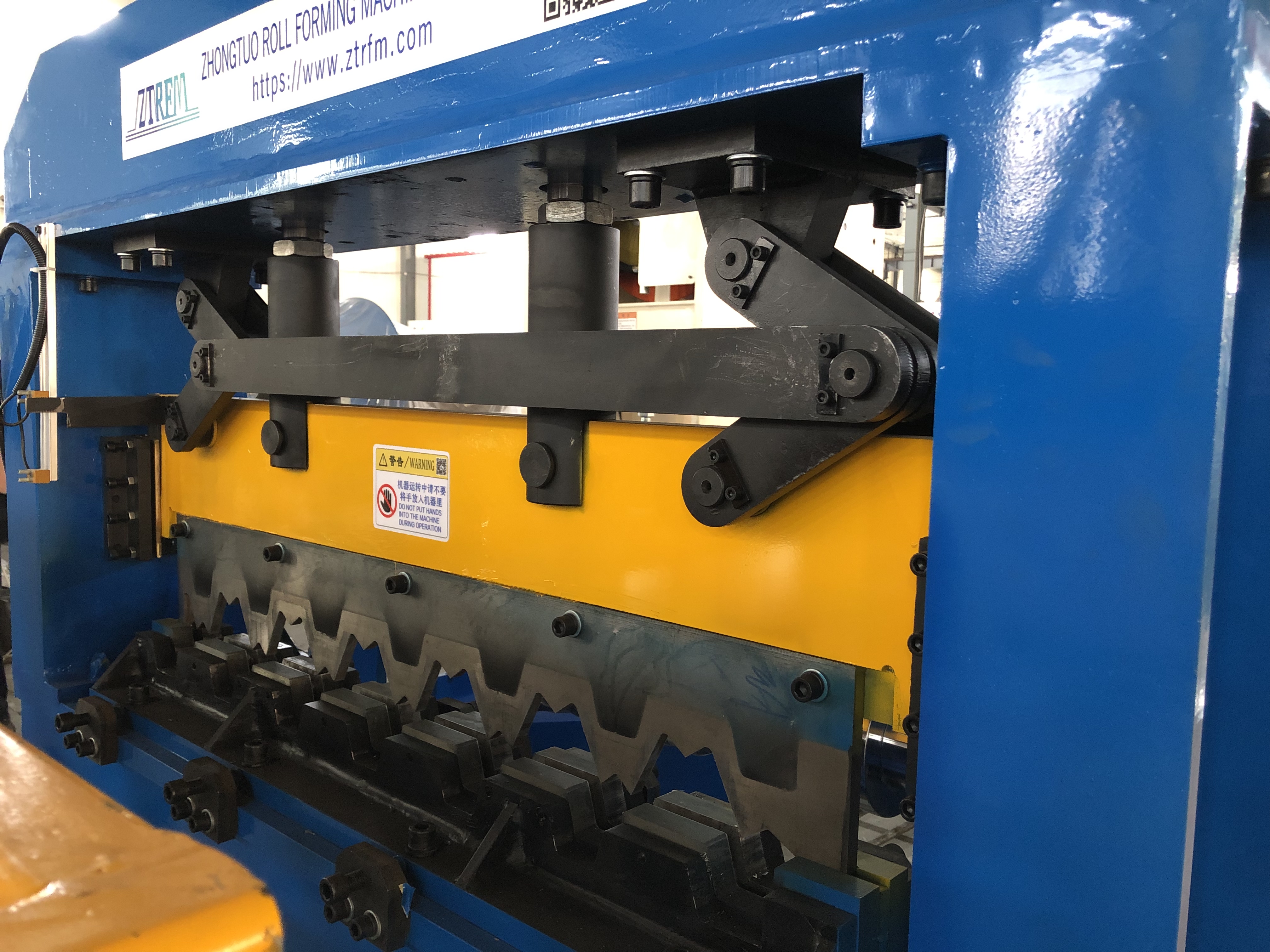

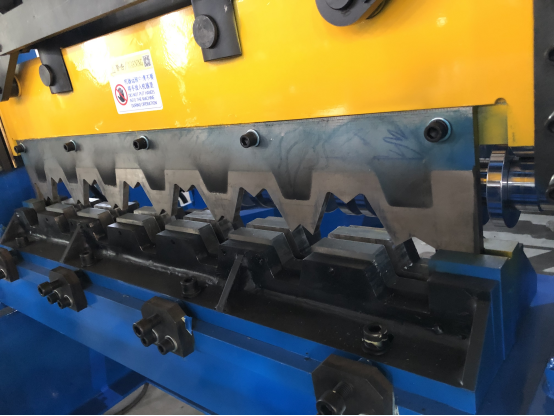

Automatic Shearing System
1. The cutter is constructed from GB-Cr12 material and undergoes heat treatment.
2. Cutting length tolerance is within ±10 meters per 2 millimeters.
3. Cutting operations are characterized by a stable and safe working environment, producing minimal noise.
PLC control system
PLC brand:Delta(Taiwan) PLC, and transducer and touched screen
● Encoder brand:Omron
● Electrical components:Schneider
●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is
really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.
Hydraulic station
● Hydraulic station motor: 5.5 KW
● Hydraulic oil:46# hydraulic oil
● Main components:Include a set of hydraulic tank, a set of
hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve
