Description:1.5" composite metal deck requires less concrete but spans shorter distances than deeper composite metal decking. It is recommended to pour a minimum of 2" of concrete over the ribs of the deck for a total slab thickness of 3.5".
1.5″ Composite Deck Durable Floor Decking rolling forming machine
Metal Deck stocks and manufactures 1.5″ Composite Deck in 22, 20, 18, and 16 gauge. Typically 1.5″ Composite Deck is used for applications in outdoor flooring. Composite metal floor decking is metal floor deck with an embossment pattern manufactured into the sides (flutes) at regular intervals. The embossments allow the concrete to bond with the metal decking panel as the concrete cures.There are several options when it comes to composite metal floor decking. It is made up of different profiles, which each offer different values in strength. There are 3 different depths of Formlok Composite Metal Decks. Each depth allows for different concrete slab thicknesses. Here we take the 1.5″ Composite Deck drawing profile for your reference, in the end, we will share more drawing profiles for you to choose.

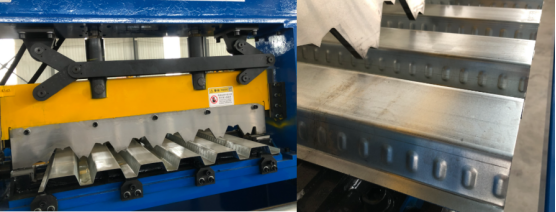

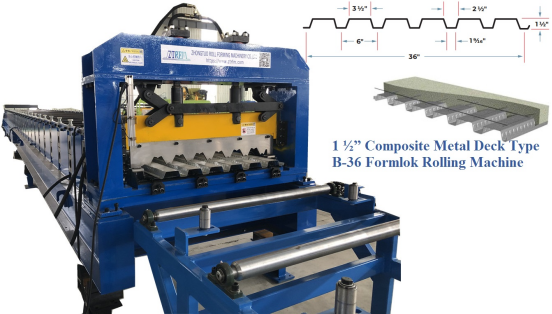

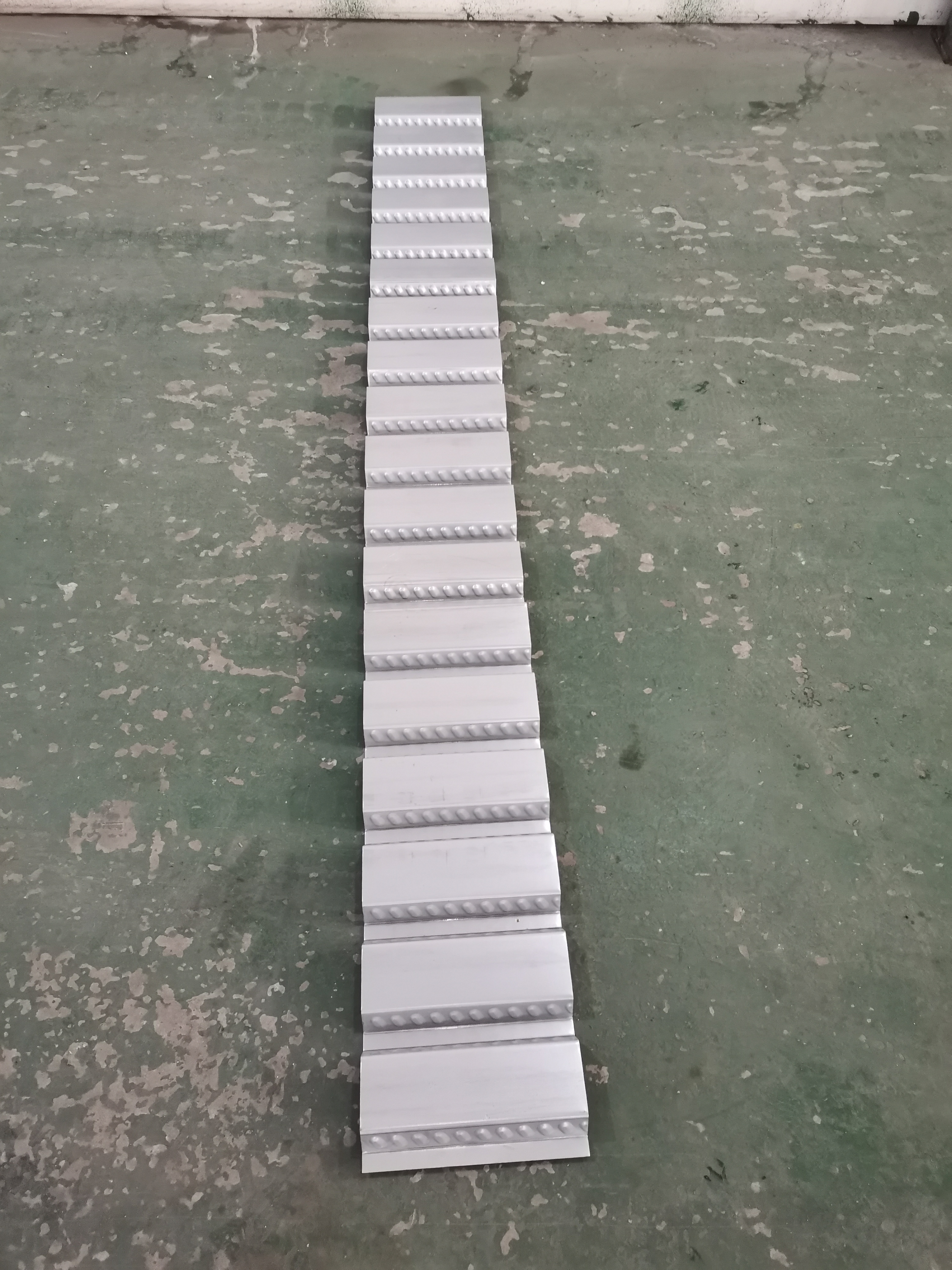

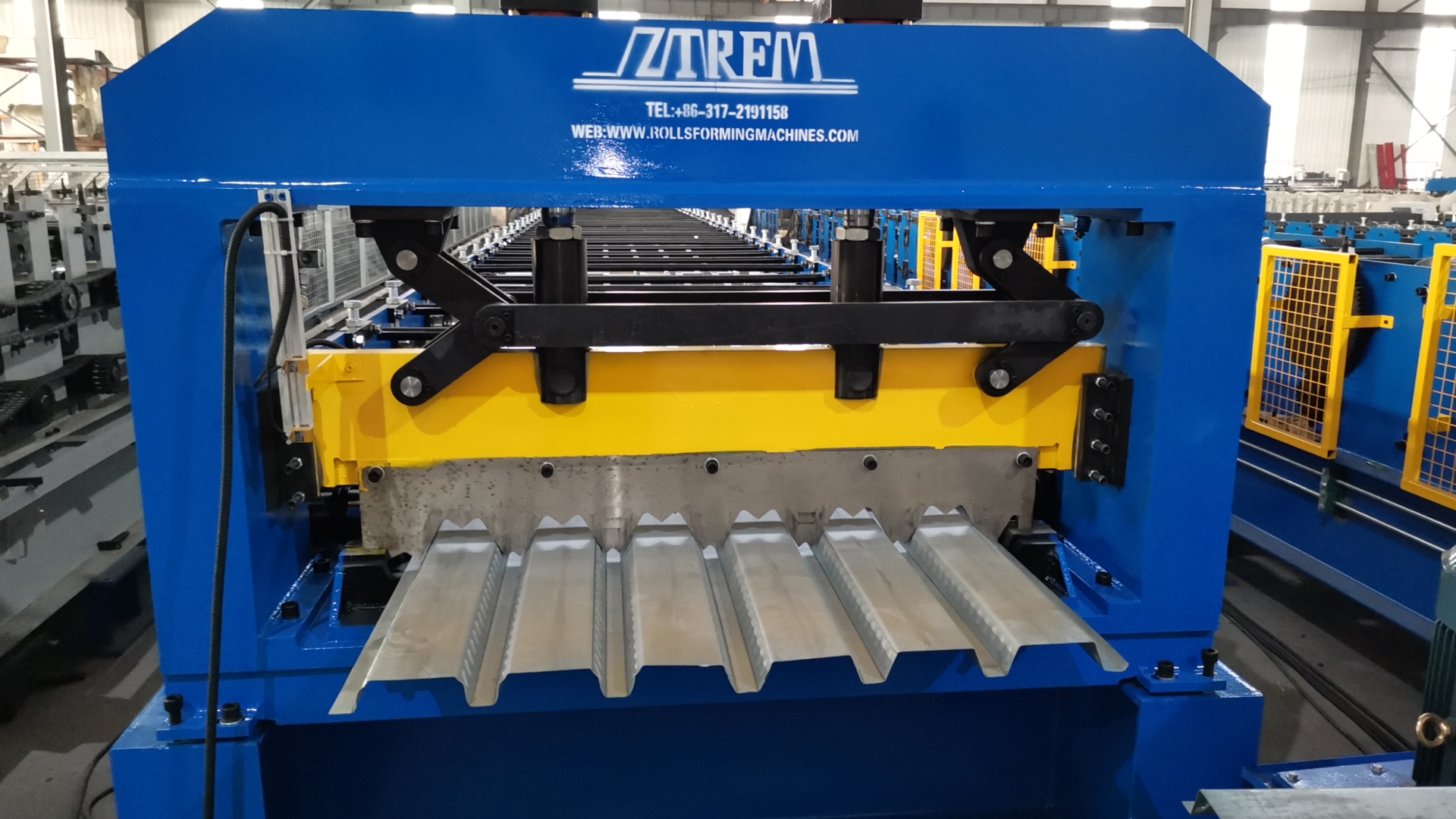

Here is one drawing profile and finished product:
Note: Because of the profile of the embossments, there is no gain in strength for the composite deck-slab when the deck gets thicker than 20 gage. However, the construction spans do get longer for 18 and 16 gage deck. So different with the roofing decking, Composite Deck with the embossing is necessary.
Work flow of the Eaves Flashing Making Machine:

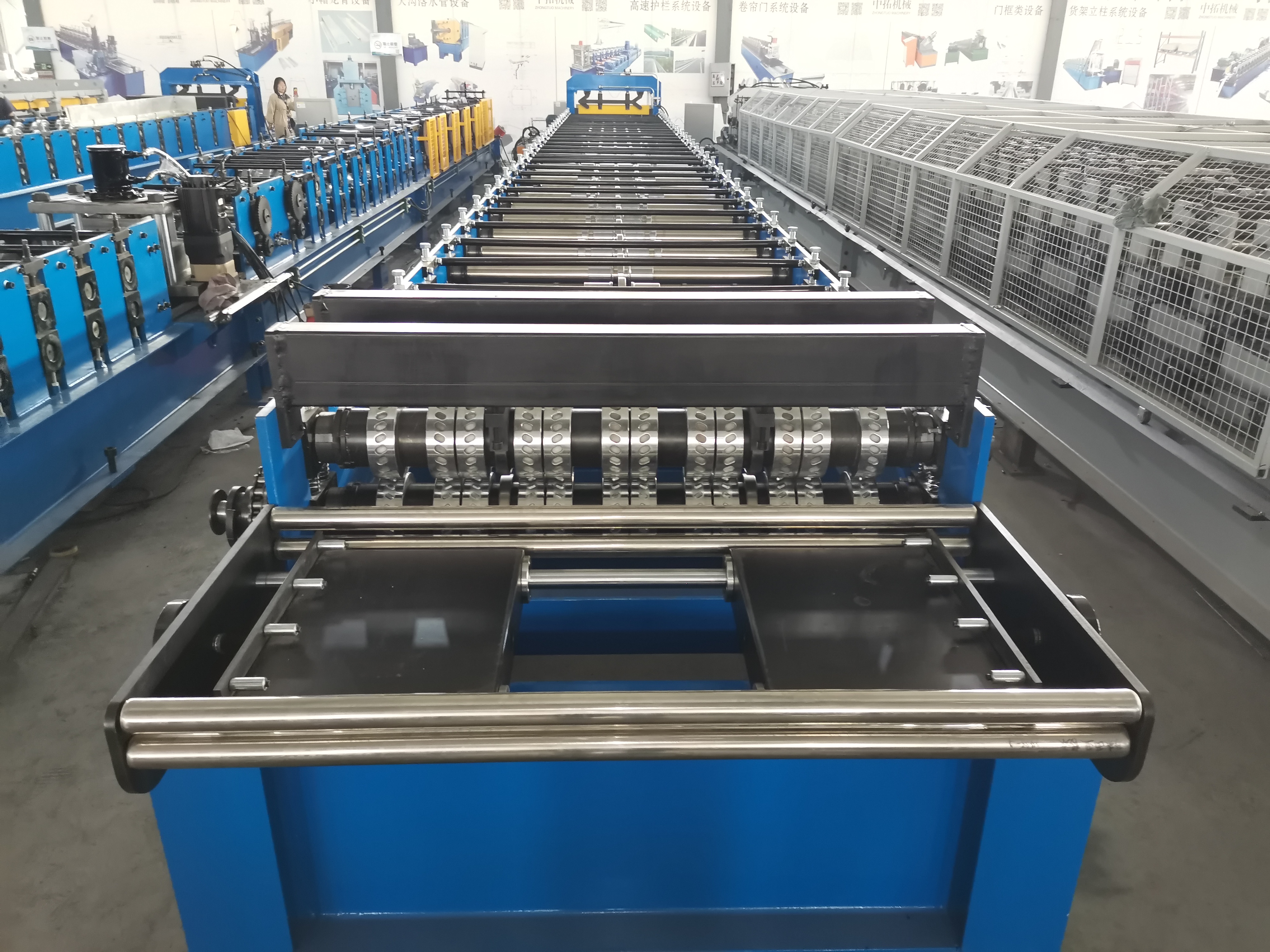

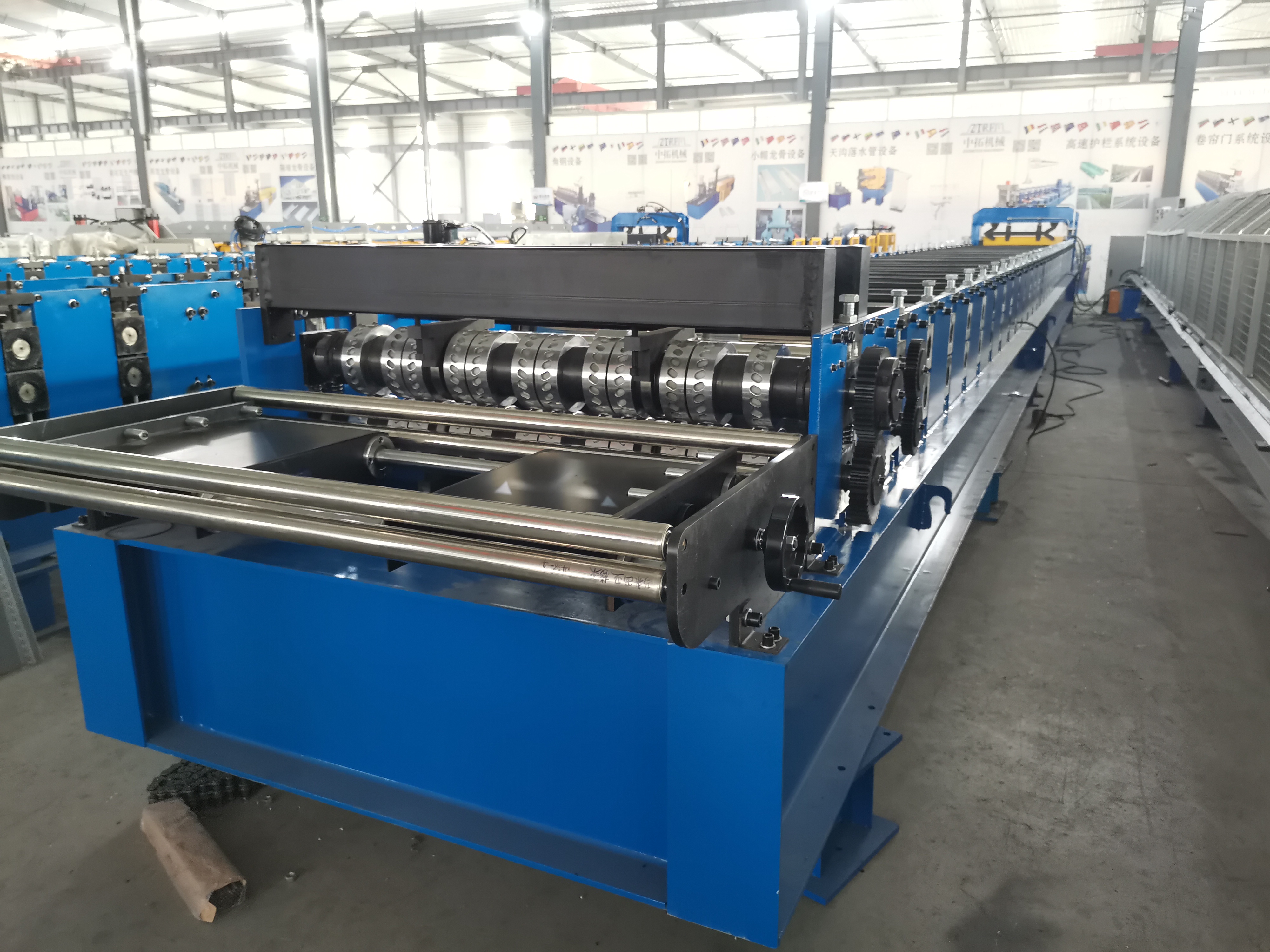

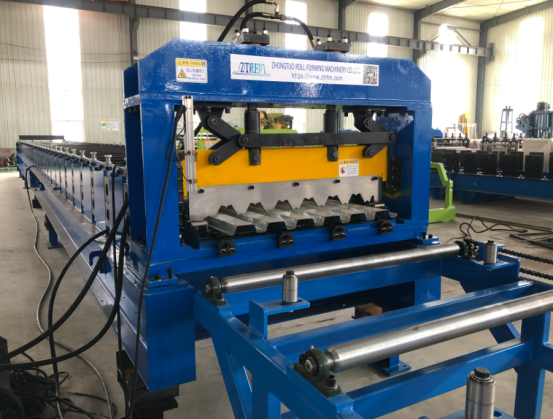

1.5 Composite Deck Durable Floor Decking rolling forming machine

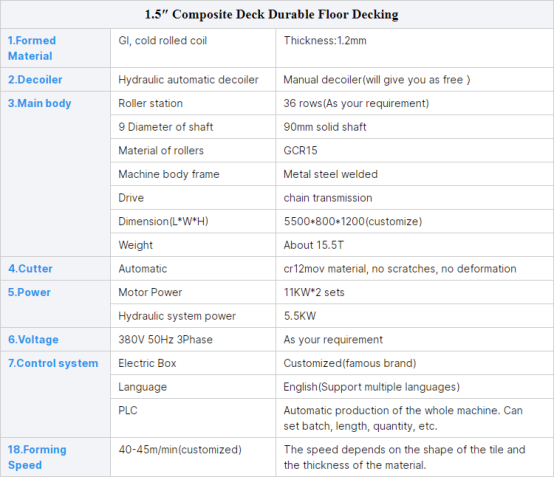

Advantage of 1.5″ Composite Deck Durable Floor Decking rolling forming machine
1.Strong frame middle plate of the thickness around 25mm.

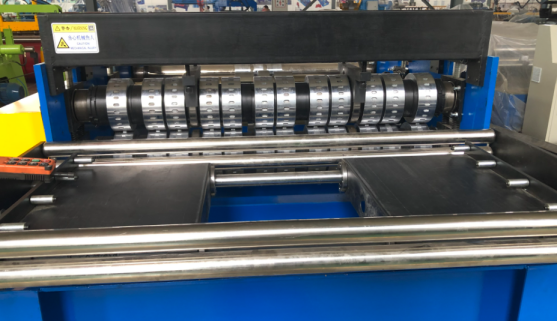

2.Strong in the shaft of 90mm, for the embossing shaft, we use 120mm.
3.For the rollers we use the GCR15 quenching, for long time to use.

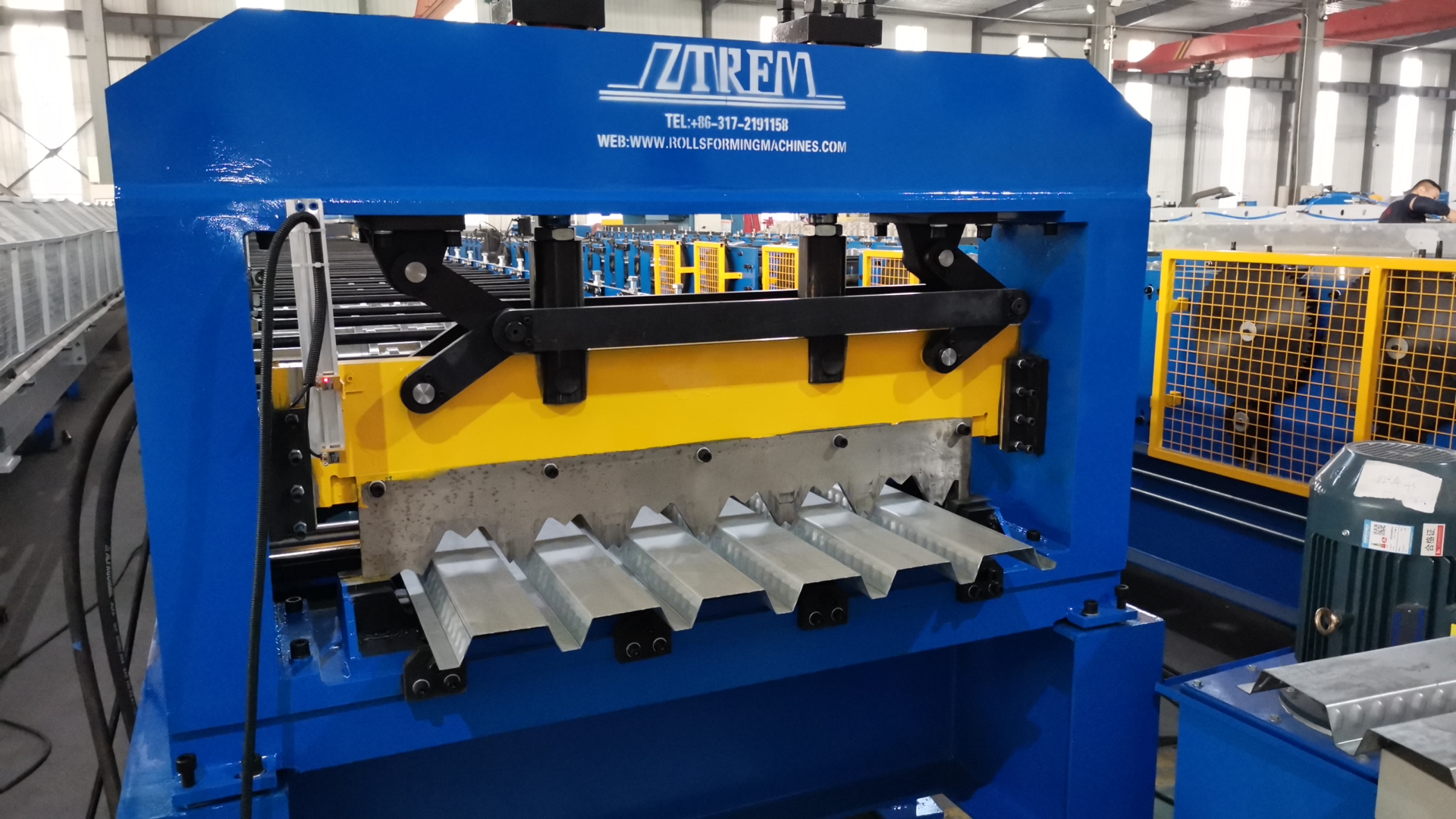

4.Frame shearing system, long time to use and also powerful. During the shearing, shape will not change but there are some wastes.

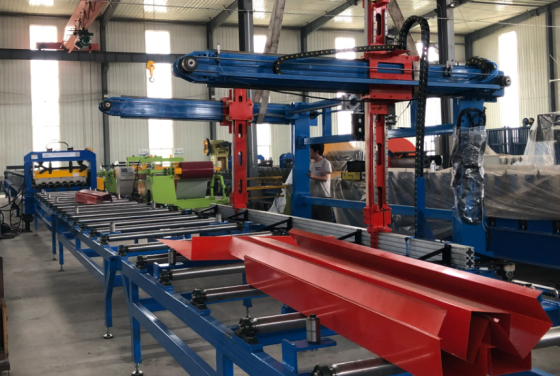

5.With automatic stacker, high efficiency and more easy to use.
We can also make more types metal decking rolling forming machines for example:
Roof Deck rolling forming machines
B deck rolling forming machines
N deck rolling forming machines
1’’ deck rolling forming machines
Composite Deck
1.5’’ Composite deck rolling forming machines
2’’ Composite deck rolling forming machines
3’’ Composite deck rolling forming machines
Form Deck
9/16’’ Form deck rolling forming machines
1’’ Form deck rolling forming machines
1.5’’ Form deck rolling forming machines
2’’ Form deck rolling forming machines
3’’ Form deck rolling forming machines
