Description:It' s best to be used as the floor of high buildings, and the cost of such floor is low.

Features high solid forming stand guarantees the stable forming and uniform high quality of final products.

AS the finished product metal floor decking customized, the machine can be customized.

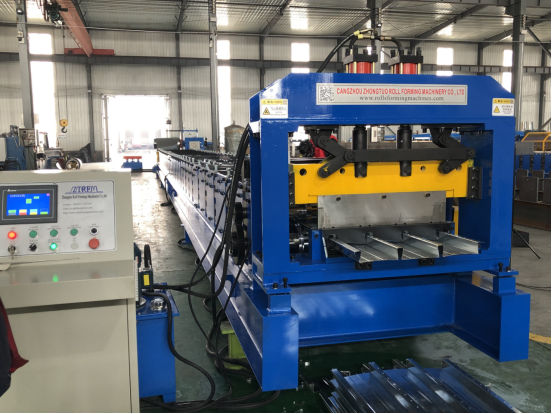

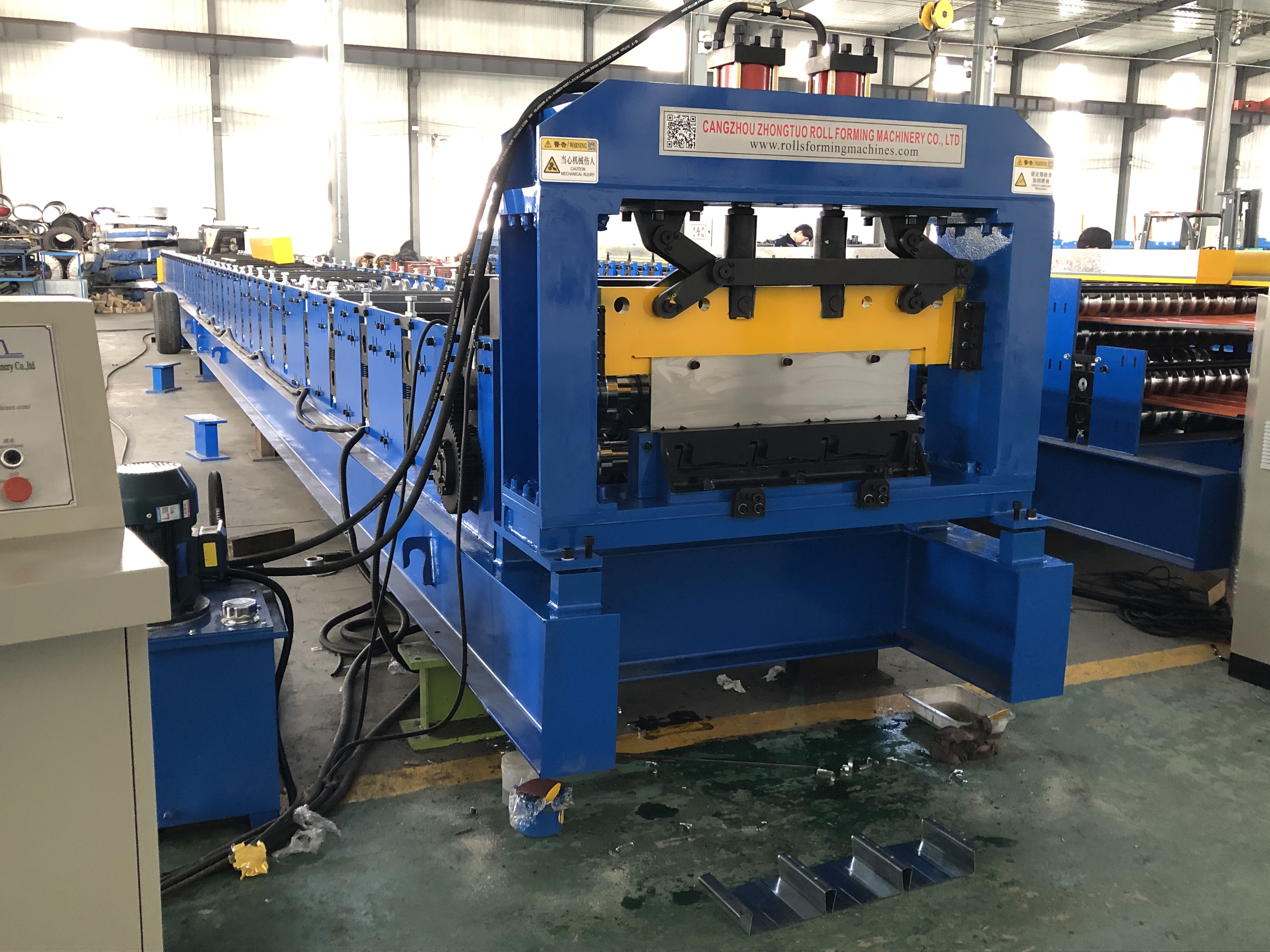

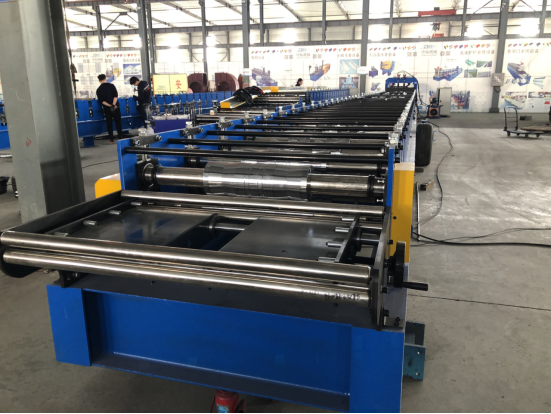

Dovetail Shape Floor Steel Decking Making Machine

Dovetail decking is a structural metal decking that's capable of long spans. The main advantage of the dovetail profile is that the underside of the panel looks like a finished looking ceiling. In addition, you can attach lighting, HVAC, plumbing, or electrical to the underside of the dovetail panels.

Dovetail deck is the perfect union that combines a structural metal roof deck and an architectural finished ceiling.

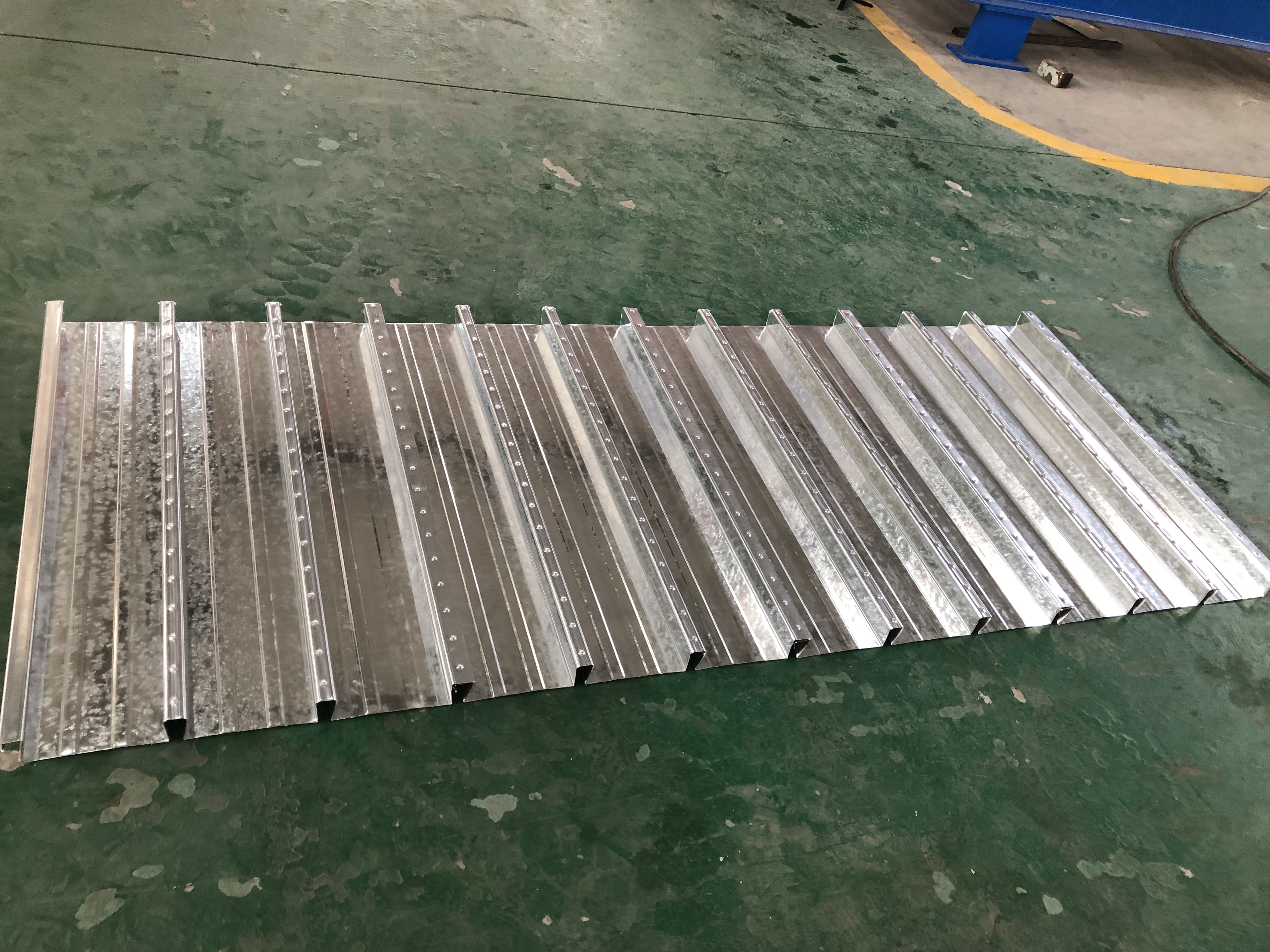

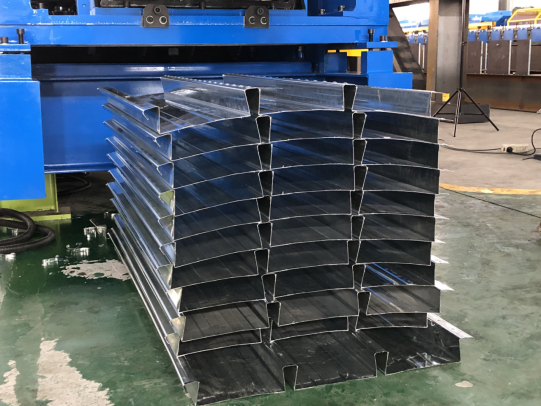

Here is one drawing profile and finished product:

Processing flow diagram of  floor deck roll forming machine

Uncoiling---guide feeding---main roll forming ---hydraulic cutting---product collect table

Dovetail Shape Floor Steel Decking Making Machine

No matter in construction or construction use, dovetail steel bearing plate has advantages:

1. When pouring concrete floor slab, there is no need to set formwork and support, so that the construction has greater flexibility.

Constructors can start from any floor of the building, instead of proceeding from bottom to top in the traditional way.

2. Positive moment reinforcement is not required for concrete floor design;

3. The wedge-shaped concrete block between the ribs of the dovetail steel bearing plate can withstand all kinds of deformation caused by strong earthquakes,

which enhances the integrity of the floor;

4. Because dovetail steel bearing plate has complex wedge section resistance moment, it has mechanical performance and more economical span;

5. The dovetail composite floor system saves more concrete than the general concrete floor;

6. The dovetail composite floor system saves more formwork, time and economy than the general concrete floor;

7. The dovetail composite floor system does not need to add additional fireproof layer;

8. The dovetail composite floor system can provide the dovetail suspension system for or temporary use.

There is no need to pre-embed any embedded parts before the floor slab is poured.

Pipelines and equipment can be directly hung between the slab ribs through the dovetail type hanging system, which can save a lot of labor and time.

9. Under the condition of correct use, dovetail steel bearing plate can provide a safe working platform before the floor concrete pouring;

Main parameters of metal dovetail shape floor decking roll forming machine

Feeding device

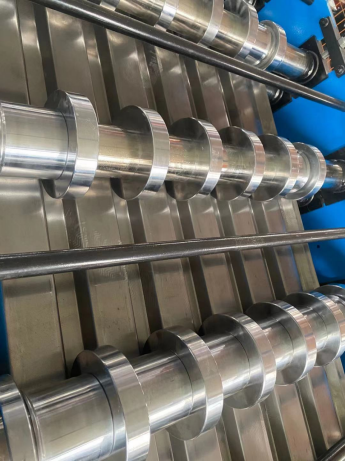

Roll forming device

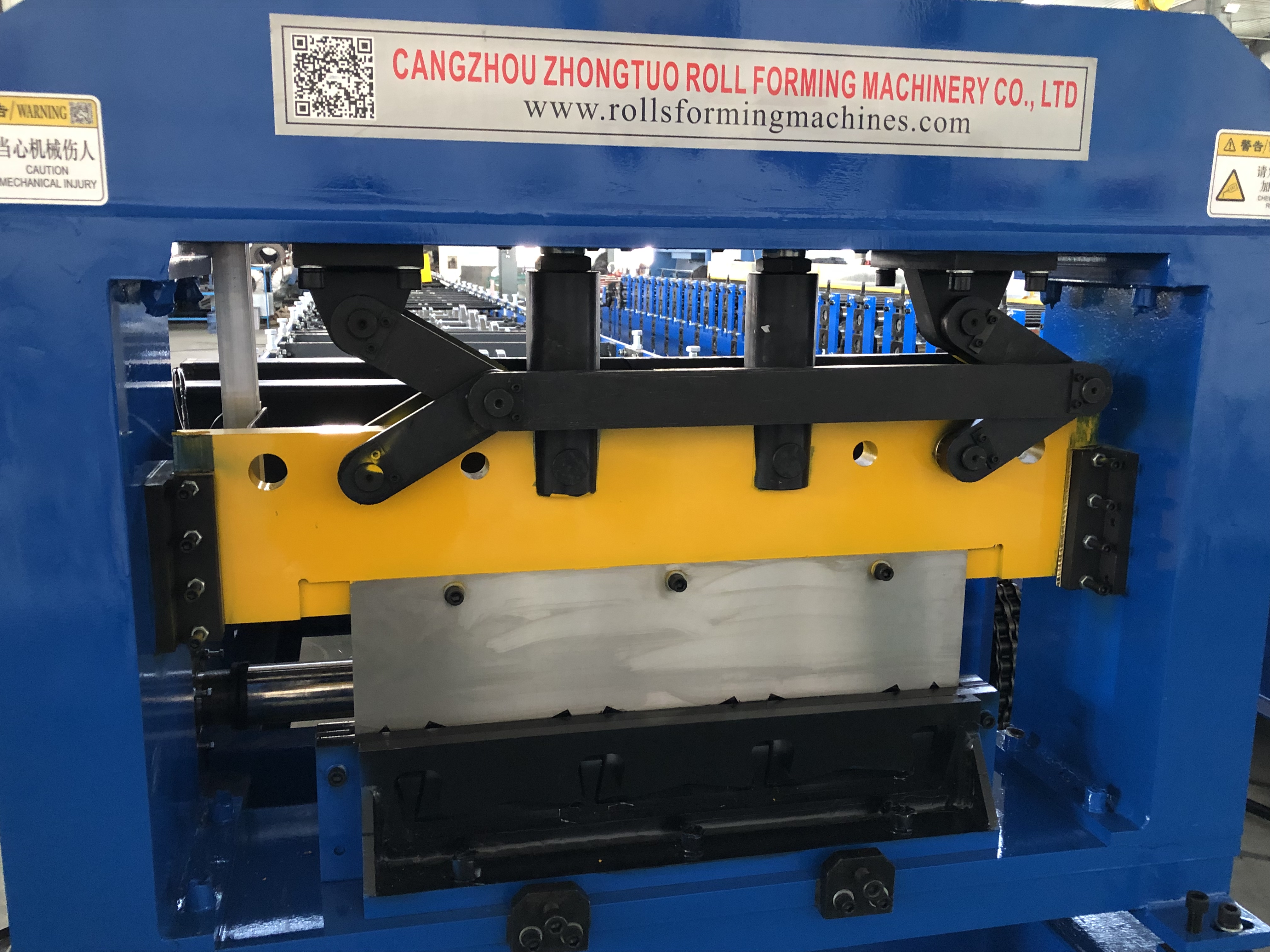

Hydraulic cutting

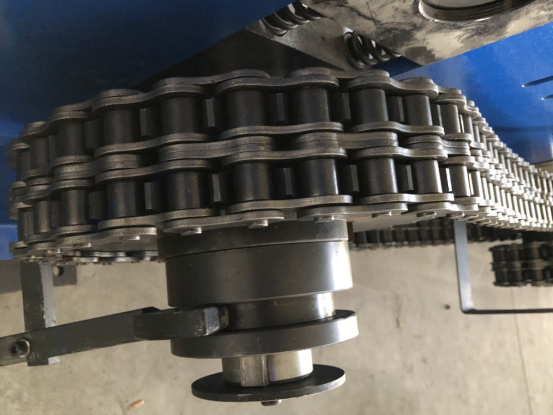

Double chains transmission and clutch

Full automatic PLC control cabinet

Adopted Aviation plug for easy installation

Where is our floor tile making machine better than other manufacturer?

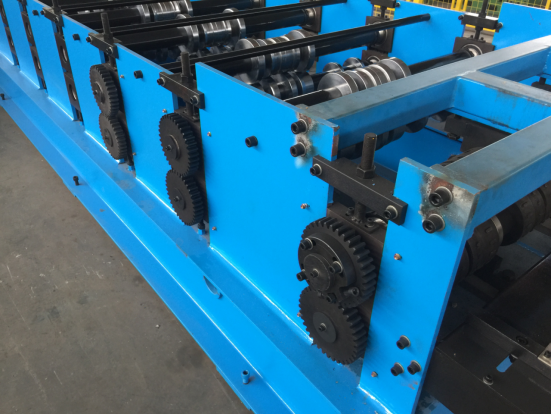

1. Add three pairs of gears in the first three station of rollers

To ensure the rollers keep the same working speed and give the active power to the up rollers and down rollers to help feeding the metal sheet.

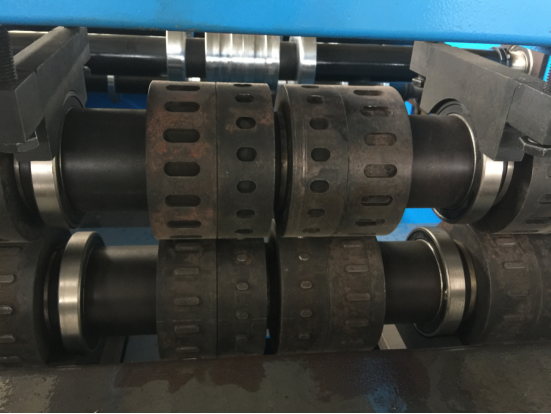

2.Embossing rollers add a pairs of bears

Help bracing the shaft to prevent the roller shaft abrasion.
